The crystal structure of bis(acetato-κ1O)-bis(N′-hydroxypyrimidine-2-carboximidamide-κ2N,N′)manganese(II) — methanol (1/2), C14H18MnN8O6, 2(CH3OH)′

  • Xiu-Ju Yin EMAIL logo and Long-Guan Zhu
Published/Copyright: May 27, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 5

Abstract

C16H26MnN8O8, monoclinic, C2/c (no. 15), a = 15.3188(9) Å, b = 10.9014(7) Å, c = 14.3601(9) Å, β = 90.516(5)°, Z = 4, V = 2398.0(3) Å3, Rgt(F) = 0.0377, wRref(F2) = 0.0942, T = 293(2) K.

CCDC no.: 1874416

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.26 × 0.23 × 0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.61 mm−1
Diffractometer, scan mode:Xcalibur, ω
θmax, completeness:26.7°, >99%
N(hkl)measured, N(hkl)unique, Rint:5225, 2526, 0.023
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2115
N(param)refined:154
Programs:CrysAlisPRO [1], SHELX [2], [3], Diamond [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.41882(12)0.43962(17)0.42520(13)0.0283(4)
C1M0.3231(2)1.1030(3)0.3637(2)0.0867(10)
H1MA0.3078541.1695330.4041690.130*
H1MB0.2945311.1136730.3044540.130*
H1MC0.3851641.1017610.3552150.130*
C20.49843(12)0.36342(18)0.41205(12)0.0298(4)
C30.58402(16)0.2079(2)0.45930(18)0.0550(6)
H30.5956220.1427930.4993900.066*
C40.64281(15)0.2342(2)0.39139(18)0.0539(6)
H40.6937000.1886430.3847570.065*
C50.62388(13)0.3303(2)0.33350(16)0.0432(5)
H50.6626740.3498270.2863170.052*
C60.37944(15)0.7852(2)0.21212(15)0.0432(5)
C70.3737(3)0.8902(3)0.1456(2)0.1025(14)
H7A0.4086150.9570000.1685570.154*
H7B0.3140390.9161720.1397370.154*
H7C0.3947850.8649150.0858810.154*
Mn10.5000000.55998(4)0.2500000.03079(15)
N10.40692(10)0.52463(15)0.36426(11)0.0331(4)
N20.36745(11)0.41508(17)0.49715(11)0.0393(4)
H2A0.3212410.4581160.5061450.047*
H2B0.3804830.3561880.5346210.047*
N30.51053(12)0.27171(17)0.47059(12)0.0425(4)
N40.55106(10)0.39705(15)0.34274(11)0.0325(4)
O10.33195(9)0.59297(15)0.38361(11)0.0465(4)
H10.3328590.6571680.3538670.070*
O1M0.29675(15)0.99355(18)0.40281(14)0.0707(6)
H1M0.3121620.9364120.3696520.106*
O20.41679(10)0.68976(14)0.18477(10)0.0434(4)
O30.34587(12)0.79693(15)0.29061(11)0.0589(5)

Source of material

Under stirring, 69 mg (0.5 mmol) pmadH2N′-hydroxypyrimidine-2-carboximidamide was added to the solution of manganese(II) acetate tetrahydrate (49 mg, 0.2 mmol) in methanol (20 mL), which had to be light yellow to clarify the solution by slightly heating. The final solution was filtered and settled at room temperature to yield yellow crystals. Yield: 71 mg, 58% (based on pmadH2); elemental analysis calcd: C, 37.43; H, 5.10; N, 21.83; Found: C, 37.32; H, 4.840; N, 22.25. IR(KBr): 3472, 3298, 2727, 2375, 2344, 1572, 1388, 1343, 1213, 1190, 849, 818, 655, 616, 502 cm−1.

Experimental details

Single-crystal X-ray diffraction data for the title structure was collected on Oxford Diffraction Xcalibur CCD diffractometer by ‘CrysAlisPro [1].

The structure was solved with the ShelXT [2] structure solution program and refined with XL [3] refinement package. The positions of the hydrogen atoms were generated geometrically. The figure was drawn by Diamond 4.5.2 [4].

Comment

A limited number of coordination compounds based on N′-hydroxypyrimidine-2-carboximidamide have been structurally characterized and reported. So far, to the best of our knowledge, only ten examples of coordination compound containing N′-hydroxypyrimidine-2-carboximidamide have been reported [5], [6], [7], [8], [9]. The title structure is neutral discrete mononuclear manganese complex. The structure design and synthesis of new manganese complexes are beneficial to the study of magnetic materials.

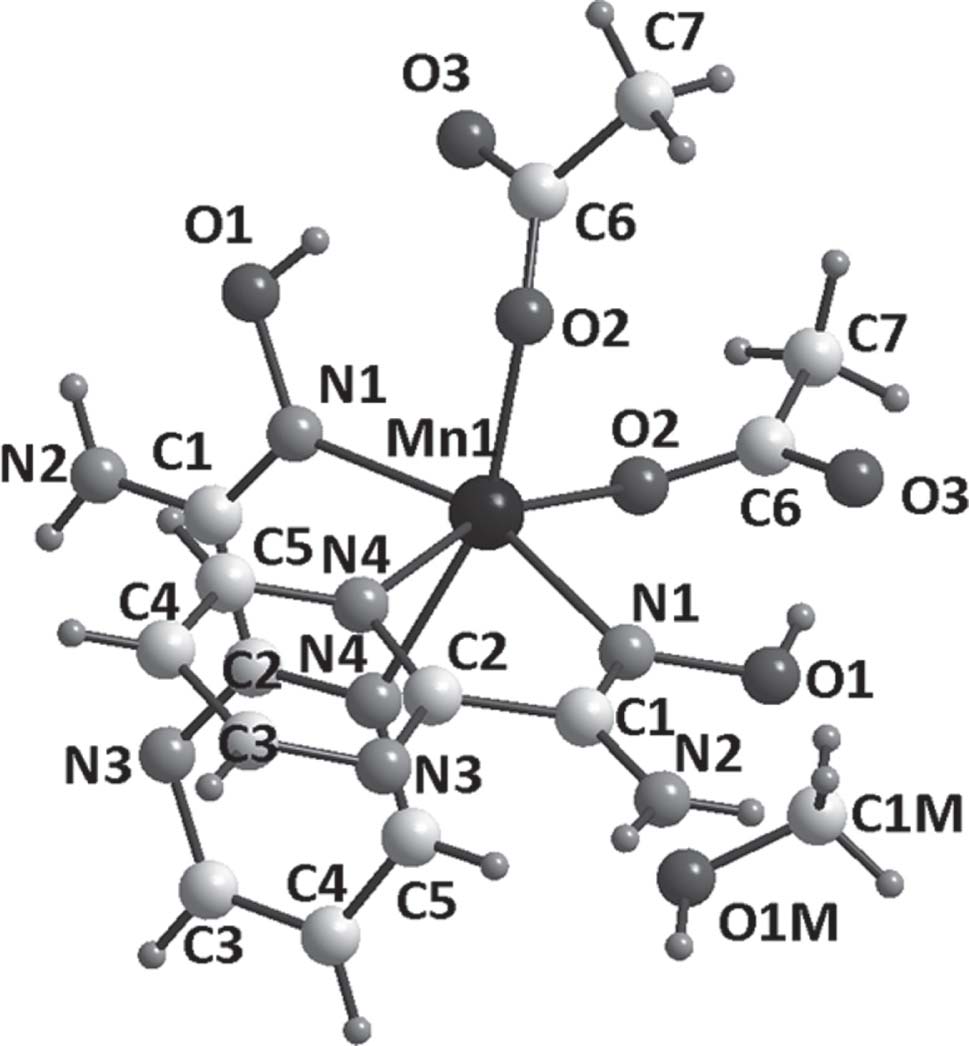

The asymmetric unit of the title structure contains one N′-hydroxypyrimidine-2-carboximidamide, one acetato ligand and one methanol molecule. The bond lengths and angles within structure are unexceptional and lie within the expected ranges. In details, the C—O distances have values between 1.359(1)–1.434(1) Å. The N1—O2 distance is 1.408(1) Å. The N1—C11 distance is 1.276(1) Å, which suggest N=C double bonds. The intermolecular H-bonds, O—H⋯N (dO⋯N = 2.776(2) Å; dH⋯N = 1.89 Å; ∠OHN = 156.1°, connect neighboring molecular units. Mn adapts a stable six coordinated model. Two pmadH2 ligand act as bidentate neutral N,N′ donors, the last two coordination sites were occupied by O atoms from two acetato ligands. The second H-bond originates from O1M—H1M⋯O3 dO-O = 2.789(1) Å, angle OHO = 178(2)°.

Acknowledgements

This work was supported by the project of undergraduate teaching reform of higher education in Guangxi (No. 2018JGA254), the subject of ‘12th Five-Year’ Plan of Guangxi Education Science (No. 2015C408), Guangxi Natural Science Foundation (No. 2018GXNSFAA138140) and the project of education department of Guangxi province (No. YB2014331).

References

1. Oxford Diffraction: CrysAlisPRO, Oxford Diffraction Ltd, Abingdon, Oxfordshire, England (2006).Search in Google Scholar

2. Sheldrick, G. M.: SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Diamond 4.5.2, Crystal Impact GbR, Bonn, Germany (2018).Search in Google Scholar

5. Golr, B.; Chakrabarty, R.; Mukherjee, S.; Song, Y; Mukherjee, P. S.: Use of 2-pyrimidineamidoxime to generate polynuclear homo-/heterometallic assemblies: synthesis, crystal structures and magnetic study with theoretical investigations on the exchange mechanism. Dalton Trans. 39 (2010) 9766–9778.10.1039/c0dt00353kSearch in Google Scholar PubMed

6. Dolai, M.; Saha, U.; Kumar, G. S.; Ali, M.: Amidooxime-based mononuclear Mn(II) complexes: synthesis, characterization, and studies on DNA binding and nuclease activity. ChemistrySelect 3 (2018) 6935–6941.10.1002/slct.201801298Search in Google Scholar

7. Kalogridis, C.; Palacios, M. A.; Rodriguez-Dieguez, A.; Mota, A. J.; Choquesillo-Lazarte, D.; Brechin, E. K.; Colacio, E.: Heterometallic oximato-bridged linear trinuclear NiII, MIII, NiII (MIII = Mn, Fe, Tb) complexes constructed with the fac-O3 [Ni(HL)3]− metalloligand (H2L = pyrimidine-2-carboxamide oxime): a theoretical and experimental magneto-structural study. Eur. J. Inorg. Chem. 2011 (2011) 5225–m585.10.1002/ejic.201100700Search in Google Scholar

8. Palacios, M. A.; Mota, A. J.; Perea-Buceta, J. E.; White, F. J.; Brechin, E. K.; Colacio, E.: Antiferromagnetic versus ferromagnetic exchange interactions in bis(μ-Ooximate)dinickel(II)units for a series of closely elated cube shaped carboxamideoximate-bridged Ni4 complexes. A combined experimental and theoretical magneto-structural study. Inorg. Chem. 49 (2010) 10156–10165.10.1021/ic101435bSearch in Google Scholar

9. Lopez, M. A. P.; White, F.; Brechin, E.: CSD Communication (Private Communication), CCDC 1411912–1411913.Search in Google Scholar

10. Dolai, M.; Saha, U.; Kumar, G. S.; Ali, M.: Amidooxime-based mononuclear Mn(II) complexes: synthesis, characterization, and studies on dna binding and nuclease activity. ChemistrySelect 3 (2018) 6935–6941.10.1002/slct.201801298Search in Google Scholar

Received: 2019-02-28
Accepted: 2019-04-24
Published Online: 2019-05-27
Published in Print: 2019-09-25

©2019 Xiu-Ju Yin et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
