Crystal structure of the co-crystal 4-[(4-carboxyphenyl)disulfanyl]benzoic acid–(1E,4E)-1-N,4-N-bis(pyridin-4-ylmethylidene)cyclohexane-1,4-diamine (1/1), C14H10O4S2⋅C18H20N4

  • Sang Loon Tan and Edward R.T. Tiekink ORCID logo EMAIL logo
Published/Copyright: August 17, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 5

Abstract

C32H30N4O4S2, monoclinic, I2/a (no. 15), a = 21.2034(7) Å, b = 5.0614(2) Å, c = 27.5987(12) Å, β = 105.991(4)°, V = 2847.3(2) Å3, Z = 4, Rgt(F) = 0.0431, wRref(F2) = 0.1246, T = 100(2) K.

CCDC no.: 1945351

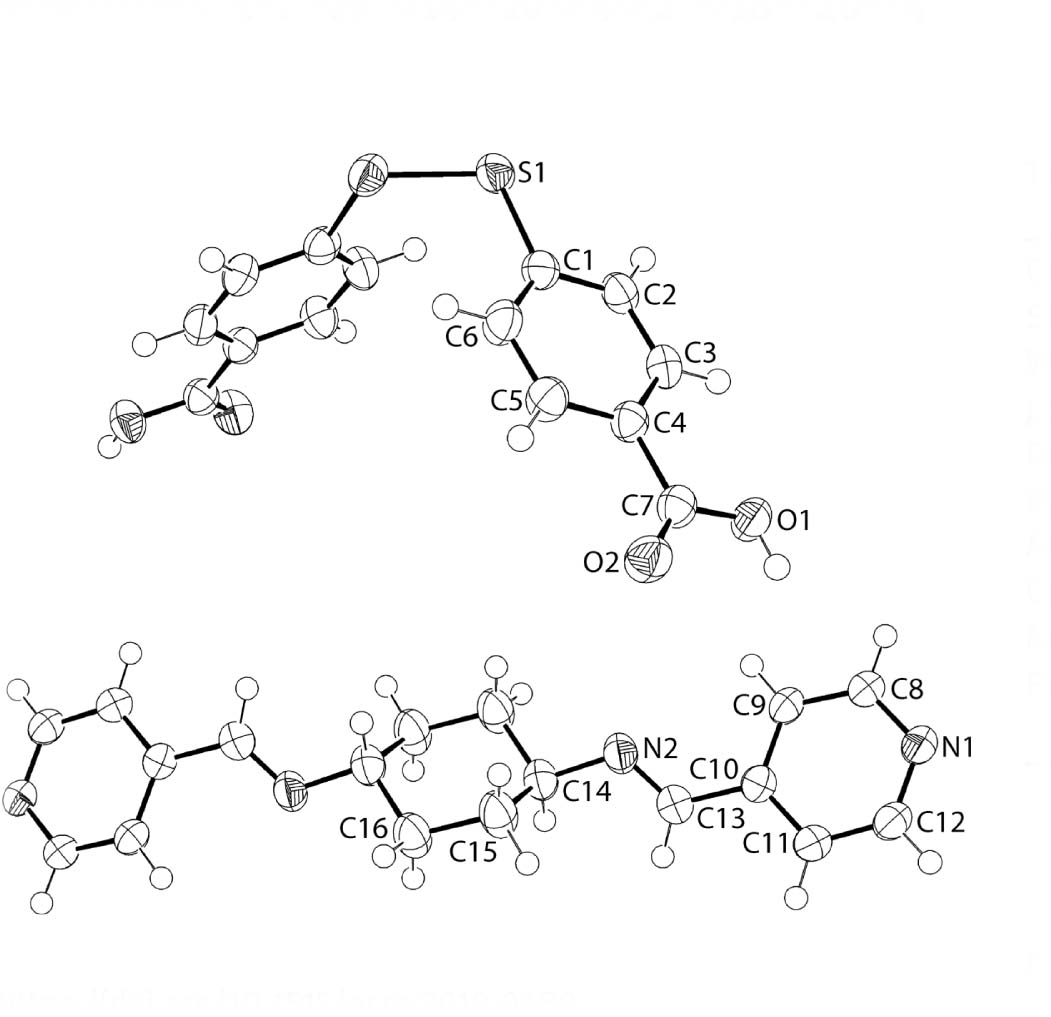

The molecular structures are shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless prism
Size:0.16 × 0.10 × 0.06 mm
Wavelength:Cu Kα radiation (1.54184 Å)
μ:2.07 mm−1
Diffractometer, scan mode:XtaLAB Synergy, ω
θmax, completeness:76.9°, >99%
N(hkl)measured, N(hkl)unique, Rint:34319, 2996, 0.063
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2795
N(param)refined:193
Programs:CrysAlisPRO [1], SHELX [2], [3], WinGX/ORTEP [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
S10.70397(2)1.25411(8)0.47699(2)0.02786(16)
O10.61712(6)0.3255(3)0.30000(5)0.0291(3)
H1O0.6164(12)0.211(4)0.2777(7)0.044*
O20.72569(6)0.2874(3)0.31164(5)0.0329(3)
N10.60383(7)−0.4412(3)0.73461(5)0.0272(3)
N20.52646(7)0.1957(3)0.59005(6)0.0306(3)
C10.70173(8)0.9950(3)0.43315(6)0.0242(3)
C20.63918(8)0.9125(3)0.40682(6)0.0259(3)
H20.6017920.9894430.4138620.031*
C30.63136(8)0.7185(3)0.37037(7)0.0263(4)
H30.5885250.6637980.3521790.032*
C40.68600(8)0.6026(3)0.36015(6)0.0237(3)
C50.74839(8)0.6844(4)0.38727(7)0.0284(4)
H50.7858440.6049560.3807840.034*
C60.75666(8)0.8798(4)0.42354(7)0.0291(4)
H60.7994650.9349290.4417340.035*
C70.67887(8)0.3894(3)0.32177(6)0.0250(3)
C80.54347(8)−0.3588(4)0.70955(7)0.0278(4)
H80.506677−0.4412020.7165380.033*
C90.53257(8)−0.1595(4)0.67407(7)0.0277(4)
H90.489132−0.1094130.6564160.033*
C100.58639(8)−0.0326(3)0.66453(6)0.0263(4)
C110.64912(8)−0.1116(4)0.69167(7)0.0296(4)
H110.686848−0.0248140.6871880.035*
C120.65532(8)−0.3200(4)0.72544(7)0.0301(4)
H120.698118−0.3790350.7427890.036*
C130.57796(9)0.1793(4)0.62631(7)0.0297(4)
H130.6119300.3055370.6290810.036*
C140.52312(9)0.4082(4)0.55304(7)0.0319(4)
H140.5461580.5680470.5707130.038*
C150.55623(10)0.3195(4)0.51338(8)0.0380(5)
H15A0.5367240.1501360.4985370.046*
H15B0.6034660.2891150.5296060.046*
C160.54863(9)0.5243(4)0.47160(8)0.0370(4)
H16A0.5685680.4551270.4456650.044*
H16B0.5725290.6870050.4858480.044*

Source of material

The title co-crystal was prepared through physical mixing of 4-mercaptobenzoic acid (Acros, Geel, Antwerp, Belgium) (0.154 g, 1 mmol) and N,N′-bis((pyridine-4-yl)methylene)-cyclohexane-1,4- diamine [5] (0.292 g, 1 mmol) in a 1:1 molar ratio. Colourless crystals were obtained three days after crystallization by the layering of benzene (2 mL) onto an equivalent volume of DMSO containing the dissolved mixture. M.pt: 438–439 K. IR (ATR, cm−1): 3060(w) ν(N—H), 2940–2826(m) ν(C—H), 1675(m) ν(C=O), 1556(m) ν(C=N), 1321(m) ν(C—N), 815(s) δ(C=C).

Experimental details

The C-bound H atoms were geometrically placed (C—H = 0.95–0.99 Å) and refined as riding with Uiso(H) = 1.2Ueq(C). The O-bound H atoms were located in difference Fourier maps but were refined with a distance restraint of O—H = 0.84 ± 0.01 Å, and with Uiso(H) set to 1.5Ueq(O).

Comment

The isolation and crystallographic characterization of the title co-crystal is a rare example formed by one of the isomeric Schiff bases, N,N′-bis((pyridine-n-yl)methylene)cyclohexane-1,4-diamine, for n = 2, 3 and 4 [5]. The co-crystal co-former is disulfide 4-[(4-carboxyphenyl)disulfanyl]benzoic acid (4-DTBA), whose crystal structure has been reported in the literature [6]. The observation of n-DTBA, or its derived di-anion, arises from the oxidation of the n-mercaptobenzene, for n = 2, 3 and 4, starting material, as has been commented upon previously [7], [8], [9]; the species with a single sulfur bridge has also been found [10]. Up to the present time, a characteristic of the aforementioned Schiff bases is their breakdown during co-crystallization [11], [12], [13], [14]. Often, this results in isolation of cyclohexane-1,4-diammonium di-cation [11], [12], [13]. Intriguingly, the original 2-pyridyl isomer of the Schiff base has also been converted to a 2-(4-ammoniocyclohexyl)-3-(pyridin-2-yl)imidazo[1,5-a]pyridin-2-ylium di-cation [14]. Herein, as a continuation of studies in this area and employing the same general procedure as previously, perhaps unexpectedly, the anticipated 1:1 co-crystal was formed from 4-mercaptobenzoic acid and the n = 4 isomer of the Schiff base.

The molecular structures of the two components of the title crystal are shown in the figure (70% probability displacement ellipsoids with unlabelled atoms for the 4-DTBA molecule being related by 3/2 − x, y, 1 − z and for the Schiff base, by 1 − x, 1 − y, 1 − z). The 4-DTBA molecule exhibits crystallographic 2-fold asymmetry. The disparity in the C7—O1, O2 bond lengths [1.321(2) and 1.218(2) Å] confirm the presence of the acid. The carboxyl group is co-planar with the phenyl ring to which it is attached, as seen in the dihedral angle between the two planes of 1.38(8)°. The characteristic orthogonal relationship between the phenyl rings is evidenced by the dihedral angle of 88.41(41)° between them, giving rise to a twisted, U-shaped molecule. The Schiff base is disposed about a center of inversion, as found in the free Schiff base [5]. However, a difference between the molecules is apparent in that in the free form [5], the C=C(H)C5H4N residue is almost orthogonal to the best plane through the cyclohexyl ring (which adopts a chair conformation in both structures) as seen in the dihedral angle of 86.01(5)°. This compares with the comparable angle in the title co-crystal of 38.93(3)° which arises from a twist about the C10—C13 bond, with the C9—C10—C13—N2 torsion angle being −24.0(3)°.

The key hydrogen bonding interactions in the crystal are of the type hydroxy-O—H⋯N(pyridyl) [O1—H1o⋯N1i: H1o⋯N1i = 1.78(2) Å, O1⋯N1i = 2.615(2) Å with angle at H1o = 170(2)° for symmetry operation (i) x, −1/2 − y, −1/2 + z]. The hydrogen bonding interactions lead to the formation of a supramolecular chain along the c axis direction, having a zigzag topology, being propagated by glide symmetry. The repeat distance of 35.1 Å is rather long as, owing to the kink in the 4-DTBA molecule, the edges are defined by a full Schiff base molecule and two half 4-DTBA molecules; the pitch is 53.4 Å. The 4-DTBA molecules stack along the b axis and are connected into a column by side-on C=O⋯π(phenyl) interactions [C7—O2⋯Cg(C1—C6)ii: O2⋯Cg(C1—C6)ii = 3.6026(16) Å, C7⋯Cg(C1—C6)ii = 3.6015(17) Å with angle at O2 = 80.22(10)° for (ii) x, 1 + y, z]. The layers thus formed are connected laterally to form a three-dimensional architecture by pyridyl-C—H⋯O(carbonyl) interactions [C11—H11⋯O2iii: H11⋯O2iii = 2.43 Å, C11⋯O2iii = 3.357(2) Å with angle at H11 = 165° for (iii) 3/2 − x, y, 1 − z].

Given the nature of weak interactions sustaining the supramolecular chains into a three-dimensional architecture, the Hirshfeld surfaces as well as the full and delineated two-dimensional fingerprint plots were calculated for the individual (symmetry expanded) co-crystal co-formers, using literature procedures [15] and Crystal Explorer 17 [16], in order to determine the most important contacts in the molecular packing.

Eleven different contacts were revealed in the analysis of the 4-DTBA molecule with the prominent contacts being H⋯H [39.4%] followed by O⋯H/H⋯O [14.4%], S⋯C/C⋯S [10.0%] and C⋯H/H⋯C [9.2%]. Significant contributions are also made by N⋯H/H⋯N [6.7%], S⋯H/H⋯S [6.6%], O⋯C/C⋯O [6.5%] and C⋯C [6.0%] contacts. Fractions of a percentage contributions are made by O⋯N/N⋯O [0.6%], N⋯C/C⋯N [0.4%] and O⋯O [0.1%]. Some significant differences are noted in the contributors to the surface of the Schiff base. Reflecting the change in chemical composition, contributions from H⋯H [52.0%], C⋯H/H⋯C [17.4%] and N⋯H/H⋯N [12.3%] contacts have increased significantly. Complementing this observation are the decreases in the contributions from O⋯H/H⋯O [9.6%] S⋯H/H⋯S [3.1%], O⋯C/C⋯O [1.0%] and C⋯C [2.5%]. Of the minor surface contacts, contributions from O⋯N/N⋯O [0.6%] contacts remain the same, those from N⋯C/C⋯N [1.6%] increase while there are no O⋯O contacts for the Schiff base molecule.

Funding source: Sunway University Sdn Bhd

Award Identifier / Grant number: STR-RCTR-RCCM-001–2019

Funding statement: Sunway University Sdn Bhd is thanked for financial support of this work through Grant No. STR-RCTR-RCCM-001–2019.

References

1. Rigaku Oxford Diffraction. CrysAlisPRO. Rigaku Corporation, Oxford, UK (2018).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

5. Lai, C. S.; Mohr, F.; Tiekink, E. R. T.: The importance of C—H⋯N, C-H⋯π and π⋯π interactions in the crystal packing of the isomeric N1,N4-bis((pyridine-n-yl)methylene)cyclohexane-1,4-diamines, n = 2, 3 and 4. CrystEngComm 8 (2006) 909–915.10.1039/B613603FSearch in Google Scholar

6. Rowland, C. E.; Belai, N.; Knope, K. E.; Cahill, C. L.: Hydrothermal synthesis of disulfide-containing uranyl compounds: in situ ligand synthesis versus direct assembly. Cryst. Growth Des. 10 (2010) 1390–1398.10.1021/cg901390nSearch in Google Scholar

7. Broker, G. A.; Tiekink, E. R. T.: Co-crystal formation between 2,2′-dithiodibenzoic acid and each of 4,4′-bipyridine, trans-1,2-bis(4-pyridyl)ethene and 1,2-bis(4-pyridyl)ethane. CrystEngComm 9 (2007) 1096–1109.10.1039/b707690hSearch in Google Scholar

8. Broker, G. A.; Bettens, R. P. A.; Tiekink, E. R. T.: Co-crystallisation of 2,2′-dithiodibenzoic acid with the isomeric n-pyridinealdazines, n = 2, 3 and 4: supramolecular polymers and the influence of steric factors upon aggregation patterns. CrystEngComm 10 (2008) 879–887.10.1039/b800797gSearch in Google Scholar

9. Rowland, C. E.; Cantos, P. M.; Toby, B. H.; Frisch, M.; Deschamps, J. R.; Cahill, C. L.: Controlling disulfide bond formation and crystal growth from 2-mercaptobenzoic acid. Cryst. Growth Des. 11 (2011) 1370–1374.10.1021/cg101619ySearch in Google Scholar

10. Tan, S. L.; Tiekink, E. R. T.: A 1:2 co-crystal of 2,2′-thiodibenzoic acid and triphenylphosphane oxide: crystal structure, Hirshfeld surface analysis and computational study. Acta Crystallogr. E74 (2018) 1764–1771.10.1107/S205698901801544XSearch in Google Scholar PubMed PubMed Central

11. Tan, S. L.; Tiekink, E. R. T.: Crystal structure of hemikis(cyclohexane-1,4-diammonium) (pyridine-2-carboxylate), [C6H16N2]0.5[C6H4NO2]. Z. Kristallogr. NCS 234 (2019) 749–751.10.1515/ncrs-2019-0091Search in Google Scholar

12. Tan, S. L.; Tiekink, E. R. T.: Crystal structure of cyclohexane-1,4-diammonium 2-[(2-carboxylatophenyl)disulfanyl]benzoate — dimethylformamide — monohydrate (1/1/1), [C6H16N2][C14H8O4S2]⋅C3H7NO⋅H2O. Z. Kristallogr. NCS 234 (2019) 903–905.10.1515/ncrs-2019-0131Search in Google Scholar

13. Tan, S. L.; Tiekink, E. R. T.: Crystal structure of bis(cyclohexane-1,4-diammonium) 4-[(4-carboxylatophenyl)disulfanyl]benzoate dimethylsulphoxide hydrate (1/1/1/1), [C6H16N2]2+[C14H8O4S2]−2⋅C2H6OS⋅H2O. Z. Kristallogr. NCS 234 (2019) doi: 10.1515/ncrs-2019-0487.10.1515/ncrs-2019-0487Search in Google Scholar

14. Tan, S. L.; Tiekink, E. R. T.: Crystal structure of 2-(4-ammoniocyclohexyl)-3-(pyridin-2-yl)imidazo[1,5-a]pyridin-2-ium 2-[(2-carboxylatophenyl)disulfanyl]benzoate dihydrate, [C18H22N4][C14H8O4S2]⋅2H2O. Z. Kristallogr. NCS 234 (2019) 797–799.10.1515/ncrs-2019-0120Search in Google Scholar

15. Tan, S. L.; Jotani, M. M.; Tiekink, E. R. T.: Utilizing Hirshfeld surface calculations, non-covalent interaction (NCI) plots and the calculation of interaction energies in the analysis of molecular packing. Acta Crystallogr. E75 (2019) 308–318.10.1107/S2056989019001129Search in Google Scholar PubMed PubMed Central

16. Turner, M. J.; Mckinnon, J. J.; Wolff, S. K.; Grimwood, D. J.; Spackman, P. R.; Jayatilaka, D.; Spackman, M. A.: Crystal Explorer v17. The University of Western Australia, Australia (2017).Search in Google Scholar

Received: 2019-07-11
Accepted: 2019-08-05
Published Online: 2019-08-17
Published in Print: 2019-09-25
