The crystal structure of (1E,2E)-2-methyl-4-((7-oxo-7H-furo[3,2-g]chromen-9-yl)oxy)but-2-enal O-isonicotinoyl oxime–trichloromethane (3/1), C67H49Cl3N6O18

  • Xiang Yu , Xu-Li Yang , You-Fang Zhao , Yan Qin , Jing Yan and Ya-Fang Chen EMAIL logo
Published/Copyright: June 22, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 5

Abstract

C67H49Cl3N6O18, triclinic, P1̄ (no. 2), a = 12.3281(4) Å, b = 15.8887(5) Å, c = 16.9037(6) Å, α = 89.015(2)°, β = 77.885(3)°, γ = 72.021(3)°, V = 3075.20(19) Å3, Z = 2, Rgt(F) = 0.0658, wRref(F2) = 0.1558, T = 291.2(3) K.

CCDC no.: 1920714

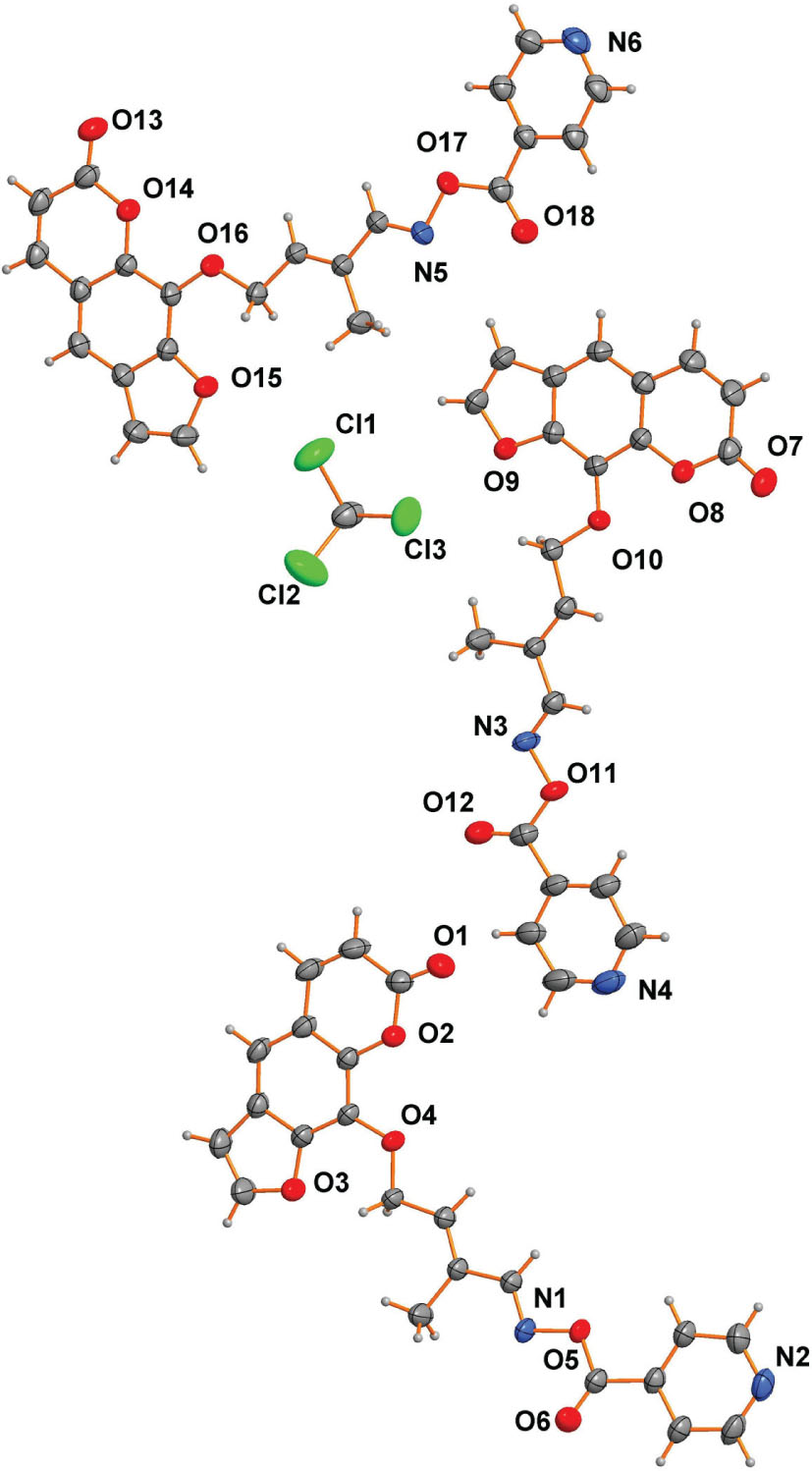

The asymmetric unit of the title crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.29 × 0.27 × 0.26 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.23 mm−1
Diffractometer, scan mode:SuperNova, ω-scans
θmax, completeness:28.4°, >90% (up to 25.34, >99%)
N(hkl)measured, N(hkl)unique, Rint:72823, 13901, 0.055
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 8889
N(param)refined:850
Programs:CrysAlisPRO [1], OLEX2 [2], SHELX [3], [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cl10.58491(10)0.19058(7)0.66204(7)0.1149(4)
Cl20.56603(14)0.25465(12)0.50636(8)0.1525(6)
Cl30.66470(8)0.33636(6)0.60846(7)0.0946(3)
C670.5610(3)0.2840(2)0.60546(19)0.0692(8)
H670.48340.32510.62850.083*
O10.80945(18)0.61618(13)−0.03009(11)0.0665(5)
O20.71619(15)0.62087(11)−0.12853(10)0.0473(4)
O30.50045(17)0.63883(12)−0.33759(11)0.0615(5)
O40.66282(16)0.70181(11)−0.25797(10)0.0530(5)
O50.83821(16)1.03289(11)−0.45831(10)0.0530(5)
O60.8420(2)1.06928(15)−0.58807(13)0.0831(7)
N10.77585(19)0.97342(13)−0.47212(13)0.0513(5)
N21.0134(2)1.27540(16)−0.47343(16)0.0678(7)
C10.7470(2)0.58604(18)−0.05852(16)0.0531(7)
C20.7027(3)0.5149(2)−0.02702(17)0.0650(8)
H20.72140.48990.02040.078*
C30.6360(2)0.48429(18)−0.06392(17)0.0592(7)
H30.61060.4377−0.04240.071*
C40.6029(2)0.52196(16)−0.13596(15)0.0461(6)
C50.5301(2)0.49407(16)−0.17468(16)0.0505(6)
H50.50210.4480−0.15510.061*
C60.5003(2)0.53587(16)−0.24257(15)0.0464(6)
C70.4257(3)0.52903(18)−0.29548(18)0.0603(7)
H70.38340.4893−0.29260.072*
C80.4292(3)0.5904(2)−0.34900(19)0.0708(9)
H80.38780.5999−0.39010.085*
C90.5442(2)0.60502(16)−0.27120(14)0.0439(6)
C100.6178(2)0.63475(15)−0.23527(14)0.0401(5)
C110.6451(2)0.59129(15)−0.16618(14)0.0409(5)
C120.6443(2)0.74217(16)−0.33208(14)0.0453(6)
H12A0.56140.7692−0.32930.054*
H12B0.67550.6980−0.37680.054*
C130.7047(2)0.81056(15)−0.34447(14)0.0435(6)
H130.74190.8197−0.30440.052*
C140.7092(2)0.85944(16)−0.40872(14)0.0441(6)
C150.6556(3)0.8510(2)−0.47887(18)0.0726(9)
H15A0.62650.8012−0.47240.109*
H15B0.71360.8423−0.52840.109*
H15C0.59250.9040−0.48070.109*
C160.7704(2)0.92503(16)−0.41205(15)0.0457(6)
H160.80550.9314−0.36990.055*
C170.8605(2)1.08034(17)−0.52348(17)0.0513(6)
C180.9978(3)1.21611(19)−0.42001(19)0.0661(8)
H181.02151.2181−0.37150.079*
C190.9484(2)1.15128(17)−0.43168(17)0.0552(7)
H190.93881.1113−0.39200.066*
C200.9141(2)1.14754(15)−0.50331(15)0.0460(6)
C210.9301(2)1.20863(16)−0.56068(17)0.0536(7)
H210.90811.2077−0.60990.064*
C220.9797(3)1.27081(18)−0.5426(2)0.0654(8)
H220.99021.3119−0.58090.078*
O71.14311(17)0.68087(13)0.73170(13)0.0676(6)
O81.04284(15)0.58895(11)0.72730(10)0.0494(4)
O90.82594(18)0.38705(12)0.71507(11)0.0613(5)
O100.91144(17)0.53924(11)0.64773(10)0.0578(5)
O110.75199(16)0.69168(12)0.29413(10)0.0561(5)
O120.6475(2)0.64219(15)0.22222(13)0.0814(7)
N30.7337(2)0.62642(15)0.35079(13)0.0557(6)
N40.7390(3)0.89209(17)0.06676(16)0.0785(8)
C231.1107(2)0.62244(18)0.76430(17)0.0545(7)
C241.1360(3)0.5836(2)0.83891(19)0.0669(8)
H241.17910.60610.86700.080*
C251.0998(3)0.51666(19)0.86866(18)0.0621(8)
H251.11900.49300.91640.074*
C261.0318(2)0.48042(16)0.82877(15)0.0449(6)
C270.9934(2)0.40974(17)0.85734(15)0.0501(6)
H271.01280.38240.90380.060*
C280.9259(2)0.38121(16)0.81516(15)0.0472(6)
C290.8692(3)0.31373(18)0.82556(17)0.0596(7)
H290.87220.27310.86600.072*
C300.8122(3)0.32081(19)0.76647(18)0.0686(9)
H300.76740.28480.76010.082*
C310.8970(2)0.42357(16)0.74570(14)0.0445(6)
C320.9348(2)0.49381(15)0.71436(14)0.0426(6)
C331.0035(2)0.52015(15)0.75797(14)0.0409(5)
C340.8543(2)0.50722(16)0.59578(14)0.0454(6)
H34A0.77590.51040.62410.055*
H34B0.89710.44600.57800.055*
C350.8498(2)0.56442(15)0.52490(14)0.0448(6)
H350.89210.60430.51990.054*
C360.7905(2)0.56272(15)0.46874(14)0.0437(6)
C370.7187(3)0.5020(2)0.4682(2)0.0835(11)
H37A0.72130.46720.51510.125*
H37B0.74950.46350.42020.125*
H37C0.63930.53640.46890.125*
C380.7942(2)0.62329(16)0.40303(15)0.0468(6)
H380.84130.65960.39970.056*
C390.7002(3)0.69116(18)0.23070(16)0.0553(7)
C400.7920(3)0.8786(2)0.12809(19)0.0755(9)
H400.83720.91420.13450.091*
C410.7843(3)0.81378(19)0.18402(18)0.0659(8)
H410.82330.80630.22640.079*
C420.7172(2)0.76149(17)0.17439(15)0.0518(7)
C430.6626(3)0.77372(19)0.10986(16)0.0629(8)
H430.61810.73830.10130.075*
C440.6758(3)0.8398(2)0.05848(18)0.0770(10)
H440.63810.84830.01540.092*
O130.45977(19)−0.29029(13)1.01382(12)0.0712(6)
O140.46331(15)−0.19020(11)0.92236(10)0.0497(4)
O150.47470(18)0.02719(12)0.72234(11)0.0646(6)
O160.54589(17)−0.06116(12)0.87266(11)0.0628(5)
O170.91324(16)0.11265(11)1.02146(10)0.0552(5)
O180.95084(19)0.24122(14)0.98983(12)0.0734(6)
N50.8575(2)0.12372(15)0.95355(13)0.0589(6)
N61.1182(2)0.14509(17)1.23502(14)0.0657(7)
C450.4250(2)−0.25836(17)0.95524(17)0.0523(6)
C460.3474(2)−0.28541(17)0.91512(17)0.0553(7)
H460.3189−0.33090.93590.066*
C470.3155(2)−0.24710(16)0.84939(16)0.0503(6)
H470.2663−0.26690.82490.060*
C480.3555(2)−0.17574(15)0.81569(15)0.0437(6)
C490.3237(2)−0.13378(17)0.74784(15)0.0486(6)
H490.2741−0.15100.72160.058*
C500.3672(2)−0.06549(16)0.71983(15)0.0474(6)
C510.3558(3)−0.00791(19)0.65342(17)0.0643(8)
H510.3119−0.00740.61480.077*
C520.4199(3)0.0439(2)0.65813(19)0.0754(10)
H520.42720.08740.62170.090*
C530.4414(2)−0.04088(16)0.76065(15)0.0468(6)
C540.4755(2)−0.08075(16)0.82914(15)0.0451(6)
C550.4300(2)−0.14905(15)0.85507(14)0.0420(6)
C560.6003(2)0.00362(16)0.84509(16)0.0496(6)
H56A0.54170.05960.84090.059*
H56B0.6508−0.01480.79200.059*
C570.6697(2)0.01388(16)0.90423(15)0.0467(6)
H570.6677−0.01980.94970.056*
C580.7338(2)0.06748(16)0.89651(15)0.0495(6)
C590.7428(4)0.1261(2)0.8267(2)0.0965(13)
H59A0.72120.10340.78210.145*
H59B0.82160.12740.81050.145*
H59C0.69130.18490.84280.145*
C600.7978(2)0.07097(16)0.95867(15)0.0468(6)
H600.79500.03451.00220.056*
C610.9570(2)0.17911(18)1.03140(16)0.0505(6)
C621.0453(3)0.1013(2)1.22677(16)0.0615(7)
H621.02930.06361.26710.074*
C630.9916(2)0.10800(18)1.16218(16)0.0533(7)
H630.94200.07501.15880.064*
C641.0130(2)0.16479(17)1.10254(15)0.0467(6)
C651.0869(2)0.21269(18)1.11085(16)0.0540(7)
H651.10160.25271.07250.065*
C661.1382(3)0.2002(2)1.17675(18)0.0621(8)
H661.18930.23151.18110.074*

Source of material

In a representative experiment 9-((3-methylbut-2-en-1-yl)oxy)-7H-furo[3,2-g]chromen-7-one (1.0 mmol) reacted with SeO2 (1.1 mmol) in dioxane (10 mL) at 80 °C to afford the aldehyde. A mixture of the aldehyde (1.0 mmol) hydroxylamine hydrochloride (2.0 mmol)) in pyridine (0.5 mL) and absolute ethanol (10 mL) was stirred at 60 °C, and then reacted with isonicotinic acid, N,N′-dicyclohexylcarbodiimide and 4-dimethylaminopyridine in dry dichloromethane at room temperature. Suitable colorless block crystals of this compound were then obtained after recrystallization from trichloromethane.

Experimental details

The structure was solved with the Olex2 program [2] as an interface together with the SHELXT and SHELXL programs [3], [4]. All non-hydrogen atoms were assigned anisotropic displacement parameters in the refinement. Hydrogen atoms were treated using a riding model.

Discussion

Coumarins are natural products with diverse bioactivities such as anti-inflammatory [5], anti-tumor [6], and antimicrobial activity [7]. In order to discover more coumarin derivatives with potential bioactivities, here we prepared a coumarin-based derivative by introduction of pyridine into the coumarin.

There are three cystallographically independent molecules (3(C22H16N2O6)) and one solvent molecule (CHCl3) in the asymmetric unit, and all bond lengths are in normal ranges and they are similar with the known compound [8], [9]. In one of independent molecule (C22H16N2O6), the typical bond length of C—C double bond (atoms C14—C16) was 1.326(3) Å, and C—N double bond (atoms N1—C16) with 1.266(3) Å. In addition, both of the configuration of the C—C double bond and the configuration C—N double bond are in E configuration.

Acknowledgements

We acknowledge the supports by the Science and Technology Fund of Guizhou [No. (2017)5735–22], the Youth Talent Development Project of Guizhou Provincial Department of Education [2017]169, and Undergraduate Training Program for Innovation and Entrepreneurship [2017]158 and [2018]32.

References

1. Oxford Diffraction. CrysAlis PRO 1.171.39.46, SCALE3 ABSPACK. Oxford Diffraction Ltd, Yarnton, England (2018).Search in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

3. Sheldrick, G. M.: SHELXT C integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

4. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

5. Adad, M. J.; Delas, H. B.; Silvan, A. M.: Effects of furocoumarins from cachrys trifida on some macrophage unctions. J. Pharm. Pharmacal. 8 (2001) 1163–1168.10.1211/0022357011776432Search in Google Scholar

6. Kim, Y. K.; Kim, Y. S.; Ryu, S. Y.: Antiproliferative effect of furanocoumarins from the root of angelica on cultured human tumor cell lines. Phytother Res. 3 (2007) 288–300.10.1002/ptr.2043Search in Google Scholar PubMed

7. Rosselli, S.; Maggio, A.; Bellone, G.: Antibacterial and anticoagulant activities of coumarins isolated from the flowers of magydaris tomentosa. Planta Med. 2 (2007) 116–120.10.1055/s-2006-951772Search in Google Scholar PubMed

8. Altinbas, O.; Dondas, H. A.; Arslan, H.; Külcü, N.; Killner, C.: Crystal structure of E-benzaldehyde O-benzoyloxime, C14H11NO2. Z. Kristallogr. NCS 219 (2004) 411–412.10.1524/ncrs.2004.219.14.411Search in Google Scholar

9. Cox, P. J.; Jaspars, M.; Kumarasamy, Y.; Nahar, L.; Sarker, S. D.; Shoeb, M.: A mixed crystal of imperatorin and phellopterin, with C–H⋯O, C–H⋯π and π-π interactions. Acta Crystallogr. C59 (2003) o520–o522.10.1107/S0108270103012459Search in Google Scholar PubMed
