The crystal structure of 3-methoxyphenanthridin-6(5H)-one, C14H11NO2

  • Deng-Ze Wu EMAIL logo
Veröffentlicht/Copyright: 13. Mai 2019
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 234 Heft 5

Abstract

C14H11NO2, monoclinic, P21/c (no. 14), a = 12.7731(19) Å, b = 5.4767(9) Å, c = 17.3616(18) Å, β = 119.747(7)°, V = 1054.5(3) Å3, Z = 4, Rgt(F) = 0.0562, wRref(F2) = 0.1907, T = 298(2) K.

CCDC no.: 1903701

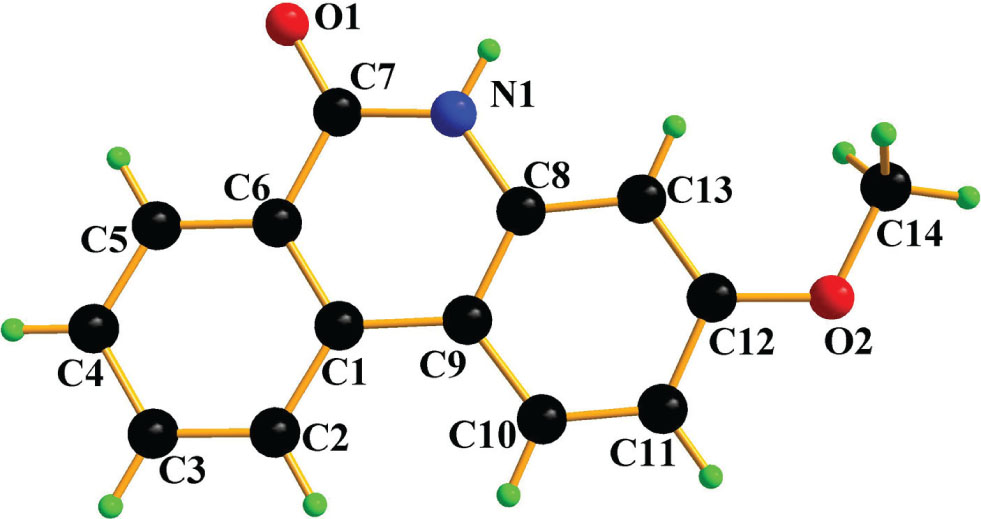

The molecular structure of the title crystal structure is shown in the figure (atoms are drawn with arbitrary radii). Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Source of material

The title compound was obtained according to the literature method [5]. Single crystal suitable for X-ray diffraction were grown during slow evaporation of a mixture of ethyl acetate and petroleum ether.

Table 1:

Data collection and handling.

Crystal:Prism, colorless
Size:0.25 × 0.21 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.10 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω-scans
θmax, completeness:25.1°, >98%
N(hkl)measured, N(hkl)unique, Rint:7224, 1856, 0.023
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1655
N(param)refined:155
Programs:CrysAlisPRO [1], SHELX [2], [3], DIAMOND [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.65335(18)1.4052(4)1.04173(12)0.0309(5)
O20.10937(18)0.8896(4)0.70427(14)0.0388(6)
N10.4843(2)1.2381(4)0.93005(14)0.0260(5)
H10.4426301.3519500.9361830.031*
C10.6166(3)0.8733(5)0.90424(18)0.0268(6)
C20.6881(3)0.6964(5)0.89365(19)0.0313(7)
H20.6515120.5760880.8505920.038*
C30.8122(3)0.6991(6)0.9465(2)0.0386(7)
H30.8581710.5801350.9388420.046*
C40.8693(3)0.8789(6)1.0114(2)0.0392(8)
H40.9527960.8801461.0467570.047*
C50.8002(3)1.0541(6)1.0222(2)0.0357(7)
H50.8376671.1745361.0650980.043*
C60.6747(3)1.0533(5)0.96955(18)0.0274(6)
C70.6054(2)1.2450(5)0.98415(17)0.0257(6)
C80.4217(2)1.0626(5)0.86554(17)0.0242(6)
C90.4851(2)0.8749(5)0.85166(17)0.0247(6)
C100.4162(3)0.6988(5)0.78704(18)0.0281(6)
H100.4556970.5720870.7762510.034*
C110.2929(3)0.7086(5)0.73962(19)0.0304(6)
H110.2497260.5895420.6974340.036*
C120.2325(2)0.8977(5)0.75488(18)0.0294(6)
C130.2963(2)1.0768(5)0.81720(18)0.0270(6)
H130.2559811.2045840.8266090.032*
C140.0437(3)1.0860(6)0.7145(3)0.0467(9)
H14A0.0633241.0964600.7753880.070*
H14B−0.0411881.0573470.6777020.070*
H14C0.0649331.2363450.6972030.070*

Experimental details

H atoms bonded were positioned geometrically and refined using a riding model, with C—H = 0.93/0.96/0.97 Å and N—H = 0.86 Å with Uiso = 1.2 times Ueq(C) and 1.2 times Ueq(N).

Discussion

In recent years, phenanthridinone has been found to be a key core unit in some natural products with important biological activities [6], [7], [8] and drug molecules for the treatment of nerve diseases [9], [10], [11]. Thus, the synthesis and crystal structures of various phenanthridinone derivatives have attracted great attention [5], [12].

There is one molecule in the asymmetric unit. In the title compound, the two benzo rings and the pyridin-2(1H)-one ring are in the same plane, indicating the compound is an almost planar molecule. This planar parent structure is also present in the previously reported phenanthridinone derivatives [5], [13]. The molecules of the title compound in the same layer are connected by N(1)—H(1)⋯O(1) hydrogen bonds (donor-acceptor distance: 2.829 Å), which is in agreement with that in previously reported structure of phenanthridone [13]. The molecules in the next layers are stabilized by two kinds of aromatic C—H⋯π (2.805 and 3.441 Å) and π–π stacking interaction with a distance of 3.686 Å between the pyridin-2(1H)-one moieties.

Acknowledgements

I acknowledge the financial support from Wenzhou University for the publication fee.

References

1. Oxford Diffraction Ltd, CrysAlisPRO, Abingdon, Oxfordshire, England (2006).Suche in Google Scholar

2. Sheldrick, G. M.: SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Suche in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar PubMed PubMed Central

4. Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Ver. 4.0. Crystal Impact, Bonn, Germany (2015).Suche in Google Scholar

5. Saha, R.; Sekar, G.: Stable Pd-nanoparticles catalyzed domino CAH activation/CAN bond formation strategy: An access to phenanthridinones. J. Catal. 366 (2018) 176–188.10.1016/j.jcat.2018.08.009Suche in Google Scholar

6. Sarikaya, B. B.; Zencir, S.; Somer, U. N.; Kaya, G. I.; Onur, M. A.; Bastida, J.; Berenyi, A.; Zupko, I.; Topcu, Z.: The effects of arolycoricidine and narciprimine on tumor cell killing and topoisomerase activity. Rec. Nat. Prod. 6 (2012) 381–385.Suche in Google Scholar

7. Chakthong, S.; Ampaprom, R.; Inparn, S.; Phetkul, U.; Chusri, S.; Limsuwan, S.; Voravuthikunchai, S. P.: New alkylamide from the stems of zanthoxylumnitidum. Nat. Prod. Res. 33 (2019) 153–161.10.1080/14786419.2018.1440218Suche in Google Scholar PubMed

8. Wurz, G.; Hofer, O.; Greger, H.: Structure and synthesis of phenaglydon, a new quinolone derived phenanthridine alkaloid from Glycosmis cyanocarpa. Nat. Prod. Lett. 3 (1993) 177–182.10.1080/10575639308043859Suche in Google Scholar

9. Ruchelman, A. L.; Houghton, P. J.; Zhou, N.; Liu, A.; Liu, L. F.; LaVoie, E. J.: 5-(2-Aminoethyl)dibenzo[c,h][1,6]naphthyridin-6-ones: variation of n-alkyl substituents modulates sensitivity to efflux transporters associated with multidrug resistance. J. Med. Chem. 48 (2005) 792–804.10.1021/jm049447zSuche in Google Scholar PubMed

10. Lin, S. Y.; Liu, C. L.; Chang, Y. M.; Zhao, J.; Perlman, S.; Hou, M. H.: Structural basis for the identification of the N-terminal domain of coronavirus nucleocapsid protein as an antiviral target. J. Med. Chem. 57 (2014) 2247–2257.10.1021/jm500089rSuche in Google Scholar PubMed PubMed Central

11. Haikarainen, T.; Narwal, M.; Joensuu, P.; Lehtio, L.: Evaluation and structural basis for the inhibition of tankyrases by PARP inhibitors. Med. Chem. Lett. 5 (2014) 18–22.10.1021/ml400292sSuche in Google Scholar PubMed PubMed Central

12. Harayama, T.; Akamatsu, H.; Okamura, K.; Miyagoe, T.; Akiyama, T.; Abe, H.; Takeuchi, Y.: Synthesis of trisphaeridine and norchelerythrine through palladiumcatalyzed aryl-aryl coupling reaction. J. Chem. Soc. Perkin Trans. 1 (2001) 523–528.10.1039/b008683pSuche in Google Scholar

13. Sen, D. K.: Crystal and molecular structure of phenanthridone. Acta Crystallogr. B26 (1970) 1629–1630.10.1107/S0567740870004594Suche in Google Scholar

Received: 2019-03-25
Accepted: 2019-04-17
Published Online: 2019-05-13
Published in Print: 2019-09-25

©2019 Deng-Ze Wu, published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
