Crystal structure and optical properties of 1,6-bis(methylthio)pyrene, C18H14S2

  • , , and EMAIL logo
Published/Copyright: May 27, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 5

Abstract

C18H14S2, monoclinic, P21/c (no. 14), a = 10.196(3) Å, b = 14.756(4) Å, c = 9.508(3) Å, β = 103.965(14)°, V = 1388.3(7) Å3, Z = 4, Rgt(F) = 0.0480, wRref(F2) = 0.1207, T = 200(2) K.

CCDC no.: 1910701

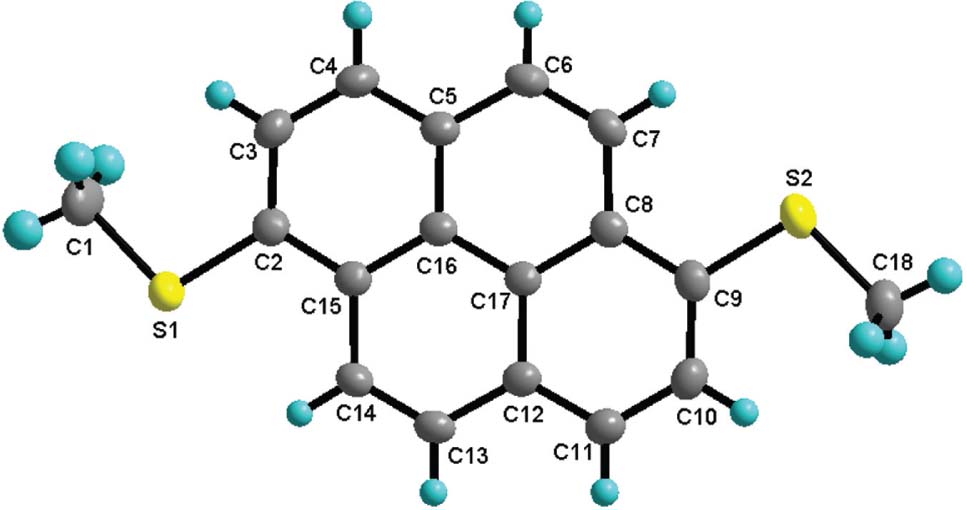

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.12 × 0.10 × 0.08 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.37 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:29.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:12544, 3858, 0.094
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2747
N(param)refined:183
Programs:Bruker [1], SHELX [2], PLATON [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
S10.00589(5)0.33725(4)0.21136(5)0.03660(15)
S20.78548(5)0.45468(4)0.91573(5)0.04127(16)
C1−0.0261(2)0.24411(17)0.0884(3)0.0548(6)
H1A0.03400.24710.02490.082*
H1B−0.11790.24680.03220.082*
H1C−0.01180.18830.14190.082*
C20.17725(18)0.32077(13)0.30699(19)0.0296(4)
C30.2541(2)0.24787(14)0.2787(2)0.0368(5)
H30.21620.20680.20610.044*
C40.3861(2)0.23588(14)0.3575(2)0.0361(4)
H40.43530.18670.33690.043*
C50.44687(18)0.29607(13)0.46726(18)0.0289(4)
C60.58327(19)0.28427(13)0.5508(2)0.0335(4)
H60.63370.23570.53040.040*
C70.63992(19)0.34228(13)0.65835(19)0.0314(4)
H70.72830.33250.71080.038*
C80.56661(18)0.41880(12)0.69357(18)0.0267(4)
C90.62123(18)0.47889(13)0.80919(18)0.0299(4)
C100.5450(2)0.55189(14)0.83734(19)0.0342(4)
H100.58180.59140.91270.041*
C110.4148(2)0.56641(13)0.7544(2)0.0336(4)
H110.36630.61630.77400.040*
C120.35513(18)0.50757(12)0.64194(18)0.0276(4)
C130.21914(19)0.51930(13)0.55777(19)0.0314(4)
H130.16900.56830.57740.038*
C140.16201(18)0.46113(13)0.45084(19)0.0297(4)
H140.07370.47110.39830.036*
C150.23474(18)0.38416(12)0.41665(18)0.0265(4)
C160.37095(17)0.37133(12)0.49730(17)0.0254(4)
C170.43139(17)0.43322(12)0.61025(17)0.0249(4)
C180.8190(2)0.54611(16)1.0436(2)0.0440(5)
H18A0.81190.60270.99260.066*
H18B0.90860.53981.10430.066*
H18C0.75460.54471.10230.066*

Source of material

All chemicals were purchased from commercial sources and used as received without further purification. The title complex was prepared in two steps using pyrene as the starting material. The intermediate 1,6-dibromopyrene was prepared through the bromination of pyrene according to the literature [4]. The final product was synthesized as following: 1.69 g (12 mmol) sodium thiomethoxide (50%) and 1.80 g (5 mmol) 1,6-dibromopyrene were added subsequently to a 50 mL two-neck round bottom flask. Then, 40 mL DMF was added into the above flask. The mixture was stirred at 160 °C overnight under the protection of nitrogen. After the reaction was completed, a yellow solid precipitate was observed, which was separated by filtration and washed with ethanol several times, and then recrystallized with toluene to obtain yellow block crystals. Yield: 85%. Melting point, 200−202 °C. 1H NMR (400 MHz, CDCl3) δ (TMS, p.p.m.): 8.64 (s, 2H, J = 8.63 Hz), 8.16−8.12 (m, 2H), 8.10−7.96 (m, 4H), 2.73 (s, 6H). MALDI-TOF MS (m/z): calculated for C18H14S2 294.42, found 294.32. Elemental analysis–calculated for C18H14S2: C, 73.42°; H, 4.79°; S, 21.78°; found: C, 73.34°; H, 4.78°; S, 21.67°.

Experimental details

All H atoms bond to C atoms were introduced using the appropriate HFIX command in the SHELXL2014 program [2], with the value of 0.93 Å or 0.96 Å for C—H bonds distances. All H atoms were set as riding, with Uiso(H) = 1.2Ueq(C) or Uiso(H) = 1.5Ueq(C) for aromatic and methly hydrogens, respectively. The structure was checked using PLATON [3].

Comment

It is well known that organic functional materials with interesting optical, electronic, magnetic, biological and mutifunctional properties have attracted considerable attention, and have for instance been used as organic light-emitting diodes (OLED), organic field effect transistors (OFET), organic lasers, chemosensors and as solar cell components, etc [5], [6], [7], [8], [9]. As one of the most important organic functional building precursors, pyrene and its derivatives have attracted particular attention because of their interesting optical and electronic properties [10], [11], [12]. Up to date, a large number of new pyrene-based functional materials have been characterized and their properties have been investigated [13], [14], [15]. Sulfur-containing organic compounds have also attracted interest on the basis of their special electronic structures. Compared with the reports on nitrogen-containing, pyrene-based compounds, the studies on pyrene-based thioether compounds are relatively limited. Recently, Xu and Wen et al. have reported the crystal structure of one diaryl sulfide 1,3,6,8-tetrakis(p-tolylthio)pyrene and 1,8-bis(p-tolylthio)pyrene using pyrene as the starting precursor [16], [17]. Herein, we report the crystal structure of a new pyrene-based arylalkyl thioether, 1,6-bis(methylthio)pyrene, which was synthesized by the nucleophilic substitution reaction of sodium thiomethoxide with 1,6-dibromopyrene in high yield. In addition, the optical properties of the title compound were studied preliminarily.

The single X-ray diffraction analysis of the title compound shows that the crystal structure agrees well with expected structure. All the non hydrogen atoms are almost in a strict plane with the largest deviation from the main plane of 0.127(3) Å. The C—S bond distances in the title compound are distributed in a relatively narrow range of 1.7719(19)−1.793(2) Å, in which the Calkyl—S bond distances are slightly larger that those of Caryl—S. The two C—S—C bond angles are very similar with 103.38(10)° for C2—S1—C1 and 103.61(10)° for C9—S2—C18. The C—S bond distances and C—S—C bond angles are within the expected values for diaryl sulfide compounds and they are comparable to those found in 1,3,6,8-tetrakis(p-tolylthio)pyrene and 1,8-bis(p-tolylthio) pyrene [16], [17]. The crystal packing of the title compound can be described by the analysis of three main intermolecular interactions. Firstly, dimers of molecules related by inversion symmetry are held together by π⋯π interactions. Secondly, these dimers form zigzag one-dimensional chains held together by intermolecular C—H⋯π interactions, Then, these chains are linked together by S⋯S interactions.

The optical properties of the title compound were investigated preliminarily. The title compound was dissolved in dichloromethane and absorption was observed in the range of 325 to 425 nm. A main emission peak around 421 nm with an obvious shoulder emission peak at 436 nm for the above solution were also observed. The emission intensity is significantly higher than that of its precursor pyrene with a ca. 8-fold increase. The crystal state emits yellow-green fluorescence with a peak at 530 nm. Similar to 1,8-bis(p-tolylthio)pyrene [17], the title compound also can be oxided by some peroxides such as m-chloroperoxybenzoic acid and displays “on–off” optical switching property. However, its sensitivity for m-chloroperoxybenzoic acid is significantly lower than that of 1,8-bis(p-tolylthio)pyrene, which may be due to the fact that the oxidation of alkylarylsulfide is difficult compared to diarylsulfide.

Acknowledgements

This work was Funded by the Open Research Fund Program of Shandong Provincial Key Laboratory of Oilfield Produced Water Treatment and Environmental Pollution Control (Sinopec Petroleum Engineering Corporation).

References

1. BRUKER. SAINT, APEX2 and SADABS. Bruker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

2. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

3. Spek, A. L.: Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 36 (2003) 7–13.10.1107/S0021889802022112Search in Google Scholar

4. Grimshaw, J.; Trocha-Grimshaw, J.: Characterisation of 1,6- and 1,8-dibromopyrenes. J. Chem. Soc., Perkin Trans. 1 0 (1972) 1622–1623.10.1039/p19720001622Search in Google Scholar

5. Zhang, R.; Sun, H.; Zhao, Y.; Tang, X. X.; Ni, Z. H.: Dipolar 1,3,6,8-tetrasubstituted pyrene-based blue emitters containing electro-transporting benzimidazole moieties: syntheses, structures, optical properties, electrochemistry and electroluminescence. Dyes Pigments 152 (2018) 1–13.10.1016/j.dyepig.2018.01.014Search in Google Scholar

6. Shi, B. J.; He, Y. Y.; Zhang, P. P.; Wang, Y. L.; Yu, M. M.; Zhang, H. Y.; Wei, L. H.; Li, Z. X.: Turn on fluorescent detection of hydrazine with a 1,8-naphthalimde derivative. Dyes Pigments 147 (2017) 152–159.10.1016/j.dyepig.2017.08.010Search in Google Scholar

7. Sun, H.; Tang, X. X.; Miao, B. X.; Yang, Y.; Ni, Z. H.: A new AIE and TICT-active tetraphenylethene-based thiazole compound: synthesis, structure, photophysical properties and application for water detection in organic solvents. Sens. Actuators, B 267 (2018) 448–456.10.1016/j.snb.2018.04.022Search in Google Scholar

8. Zhang, R.; Zhao, Y.; Zhang, L. F.; Xu, L.; Ni, Z. H.: A series of short axially symmetrically 1,3,6,8-tetrasubstituted pyrene-based green and blue emitters with 4-tert-butylphenyl and aryamine attachments. Dyes Pigments 130 (2016) 106–115.10.1016/j.dyepig.2016.03.020Search in Google Scholar

9. Li, Z. X.; Liu, H. X.; Li, H. X.; Tsou, Y. H.; Gao, Y. L.; Xu, X. Y.; Du, W. W.; Wei, L. H.; Yu, M. M.: Lysosome-targeting NIR ratiometric luminecent ppcoversion nanoprobe toward arginine. Sens. Actuators, B 280 (2019) 94–101.10.1016/j.snb.2018.10.057Search in Google Scholar

10. Figueira-Duarte, T. M.; Mullen, K.: Pyrene-based materials for organic electronics. Chem. Rev. 111 (2011) 7260–7314.10.1021/cr100428aSearch in Google Scholar PubMed

11. Liu, X.; Luo, G. P.; Cai, X. Y.; Wu, H. B.; Su, S. J.; Cao, Y.: Pyrene terminal functionalized perylene diimide as non-fullerene acceptors for bulk heterojunction solar cells. RSC Adv. 5 (2015) 83155–83163.10.1039/C5RA13188JSearch in Google Scholar

12. More, S.; Bhosale, R.; Choudhary, S.; Mateo-Alonso, A.: Versatile 2,7-substituted pyrene synthons for the synthesis of pyrene-fused azaacenes. Org. Lett. 14 (2012) 4170–4173.10.1021/ol301841hSearch in Google Scholar PubMed

13. Gingras, M.; Placide, V.; Raimundo, J. M.; Bergamini, G.; Ceroni, P.; Balzani, V.: Polysulfurated pyrene-cored dendrimers: luminescent and electrochromic properties. Chem. Eur. J. 14 (2008) 10357–10363.10.1002/chem.200801198Search in Google Scholar PubMed

14. Nie, J.; Liu, Y.; Niu, J.; Ni, Z. H.; Lin, W.: A new pyrene-based fluorescent probe with large Stokes shift for detecting hydrogen peroxide in aqueous solution and living cells. J. Photochem. Photobiol., A 348 (2017) 1–7.10.1016/j.jphotochem.2017.08.008Search in Google Scholar

15. Oniwa, K.; Kikuchi, H.; Shimotani, H.; Ikeda, S.; Asao, N.; Yamamoto, Y.; Tanigaki, K.; Jin, T. N.: 2-Positional pyrene end-capped oligothiophenes for high performance organic field effect transistors. Chem. Commun. 52 (2016) 4800–4803.10.1039/C6CC00948DSearch in Google Scholar

16. Xu, L. H.; Ni, Z. H.: Crystal structure of 1,3,6,8-tetrakis(p-tolylthio) pyrene, C44H34S4. Z. Kristallogr. NCS 231 (2016) 255–257.10.1515/ncrs-2015-0113Search in Google Scholar

17. Wen, B.; Xu, L. H.; Liu, N.; Ni, Z. H.: Crystal structure and photochemical property of 1,8-bis(p-tolylthio) pyrene, C30H22S2. Z. Kristallogr. NCS 234 (2019) 275–278.10.1515/ncrs-2018-0318Search in Google Scholar

Received: 2019-03-01
Accepted: 2019-04-17
Published Online: 2019-05-27
Published in Print: 2019-09-25

©2019 Guang-Qing Wang et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
