Crystal structural of 2-amino-4-(4-methoxyphenyl)-3-cyano-7,7-dimethyl-5-oxo-4H-5,6,7,8-tetrahydrobenzo[b]pyran, C19H20N2O3

  • Yuanyuan Yu EMAIL logo
Published/Copyright: October 27, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 1

Abstract

C19H20N2O3, monoclinic, C2/c (no. 15), a = 30.474(9) Å, b = 9.331(2) Å, c = 26.269(7) Å, β = 112.591(3)°, V = 6897(3) Å3, Z = 16, Rgt(F) = 0.0462, wRref(F2) = 0.1379, T = 293 K.

CCDC no.: 1578695

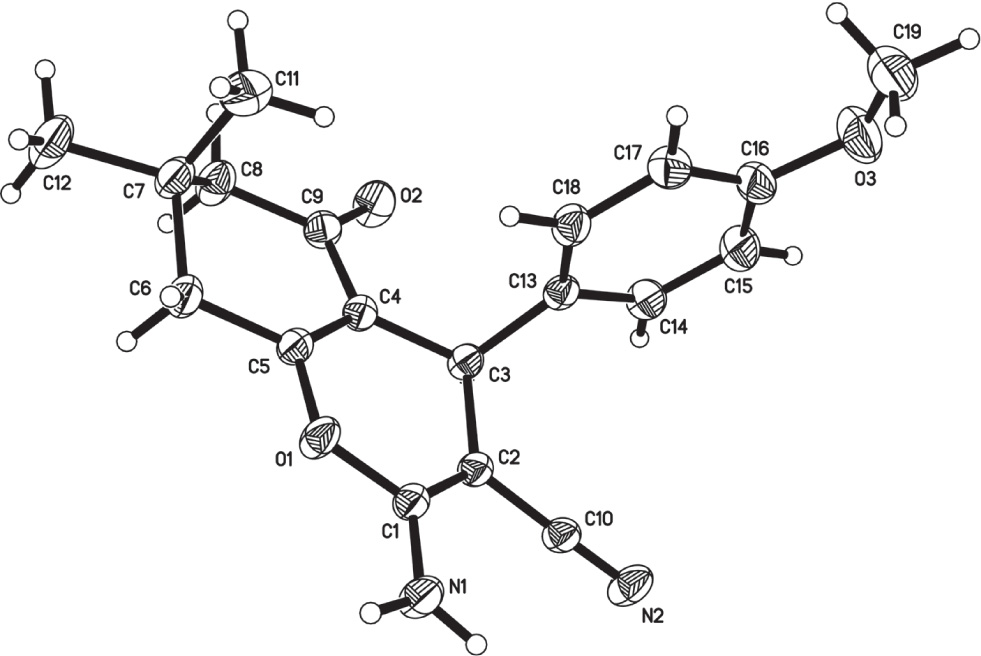

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Prism, colorless
Size:0.20 × 0.20 × 0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.09 mm−1
Diffractometer, scan mode:Bruker XSCANS, ω-scans
2θmax, completeness:25°, >98%
N(hkl)measured, N(hkl)unique, Rint:20997, 5987, 0.023
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 5246
N(param)refined:434
Programs:Bruker programs [1], SHELX [2]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C1−0.14809(5)1.02297(16)0.17399(6)0.0381(3)
C2−0.18002(5)1.06137(16)0.12390(6)0.0354(3)
C3−0.22547(5)0.97826(15)0.09332(5)0.0356(3)
H3A−0.22890.96730.05490.043*
C4−0.22039(5)0.83177(16)0.11853(6)0.0359(3)
C5−0.18641(5)0.79948(16)0.16732(6)0.0378(3)
C6−0.18050(6)0.65953(17)0.19612(7)0.0449(4)
H6A−0.17010.67630.23550.054*
H6B−0.15590.60500.18990.054*
C7−0.22636(6)0.57136(17)0.17659(7)0.0465(4)
C8−0.24676(7)0.57154(18)0.11336(7)0.0522(4)
H8A−0.22570.51710.10080.063*
H8B−0.27730.52310.10010.063*
C9−0.25327(5)0.71834(17)0.08817(6)0.0411(4)
C10−0.17424(5)1.19432(16)0.10165(6)0.0380(3)
C11−0.26249(7)0.6359(2)0.19723(9)0.0659(5)
H11A−0.26990.73200.18350.099*
H11B−0.24940.63740.23680.099*
H11C−0.29090.57910.18440.099*
C12−0.21415(8)0.4187(2)0.19850(8)0.0674(6)
H12A−0.19170.37820.18500.101*
H12B−0.24250.36160.18620.101*
H12C−0.20050.42050.23810.101*
C13−0.26786(5)1.06294(16)0.09403(5)0.0362(3)
C14−0.29055(5)1.15886(18)0.05198(6)0.0460(4)
H14A−0.28241.16160.02140.055*
C15−0.32516(6)1.2507(2)0.05464(7)0.0554(5)
H15A−0.33971.31520.02610.067*
C16−0.33828(5)1.24758(19)0.09935(7)0.0518(4)
C17−0.31740(6)1.14923(18)0.14079(7)0.0493(4)
H17A−0.32691.14330.17040.059*
C18−0.28222(5)1.05935(17)0.13802(6)0.0436(4)
H18A−0.26780.99470.16650.052*
C19−0.38051(8)1.3629(3)0.14812(11)0.0812(7)
H19A−0.40561.43130.14200.122*
H19B−0.35211.39600.17730.122*
H19C−0.38981.27230.15820.122*
C200.10800(5)0.67061(15)0.41374(6)0.0360(3)
C210.07336(5)0.63017(15)0.36553(5)0.0352(3)
C220.02588(5)0.70811(16)0.34203(5)0.0358(3)
H22A0.01590.71250.30190.043*
C230.03361(5)0.85852(16)0.36377(6)0.0362(3)
C240.07000(5)0.89322(15)0.41014(6)0.0366(3)
C250.07924(6)1.03556(16)0.43747(6)0.0432(4)
H25A0.10551.08080.43140.052*
H25B0.08881.02220.47690.052*
C260.03608(5)1.13558(16)0.41659(6)0.0410(4)
C270.01303(6)1.12305(17)0.35373(7)0.0467(4)
H27A−0.01571.18030.34040.056*
H27B0.03461.16240.33810.056*
C280.00079(5)0.97200(17)0.33351(6)0.0412(4)
C290.05269(7)1.28811(18)0.43382(8)0.0551(4)
H29A0.02601.35200.42040.083*
H29B0.07561.31500.41870.083*
H29C0.06701.29370.47330.083*
C300.00003(7)1.0937(2)0.44122(9)0.0639(5)
H30A−0.01120.99820.42980.096*
H30B−0.02631.15920.42860.096*
H30C0.01481.09730.48070.096*
C310.07914(5)0.50469(16)0.33874(5)0.0368(3)
C32−0.01213(5)0.62672(15)0.35475(6)0.0364(3)
C33−0.01510(6)0.63171(17)0.40595(6)0.0432(4)
H33A0.00490.69340.43260.052*
C34−0.04697(6)0.54737(19)0.41877(7)0.0502(4)
H34A−0.04830.55310.45350.060*
C35−0.07662(6)0.45504(19)0.37961(7)0.0501(4)
C36−0.07495(6)0.4511(2)0.32769(7)0.0552(4)
H36A−0.09540.39110.30070.066*
C37−0.04302(6)0.53591(18)0.31586(6)0.0476(4)
H37A−0.04230.53190.28080.057*
C38−0.11020(8)0.3585(3)0.44067(10)0.0849(7)
H38A−0.13530.29530.44000.127*
H38B−0.11620.45300.45090.127*
H38C−0.08040.32430.46700.127*
O1−0.15176(4)0.89493(11)0.19767(4)0.0470(3)
O2−0.28406(4)0.74220(13)0.04271(5)0.0579(3)
O3−0.37177(5)1.34656(16)0.09906(7)0.0776(4)
O40.10456(4)0.79598(11)0.43922(4)0.0435(3)
O5−0.03424(4)0.94284(14)0.29234(5)0.0608(4)
O6−0.10828(5)0.36276(16)0.38775(6)0.0706(4)
N1−0.11059(5)1.09670(15)0.20739(6)0.0540(4)
H1A−0.10441.17990.19770.065*
H1B−0.09261.06110.23860.065*
N2−0.17060(5)1.30126(16)0.08240(6)0.0530(4)
N30.14843(5)0.60331(15)0.44313(5)0.0495(4)
H3B0.15510.52300.43180.059*
H3C0.16780.64020.47340.059*
N40.08292(5)0.40415(15)0.31550(5)0.0513(4)

Source of material

The title compound was synthesized according to a reported procedure [3]. A mixture of 3,5-cyclohexanedione (10 mmol), 4-methoxybenzaldehyde (10 mmol), malononitrile (10 mmol) and 4-(dimethylamino)-pyridine (DMAP) (1 mmol) in ethanol (100 mL) was refluxed for 2–3 h and then cooled to room temperature. After filtering the precipitates, they were sequentially washed with ice-cooled water and ethanol and then dried under vacuum.

Experimental details

Carbon-bound hydrogen atoms were placed in calculated positions and were included in the refinement in the riding model approximation, with Uiso(H) set to 1.2Ueq(C). Uiso(H) = 1.5Ueq(C).

Discussion

Dihydropyrans represent one of the most active classes of compounds possessing a wide spectrum of biological activities [4], [5], [6], including anticoagulant, insecticidal, anthelminthic, hypnotic, antifungal, phytoalexin, and HIV protease inhibition. Thus, dihydropyrans are attractive targets in organic synthesis [7].

In the crystal structure of the title compound, the 7,7-dimethyl-5-oxo-4H-5,6,7,8-tetrahydrobenzo[b]pyran unit is typically folded [8]. Generally all bond lengths and angles are as expected [9].

Acknowledgement

This work was supported by Grants from Shaanxi Provincial Scientific Technology Research and Development Program (2016JM5027), and Scientific Research Foundation of Shaanxi Xueqian Normal University (2015YBKJ061).

References

Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI USA (2009).Search in Google Scholar

Sheldrick, G. M.: SHELXT-Integrated space-group and crystal-structure determination. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar

Bonsignore, L.; Loy, G.; Secci, D.; Calignano, A.: Synthesis and pharmacological activity of 2-oxo-(2H) 1-benzopyran-3-carboxamide derivatives. Eur. J. Med. Chem. 28 (1993) 517–520.10.1016/0223-5234(93)90020-FSearch in Google Scholar

Gacche, R. N.; Jadhav, S. G.: Antioxidant activities and cytotoxicity of selected coumarin derivatives: preliminary results of a structure–activity relationship study using computational tools. J. Exp. Clin. Med. 4 (2012) 165–169.10.1016/j.jecm.2012.04.007Search in Google Scholar

Gordon, R. J.; Lowy, F. D.: Pathogenesis of methicillin-resistant staphylococcus aureus infection. Clin. Infect. Dis. 46 (2008) S350–S359.10.1086/533591Search in Google Scholar PubMed PubMed Central

Khan, A. T.; Lal, M.; Ali, S.; Khan, M. M.: One-pot three component reaction for the synthesis of pyran annulated heterocyclic compounds using DMAP as a catalyst. Tetrahedron Lett. 52 (2011) 5327–5332.10.1016/j.tetlet.2011.08.019Search in Google Scholar

Eshghi, H.; Zohuri, G. H.; Sandaroos, R.; Damavandi, S.: Synthesis of novel benzo[f]chromene compounds catalyzed by ionic liquid. Heterocycl. Commun. 18 (2012) 67–70.10.1515/hc-2011-0060Search in Google Scholar

Lou, H.: Crystal structure of 2-amino-4-(3,5-difluoro-phenyl)-7,7-dimethyl-5-oxo-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile, C18H16F2N2O2. Z. Kristallogr. NCS 231 (2016) 1091–1092.10.1515/ncrs-2016-0072Search in Google Scholar

He, J.: Crystal structure of 2-amino-4-(2,3-dichloro-phenyl)-5-oxo-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile, C16H12Cl2N2O2. Z. Kristallogr. NCS 232 (2017) 237–238.10.1515/ncrs-2016-0221Search in Google Scholar

Received: 2017-8-5
Accepted: 2017-10-8
Published Online: 2017-10-27
Published in Print: 2018-1-26
