Crystal structure of catena-poly[(μ2-1,4-di(pyridin-4-yl)benzene-κ2N:N′)-(4-bromobenzoate-κ2O:O′)-(μ-2-bromobenzoate-κ2O,O′)nickel(II)] – water (2/1), C30H21Br2N2NiO4.5

  • Xiaobo Bao und Chongchong Tian ORCID logo EMAIL logo
Veröffentlicht/Copyright: 11. September 2023
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 238 Heft 6

Abstract

C30H21Br2N2NiO4.5, triclinic, P 1 ‾ (no. 2), a = 8.7895(17) Å, b = 13.167(3) Å, c = 14.067(3) Å, α = 109.049(3)°, β = 92.619(3)°, γ = 108.533(3)°, V = 1438.6(5) Å3, Z = 2, R gt (F) = 0.0496, wR ref (F2) = 0.1003, T = 296(2) K.

CCDC no.: 2289678

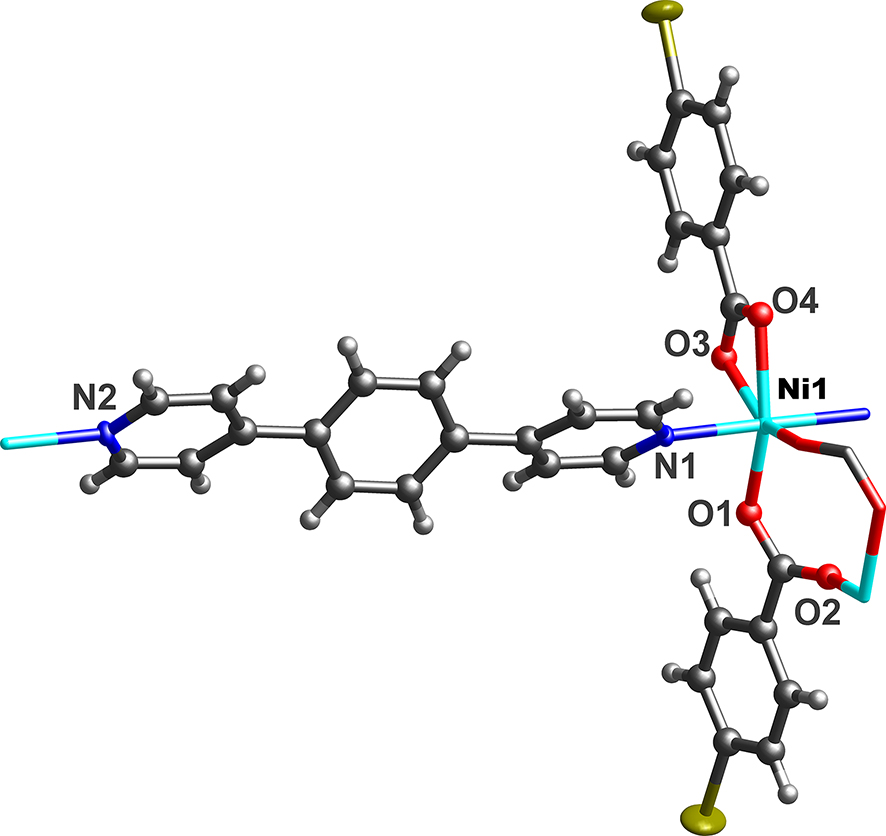

A part of the title crystal structure is shown in the figure (the solvent water molecule and the disordered Br atom were omitted in the figure for clarity). Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Green block
Size: 0.20 × 0.18 × 0.15 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 3.49 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θmax, completeness: 25.0°, 99 %
N(hkl)measured, N(hkl)unique, Rint: 7392, 5043, 0.035
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 3172
N(param)refined: 371
Programs: Bruker [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
Br1 0.62597 (11) 0.50233 (7) 0.69669 (6) 0.1071 (3)
Br2a 1.3167 (6) 1.2065 (5) −0.0047 (4) 0.0800 (11)
Br2Bb 1.3320 (18) 1.181 (2) −0.0107 (8) 0.112 (3)
Ni1 0.66499 (7) 0.99945 (5) 0.39093 (4) 0.02806 (17)
O1 0.6600 (3) 0.8845 (2) 0.4581 (2) 0.0353 (7)
O2 0.5307 (3) 0.9480 (2) 0.5850 (2) 0.0370 (7)
O3 0.8699 (3) 0.9865 (2) 0.3180 (2) 0.0366 (8)
O4 0.7440 (4) 1.0977 (3) 0.2946 (2) 0.0403 (8)
N1 0.5128 (4) 0.8612 (3) 0.2650 (2) 0.0296 (8)
N2 −0.1841 (4) 0.1361 (3) −0.4819 (2) 0.0340 (9)
C1 0.5972 (5) 0.8811 (4) 0.5368 (3) 0.0306 (10)
C2 0.6081 (5) 0.7894 (4) 0.5761 (3) 0.0320 (11)
C3 0.6993 (7) 0.7234 (4) 0.5360 (4) 0.0592 (15)
H3 0.756521 0.735655 0.484399 0.071*
C4 0.7066 (8) 0.6379 (5) 0.5721 (5) 0.0804 (19)
H4 0.769809 0.593907 0.545722 0.096*
C5 0.6188 (7) 0.6197 (5) 0.6474 (4) 0.0641 (16)
C6 0.5264 (6) 0.6833 (4) 0.6872 (4) 0.0551 (14)
H6 0.467107 0.669824 0.737669 0.066*
C7 0.5222 (6) 0.7680 (4) 0.6515 (3) 0.0437 (12)
H7 0.459730 0.812201 0.678919 0.052*
C8 0.8556 (5) 1.0561 (4) 0.2788 (3) 0.0340 (11)
C9 0.9698 (5) 1.0897 (4) 0.2084 (3) 0.0381 (12)
C10 1.0818 (6) 1.0360 (4) 0.1787 (4) 0.0536 (14)
H10 1.087833 0.979154 0.202716 0.064*
C11 1.1858 (6) 1.0677 (5) 0.1125 (4) 0.0632 (16)
H11 1.260133 1.031541 0.091387 0.076*
C12 1.1758 (6) 1.1533 (5) 0.0793 (4) 0.0559 (15)
C13 1.0684 (7) 1.2072 (5) 0.1095 (4) 0.0727 (18)
H13 1.064184 1.265173 0.086688 0.087*
C14 0.9654 (7) 1.1757 (5) 0.1743 (4) 0.0617 (16)
H14 0.892292 1.213002 0.195225 0.074*
C15 0.3997 (5) 0.8716 (4) 0.2055 (3) 0.0403 (12)
H15 0.381043 0.940653 0.225401 0.048*
C16 0.3093 (6) 0.7854 (4) 0.1162 (3) 0.0443 (13)
H16 0.233699 0.797591 0.076935 0.053*
C17 0.3315 (5) 0.6796 (4) 0.0848 (3) 0.0328 (11)
C18 0.4456 (5) 0.6683 (4) 0.1477 (3) 0.0336 (11)
H18 0.464696 0.599522 0.130885 0.040*
C19 0.5316 (5) 0.7597 (3) 0.2359 (3) 0.0327 (11)
H19 0.606759 0.749497 0.277199 0.039*
C20 0.2453 (5) 0.5857 (4) −0.0141 (3) 0.0348 (11)
C21 0.2066 (6) 0.6111 (4) −0.0983 (3) 0.0506 (14)
H21 0.234102 0.687367 −0.092786 0.061*
C22 0.1276 (6) 0.5243 (4) −0.1906 (3) 0.0507 (14)
H22 0.103719 0.543022 −0.246348 0.061*
C23 0.0834 (5) 0.4098 (4) −0.2011 (3) 0.0360 (11)
C24 0.1225 (6) 0.3853 (4) −0.1170 (3) 0.0442 (13)
H24 0.095027 0.309123 −0.122518 0.053*
C25 0.2016 (6) 0.4716 (4) −0.0246 (3) 0.0437 (13)
H25 0.225625 0.452561 0.030987 0.052*
C26 −0.0048 (5) 0.3159 (4) −0.3004 (3) 0.0340 (11)
C27 −0.1010 (6) 0.3328 (4) −0.3706 (4) 0.0533 (15)
H27 −0.107315 0.405048 −0.358468 0.064*
C28 −0.1878 (6) 0.2414 (4) −0.4592 (3) 0.0499 (14)
H28 −0.251808 0.254715 −0.505036 0.060*
C29 −0.0862 (5) 0.1205 (4) −0.4162 (3) 0.0348 (11)
H29 −0.077952 0.048372 −0.431793 0.042*
C30 0.0027 (5) 0.2067 (4) −0.3265 (3) 0.0367 (11)
H30 0.068199 0.191472 −0.283113 0.044*
O1Wc 0.5906 (16) 0.0915 (12) 0.0938 (11) 0.202 (6)
H1Ac 0.623260 0.083495 0.145620 0.302*
H1Bc 0.511424 0.112166 0.096330 0.302*

  1. aOccupancy: 0.65 (3), bOccupancy: 0.35 (3), cOccupancy: 0.5.

1 Source of material

A mixture of Ni(NO3)2·6H2O (1 mmol, 290.8 mg), 1,4-di(pyridin-4-yl)benzene (dpb) (1 mmol, 232.3 mg), 4-bromobenzoic acid (Hbba) (2 mmol, 402.0 mg), N, N-dimethylacetamide (1 mL) and H2O (3 mL) were sealed in a 25 mL vial and heated at 393 K for three days. Green block crystals were collected.

2 Experimental details

The C-bound H atoms were placed in idealized positions (C–H = 0.93 Å) and refined by the riding model with Uiso(H) = 1.2 Ueq(C). The O-bound H atoms were refined with restrained bond lengths (O–H = 0.82 Å). The Uiso(H) = 1.5 Ueq(O). One Br atom is disordered over two positions. The two parts overlapped each other with site occupation factors of 0.65 and 0.35.

3 Comment

As a halogenobenzoic acid, 4-bromobenzoic acid was widely used as organic ligand to construct various metal coordination polymers [3], [4], [5], [6], [7], [8], [9]. However, the Ni(II) coordination polymers based on 4-bromobenzoic acid were rarely reported. From the Cambridge Structural Database (Version 5.44, April 2023), only three structures of Ni(II) coordination polymers were found [10], [11], [12]. To further explore this research area, we chose 4-bromobenzoic acid (bbaH) as the organic ligand and the rigid N-containing ligand of 1,4-di(pyridin-4-yl)benzene (dpb) as the auxiliary bridging ligand [13] to generate a new Ni(II) coordination polymer.

The asymmetric unit consists of one Ni(II) cation, one dpb ligand, two bba− ligands and one half of a free water solvent. The bond distances of Ni–O/N (2.020(3)–2.157(3) Å) are all in normal ranges and the bond angles around Ni(II) cation vary from 61.27(1)° to 179.18(14)°. The Ni(II) cation is six coordinated by four O atoms from three bba− ligands and two N atoms from two symmetry related dpb ligands to furnish a distorted octahedral coordination geometry. The deprotonated bba− ligands adopt a bidentate chelate mode and a bidentate bridging mode, to link the neighboring Ni(II) cations forming a Ni2(COO)4 subunit (see the figure).

Corresponding author: Chongchong Tian, College of Pharmacy, Jiangsu Vocational College of Medicine, 224005, Yancheng, Jiangsu, People’s Republic of China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Natural Science Foundation of the Jiangsu Higher Education Institutions of China (18KJB320004).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2, SAINT and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2008.Suche in Google Scholar

2. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Suche in Google Scholar PubMed

3. Bai, X., Xing, Y., Liu, S. Crystal structure of catena-poly[(μ2-1,1′-(biphenyl-4,4′-diyl)bis(1H-imidazol)-κ2N:N′)-bis(4-bromobenzoate-κ1O)zinc(II)], C64H44Br4N8O8Zn2. Z. Kristallogr. N. Cryst. Struct. 2022, 237, 149–151; https://doi.org/10.1515/ncrs-2021-0413.Suche in Google Scholar

4. Zhuo, X. Crystal structure of catena-poly[(μ2-1,1′-(biphenyl-4,4′-diyl)bis(1H-imidazol)-κ2N:N′)-bis(4-bromobenzoate-κ1O)cobalt(II)], C32H22Br2CoN4O4. Z. Kristallogr. N. Cryst. Struct. 2022, 237, 399–401; https://doi.org/10.1515/ncrs-2022-0035.Suche in Google Scholar

5. Yang, X., Luo, Y. Crystal structure of catena-poly[(μ2-4,4′-bipyridine-κ2N:N′)-bis(4-bromobenzoate-κ1O)zinc(II)], C24H16Br2N2O4Zn. Z. Kristallogr. N. Cryst. Struct. 2022, 237, 833–835; https://doi.org/10.1515/ncrs-2022-0122.Suche in Google Scholar

6. Akintayo, D. C., Munzeiwa, W. A., Jonnalagadda, S. B., Omondi, B. Zn(II) pyridinyl amine complexes, synthesis and crystal structure studies: a comparative study of the effect of nuclearity and benzoate type on the ring-opening polymerization of cyclic esters. Polyhedron 2022, 213, 115589; https://doi.org/10.1016/j.poly.2021.115589.Suche in Google Scholar

7. Yao, H., Calvez, G., Daiguebonne, C., Suffren, Y., Bernot, K., Roisnel, T., Guillou, O. Synthesis, crystal structure, and luminescence properties of the iso-reticular series of lanthanide coordination polymers synthesized from hexa-lanthanide molecular precursors. Inorg. Chem. 2022, 61, 4895–4908; https://doi.org/10.1021/acs.inorgchem.1c03654.Suche in Google Scholar PubMed

8. Ridenour, J. A., Schofield, M. H., Cahill, C. L. Structural and computational investigation of halogen bonding effects on spectroscopic properties within a series of halogenated uranyl benzoates. Cryst. Growth Des. 2020, 20, 1311–1318; https://doi.org/10.1021/acs.cgd.9b01567.Suche in Google Scholar

9. Ridenour, J. A., Carter, K. P., Butcher, R. J., Cahill, C. L. RE-p-halobenzoic acid-terpyridine complexes, Part II: structural diversity, supramolecular assembly, and luminescence properties in a series of p-bromobenzoic acid rare-earth hybrid materials. CrystEngComm 2017, 19, 1172–1189; https://doi.org/10.1039/c6ce02355j.Suche in Google Scholar

10. Zhang, Y., Lv, R., Wang, J., Yang, L., Liao, S., Tian, J., Gu, W., Liu, X. Two novel μ6–O2− bridged Co14/Ni14 hydroxamate clusters packed in distorted face-centered cubic patterns. Dalton Trans. 2016, 45, 3247–3250; https://doi.org/10.1039/c5dt03974f.Suche in Google Scholar PubMed

11. Sekiya, R., Nishikiori, S. Synthesis, X-ray crystal structures and inclusion properties of a hydrogen-bonded coordination polymer [Ni(SCN)2(pppeH)2]·(guest)x. CrystEngComm 2011, 13, 6405–6414; https://doi.org/10.1039/c1ce05566f.Suche in Google Scholar

12. Wang, X., Zhang, J., Hou, J., Zhang, J., Liu, G., Lin, H. Three new complexes based on a flexible bis(benzimidazole) ligand and rigid/flexible organic carboxylates. J. Chem. Crystallogr. 2011, 41, 1579–1585; https://doi.org/10.1007/s10870-011-0143-2.Suche in Google Scholar

13. Shi-Jun, C., Shi-Hui, L., Yan, Z. Crystal structure of catena-poly[triaqua-(μ2-1,4-di(pyridin-4-yl)benzene-κ2N:N′)-(3′,5-dicarboxy-[1,1′-biphenyl]-3,4′-dicarboxylato-κO)nickel(II)]. Z. Kristallogr. N. Cryst. Struct. 2020, 235, 1119–1121. https://doi.org/10.1515/ncrs-2020-0196.Suche in Google Scholar
