The crystal structure of 9,10-dimethoxy-5,6-dihydro-[1,3]dioxolo[4,5-g]isoquinolino [3,2-a]isoquinolin-7-ium (E)-3-(4-nitrophenyl)acrylate pentahydrate, C29H34N2O13

  • Shi-Yun Chen ORCID logo , Wei Wang , Yong He EMAIL logo and Deng-ke Yin
Published/Copyright: September 6, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 6

Abstract

C29H34N2O13, triclinic, P 1 ‾ (no. 2), a = 8.1996(2) Å, b = 13.1993(3) Å, c = 13.5119(3) Å, α = 94.208(1)∘, β = 99.787(1)∘, γ = 90.247(1)∘, V = 1437.00(6) Å3, Z = 2, Rgt (F) = 0.0457, wR ref (F 2) = 0.1218, T = 193 K.

CCDC no.: 2252770

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Brown block
Size: 0.13 × 0.12 × 0.10 mm
Wavelength: Ga Kα radiation (1.34139 Å)
μ: 0.61 mm−1
Diffractometer, scan mode: Bruker D8 VENTURE PHOTON II, φ and ω
θ max, completeness: 60.3°, %
N(hkl)measured , N(hkl)unique, R int: 13,791, 6231, 0.043
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 4466
N(param)refined: 217
Programs: Bruker [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.6625 (2) 0.40911 (15) 1.46588 (13) 0.0412 (4)
H1A 0.747871 0.444740 1.517461 0.049*
H1B 0.586977 0.371344 1.500452 0.049*
C2 0.6403 (2) 0.34556 (13) 1.30742 (12) 0.0306 (4)
C3 0.5421 (2) 0.43061 (12) 1.30916 (12) 0.0284 (4)
C4 0.43528 (19) 0.45607 (12) 1.22622 (12) 0.0270 (4)
H4 0.369421 0.515013 1.227851 0.032*
C5 0.42706 (19) 0.39111 (11) 1.13817 (12) 0.0251 (3)
C6 0.52366 (19) 0.30398 (12) 1.13722 (12) 0.0274 (4)
C7 0.6338 (2) 0.28074 (13) 1.22376 (13) 0.0315 (4)
H7 0.700907 0.222242 1.223845 0.038*
C8 0.5055 (2) 0.23647 (12) 1.04141 (13) 0.0330 (4)
H8A 0.540452 0.166848 1.056801 0.040*
H8B 0.577267 0.262328 0.996564 0.040*
C9 0.3276 (2) 0.23416 (11) 0.98930 (13) 0.0304 (4)
H9A 0.316687 0.192185 0.924650 0.037*
H9B 0.257110 0.203051 1.031915 0.037*
C10 0.31815 (19) 0.41631 (11) 1.04520 (11) 0.0238 (3)
C11 0.26007 (19) 0.51182 (11) 1.02772 (12) 0.0253 (3)
H11 0.291059 0.565790 1.078011 0.030*
C12 0.15580 (18) 0.53236 (11) 0.93742 (11) 0.0234 (3)
C13 0.09069 (19) 0.62873 (12) 0.91769 (12) 0.0270 (4)
H13 0.112214 0.683439 0.968104 0.032*
C14 −0.00325 (19) 0.64415 (12) 0.82653 (12) 0.0279 (4)
H14 −0.045617 0.709768 0.814243 0.033*
C15 −0.03842 (19) 0.56429 (12) 0.75035 (12) 0.0265 (3)
C16 0.01737 (19) 0.46816 (11) 0.76812 (12) 0.0254 (3)
C17 0.11489 (18) 0.45095 (11) 0.86228 (11) 0.0237 (3)
C18 0.17555 (19) 0.3546 (11) 0.88341 (12) 0.0253 (3)
H18 0.147483 0.299175 0.834481 0.030*
C19 0.0734 (2) 0.38137 (14) 0.61956 (13) 0.0399 (4)
H19A 0.039269 0.321176 0.573711 0.060*
H19B 0.190719 0.376514 0.648847 0.060*
H19C 0.056803 0.442436 0.582190 0.060*
C20 −0.1790 (2) 0.67549 (13) 0.63255 (14) 0.0396 (4)
H20A −0.244978 0.672231 0.564698 0.059*
H20B −0.080289 0.718245 0.634678 0.059*
H20C −0.245318 0.704600 0.681145 0.059*
C21 0.5776 (2) 0.21634 (11) 0.66085 (11) 0.0267 (4)
C22 0.7251 (2) 0.19164 (12) 0.62999 (12) 0.0293 (4)
H22 0.827770 0.206847 0.673009 0.035*
C23 0.7197 (2) 0.14409 (12) 0.53465 (12) 0.0287 (4)
H23 0.820046 0.127074 0.511580 0.034*
C24 0.56855 (19) 0.12092 (11) 0.47211 (11) 0.0250 (3)
C25 0.4213 (2) 0.14556 (11) 0.50737 (12) 0.0272 (4)
H25 0.317842 0.128657 0.465831 0.033*
C26 0.4251 (2) 0.19401 (11) 0.60161 (12) 0.0273 (4)
H26 0.325478 0.211620 0.625287 0.033*
C27 0.5693 (2) 0.06989 (12) 0.37173 (12) 0.0269 (3)
H27 0.674421 0.056009 0.353619 0.032*
C28 0.4377 (2) 0.04150 (12) 0.30429 (12) 0.0292 (4)
H28 0.331429 0.053183 0.321511 0.035*
C29 0.4472 (2) −0.00769 (12) 0.20301 (12) 0.0288 (4)
N2 0.27136 (16) 0.33904 (9) 0.97017 (9) 0.0242 (3)
N3 0.58185 (19) 0.26806 (10) 0.76089 (11) 0.0332 (3)
O1 0.73853 (15) 0.34079 (10) 1.40050 (9) 0.0391 (3)
O2 0.57185 (15) 0.48065 (9) 1.40372 (8) 0.0373 (3)
O3 −0.02383 (14) 0.38722 (8) 0.69845 (8) 0.0309 (3)
O4 −0.12997 (14) 0.57516 (8) 0.65761 (8) 0.0331 (3)
O5 0.71451 (18) 0.27646 (11) 0.81835 (10) 0.0506 (4)
O6 0.45331 (17) 0.30309 (10) 0.78304 (10) 0.0456 (3)
O7 0.58137 (15) −0.04250 (10) 0.18472 (9) 0.0405 (3)
O8 0.31460 (15) −0.01130 (10) 0.13977 (9) 0.0433 (3)
O9 0.0204 (2) 0.07935 (13) 0.37249 (12) 0.0627 (4)
H9C 0.025552 0.094081 0.311390 0.094*
H9D −0.015205 0.016615 0.365972 0.094*
O10 0.06230 (18) 0.12005 (10) 0.17255 (12) 0.0526 (4)
H10A 0.141171 0.078422 0.163261 0.079*
H10B −0.023277 0.096687 0.129675 0.079*
O11 0.21619 (15) −0.01936 (10) −0.05997 (9) 0.0407 (3)
H11A 0.263852 −0.020782 0.002549 0.061*
H11B 0.295529 −0.003191 −0.091552 0.061*
O12 0.87790 (16) −0.12151 (11) 0.28528 (11) 0.0495 (4)
H12A 0.786091 −0.091699 0.262688 0.074*
H12B 0.935291 −0.120417 0.236799 0.074*
O13 1.01618 (16) −0.13927 (10) 0.10689 (11) 0.0481 (4)
H13A 1.116802 −0.114675 0.118380 0.072*
H13B 0.956934 −0.091730 0.077932 0.072*

1 Source of materials

Berberine sulfate (hydrate) (0.86 g, 2 mmol) was dissolved in water (50 mL) at 50 °C to obtain a clear solution. A solution of NaOH (0.08 g, 2 mmol) and 4-nitro-cinnamic acid (PNCA) (0.38 g, 2 mmol) in water (20 mL) were added. The mixture was heated to 50 °C to get a brown coloured solution. Crystals of the title compound were obtained by slow evaporation within 4 days.

2 Experimental details

Data collection was performed on a Bruker D8 VENTURE Metaljet PHOTON II diffractometer at 193 K, operating at 50 kV and 30 mA. Data were processed by the BRUKER AXS Crystal Structure Analysis Package [1]. Data collection, BRUKER APEX3; cell refinement and data reduction by BRUKER SAINT V8.40B; Structure solution: SHELXT 2014/5 [2]; Structure refinement: SHELXL-2018/3 [3]; Molecular graphics and publication materials by BRUKER SHELXTL [2]. All H-atoms were placed geometrically and refined using a riding model with common isotropic displacement factors, Uiso values were set to 1.2U eq of the parent atoms.

3 Comment

Berberine hydrochloride (BBR–HCl) is contained in the Chinese Pharmacopoeia (2020) for gastrointestinal infections such as gastroenteritis and bacillary dysentery caused by sensitive pathogens. But, it presents poor intestine absorption via oral administration. Additionally, BBR–HCl is highly hygroscopic and presents an extremely bitter taste. Cocrystals have been prepared in attempts to solve these problems. Recently, A wide range of coformers, such as flavonoids (myricetin, dihydromyricetin [4], chrysin [5]); anthraquinones (emodin [6], rhein [7]); API (Ibuprofen [8], rosiglitazone [9, 10]), aromatic carboxylic [11] (3,4,5-methoxycinnamic acid [12], carboxylic acids [13]) and small molecular organic acid (aliphatic dicarboxylic acids [14], L(+)-lactic acid [15]) can be if hydrogen bonding formation is possible, providing many options to develop pharmaceutical products with improved pharmaceutical properties, including solubility.

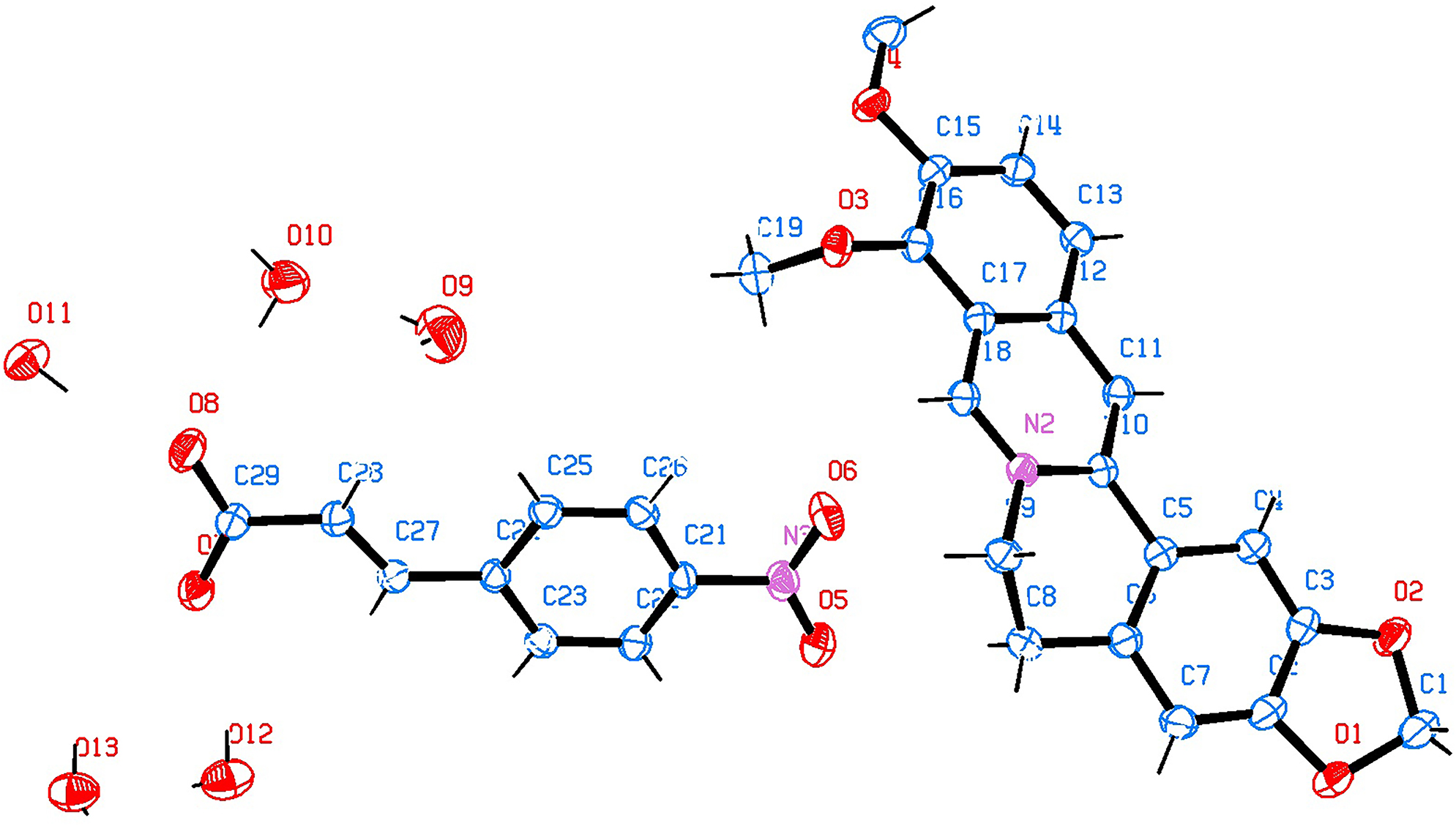

It is worth noting that, by reacting Berberine sulfate and ((4-nitrophenyl) acrylic acid) via a liquid phase reaction, the title salt has been obtained. The asymmetric unit of the title structure contains one 9,10-dimethoxy-5,6-dihydro-[1, 3]dioxolo[4,5-g]isoquinolino [3,2-a]isoquinolin-7-ium cation, one (E)−3-(4-nitrophenyl) acrylate anion and five water molecules. All moieties are connected by hydrogen bonds. All bond lengths are in the expected ranges. The proportions of lattice water in each crystal lattice account for 14.5%. The cavity can be clearly observed when the lattice waters were removed from the crystal lattice, which plays a critical role in supporting the three dimensional structures. This means lattice water is an important hydrogen donor acceptor in the title salt.

Corresponding author: Yong He, Institut School of Chemistry and Chemical Engineering, Hefei University of Technology, No. 193, Tunxi Road, Baohe District, Hefei, Anhui 230002, P.R. China, E-mail:

  1. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

  2. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  3. Research funding: We gratefully acknowledge support by The Key project of Anhui Provincial Department of Education, China (NO. KJ2020A672 and 2022AH040077) and The Open Fund Project of Anhui Key Laboratory of Pharmaceutical Preparation Technology and Application (NO. 2021KFKT08). Co-authors would like to thank Zhang CX from Shiyanjia Lab (www.shiyanjia.com) for the SXRD analysis.

References

1. BRUKER. APEX3, SAINT; Bruker AXS Inc: Madison, Wisconsin, USA, 2016.Search in Google Scholar

2. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

3. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

4. Li, P. Z., Ramaiah, T., Zhang, M., Zhang, Y., Huang, Y., Lou, B. Two cocrystals of berberine chloride with myricetin and dihydromyricetin: crystal structures, characterization, and antitumor activities. Cryst. Growth Des. 2020, 20, 157–166; https://doi.org/10.1021/acs.cgd.9b00939.Search in Google Scholar

5. Sa, R. J., Zhang, Y. J., Deng, Y. P., Huang, Y., Zhang, M., Lou, B. Novel salt cocrystal of chrysin with berberine: preparation, characterization, and oral bioavailability. Cryst. Growth Des. 2018, 18, 4724–4730; https://doi.org/10.1021/acs.cgd.8b00696.Search in Google Scholar

6. Deng, Y. P., Zhang, Y. J., Huang, Y. L., Zhang, M., Lou, B. Preparation, crystal structures, and oral bioavailability of two cocrystals of emodin with berberine chloride. Cryst. Growth Des. 2018, 18, 7481–7488; https://doi.org/10.1021/acs.cgd.8b01257.Search in Google Scholar

7. Yang, D. Z., Wang, H. J., Liu, Q. W., Yuan, P., Chen, T., Zhang, L., Yang, S., Zhou, Z., Lu, Y., Du, G. Structural landscape on a series of rhein: berberine cocrystal salt solvates: the formation, dissolution elucidation from experimental and theoretical investigation. Chin. Chem. Lett. 2022, 33, 3207–3211; https://doi.org/10.1016/j.cclet.2021.10.012.Search in Google Scholar

8. Wang, M., Xu, R., Liu, X. L., Zhang, L., Qiu, S., Lu, Y., Zhang, P., Yan, M., Zhu, J. A co-crystal berberine-ibuprofen improves obesity by inhibiting the protein kinases TBK1 and IKKε. Commun. Biol. 2022, 5, 807; https://doi.org/10.1038/s42003-022-03776-0.Search in Google Scholar PubMed PubMed Central

9. He, Q. C., Chen, B., Wang, G., Zhou, D., Zeng, H., Li, X., Song, Y., Yu, X., Liang, W., Chen, H., Liu, X., Wu, Q., Wu, L., Zhang, L., Li, H., Hu, X., Zhou, W. Co-crystal of rosiglitazone with berberine ameliorates hyperglycemia and insulin resistance through the PI3K/AKT/TXNIP pathway in vivo and in vitro. Front. Pharm. 2022, 13, 842879; https://doi.org/10.3389/fphar.2022.842879.Search in Google Scholar PubMed PubMed Central

10. Guan, X. S., Jiang, L., Cai, L. H., Zhang, L., Hu, X. A new co-crystal of synthetic drug rosiglitazone with natural medicine berberine: Preparation, crystal structures, and dissolution. Molecules 2020, 25, 4288; https://doi.org/10.3390/molecules25184288.Search in Google Scholar PubMed PubMed Central

11. Gao, Z. Y., Liu, S. Y., Sun, C. C. Complexation with aromatic carboxylic acids expands the solid-state landscape of berberine. Int. J. Pharm. 2022, 617, 121587; https://doi.org/10.1016/j.ijpharm.2022.121587.Search in Google Scholar PubMed

12. Han, N., Huang, X., Tian, X., Li, T., Liu, X., Li, W., Huo, S., Wu, Q., Gu, Y., Dai, Z., Xu, B., Wang, P., Lei, H. M. Self-assembled nanoparticles of natural phytochemicals (berberine and 3,4,5-methoxycinnamic acid) originated from traditional Chinese medicine for inhibiting multidrug-resistant Staphylococcus aureus. Curr. Drug Deliv. 2021, 18, 914–921; https://doi.org/10.2174/1567201817666201124121918.Search in Google Scholar PubMed

13. Huang, X. M., Wang, P. L., Li, T., Tian, X., Guo, W., Xu, B., Huang, G., Cai, D., Zhou, F., Zhang, H., Lei, H. Self-assemblies based on traditional medicine berberine and cinnamic acid for adhesion-induced inhibition multidrug-resistant Staphylococcus aureus. ACS Appl. Mater. Interfaces 2020, 12, 227–237; https://doi.org/10.1021/acsami.9b17722.Search in Google Scholar PubMed

14. Wang, L. L., Liu, S. Y., Chen, J. M., Wang, Y.-x., Sun, C. C. Novel salt-cocrystals of berberine hydrochloride with aliphatic dicarboxylic acids: odd-even alternation in physicochemical properties. Mol. Pharm. 2021, 18, 1758–1767; https://doi.org/10.1021/acs.molpharmaceut.0c01250.Search in Google Scholar PubMed

15. Wang, L. L., Liu, S. Y., Gao, Z. Y. Crystal structure, dissolution and hygroscopicity of a novel cocrystal hydrate of berberine hydrochloride with L(+)-lactic acid. Pharmazie 2020, 75, 483–487; https://doi.org/10.1691/ph.2020.0079.Search in Google Scholar PubMed

Received: 2023-07-18
Accepted: 2023-08-21
Published Online: 2023-09-06
Published in Print: 2023-12-15
