The crystal structure of 18-crown-6 ― tetraaqua-dichlorido-di-μ2-chloridodicopper(II) (2/1), C12H32O10Cu2Cl4

  • Zhaolong Liu ORCID logo and Shifeng Jin EMAIL logo
Published/Copyright: September 22, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 6

Abstract

C12H32O10Cu2Cl4, monoclinic, P21/n (no. 14), a = 9.0202(4) Å, b = 9.5791(4) Å, c = 13.6994(6) Å, β = 92.555(1)°, V = 1182.53(9) Å3, Z = 2, R gt(F) = 0.0308, wR ref(F 2) = 0.0800, T = 293(2) K.

CCDC no.: 2284845

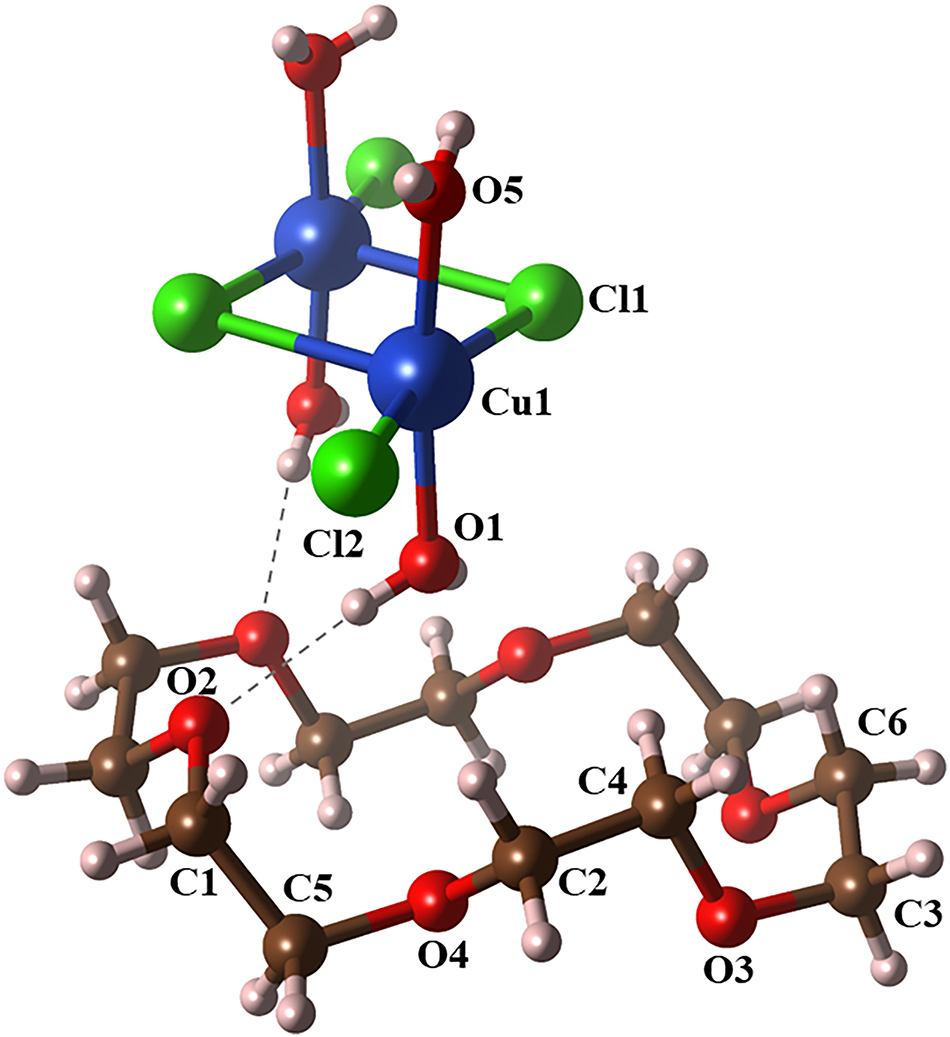

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Blue block
Size: 0.15 × 0.11 × 0.07 mm
Wavelength: Cu Kα radiation (1.54184 Å)
μ: 6.77 mm−1
Diffractometer, scan mode: Bruker D8 Smart Apex, φ and ω
θ max, completeness: 72.1°, 99 %
N(hkl)measured, N(hkl)unique, R int: 13205, 2306, 0.038
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2278
N(param)refined: 144
Programs: Bruker [1], SHELX [2,3], Olex2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Cu1 0.32789 (3) 0.59155 (3) 0.48515 (2) 0.03354 (14)
Cl1 0.49914 (5) 0.53654 (5) 0.37368 (3) 0.04280 (16)
Cl2 0.11991 (5) 0.67253 (5) 0.55339 (4) 0.04961 (18)
O1 0.41879 (17) 0.77369 (15) 0.50618 (12) 0.0403 (3)
O2 0.4114 (2) −0.1226 (2) 0.69264 (13) 0.0580 (4)
O3 0.30111 (19) 0.18794 (17) 0.36784 (14) 0.0555 (4)
O4 0.32563 (19) 0.10126 (17) 0.56116 (14) 0.0553 (4)
O5 0.2176 (2) 0.4234 (2) 0.4521 (2) 0.0730 (7)
C1 0.2873 (3) −0.0346 (3) 0.7087 (2) 0.0653 (7)
H1A 0.276289 −0.024564 0.778474 0.078
H1B 0.198045 −0.078756 0.681262 0.078
C2 0.1972 (3) 0.0704 (3) 0.5013 (3) 0.0686 (8)
H2A 0.123984 0.143654 0.507701 0.082
H2B 0.154008 −0.016867 0.521987 0.082
C3 0.3431 (4) 0.1960 (3) 0.2686 (2) 0.0726 (8)
H3A 0.374825 0.290679 0.255395 0.087
H3B 0.256666 0.176711 0.226066 0.087
C4 0.2390 (4) 0.0594 (3) 0.3974 (3) 0.0737 (9)
H4A 0.310680 −0.015148 0.390766 0.088
H4B 0.151947 0.037692 0.356078 0.088
C5 0.3023 (4) 0.1065 (3) 0.6644(2) 0.0687 (8)
H5A 0.213169 0.159906 0.675162 0.082
H5B 0.385128 0.154609 0.697036 0.082
C6 0.5351 (4) −0.0976 (4) 0.7565(2) 0.0752 (9)
H6A 0.508499 −0.112177 0.823576 0.090
H6B 0.568227 −0.001875 0.749889 0.090
H1C 0.492 (3) 0.788 (3) 0.4900 (19) 0.041 (7)
H1D 0.418 (4) 0.800 (4) 0.562 (3) 0.071 (10)
H5C 0.135 (4) 0.418 (4) 0.469 (3) 0.074 (10)
H5D 0.255 (4) 0.365 (4) 0.425 (2) 0.063 (9)

1 Source of materials

A total of 2.416 g (0.018 mol) of copper (II) chloride was dissolved in 10 mL of deionized water, followed by the addition of 1.584 g (0.006 mol) of 18-crown-6. To ensure complete dissolution, an excess of methanol was added, resulting in the formation of a transparent dark green solution. The solution was then allowed to evaporate at room temperature for 24 h, leading to the formation of transparent blue crystals of C12H32O10Cu2Cl4.

2 Experimental details

Hydrogen atoms were incorporated into the calculated positions and refined as riding atoms, with a fixed C–H bond length of 0.97 Å and an isotropic displacement parameter (U iso) value of 1.2 times the equivalent isotropic displacement parameter (U eq) of the corresponding carbon atom for the methylene hydrogen atoms.

3 Comment

Crown ether supramolecular host-guest compounds have garnered significant attention due to their excellent physical properties, including ferroelectricity [5] and photoluminescence [6]. Research has revealed that this type of compound exhibit outstanding photoluminescence effects. For instance, Feldmann et al. [6] discovered rare Zn2+-based luminescence in ZnI2(18-crown-6) and observed 100 % quantum yield in Mn2I4 (18-crown-6). Nevertheless, the luminescence properties of Cu based materials have not been reported in the relevant literature.

In order to investigate the structural features of Cu in crown ether compounds, a new centrosymmetric crown ether material C12H32O10Cu2Cl4 was obtained by evaporating an aqueous solution in this study. The structure of the crown ether is completely ordered, showing D3d structural symmetry. Two Copper (II) chloride dihydrate units are inter-connected by sharing two chlorine ions, with the bond lengths of Cu–Cl of 2.282 Å and 2.722 Å, respectively. In crown ether supermolecule host-guest compounds, the crown ethers are usually coordinated with either amino or metal cations. In this compound, however, the crown ethers are connected by water molecules in the copper(II) chloride dihydrate unit through hydrogen bonds. The bond lengths are determined to be 1.920 Å (H5D–O3), 1.945 Å (H1D–O2), respectively. Moreover, this material has luminescent properties and can emit light at 328 nm and 720 nm under excitation at a wavelength of 266 nm.

Corresponding author: Shifeng Jin, Beijing National Laboratory for Condensed Matter Physics Institute of Physics, Chinese Academy of Sciences, Beijing 100190, P.R. China, E-mail:

Acknowledgments

We thank Y. T. Song for his assistances in the single crystal X-ray diffraction measurements. This work is financially supported by the Development Program of China (Grants No. 2018YFE0202600).

  1. Research ethics: All authors involved in the study are aware of the risks and benefits involved, including the right to withdraw.

  2. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  3. Competing interests: The authors declare no conflicts of interest regarding this article.

  4. Research funding: This work is financially supported by the Development Program of China (Grants No. 2018YFE0202600).

  5. Data availability: The data and materials used in the study are open access and available for use by other researchers.

References

1. Bruker. Saint (Version 8.23B); Bruker AXS Inc.: Madison, Wisconsin, USA, 2013.Search in Google Scholar

2. Sheldrick, G. M. SHELXL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

5. Zhang, H. Y., Lu, S. Q., Chen, X., Xiong, R. G., Tang, Y. Y. The first high-temperature multiaxial ferroelectric host-guest inclusion compound. Chem. Commun. 2019, 55, 11571–11574; https://doi.org/10.1039/C9CC05900H.Search in Google Scholar

6. Merzlyakova, E., Wolf, S., Lebedkin, S., Bayarjargal, L., Neumeier, B. L., Bartenbach, D., Holzer, C., Klopper, W., Winkler, B., Kappes, M., Feldmann, C. 18-Crown-6 coordinated metal halides with bright luminescence and nonlinear optical effects. J. Am. Chem. Soc. 2021, 143, 798–804; https://doi.org/10.1021/jacs.0c09454.Search in Google Scholar PubMed

Received: 2023-08-04
Accepted: 2023-09-07
Published Online: 2023-09-22
Published in Print: 2023-12-15

© 2023 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
