The crystal structure of catena-poly[(4-iodopyridine-2,6-dicarboxylato-κ4 O,N,O′,O′′)(4-imidazol-1-yl-pyridine-κN)copper(II)], C15H9N4O4ICu

  • Yang Kong ORCID logo EMAIL logo , YiXuan Dang , Bin Tian , Chang-Zhao Wang , ZiHao Han and ChenFei Lu
Published/Copyright: September 5, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 6

Abstract

C15H9N4O4ICu, monoclinic, P21/c (no. 14), a = 13.6216(4) Å, b = 13.4754(4) Å, c = 8.5023(3) Å, β = 102.610(3)°, V = 1522.99(9) Å3, Z = 4, R gt(F) = 0.0297, wR ref(F 2) = 0.0781, T = 293 K.

CCDC no.: 2272030

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Green block
Size: 0.31 × 0.29 × 0.25 mm
Wavelength: MoKα radiation (0.71073 Å)
μ: 3.49 mm−1
Diffractometer, scan mode: SuperNova, ω
θ max, completeness: 25.0°, 98 %
N(hkl)measured, N(hkl)unique, R int: 19584, 2628, 0.044
Criterion for I obs, N(hkl)gt: I obs > 2σ(I obs), 2391
N(param)refined: 226
Programs: CrysAlisPRO [1], Shelx [2, 3], Olex2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.6545 (3) 0.3373 (3) −0.0328 (4) 0.0232 (8)
C2 0.7606 (3) 0.3532 (2) 0.0580 (4) 0.0213 (8)
C3 0.8483 (3) 0.3543 (2) −0.0001 (5) 0.0236 (8)
H3 0.8464 0.3473 −0.1095 0.028*
C4 0.9390 (3) 0.3663 (3) 0.1107 (5) 0.0269 (9)
C5 0.9414 (3) 0.3786 (3) 0.2731 (5) 0.0298 (9)
H5 1.0022 0.3878 0.3467 0.036*
C6 0.8520 (3) 0.3769 (3) 0.3235 (4) 0.0236 (8)
C7 0.8335 (3) 0.3896 (3) 0.4926 (5) 0.0307 (9)
C8 0.4367 (3) 0.4411 (3) 0.2492 (4) 0.0301 (9)
H8 0.4362 0.4687 0.1487 0.036*
C9 0.3596 (3) 0.4427 (3) 0.3229 (4) 0.0312 (9)
H9 0.2965 0.4706 0.2840 0.037*
C10 0.4870 (3) 0.3661 (3) 0.4770 (5) 0.0268 (9)
H10 0.5262 0.3323 0.5638 0.032*
C11 0.3357 (3) 0.3791 (3) 0.5904 (5) 0.0238 (8)
C12 0.2319 (3) 0.3860 (3) 0.5530 (5) 0.0300 (9)
H12 0.1971 0.3978 0.4477 0.036*
C13 0.1815 (3) 0.3751 (3) 0.6759 (5) 0.0323 (9)
H13 0.1118 0.3810 0.6514 0.039*
C14 0.3266 (3) 0.3467 (3) 0.8587 (5) 0.0354 (10)
H14 0.3596 0.3311 0.9635 0.043*
C15 0.3837 (3) 0.3583 (3) 0.7456 (5) 0.0311 (9)
H15 0.4534 0.3521 0.7737 0.037*
Cu1 0.64444 (3) 0.36465 (3) 0.28821 (6) 0.02408 (14)
I1 1.07119 (2) 0.36391 (2) 0.02390 (4) 0.03558 (13)
N1 0.7656 (2) 0.3641 (2) 0.2149 (4) 0.0213 (7)
N2 0.5175 (2) 0.3923 (2) 0.3446 (4) 0.0270 (7)
N3 0.3922 (2) 0.3950 (2) 0.4676 (3) 0.0232 (7)
N4 0.2275 (3) 0.3564 (2) 0.8283 (5) 0.0364 (9)
O1 0.58789 (19) 0.35314 (19) 0.0493 (3) 0.0278 (6)
O2 0.63743 (18) 0.3104 (2) −0.1752 (3) 0.0280 (6)
O3 0.7400 (2) 0.3838 (2) 0.4993 (3) 0.0302 (6)
O4 0.9041 (2) 0.4039 (3) 0.6046 (3) 0.0475 (8)

1 Source of material

All chemicals were of analytical grade (AR) and used as received. The title compound was prepared under hydrothermal conditions. A mixture of Cu(OAc)2·H2O (40.0 mg, 0.2 mmol), 4-iodopyridine-2,6-dicarboxylic acid (58.4 mg, 0.2 mmol), 4-imidazol-1-yl-pyridine (29.0 mg, 0.2 mmol) and deionized water (10 mL) was sealed in a 25 mL screw capped vial and heated at 90 °C for 72 h. After being cooled to RT in 12 h, blue crystals were acquired by filtration and washed with distilled water in 49 % yield.

2 Experimental details

Using Olex2 [1], the structure was solved with the Shelxt [2] structure solution program and refined with the Shelxl [3] refinement package.

3 Comment

In recent years, the design and synthesis of coordination polymers have attracted much attention [5], [6], [7]. At present, it is a great challenge to reliably predict structures of coordination polymers because several factors could dramatically influence their structures [8], [9], [10], [11]. Therefore, utilizing suited organic ligands to produce new coordination polymers is considered to be a rational way. Among, pyridine-based multicarboxylate ligands have been demonstrated to be interesting and versatile building blocks for constructing coordination polymers now. The rigid 4-iodopyridine-2,6-dicarboxylate (ipydc) ligand is an efficient ligand, which contains a nitrogen and several oxygen coordination sites and various coordination modes [12], [13], [14]. Moreover, the electrophilic iodine atom on the para position of ipydc ligand as the donor may be involved in halogen bonds with the acceptors. Herein, we report a Cu(II) coordination polymer based on ipydc and 4-imidazol-1-yl-pyridine mixed ligands.

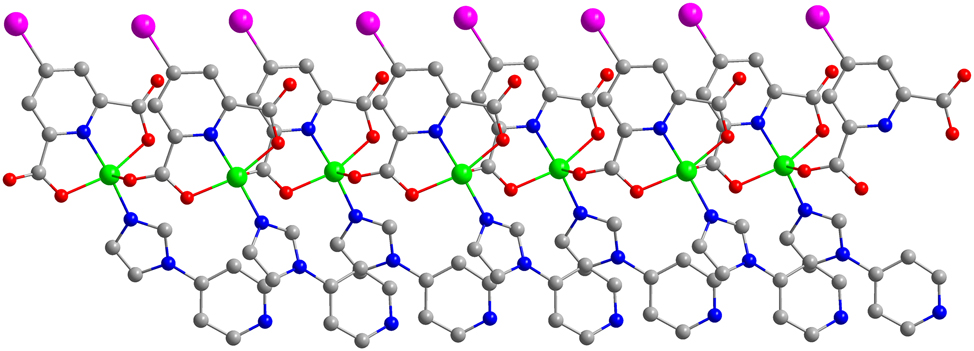

The asymmetric unit of the crystal structure consists of one crystallographically independent Cu(II) center, one deprotonated ipydc ligand and one 4-imidazol-1-yl-pyridine molecule (upper part of the figure). The central Cu(II) center is five-coordinated with a tetragonal–pyramidal geometry, in which the equatorial plane is occupied by one nitrogen atom and two oxygen atoms from one ipydc ligand (N1, O1 and O3) and one imidazole nitrogen atom of 4-imidazol-1-yl-pyridine (N2), and the axial position is occupied by oxygen atoms from one ipydc ligand (O2#1). The Cu–O/N distances associated with Cu(II) center range from 1.887 (3) to 2.384 (3) Å and the bond angles about Cu(II) center are in the range of 80.57(12)°−168.22(13)°. In the compound, the ipydc ligand adopts a μ 2- coordination mode to connect Cu(II) centers, generating a chain structure (lower part of the figure). Noted, 4-imidazol-1-yl-pyridine uses only one terminal nitrogen (N2) atom to coordinate the Cu(II) center. In the compound, there is a noncovalent interaction involving iodine atom as electrophilic species and pyridine nitrogen atom as Lewis bases, giving rise to the I⋯N halogen bond with the distance of 2.976(4) Å [15], [16], [17].

Corresponding author: Yang Kong, School of Biology and Pharmaceutical Sciences, Shaanxi University of Science & Technology, Xi’an, 710021, China, E-mail:

Acknowledgments

This work was supported by Key Research and Development Program of Shaanxi (2023–YBSF-323, 2023–YBSF-115).

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Agilent Technologies. CrysAlisPRO Software System, Version 1.171.38.41r; Agilent Technologies UK Ltd: Oxford, UK, 2015.Search in Google Scholar

2. Sheldrick, G. M. SHELXTL-integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8, https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

5. Ding, B., Solomon, M. B., Leong, C. F., D’Alessandro, D. M. Redox-active ligands: recent advances towards their incorporation into coordination polymers and metal-organic frameworks. Coord. Chem. Rev. 2021, 439, 213891; https://doi.org/10.1016/j.ccr.2021.213891.Search in Google Scholar

6. Liu, J. Q., Luo, Z. D., Pan, Y., Singh, A. K., Trivedi, M., Kumar, A. Recent developments in luminescent coordination polymers: designing strategies, sensing application and theoretical evidences. Coord. Chem. Rev. 2020, 406, 213145; https://doi.org/10.1016/j.ccr.2019.213145.Search in Google Scholar

7. Bhattacharya, B., Maity, D. K., Pachfule, P., Colacio, E., Ghoshal, D. Syntheses, X-ray structures, catalytic activity and magnetic properties of two new coordination polymers of Co (II) and Ni (II) based on benzenedicarboxylate and linear N,N′-donor Schiff base linkers. Inorg. Chem. Front. 2014, 1, 414–425; https://doi.org/10.1039/c4qi00032c.Search in Google Scholar

8. Robin, A. Y., Fromm, K. M. Coordination polymer networks with O-and N-donors: what they are, why and how they are made. Coord. Chem. Rev. 2006, 250, 2127–2157; https://doi.org/10.1016/j.ccr.2006.02.013.Search in Google Scholar

9. Henwood, A. F., Hegarty, I. N., McCarney, E. P., Lovitt, J. I., Donohoe, S., Gunnlaugsson, T. Recent advances in the development of the btp motif: a versatile terdentate coordination ligand for applications in supramolecular self-assembly, cation and anion recognition chemistries. Coord. Chem. Rev. 2021, 449, 214206; https://doi.org/10.1016/j.ccr.2021.214206.Search in Google Scholar

10. Mirzaei, M., Eshtiagh-Hosseini, H., Alfi, N., Aghabozorg, H., Gharamaleki, J. A., Beyramabadi, S. A., Karami, E. Syntheses, crystal, molecular structures, and solution studies of Cu(II), Co(II), and Zn(II) coordination compounds containing pyridine-2, 6-dicarboxylic acid and 1, 4-pyrazine-2,3-dicarboxylic acid: comparative computational studies of Cu(II) and Zn(II) complexes. Struct. Chem. 2011, 22, 1365–1377; https://doi.org/10.1007/s11224-011-9829-5.Search in Google Scholar

11. Shyu, E., Braverman, M. A., Supkowski, R. M., LaDuca, R. L. Control of topology and dimensionality by aromatic dicarboxylate pendant arm position and length in cadmium coordination polymers incorporating a hydrogen-bonding capable kinked dipyridine ligand. Inorg. Chim. Acta 2009, 362, 2283–2292; https://doi.org/10.1016/j.ica.2008.10.015.Search in Google Scholar

12. Lv, B. Crystal structure of [aqua-(4-iodopyridine-2,6-dicarboxylato-κ3O,N,O′)-(1,10-phenanothroline-κ2N,N′)copper(II)]dihydrate, C19H16O7N3CuI. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 891–893; https://doi.org/10.1515/ncrs-2021-0119.Search in Google Scholar

13. Lv, B. Crystal structure of catena-poly[aqua-(4-iodopyridine-2,6-dicarboxylato-κ3N,O,O′)-(μ2-4-amino-4H-1,2,4-triazole-κ2N:N′) copper(II)], C9H8N5O5CuI. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 873–875, https://doi.org/10.1515/ncrs-2021-0112.Search in Google Scholar

14. Lv, B. Crystal structure of bis(μ2-4-iodopyridine-2, 6-dicarboxylato-κ3O:N:O′)-bis(4-iodopyridine-2,6-dicarboxylato-κ3O:N:O′)-bis(μ2-1-(4-pyridyl)piperazine-κ2N:N′)-hexa-aqua-tetracopper(II), C46H46Cu4I4N10O22. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 957–959; https://doi.org/10.1515/ncrs-2021-0166.Search in Google Scholar

15. Riel, A. M. S., Rowe, R. K., Ho, E. N., Carlsson, A. C. C., Rappé, A. K., Berryman, O. B., Ho, P. S. Hydrogen bond enhanced halogen bonds: a synergistic interaction in chemistry and biochemistry. Acc. Chem. Res. 2019, 52, 2870–2880; https://doi.org/10.1021/acs.accounts.9b00189.Search in Google Scholar PubMed PubMed Central

16. Awwadi, F. F., Taher, D., Haddad, S. F., Turnbull, M. M. Competition between hydrogen and halogen bonding interactions: theoretical and crystallographic studies. Cryst. Growth Des. 2014, 14, 1961–1971; https://doi.org/10.1021/cg500094b.Search in Google Scholar

17. Zang, S. Q., Dong, M. M., Fan, Y. J., Hou, H. W., Mak, T. C. Four cobaltic coordination polymers based on 5-iodo-isophthalic acid: halogen-related interaction and solvent effect. Cryst. Growth Des. 2012, 12, 1239–1246; https://doi.org/10.1021/cg201257j.Search in Google Scholar
Received: 2023-06-27
Accepted: 2023-08-20
Published Online: 2023-09-05
Published in Print: 2023-12-15

© 2023 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
