The crystal structure of (E)-4-fluoro-N′-(1-(4-hydroxyphenyl)propylidene)benzohydrazide, C16H15FN2O2

  • Juanjuan Wen , Langlang Liu , Wenqiang Tang ORCID logo EMAIL logo and Bin Liu ORCID logo
Published/Copyright: October 23, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 6

Abstract

C16H15FN2O2, orthorhombic, P212121 (no. 19), a = 7.2516(6) Å, b = 11.3780(9) Å, c = 17.1177(13) Å, V = 1412.36(19) Å3, Z = 4, R gt (F) = 0.0498, wR ref (F2) = 0.1201, T = 293 K.

CCDC no.: 2301106

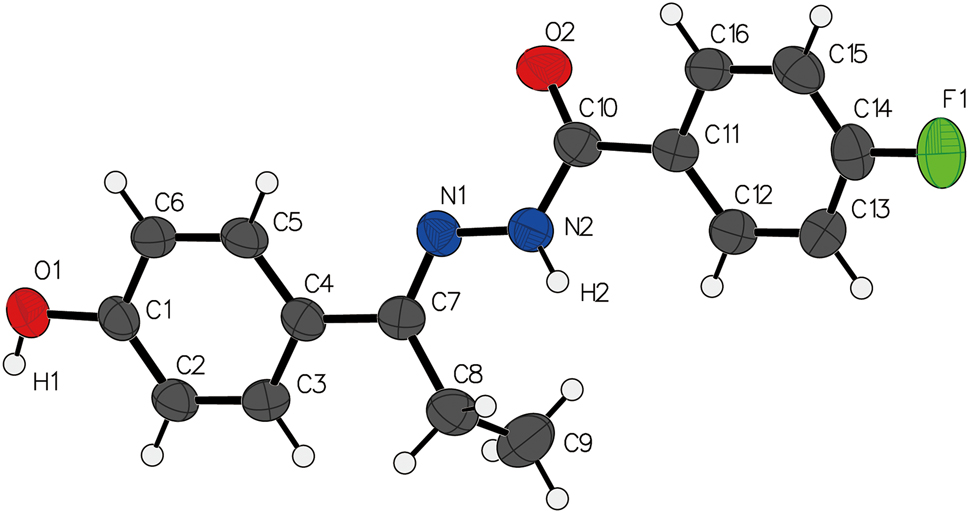

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless block
Size: 0.32 × 0.25 × 0.22 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.10 mm−1
Diffractometer, scan mode:

θmax, completeness:		 SuperNova, ω

29.2°, >99 %
N(hkl)measured, N(hkl)unique, Rint: 4708, 2860, 0.016
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 2160
N(param)refined: 192
Programs: CrysAlisPRO [1], SHELX [2, 3], Olex2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
C1 0.4179 (4) 0.5129 (2) 0.14129 (18) 0.0378 (7)
C2 0.4952 (4) 0.4202 (3) 0.18177 (18) 0.0418 (8)
H2A 0.546372 0.357113 0.154920 0.050*
C3 0.4959 (5) 0.4220 (3) 0.26259 (18) 0.0423 (8)
H3 0.546971 0.358864 0.289482 0.051*
C4 0.4223 (4) 0.5156 (2) 0.30491 (17) 0.0372 (7)
C5 0.3438 (4) 0.6076 (3) 0.26239 (18) 0.0410 (7)
H5 0.292256 0.670936 0.288907 0.049*
C6 0.3412 (4) 0.6064 (3) 0.18199 (19) 0.0435 (8)
H6 0.287755 0.668473 0.154834 0.052*
C7 0.4290 (5) 0.5198 (3) 0.39095 (17) 0.0390 (7)
C8 0.4582 (5) 0.4076 (3) 0.43688 (19) 0.0489 (8)
H8A 0.424803 0.341036 0.404390 0.059*
H8B 0.376914 0.407758 0.481886 0.059*
C9 0.6562 (6) 0.3924 (4) 0.4646 (2) 0.0710 (12)
H9A 0.736559 0.386673 0.420201 0.107*
H9B 0.665753 0.322066 0.495323 0.107*
H9C 0.691194 0.458888 0.495791 0.107*
C10 0.4252 (5) 0.7362 (3) 0.53709 (17) 0.0410 (7)
C11 0.4259 (4) 0.7309 (3) 0.62433 (16) 0.0366 (7)
C12 0.5028 (5) 0.6387 (3) 0.66628 (19) 0.0462 (8)
H12 0.557782 0.576515 0.639811 0.055*
C13 0.4983 (5) 0.6384 (3) 0.7468 (2) 0.0499 (8)
H13 0.548701 0.576391 0.775074 0.060*
C14 0.4180 (5) 0.7314 (3) 0.78400 (18) 0.0467 (8)
C15 0.3408 (5) 0.8241 (3) 0.7453 (2) 0.0483 (9)
H15 0.286070 0.885714 0.772458 0.058*
C16 0.3465 (4) 0.8238 (3) 0.66471 (19) 0.0431 (8)
H16 0.296476 0.886608 0.637130 0.052*
F1 0.4154 (3) 0.7316 (2) 0.86353 (11) 0.0733 (7)
N1 0.4175 (4) 0.6235 (2) 0.42101 (14) 0.0411 (6)
N2 0.4213 (4) 0.6301 (2) 0.50161 (14) 0.0437 (6)
H2 0.421044 0.566907 0.529132 0.052*
O1 0.4081 (4) 0.51687 (19) 0.06185 (12) 0.0533 (6)
H1 0.457084 0.458080 0.043487 0.080*
O2 0.4244 (4) 0.82914 (19) 0.50187 (13) 0.0633 (7)

1 Source of materials

The synthesis and crystallization of the title compound were conducted following established laboratory protocols. In a 100 mL round-bottom flask, equipped with a stir bar and rubber septum, 4-fluorobenzohydrazide (0.15 g, 1 mmol) and 4-hydroxypropiophenone (0.15 g, 1 mmol) were combined with 5 drops of glacial acetic acid. To this mixture, 25 mL of absolute alcohol was added, and the resulting solution was stirred for 10 min at 50 °C. The stirring was continued for an additional 5 h to allow completion of the desired reactions. Subsequently, the solvent was evaporated to dryness using a rotary evaporator, yielding the crude product. The crude product was dissolved in a minimal amount of hot ethanol under controlled heating conditions, and the solution was gradually cooled to room temperature. During this cooling process crystal formed.

2 Experimental details

The crystal structure was solved in SHELXT [2] and refined in SHELXL [3]. The crystal structure was visually represented using the OLEX2 software package [4].

3 Comment

The benzohydrazide moiety has demonstrated its versatility in the development of biologically active compounds, establishing itself as a promising structural motif for drug discovery [5]. Previous single crystal structure studies have revealed that these compounds can exhibit either cis or trans conformation around the C=N double bond, with intramolecular hydrogen bond interactions occurring [6], [7], [8], [9]. In this study, we present a crystal structure, which exhibits a hydrogen bonding network involving the hydroxy group and hydrazide group.

The compound’s molecular configuration demonstrates an E conformation with regards to the C7=N1 bond, and exhibits torsion as evidenced by a dihedral angle of 56.7° between the two aryl rings. Within the crystal structure, intermolecular interactions are formed via O1–H1⋯O2 hydrogen bonds, arranging the molecules into parallel sheets aligned with the bc plane. Supplementary π⋯π interactions contribute to the formation of a three-dimensional network. All bond lengths fall within typical ranges and are consistent with those reported for similar compounds [10], [11], [12], [13], [14].

Corresponding author: Wenqiang Tang, Xianyang Key Laboratory of Molecular Imaging and Drug Synthesis, School of Pharmacy, Shaanxi Institute of International Trade & Commerce, Xianyang, Shaanxi, China, E-mail:

Funding source: the projects of Key Laboratory of Molecular Imaging and Drug Synthesis of Xianyang city

Award Identifier / Grant number: (2021QXNL-PT-0008)

Funding source: scientific research fund project of Shaanxi Institute of International Trade & Commerce

Award Identifier / Grant number: (SMXY202217)

Funding source: the scientific research plan project of Shaanxi provincial department of education

Award Identifier / Grant number: (23JK0328)

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was financially supported by the projects of Key Laboratory of Molecular Imaging and Drug Synthesis of Xianyang city (2021QXNL-PT-0008), scientific research fund project of Shaanxi Institute of International Trade & Commerce (SMXY202217) and the scientific research plan project of Shaanxi provincial department of education (23JK0328).

  3. Competing interests: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku Oxford Diffraction Ltd. CrysAlisPro; Rigaku Oxford Diffraction: Abingdon, Oxfordshire, England, 2023.Search in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

5. Korkmaz, I. N., Türkeş, C., Demir, Y., Öztekin, A., Özdemir, H., Beydemir, Ş. Biological evaluation and in silico study of benzohydrazide derivatives as paraoxonase 1 inhibitors. J. Biochem. Mol. Toxic. 2022, 36, e23180; https://doi.org/10.1002/jbt.23180.Search in Google Scholar PubMed

6. Liu, B., Liu, H., Zhang, H., Di, Q., Zhang, H. Crystal engineering of a hydrazone molecule toward high elasticity and bright luminescence. J. Phys. Chem. Lett. 2020, 11, 9178–9183; https://doi.org/10.1021/acs.jpclett.0c02623.Search in Google Scholar PubMed

7. Alifu, Z., Nizhamu, M., Ablajan, K. Efficient synthesis of N′-benzylidene-2-hydroxymethylbenzohydrazides from the one-pot reaction of phthalide, hydrazine and aldehydes. Res. Chem. Intermediat. 2019, 45, 4779–4788; https://doi.org/10.1007/s11164-019-03863-8.Search in Google Scholar

8. Hao, Y.-M. Crystal structure of 2-chloro-N′-(2-methoxybenzylidene)benzohydrazide, C15H13ClN2O2. Z. Kristallogr. N. Cryst. Struct. 2011, 226, 11–12; https://doi.org/10.1524/ncrs.2011.0006.Search in Google Scholar

9. Ajayeoba, T. A., Woods, J. O., Ayeni, A. O., Ajayi, T. J., Akeem, R. A., Hosten, E. C., Akinyele, O. F. Synthesis, crystallographic, computational and molecular docking studies of new acetophenone-benzoylhydrazones. J. Mol. Struct. 2021, 1237, 130275; https://doi.org/10.1016/j.molstruc.2021.130275.Search in Google Scholar

10. Fun, H.-K., Horkaew, J., Chantrapromma, S. (E)-4-Hydroxy-N′-(3-hydroxy-4-methoxybenzylidene)benzohydrazide. Acta Crystallogr. 2011, E67, o2644–o2645; https://doi.org/10.1107/s1600536811036579.Search in Google Scholar PubMed PubMed Central

11. Xue, L.-W., Han, Y.-J., Zhao, G.-Q., Feng, Y.-X. Synthesis, characterization and crystal structures of N′-(5-bromo-2-hydroxybenzylidene)-2-fluorobenzohydrazide in unsolvated and monohydrate forms. J. Chem. Crystallogr. 2011, 41, 1599–1603; https://doi.org/10.1007/s10870-011-0146-z.Search in Google Scholar

12. Zhu, H.-Y. Synthesis, characterization, and crystal structures of 3-bromo-N′-(2-methoxybenzylidene)benzohydrazide and N′-(2-methoxybenzylidene)-3,4-methylenedioxybenzohydrazide. J. Chem. Crystallogr. 2011, 41, 1785–1789; https://doi.org/10.1007/s10870-011-9982-0.Search in Google Scholar

13. Ferraresi-Curotto, V., Echeverría, G. A., Piro, O. E., Pis-Diez, R., González-Baró, A. C. Structural, spectroscopic and DFT study of 4-methoxybenzohydrazide Schiff bases. A new series of polyfunctional ligands. Spectrochim. Acta, Part A 2015, 137, 692–700; https://doi.org/10.1016/j.saa.2014.08.095.Search in Google Scholar PubMed

14. Bai, Z.-C., Li, H., Liu, Y., Jing, Z.-L. N′-(2,4-Dichlorobenzylidene)-2-methoxybenzohydrazide. Acta Crystallogr. 2006, E62, o2295–o2296; https://doi.org/10.1107/s1600536806017053.Search in Google Scholar
