Crystal structure of (3-hydroxy-4-methoxyphenyl)(pyrrolidin-1-yl)methanone, C12H15NO3

  • Xiaona Xu , Hongjuan Tong ORCID logo , Zhoujing Zhu and Bin Liu ORCID logo EMAIL logo
Published/Copyright: October 10, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 6

Abstract

C12H15NO3, monoclinic, P21/c (no. 14), a = 6.7230(2) Å, b = 11.1182(3) Å, c = 14.4996(5) Å, β =  94.8870 ( 10 ) ° , V = 1079.87(6) Å3, Z = 4, Rgt(F) = 0.0511, wRref( F 2 ) = 0.1525, T = 170 K.

CCDC no.: 2288225

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.15 × 0.12 × 0.08 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.10 mm−1
Diffractometer, scan mode: Bruker D8 Venture, φ and ω
θmax, completeness: 27.5°, 99 %
N(hkl)measured, N(hkl)unique, Rint: 11,456, 2464, 0.075
Criterion for Iobs, N(hkl)gt: Iobs > 2σ(Iobs), 1826
N(param)refined: 147
Programs: Bruker [1], SHELX [2, 3], Olex2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
C1 −0.2490 (3) 0.53479 (18) 0.91431 (14) 0.0388 (5)
H1A −0.323975 0.559521 0.856501 0.058*
H1B −0.168916 0.602558 0.939835 0.058*
H1C −0.342298 0.509485 0.958918 0.058*
C2 0.0249 (3) 0.45953 (15) 0.83822 (12) 0.0282 (4)
C3 0.0327 (3) 0.56059 (15) 0.78249 (12) 0.0303 (4)
H3 −0.069081 0.619808 0.782949 0.036*
C4 0.1873 (3) 0.57615 (16) 0.72614 (12) 0.0298 (4)
H4 0.190937 0.646010 0.688599 0.036*
C5 0.3368 (3) 0.49017 (15) 0.72424 (11) 0.0261 (4)
C6 0.3298 (3) 0.38858 (15) 0.78090 (12) 0.0281 (4)
H6 0.432736 0.330018 0.781001 0.034*
C7 0.1752 (3) 0.37228 (14) 0.83674 (12) 0.0273 (4)
C8 0.5060 (3) 0.51677 (15) 0.66691 (11) 0.0269 (4)
C9 0.5491 (3) 0.30011 (16) 0.61949 (14) 0.0393 (5)
H9A 0.405120 0.289784 0.600635 0.047*
H9B 0.581753 0.258411 0.679190 0.047*
C10 0.6761 (3) 0.25258 (18) 0.54536 (14) 0.0417 (5)
H10A 0.714406 0.167674 0.557383 0.050*
H10B 0.604099 0.258747 0.483085 0.050*
C11 0.8579 (3) 0.33404 (19) 0.55372 (15) 0.0436 (5)
H11A 0.926715 0.333648 0.496003 0.052*
H11B 0.953434 0.309333 0.606028 0.052*
C12 0.7694 (3) 0.45682 (17) 0.57096 (13) 0.0337 (4)
H12A 0.868337 0.509628 0.605437 0.040*
H12B 0.721566 0.496397 0.512046 0.040*
N1 0.6027 (2) 0.42863 (13) 0.62650 (10) 0.0287 (4)
O1 0.5551 (2) 0.62399 (11) 0.65738 (9) 0.0368 (4)
O2 0.1632 (2) 0.27443 (11) 0.89271 (9) 0.0360 (4)
H2 0.248337 0.223156 0.879859 0.054*
O3 −0.1202 (2) 0.43677 (11) 0.89632 (10) 0.0385 (4)

1 Source of materials

A mixture of 3-hydroxy-4-methoxybenzoic acid (1.68 g, 10 mmol), pyrrolidine (2.13 g, 30 mmol), 2-(7-azabenzotriazol-1-yl)-N,N, N ′ , N ′ -tetramethyluronium hexafluorophosphate (HATU) (4.18 g, 11 mmol) and N,N-diisopropylethylamine (2.58 g, 20 mmol) was dissolved in N,N-dimethylformamide (20 mL). The mixture was stirred for 4 h at 40 °C, until the TLC indicated the reaction was completed. The mixture was diluted with brine, and then extracted with ethyl acetate (3 × 30 mL). The organic phase was washed with brine (30 mL), dried with anhydrous sodium sulphate, and then concentrated under pressure. The title compound was separated by silica-gel column chromatography with ethyl acetate–petroleum ether (20 %) gradient solvent system. The target product was obtained as a white solid. Yield: 91.4 %.

2 Experimental details

The intensity data were processed using the Bruker Saint software [1]. All hydrogen atoms were treated as riding atoms, with their positions idealized and their Uiso values set to 1.2 times the Ueq of their respective parent atoms. The crystal structure was solved using ShelXT [2] and refined with ShelXL [3]. The entire refinement process was conducted using the Olex2 software [4].

3 Comment

Phenyl(pyrrolidin-1-yl)methanone derivatives have exhibited notable bioactivity, thereby resulting in extensive investigation and reporting of numerous associated crystal structures [5], [6], [7], [8], [9]. In the present investigation, we report the elucidation of the crystal structure of a newly synthesized compound, namely (3-hydroxy-4-methoxyphenyl)(pyrrolidin-1-yl)methanone, which belongs to the class of phenyl(pyrrolidin-1-yl)methanone derivatives.

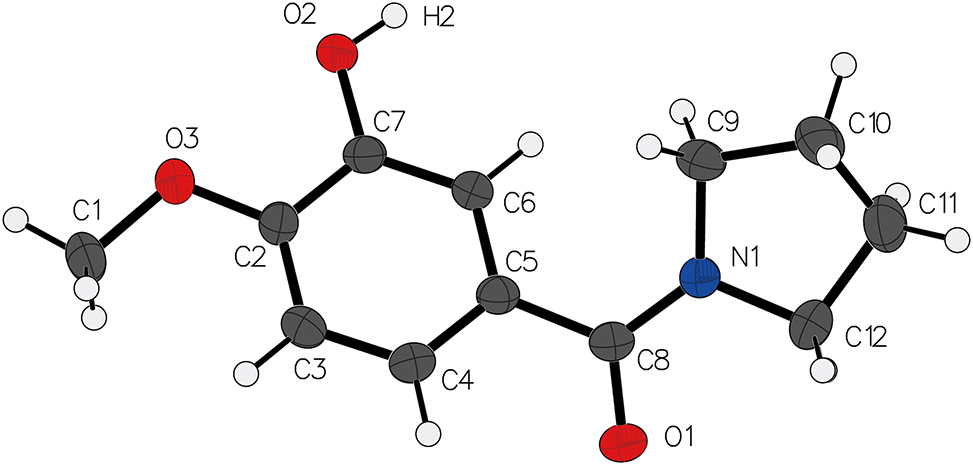

In the context of this molecular configuration, the hydrogen moieties in the benzene ring have been substituted by hydroxyl and methoxy functional groups. Notably, the hydroxyl moiety reveals a carbon-oxygen bond (C7–O2) length measuring 1.364(3) Å, whereas the methoxy moiety exhibits a carbon-oxygen bond (C2–O3) length of 1.366(3) Å. Furthermore, the carbon–oxygen–carbon bond angle (C2–O3–C1) within the methoxy group is determined to be 116.54 ( 15 ) ° , precisely adhering to the predetermined range for bond lengths and angles [10], [11], [12].

In the crystalline structure, an intermolecular hydrogen bonding interaction between the hydroxyl and ketone groups (O2–H2⋯O1) has been identified. Notably, the O2–H2⋯O1 hydrogen bond exhibits a bond length of 1.8371(14) Å and a bond angle of 173.4 ( 1 ) ° . These observations suggest the pivotal role of hydrogen bonding in conferring structural stability among the molecular entities.

Corresponding author: Bin Liu, Xianyang Key Laboratory of Molecular Imaging and Drug Synthesis, School of Pharmacy, Shaanxi Institute of International Trade & Commerce, Xianyang, Shaanxi, China, E-mail:

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Competing interests: The authors declare no conflicts of interest regarding this article.

  3. Research funding: Natural Science Foundation of Shannxi Province (2021JM-561), Doctoral research fund project of Xianyang Vocational and Technical College (2021BK01) and the Key Laboratory of Molecular Imaging and Drug Synthesis of Xianyang City (2021QXNL–PT-0008).

References

1. Bruker. SAINT, APEX2 and SADABS; Bruker AXS Inc.: Madison, WI, USA, 2012.Search in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

5. Wang, Y., Wang, Z., Li, Y., Wu, G., Cao, Z., Zhang, L. A general ligand design for gold catalysis allowing ligand-directed anti-nucleophilic attack of alkynes. Nat. Commun. 2014, 5, 3470; https://doi.org/10.1038/ncomms4470.Search in Google Scholar PubMed PubMed Central

6. Zhu, J., Wang, J., Dong, G. Catalytic activation of unstrained C(aryl)–C(aryl) bonds in 2,2′-biphenols. Nat. Chem. 2019, 11, 45–51; https://doi.org/10.1038/s41557-018-0157-x.Search in Google Scholar PubMed PubMed Central

7. Kiren, S., Padwa, A. A benzannulation protocol to prepare substituted aryl amines using a Michael-aldol reaction of β-keto sulfones. J. Org. Chem. 2009, 74, 7781–7789; https://doi.org/10.1021/jo9017793.Search in Google Scholar PubMed

8. Tang, Z., Mo, K., Ma, X., Huang, J., Zhao, D. para-Selective radical trifluoromethylation of benzamide derivatives via iminium intermediates. Angew. Chem. Int. Ed. 2022, 61, e202208089; https://doi.org/10.1002/ange.202208089.Search in Google Scholar

9. Holtz, E., Albrecht, U., Langer, P. One-pot reactions of 2,4-(dioxobutylidene)phosphoranes. Efficient synthesis of 4-(2-hydroxybenzoyl)salicylic acid derivatives and buta-1,3-diene-1,4-dicarboxylates. Tetrahedron 2007, 63, 3293–3301; https://doi.org/10.1016/j.tet.2007.02.062.Search in Google Scholar

10. Garrec, J., Cordier, M., Frison, G., Prévost, S. Palladium-catalyzed C8-arylation of naphthalenes through C–H activation: a combined experimental and computational study. Chem. Eur. J. 2019, 25, 14441–14446; https://doi.org/10.1002/chem.201903500.Search in Google Scholar PubMed

11. Ning, X.-Q., Lou, S.-J., Mao, Y.-J., Xu, Z.-Y., Xu, D.-Q. Nitrate-promoted selective C–H fluorination of benzamides and benzeneacetamides. Org. Lett. 2018, 20, 2445–2448; https://doi.org/10.1021/acs.orglett.8b00793.Search in Google Scholar PubMed

12. Wu, X., Fan, W., Pan, Y., Zhai, Y., Niu, Y., Li, C., Mei, Q. Synthesis, crystal structure and anti-fatigue effects of some benzamide derivatives. Molecules 2014, 19, 1034–1046; https://doi.org/10.3390/molecules19011034.Search in Google Scholar PubMed PubMed Central

Received: 2023-08-17
Accepted: 2023-09-28
Published Online: 2023-10-10
Published in Print: 2023-12-15
