Crystal structure of (Z)-N-(4-(4-(4-((4,5,6-trimethoxy-3-oxobenzofuran-2(3H)-ylidene)methyl)phenoxy)butoxy)phenyl)acetamide, C30H31NO8

  • Lian-Hua Xu ORCID logo , Ju-Mei Shi ORCID logo , Hua-Bin Wang ORCID logo EMAIL logo und Ying Zhou EMAIL logo
Veröffentlicht/Copyright: 21. August 2023
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 238 Heft 5

Abstract

C30H31NO8, triclinic, P ‾ 1 (no. 2), a = 5.21720(10) Å, b = 9.2878(2) Å, c = 27.2825(5) Å, α = 82.199(2)∘, β = 88.113(2)∘, γ = 81.617(2)∘, V = 1295.66(5) Å3, Z = 2, Rgt(F) = 0.0567, wRref(F2) = 0.1548, T = 100 K.

CCDC no.: 2285562

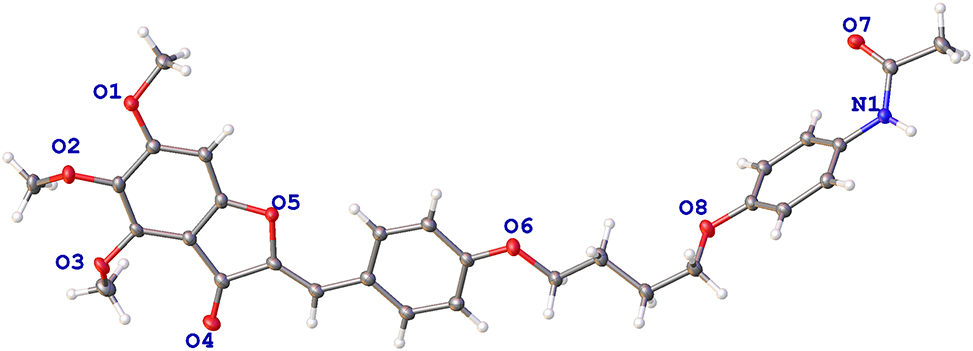

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Yellow block
Size: 0.15 × 0.12 × 0.10 mm
Wavelength: Cu Kα radiation (1.54184 Å)
μ: 0.82 mm−1
Diffractometer, scan mode: XtaLAB AFC12 (RINC), ω
θmax, completeness: 74.3°, 98 %
N(hkl)measured, N(hkl)unique, Rint: 11,979, 5027, 0.048
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 3886
N(param)refined: 356
Programs: CrysAlisPro [1], Olex2 [2], SHELX [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
O1 −0.2463 (4) −0.0023 (2) 0.96301 (7) 0.0277 (4)
O2 −0.1298 (4) −0.2847 (2) 0.97036 (7) 0.0286 (5)
O3 0.2348 (4) −0.41744 (19) 0.90778 (7) 0.0273 (4)
O4 0.6615 (4) −0.3108 (2) 0.82303 (7) 0.0310 (5)
O5 0.4371 (4) 0.05440 (19) 0.84172 (6) 0.0231 (4)
O6 1.1662 (4) 0.5258 (2) 0.73476 (7) 0.0279 (4)
O7 0.9929 (4) 1.6186 (2) 0.55657 (7) 0.0297 (5)
O22 1.4891 (4) 0.9631 (2) 0.62570 (7) 0.0281 (4)
N1 1.4318 (4) 1.5607 (2) 0.55658 (8) 0.0244 (5)
H1 1.578380 1.596425 0.550256 0.029*
C1 0.2746 (5) −0.0239 (3) 0.87215 (9) 0.0215 (6)
C2 0.0875 (5) 0.0427 (3) 0.90171 (10) 0.0234 (6)
H2 0.056141 0.146321 0.901051 0.028*
C3 −0.0532 (5) −0.0497 (3) 0.93257 (9) 0.0223 (6)
C4 −0.0003 (5) −0.2051 (3) 0.93431 (10) 0.0235 (6)
C5 0.1857 (5) −0.2675 (3) 0.90280 (10) 0.0219 (6)
C6 0.3259 (5) −0.1750 (3) 0.87051 (9) 0.0220 (6)
C7 0.5421 (5) −0.1977 (3) 0.83615 (10) 0.0236 (6)
C8 0.6052 (5) −0.0478 (3) 0.81878 (9) 0.0224 (6)
C9 0.7969 (5) −0.0142 (3) 0.78798 (9) 0.0229 (6)
H9 0.891216 −0.094957 0.774205 0.027*
C10 0.8852 (5) 0.1267 (3) 0.77199 (9) 0.0228 (6)
C11 0.7777 (5) 0.2559 (3) 0.79134 (10) 0.0242 (6)
H11 0.635890 0.253494 0.814047 0.029*
C12 0.8759 (5) 0.3856 (3) 0.77769 (10) 0.0246 (6)
H12 0.802144 0.471463 0.791293 0.030*
C13 1.0817 (5) 0.3921 (3) 0.74423 (9) 0.0225 (6)
C14 1.1866 (6) 0.2679 (3) 0.72321 (10) 0.0253 (6)
H14 1.322742 0.272434 0.699300 0.030*
C15 1.0884 (5) 0.1363 (3) 0.73784 (10) 0.0246 (6)
H15 1.162448 0.050796 0.724084 0.029*
C16 1.3637 (6) 0.5457 (3) 0.69813 (10) 0.0256 (6)
H16A 1.302503 0.531913 0.665345 0.031*
H16B 1.520220 0.473475 0.706475 0.031*
C17 1.4253 (6) 0.7001 (3) 0.69714 (10) 0.0287 (6)
H17A 1.459327 0.717061 0.731224 0.034*
H17B 1.273454 0.770966 0.684784 0.034*
C18 1.6598 (6) 0.7268 (3) 0.66434 (11) 0.0295 (6)
H18A 1.816376 0.667860 0.680057 0.035*
H18B 1.638647 0.692025 0.632183 0.035*
C19 1.7011 (6) 0.8862 (3) 0.65501 (11) 0.0280 (6)
H19A 1.704865 0.926550 0.686711 0.034*
H19B 1.867400 0.895809 0.637181 0.034*
C20 1.4896 (5) 1.1100 (3) 0.60982 (10) 0.0235 (6)
C21 1.6723 (5) 1.1922 (3) 0.62316 (10) 0.0244 (6)
H21 1.811182 1.147462 0.644216 0.029*
C22 1.6483 (5) 1.3416 (3) 0.60512 (10) 0.0252 (6)
H22 1.772060 1.398509 0.614142 0.030*
C23 1.4474 (5) 1.4079 (3) 0.57431 (10) 0.0228 (6)
C24 1.2690 (5) 1.3243 (3) 0.56026 (10) 0.0242 (6)
H24 1.132897 1.368463 0.538473 0.029*
C25 1.2904 (5) 1.1758 (3) 0.57822 (10) 0.0243 (6)
H25 1.167783 1.118827 0.568798 0.029*
C26 1.2084 (6) 1.6553 (3) 0.54871 (10) 0.0248 (6)
C27 1.2442 (6) 1.8105 (3) 0.52881 (11) 0.0315 (7)
H27A 1.274815 1.818099 0.492985 0.047*
H27B 1.393119 1.837173 0.544712 0.047*
H27C 1.087940 1.877367 0.535799 0.047*
C28 −0.3282 (6) 0.1532 (3) 0.95942 (11) 0.0298 (6)
H28A −0.381280 0.191415 0.925456 0.045*
H28B −0.184447 0.201465 0.968223 0.045*
H28C −0.474730 0.172768 0.982135 0.045*
C29 −0.2469 (6) −0.4043 (3) 0.95703 (11) 0.0313 (7)
H29A −0.274414 −0.390059 0.921233 0.047*
H29B −0.413786 −0.407715 0.974409 0.047*
H29C −0.132517 −0.496847 0.966345 0.047*
C30 0.2297 (7) −0.4855 (3) 0.86373 (12) 0.0360 (7)
H30A 0.119854 −0.420043 0.839158 0.054*
H30B 0.159624 −0.578381 0.871656 0.054*
H30C 0.406014 −0.504602 0.850280 0.054*

1 Source of material

2-(4-(4–Bromobutoxy)phenyl)-5,6,7-trimethoxy-4h-Chromen-4-one (0.46 g, 1 mmol) and acetaminophen (0.18 g, 1.2 mmol) were dissolved in 10 mL of acetone, and potassium carbonate (0.28 g, 2 mmol) and catalyzed potassium (0.03 g, 0.2 mmol) iodide were added to the mixed solution for reflux reaction at 338 K for about 48 h. After the reaction was completed, the solvent was evaporated under vacuum. The residue was extracted and stratified by ethyl acetate, dried, filtered and concentrated. The residue was subjected to flash column chromatography on silicagel (dichloromethane/methanol = 100:1), and recrystallized with ethanol to obtain yellow powder target compound.

2 Experimental details

The carbon-bound hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

3 Comment

Aurone and its derivatives are important bioactive substances, which are the basic structures of many natural products and important intermediates in the synthesis of a variety of drugs [4], [5], [6], [7]. Therefore, synthesis and modification of orange ketone has been a hot topic in the field of medicine and pharmacy.

The basic structure of the title compound is aurone, containing a aurone, a carbon chain, and a Acetaminophen fragment. The key lengths and angles obtained from the title structure are within the normal range and are consistent with those previously reported in similar structures [8, 9]. The keto group was confirmed by the distance of 1.232(3) Å (C7–O4), the C8=C9 double bond adopts a Z-configuration and the bond distance is 1.329(4)∘ A, which was defined by the dihedral angle of 2.3(5)∘ for O5–C6–C8–C10. The three methoxy groups on the benzene ring, of which one methoxy group (C–3) has the methoxy group forming a smaller Angle with the ring (C2–C3–O1–C28[6.7(4)∘]), The other two methoxies (C–4, C–5) are highly distorted in the ring (C3–C4–O2–C29[134.7(3)∘], C4–C5–O3–C30[129.3(3)∘]).

Corresponding authors: Hua-Bin Wang and Ying Zhou, Guizhou University of Traditional Chinese Medicine, Guiyang, 550025, P.R. China, E-mail: ,

  1. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

  2. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  3. Research funding: The authors gratefully acknowledge support from the project of Guizhou Administration of Traditional Chinese Medicine, research on science and Technology of traditional Chinese medicine and ethnic medicine of Guizhou Provincial Administration of Traditional Chinese Medicine (No. QZYY-2021-008).

References

1. CrysAlisPro Software. Rigaku Oxford Diffraction [CP/DK], Japan, 2015.Suche in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Duong, T. H., Beniddir, M. A., Nguyen, V. K., Aree, T., Gallard, J. F., Mac, D. H., Nguyen, H. H., Bui, X. H., Boustie, J., Nguyen, K. P. P., Chavasiri, W., Pogam, P. L. Sulfonic acid-containing flavonoids from the roots of Phyllanthus acidus. J. Nat. Prod. 2018, 81, 2026–2031; https://doi.org/10.1021/acs.jnatprod.8b00322.Suche in Google Scholar PubMed

5. Tian, T., Li, M. H., Feng, W., Ding, Y. L., Li, Z. Y., Shi, Z., Shen, T. Total syntheses and cytotoxicity evaluation of Coryaurone A and representative analogues. J. Nat. Prod. 2022, 85, 1634–1640; https://doi.org/10.1021/acs.jnatprod.2c00345.Suche in Google Scholar PubMed

6. Aleffi, G. S., Rosa, A. S., de Souza, L. G., Avelar, J. L. S., Nascimento, S. M. R., de Almeida, V. M., Tucci, A. R., Ferreira, V. N., da Silva, A. J. M., Santos-Filho, O. A., Miranda, M. D., Costa, P. R. R. Aurones: a promising scaffold to inhibit SARS–CoV-2 replication. J. Nat. Prod. 2023, 86, 1536–1549; https://doi.org/10.1021/acs.jnatprod.3c00249.Suche in Google Scholar PubMed

7. Abou Baker, D. H. An ethnopharmacological review on the therapeutical properties of flavonoids and their mechanisms of actions: a comprehensive review based on up to date knowledge. Toxicol. Rep. 2022, 9, 445–469; https://doi.org/10.1016/j.toxrep.2022.03.011.Suche in Google Scholar PubMed PubMed Central

8. Hao, Z. F., Zhu, S. J., Lei, C. W., Zhou, Y. Synthesis and crystal structure of 8-bromo-3-(1H-pyrazole-1-carbonyl)-2H-chromen-2-one, C13H7BrN2O3. Z. Kristallogr. N. Cryst. Struct. 2023, 238, 221–222; https://doi.org/10.1515/ncrs-2022–0561.10.1515/ncrs-2022-0561Suche in Google Scholar

9. Shin, S. Y., Ahn, S., Koh, D. The crystal structure of (Z)-2-(2,3-dimethoxybenzylidene)naphtho-[1,2-b]furan-3(2H)-one, C21H16O4. Z. Kristallogr. N. Cryst. Struct. 2022, 237, 1189–1191; https://doi.org/10.1515/ncrs-2022–0454.10.1515/ncrs-2022-0454Suche in Google Scholar
Received: 2023-07-07
Accepted: 2023-07-31
Published Online: 2023-08-21
Published in Print: 2023-10-26
