Crystal structure of [tetraaqua-bis((3-carboxy-5-(pyridin-4-yl)benzoate-κ1N)cobalt(II)] tetrahydrate, C26H32CoN2O16

  • Xiaobo Bao und Chongchong Tian ORCID logo EMAIL logo
Veröffentlicht/Copyright: 1. August 2023
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 238 Heft 5

Abstract

C26H32CoN2O16, orthorhombic, Fdd2 (no. 43), a = 24.8013(10) Å, b = 35.8890(16) Å, c = 6.9911(4) Å, V = 6222.7(5) Å3, Z = 8, R gt (F) = 0.0487, wR ref (F2) = 0.1462, T = 293(2) K.

CCDC no.: 2282776

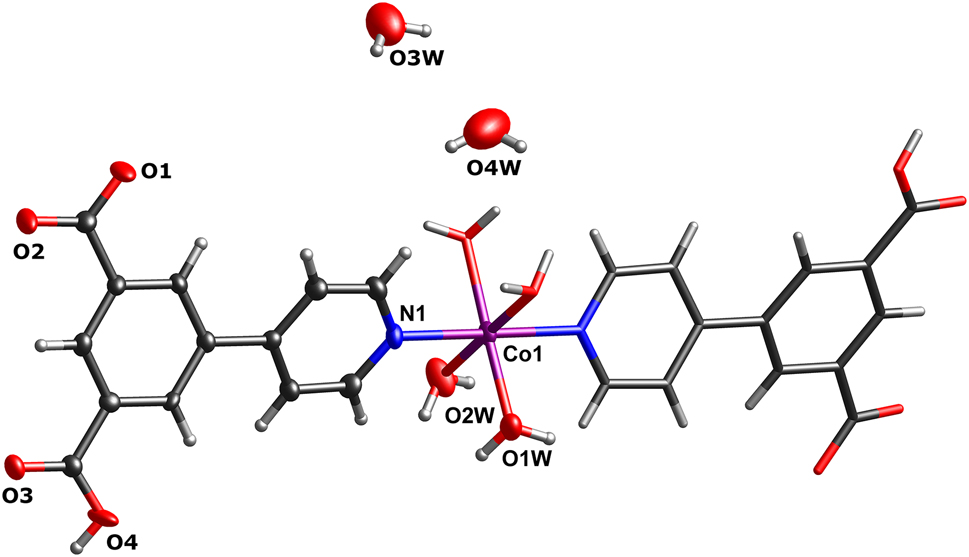

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Orange block
Size: 0.20 × 0.18 × 0.16 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.63 mm−1
Diffractometer, scan mode: Multiwire proportional, φ and ω
θmax, completeness: 25.0°, >99 %
N(hkl)measured, N(hkl)unique, Rint: 14,060, 2734, 0.044
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 2530
N(param)refined: 206
Programs: Bruker [1], SHELX [2], PLATON [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
Co1 0.750000 0.750000 0.05215 (16) 0.0224 (3)
O1 1.08892 (18) 0.86268 (12) 0.1550 (9) 0.0483 (14)
O1W 0.75410 (16) 0.70957 (17) −0.1606 (8) 0.0393 (14)
H1WA 0.722396 0.702653 −0.190217 0.059*
H1WB 0.771867 0.690993 −0.119268 0.059*
O2 1.16635 (17) 0.83449 (12) 0.2028 (9) 0.0449 (13)
O2W 0.75527 (17) 0.70830 (17) 0.2628 (8) 0.0442 (15)
H2WA 0.723779 0.700858 0.291862 0.066*
H2WB 0.773529 0.690099 0.219702 0.066*
O3 1.18028 (14) 0.69845 (11) 0.0478 (7) 0.0293 (9)
O4 1.10550 (17) 0.66870 (12) −0.0287 (10) 0.0477 (15)
H4 1.123956 0.650184 −0.007945 0.072*
N1 0.83629 (16) 0.75392 (14) 0.0545 (11) 0.0244 (10)
C1 0.8619 (2) 0.78621 (17) 0.0294 (11) 0.0283 (14)
H1 0.841224 0.807527 0.010883 0.034*
C2 0.9179 (2) 0.78992 (17) 0.0293 (10) 0.0269 (13)
H2 0.933795 0.813003 0.007410 0.032*
C3 0.9497 (2) 0.75855 (14) 0.0623 (9) 0.0193 (12)
C4 0.9231 (2) 0.72458 (17) 0.0923 (8) 0.0243 (14)
H4A 0.942756 0.702928 0.114133 0.029*
C5 0.8675 (2) 0.72358 (17) 0.0890 (9) 0.0258 (15)
H5 0.850508 0.700914 0.111680 0.031*
C6 1.0096 (2) 0.76110 (15) 0.0691 (8) 0.0200 (12)
C7 1.0348 (2) 0.79508 (16) 0.1064 (8) 0.0221 (12)
H7 1.014104 0.816342 0.125772 0.026*
C8 1.0911 (2) 0.79736 (15) 0.1148 (8) 0.0214 (12)
C9 1.1220(2) 0.76569 (17) 0.0873 (8) 0.0225 (13)
H9 1.159396 0.767102 0.093122 0.027*
C10 1.0970 (2) 0.73183 (15) 0.0511 (9) 0.0200 (11)
C11 1.0413 (2) 0.72978 (15) 0.0399 (9) 0.0188 (11)
H11 1.024930 0.707085 0.012490 0.023*
C12 1.1312 (2) 0.69771 (16) 0.0229 (9) 0.0237 (13)
C13 1.1181 (2) 0.83389 (16) 0.1619 (10) 0.0263 (13)
O3W 0.7593 (3) 0.8855 (2) 0.7532 (14) 0.086 (2)
H3WA 0.726559 0.881426 0.724066 0.129*
H3WB 0.779639 0.877576 0.664208 0.129*
O4W 0.7532 (3) 0.8662 (3) 0.1527 (17) 0.117 (4)
H4WA 0.785335 0.858078 0.147490 0.141*
H4WB 0.737596 0.862317 0.046140 0.176*

1 Source of material

A mixture of Co(NO3)2·6H2O (1 mmol, 291.0 mg), 5-(pyridin-4-yl)isophthalic acid (H2pipa) (2 mmol, 486.4 mg), N,N-dimethylacetamide (1 mL) and H2O (1.5 mL) were sealed in a 10 mL Teflon-lined autoclave that was heated at 358 K under autogenous pressure for two days. After cooling to room temperature, orange block crystals were obtained.

2 Experimental details

The C-bound H atoms were placed in idealized positions (C—H = 0.93 Å) and refined by the riding model with Uiso(H) = 1.2Ueq(C). The H atom of the hydroxyl O atom was located in a difference Fourier map and refined with the distance restraint of O—H = 0.82 Å. The hydrogen of water molecule was refined with the distance restraint of O—H = 0.85 Å. The Uiso values were constrained to be 1.5Ueq of the carrier atom for oxygen H atoms.

3 Comment

As a rigid ligand containing one pyridyl and two carboxylic acid groups, 5-(pyridin-4-yl)isophthalic acid (H2pipa) was widely used in the synthesis of multidimensional coordination polymers due to its excellent coordination ability and versatile coordination modes [4], [5], [6], [7], [8], [9], [10], [11]. The two carboxylate groups can provide more coordination sites and the pyridyl group can complement the dicarboxylate ligands in the coordination and formation of high-connected nets. To further expand this research, 5-(pyridin-4-yl)isophthalic acid was selected as the organic ligand to synthesize a new Co(II) coordination polymer.

The asymmetric unit consists of half of a Co(II) center located on a crystallographic twofold axis, one partial deprotonated H2pipa ligand, two coordinated water molecules and two free water molecules (see the figure). The Co(II) center has a distorted octahedral coordination geometry, which is connected to four oxygen atoms from two pairs of symmetry related water molecules (Co—O = 2.081(6)—2.104(6) Å), and two nitrogen atoms from two symmetry related Hpipa− ligands (Co—N = 2.145(4) Å). The carboxylic acid groups in the Hpipa− ligand do not participate in the coordination, and thus form a zero-dimensional structure. In the crystal structure, O—H⋯O hydrogen bonds link the tile molecules into a three dimensional supermolecular framework.

Corresponding author: Chongchong Tian, College of Pharmacy, Jiangsu Vocational College of Medicine, 224005, Yancheng, Jiangsu, P.R. China, E-mail:

Funding source: Natural Science Foundation of the Jiangsu Higher Education Institutions of China

Award Identifier / Grant number: 18KJB320004

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was financial supported by Natural Science Foundation of the Jiangsu Higher Education Institutions of China (18KJB320004).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2, SAINT and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2008.Suche in Google Scholar

2. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Suche in Google Scholar PubMed

3. Spek, A. L. Structure validation in chemical crystallography. Acta Cryst. 2009, D65, 148–155; https://doi.org/10.1107/s090744490804362x.Suche in Google Scholar PubMed PubMed Central

4. Kuai, H.-W., Hu, T., Jiang, D.-Y., Qian, Y.-H. Synthesis, structural characterization, and properties of Co(II) and Zn(II) complexes with a mixed N- and O-donor ligand. Z. Naturforsch. 2019, 74, 415–420; https://doi.org/10.1515/znb-2018-0284.Suche in Google Scholar

5. Meng, X., Zhang, X., Bing, Y., Xu, N., Shi, W., Cheng, P. In situ generation of NiO nanoparticles in a magnetic metal-organic framework exhibiting three-dimensional magnetic ordering. Inorg. Chem. 2016, 55, 12938–12943; https://doi.org/10.1021/acs.inorgchem.6b02376.Suche in Google Scholar PubMed

6. Zheng, X., Zhou, L., Huang, Y., Wang, C., Duan, J., Wen, L., Tian, Z., Li, D. A series of metal-organic frameworks based on 5-(4-pyridyl)-isophthalic acid: selective sorption and fluorescence sensing. J. Mater. Chem. A 2014, 2, 12413–12422; https://doi.org/10.1039/c4ta01900h.Suche in Google Scholar

7. Hu, F.-L., Mi, Y., Gu, Y.-Q., Zhu, L.-G., Yang, S.-L., Wei, H., Lang, J.-P. Structure diversities of ten entangled coordination polymers assembled from reactions of Co(II) or Ni(II) salts with 5-(pyridin-4-yl)isophthalic acid in the absence or presence of auxiliary N-donor ligands. CrystEngComm 2013, 15, 9553–9561; https://doi.org/10.1039/c3ce41059e.Suche in Google Scholar

8. Li, H., Han, Y., Lv, X., Du, S., Hou, H., Fan, Y. 3D CoII, NiII, CoII-doped NiII noninterpenetrated ladder-polymers: structural and magnetic studies. CrystEngComm 2013, 15, 3672–3677; https://doi.org/10.1039/c3ce00061c.Suche in Google Scholar

9. Liu, S.-J., Xue, L., Hu, T.-L., Bu, X.-H. Two new CoII coordination polymers based on carboxylate-bridged di- and trinuclear clusters with a pyridinedicarboxylate ligand: synthesis, structures and magnetism. Dalton Trans. 2012, 41, 6813–6819; https://doi.org/10.1039/c2dt30297g.Suche in Google Scholar PubMed

10. Liu, Y., Li, H., Han, Y., Lv, X., Hou, H., Fan, Y. Template-assisted synthesis of Co, Mn–MOFs with magnetic properties based on pyridinedicarboxylic acid. Cryst. Growth Des. 2012, 12, 3505–3513; https://doi.org/10.1021/cg300237e.Suche in Google Scholar

11. Jia, J., Athwal, H.-S., Blake, A.-J., Champness, N.-R., Hubberstey, P., Schröder, M. Increasing nuclearity of secondary building units in porous cobalt(II) metal-organic frameworks: variation in structure and H2 adsorption. Dalton Trans. 2011, 40, 12342–12349; https://doi.org/10.1039/c1dt10901d.Suche in Google Scholar PubMed

Received: 2023-07-01
Accepted: 2023-07-19
Published Online: 2023-08-01
Published in Print: 2023-10-26

© 2023 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
