Crystal structure of 3-(4-bromophenyl)-5-methyl-1H-pyrazole, C10H9BrN2

  • David Kočović , Snežana Mugoša , Sergiu Shova , Zoran D. Tomić ORCID logo and Željko K. Jaćimović ORCID logo EMAIL logo
Published/Copyright: July 5, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 5

Abstract

C10H9BrN2, orthorhombic, P212121 (no. 19), a = 5.9070(3) Å, b = 9.2731(7) Å, c = 17.5641(14) Å, V = 962.09(12) Å3, Z = 4, Rgt(F) = 0.0504, wRref(F2) = 0.0947, T = 293(2) K.

CCDC no.: 2269982

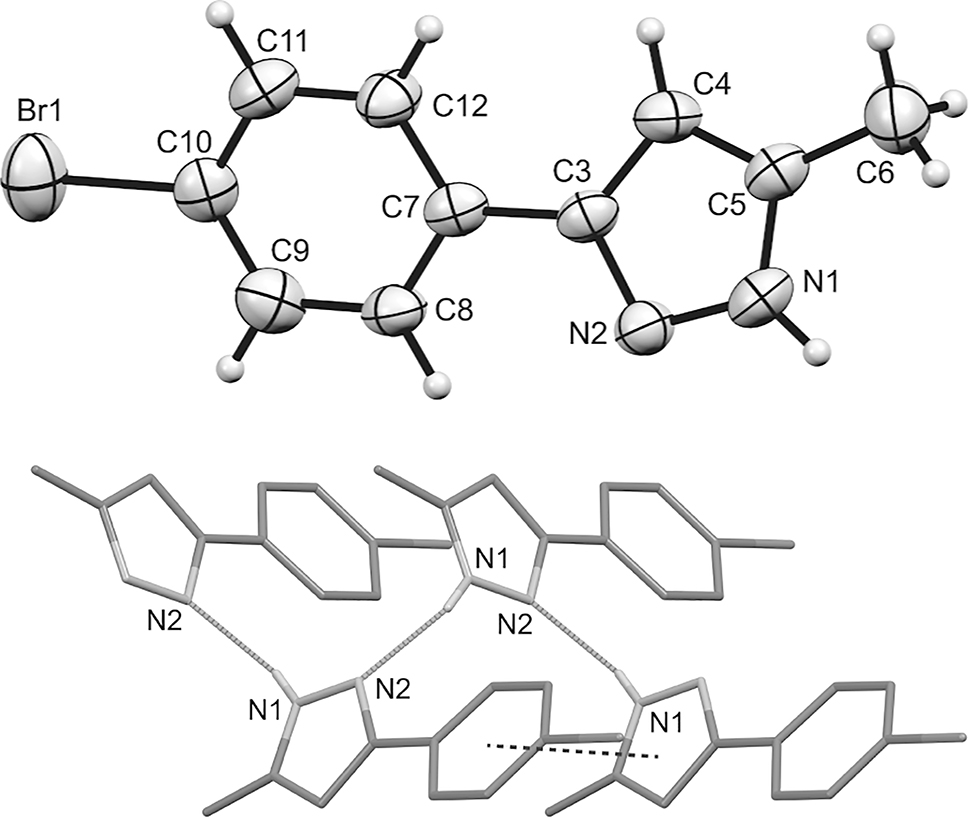

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Pink prism
Size: 0.30 × 0.20 × 0.15 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 4.22 mm−1
Diffractometer, scan mode: Xcalibur, ω
θmax, completeness: 29.2°, >99 %
N(hkl)measured, N(hkl)unique, Rint: 4442, 2196, 0.039
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 1346
N(param)refined: 119
Programs: CrysAlisPro [1], Shelx [2], Mercury [3], Platon [4], WinGX/Ortep [5, 6]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
Br1 1.09722 (11) 0.42935 (9) 0.13546 (5) 0.0661 (3)
C3 0.3789 (9) 0.4409 (7) 0.3881 (3) 0.0370 (15)
C4 0.2283 (10) 0.5528 (8) 0.4041 (4) 0.0446 (17)
H2 0.2242 0.6436 0.3817 0.054*
C5 0.0874 (12) 0.5008 (8) 0.4598 (4) 0.0436 (17)
C6 −0.1065 (11) 0.5682 (8) 0.5008 (4) 0.0617 (19)
H6A −0.2125 0.4947 0.5155 0.093*
H6B −0.1801 0.6363 0.468 0.093*
H6C −0.0519 0.6168 0.5454 0.093*
C7 0.5569 (9) 0.4369 (8) 0.3295 (4) 0.0366 (15)
C8 0.7295 (11) 0.3349 (7) 0.3291 (4) 0.0436 (17)
H8 0.737 0.2668 0.3679 0.052*
C9 0.8887 (11) 0.3331 (7) 0.2724 (4) 0.0515 (19)
H9 1.0037 0.2646 0.2729 0.062*
C10 0.8780 (9) 0.4331 (8) 0.2145 (4) 0.0426 (16)
C11 0.7109 (11) 0.5352 (8) 0.2132 (4) 0.048 (2)
H11 0.7037 0.6021 0.1737 0.057*
C12 0.5535 (10) 0.5377 (8) 0.2710 (4) 0.0465 (18)
H12 0.4423 0.6087 0.2709 0.056*
N1 0.1578 (9) 0.3659 (6) 0.4756 (3) 0.0472 (16)
H1 0.0966 0.3116 0.5095 0.057*
N2 0.3359 (8) 0.3253 (6) 0.4319 (3) 0.0416 (14)

1 Source of materials

3-(4-bromophenyl)-5-methyl-1H-pyrazole (L) was purchased from Sigma–Aldrich. 0.05 g L was dissolved in 5 ml of ethanol, slowly heated and left to crystallize. After 24 h clear light pink single crystals of the title compound were filtered and washed with ethanol.

2 Experimental details

The H atoms bonded to pyrazole and phenyl ring were placed at calculated positions and refined as riding atoms with Uiso(H) set to 1.2Ueq of the parent atom. The H atoms of the methyl group were positioned geometrically and allowed to rotate around the C–C bond to best fit the experimental electron density (HFIX 137 in the Shelx program suite [2]), with Uiso(H) set to 1.5Ueq(C).

3 Comment

Pyrazole and its derivatives have important pharmacological properties [7]. They bonds to metal atoms as monodentate or bridging bidentate ligands [8]. Strong affinity towards metals may lead to the formation of metal-organic frameworks [9]. N–H⃛N hydrogen bonding is prevalent interaction in the assembly of pyrazolyl molecules [10]. Their hydrogen bonding capacity may lead to the formation of extended molecular networks [11]. Substituents at the pyrazole ring give more possibilities for supramolecular arrangements. Between phenyl-pyrazole molecules stacking interactions are possible [12]. Addition of bromine to phenyl ring may lead to the halogen bonding [13]. Their variability in coordination modes extends their coordinative properties [14]. Phenol-pyrazole ligands influence the structural and magnetic properties of transition metal complexes [15, 16]. Brominated phenyl pyrazoles serve as ligands in the synthesis of molecular magnets [17, 18]. Steric effects of the phenol-pyrazoles, are important for the structural variability of the coordination compounds [19]. As a continuation of our work in the structural and supramolecular properties of the phenyl pyrazole molecules [20, 21], we are reporting the crystal and molecular structure of the 3-(4-bromophenyl)-5-methyl-1H-pyrazole. Bond lengths in the title molecule follow the pattern like in related bromophenyl-1H-pyrazole derivatives [22], [23], [24]. As in the crystal structure of [22], in the title molecule there are no Br⃛Br interactions. But, in the crystal structures of [23, 24] the Br⃛Br interaction of type I [25] is present, θ1 = θ2 = 163° in Ref. [23] and θ1 = θ2 = 156° in Ref. [24]. Molecules of the title compound are connected through the N1–H1⃛N2 i (the H⃛N distance is 2.24 Å, the N–H⃛N bond angle is 160°), (i = −1/2 + x, 1/2 − y, 1 − z). View along the c axis (lower part of the Figure) shows assembly of molecules into zigzag chain. Dotted black line depicts the closest phenole-pyrazole intermolecular distance. Centroids of the phenol and pyrazole rings from neighboring molecules are at a distance of 4.158(4) Å. Angle between the mean planes of the neighboring rings is 18.0(3)°. Such an arrangement of two cycles creates an opportunity for stacking interaction between their π-systems. Molecular chains are directed along the axis a. There are no significant inter-chain contacts. Br atom is not involved in significant intermolecular interactions.

Corresponding author: Željko K. Jaćimović, Faculty of Metallurgy and Technology, Džordža Vašingtona bb University of Montenegro, Podgorica, Montenegro, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: None declared.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku Oxford Diffraction. CrysAlisPro. Version 1.171.42.49; Rigaku Oxford Diffraction: Yarnton, England, 2022.Search in Google Scholar

2. Sheldrick, G. M. Crystal structure refinement with Shelxl. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

3. Macrae, C. F., Edgington, P. R., McCabe, P., Pidcock, E., Shields, G. P., Taylor, R., van der Streek, T. Mercury 4.0: from visualization to analysis, design and prediction. J. Appl. Crystallogr. 2020, 39, 453–457; https://doi.org/10.1107/s002188980600731x.Search in Google Scholar

4. Spek, A. L. Single-crystal structure validation with the program Platon. J. Appl. Crystallogr. 2003, 36, 7–13; https://doi.org/10.1107/s0021889802022112.Search in Google Scholar

5. Farrugia, L. J. WinGX suite for small-molecule single-crystal crystallography. J. Appl. Crystallogr. 1999, 32, 837–838; https://doi.org/10.1107/s0021889899006020.Search in Google Scholar

6. Farrugia, L. J. WinGX and Ortep for Windows: an update. J. Appl. Crystallogr. 2012, 45, 849–854; https://doi.org/10.1107/s0021889812029111.Search in Google Scholar

7. Isloor, A. M., Kalluraya, B., Shetty, P. Regioselective reaction: synthesis, characterization and pharmacological studies of some new Mannich bases derived from 1,2,4-triazoles. Eur. J. Med. Chem. 2009, 44, 3784–3787; https://doi.org/10.1016/j.ejmech.2009.04.038.Search in Google Scholar PubMed

8. Viciano-Chumillas, M., Tanase, S., Jongh, L. J., Reedijk, J. Coordination versatility of pyrazole-based ligands towards high-nuclearity transition-metal and rare-earth clusters. Eur. J. Inorg. Chem. 2010, 2010, 3403–3418; https://doi.org/10.1002/ejic.201000412.Search in Google Scholar

9. Pettinari, C., Tabacaru, A., Galli, S. Coordination polymers and metal-organic frameworks based on poly(pyrazole)-containing ligands. Coord. Chem. Rev. 2016, 307, 1–31; https://doi.org/10.1016/j.ccr.2015.08.005.Search in Google Scholar

10. Dunitz, J. D., Gavezzotti, A. Supramolecular synthons: validation and ranking of intermolecular interaction energies. Cryst. Growth Des. 2012, 12, 5873–5877; https://doi.org/10.1021/cg301293r.Search in Google Scholar

11. Basu, T., Sparkes, H. A., Mondal, R. Construction of extended molecular networks with heterosynthons in cocrystals of pyrazole and acids. Cryst. Growth Des. 2009, 9, 5164–5175; https://doi.org/10.1021/cg900559q.Search in Google Scholar

12. Gajda, R., Tchon, D. M., Makal, A. Hierarchy of intermolecular interactions in highly luminescent pyrenyl-pyrazole-aldehyde. Cryst. Growth Des. 2023, 23, 862–872; https://doi.org/10.1021/acs.cgd.2c01106.Search in Google Scholar

13. Aakeroy, C. B., Spartz, C. L., Dembowski, S., Dwyrea, S., Desper, J. A systematic structural study of halogen bonding versus hydrogen bonding within competitive supramolecular systems. IUCrJ 2015, 2, 498–510; https://doi.org/10.1107/s2052252515010854.Search in Google Scholar PubMed PubMed Central

14. Jaćimović, Ž. K., Radović, A., Leovac, V. M., Tomić, Z. D., Radosavljević, E. I. Crystal structure of bis(2-thiocyanato)tetrakis(3,5-dimethyl-1-(thiocarbamoyl)pyrazole)dinickel(II) dichloride ethanol disolvate, [Ni(NCS)2(C6H6N3S)4] [Cl]2 … 2C2H5OH]. Z. Kristallogr. N. Cryst. Struct. 2007, 222, 430–432; https://doi.org/10.1524/ncrs.2007.0182.Search in Google Scholar

15. Bai, Y.-L., Bao, X., Zhu, S., Fanga, J., Tao, J. Ligand field effect tuned magnetic behaviors of two chain compounds based on MnIII units: from slow magnetic relaxation to metamagnetism. Dalton Trans. 2013, 42, 1033–1038; https://doi.org/10.1039/c2dt31944f.Search in Google Scholar PubMed

16. Viciano-Chumillas, M., Tanase, S., Mutikainen, I., Turpeinen, U., Jongh, L. J. D., Reedijk, J. Manganese(III) compounds with phenol-pyrazole based-ligands: impact of the coligand and the carboxylate ligand on the trinuclear core [Mn3(μ3–O)(phpzR)3(O2CR′)n]1 − n. Dalton Trans. 2009, 38, 7445–7453; https://doi.org/10.1039/b905396d.Search in Google Scholar PubMed

17. Liu, C.-M., Zhang, D.-Q., Zhu, D.-B. Solvatomagnetic effect and spin-glass behavior in a 1D coordination polymer constructed from EE-azido bridged MnIII3O units. Chem. Commun. 2008, 44, 368–370; https://doi.org/10.1039/b715080f.Search in Google Scholar PubMed

18. Liu, C.-M., Zhang, D.-Q., Zhu, D.-B. 1D coordination polymers constructed from anti-anti carboxylato-bridged MnIIIO(Brppz)3 units: from long-range magnetic ordering to single-chain magnet behaviors. Inorg. Chem. 2009, 48, 4980–4987; https://doi.org/10.1021/ic900345s.Search in Google Scholar PubMed

19. Tao, J., Zhang, Y. Z., Bai, Y.-L., Sato, O. One-dimensional ferromagnetic complexes built with MnIII3O units. Inorg. Chem. 2006, 45, 4877–4879; https://doi.org/10.1021/ic061029s.Search in Google Scholar

20. Jaćimović, Ž. K., Tomić, Z. D., Giester, G., Libowitzky, E., Ajanović’, A., Kosović’, M. The crystal structure of bis [4-bromo-2-(1H-pyrazol-3-yl) phenolato]-κ2N,O] copper(II), C18H12Br2CuN4O2. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 1003–1005; https://doi.org/10.1515/ncrs-2021-0191.Search in Google Scholar

21. Jaćimović, Ž. K., Kosović, M., Novaković, S. B., Bogdanović, G. A., Giester, G., Kastratović, V. Crystal structure of 4-bromo-2-(1H-pyrazol-3-yl) phenol, C9H7BrN2O. Z. Kristallogr. N. Cryst. Struct. 2017, 232, 507–509; https://doi.org/10.1515/ncrs-2016-0392.Search in Google Scholar

22. Mede, R., Glaser, S., Suchland, B., Schowtka, B., Mandel, M., Gorls, H., Krieck, S., Schiller, A., Westerhause, M. Manganese(I)-based CORMs with 5-substituted 3-(2-pyridyl)pyrazole ligands. Inorganics 2017, 5, 8; https://doi.org/10.3390/inorganics5010008.Search in Google Scholar

23. Puello, J. Q., Obando, B. I., Foces-Foces, C., Infantes, L., Claramunt, R. M., Cabildo, P., Jimenez, J. A., Elguero, J. Structure and tautomerism of 3(5)-amino-5(3)-arylpyrazoles in the solid state and in solution: an X-ray and NMR study. Tetrahedron 1997, 53, 10783–10802; https://doi.org/10.1016/s0040-4020(97)00678-9.Search in Google Scholar

24. Sun, J., Lv, P.-C., Yin, Y., Yuan, R.-J., Ma, J., Zhu, H.-L. Synthesis, structure and antibacterial activity of potent DNA gyrase inhibitors: N′-benzoyl-3-(4-bromophenyl)-1H-pyrazole-5-carbohydrazide derivatives. PLoS One 2013, 8, e69751; https://doi.org/10.1371/journal.pone.0069751.Search in Google Scholar PubMed PubMed Central

25. Desiraju, G. R., Parthasarathy, R. The nature of halogen-halogen interactions: are short halogen contacts due to specific attractive forces or due to close packing of nonspherical atoms? J. Am. Chem. Soc. 1989, 111, 8725–8726; https://doi.org/10.1021/ja00205a027.Search in Google Scholar
Received: 2023-05-18
Accepted: 2023-06-14
Published Online: 2023-07-05
Published in Print: 2023-10-26

© 2023 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
