The crystal structure of tetrakis(1-isopropylimidazole-κ1 N)-[μ2- imidazole-4,5-dicarboxylato-κ4 O,N,O′,N′)]- trioxido-divanadium, C29H41N10O7V2

  • Xiang-Yu Ren , Xiao-Jie Wang ORCID logo EMAIL logo , Yu-Cai Qin und Yue Tong
Veröffentlicht/Copyright: 7. Juni 2023
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 238 Heft 4

Abstract

C29H41N10O7V2, triclinic, P 1 ‾ (no. 2), a = 11.3461(5) Å, b = 12.7013(5) Å, c = 14.0649(5) Å, α =  111.609 ( 1 ) ∘ , β =  108.702 ( 1 ) ∘ , γ =  93.957 ( 2 ) ∘ , V = 1744.20(12) Å3, Z = 2, R gt (F) = 0.0439, wR ref (F 2) = 0.1160, T = 173 K.

CCDC no.: 2265347

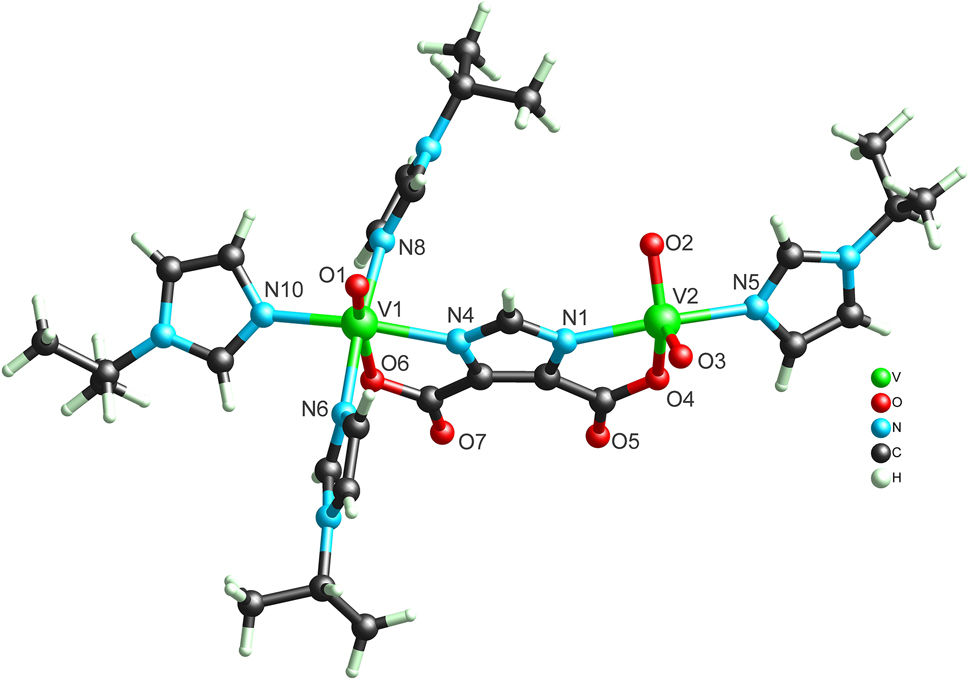

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Violet block
Size: 0.24 × 0.22 × 0.20 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.59 mm−1
Diffractometer, scan mode: Bruker APEX II, 0.5° φ and 0.5° ω
θ max, completeness: 25.4°, >99 %
N(hkl)measured , N(hkl)unique, R int: 14,702, 6362, 0.044
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 4640
N(param)refined: 450
Programs: Bruker [1], Olex2 [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom X y z U iso*/U eq
C1 0.7548 (3) 0.3542 (3) 0.6009 (2) 0.0206 (6)
C2 0.7056 (4) 0.2111 (3) 0.1498 (3) 0.0376 (9)
H2 0.623296 0.164282 0.123592 0.045*
C3 0.2442 (5) 0.0672 (4) 0.3355 (4) 0.0698 (15)
H3A 0.314814 0.028219 0.352059 0.105*
H3B 0.163725 0.015076 0.314748 0.105*
H3C 0.256206 0.137633 0.400749 0.105*
C4 0.7972 (3) 0.4440 (3) 0.5671 (2) 0.0232 (7)
C5 0.9620 (4) 0.3085 (5) 0.0182 (3) 0.0595 (13)
H5A 0.975045 0.231163 0.011964 0.089*
H5B 1.030253 0.347181 0.006307 0.089*
H5C 0.879650 0.301588 −0.037309 0.089*
C6 0.6904 (3) 0.1741 (3) 0.5674 (2) 0.0243 (7)
H6 0.669167 0.091791 0.532622 0.029*
C7 0.1370 (5) 0.1584 (5) 0.2078 (6) 0.099 (2)
H7A 0.142618 0.227146 0.272265 0.149*
H7B 0.054600 0.105392 0.179091 0.149*
H7C 0.144964 0.181740 0.150716 0.149*
C8 0.6993 (3) 0.4354 (3) 0.7831 (2) 0.0222 (7)
C9 0.2409 (4) 0.0992 (4) 0.2403 (4) 0.0561 (12)
H9 0.229217 0.026107 0.174888 0.067*
C10 0.7161 (3) 0.3519 (3) 0.6839 (2) 0.0217 (7)
C11 1.3322 (4) 0.4436 (4) 0.7445 (3) 0.0519 (9)
H11Aa 1.267306 0.478376 0.769794 0.078*
H11Ba 1.412582 0.501139 0.780879 0.078*
H11Ca 1.344699 0.376879 0.762876 0.078*
H11Db 1.296258 0.506204 0.729021 0.078*
H11Eb 1.423664 0.471654 0.788270 0.078*
H11Fb 1.290075 0.418597 0.785816 0.078*
C12 0.4982 (3) 0.3506 (3) 0.9546 (3) 0.0313 (8)
H12 0.566678 0.415881 0.988131 0.038*
C13 0.0964 (5) 0.1625 (5) 0.8213 (4) 0.0910 (19)
H13A 0.091956 0.235347 0.812433 0.136*
H13B 0.017642 0.134443 0.827396 0.136*
H13C 0.106760 0.104626 0.757115 0.136*
C14 0.8941 (3) 0.3139 (3) 0.2576 (3) 0.0283 (7)
H14 0.970351 0.352787 0.320399 0.034*
C15 0.9635 (3) 0.3789 (4) 0.1317 (3) 0.0378 (9)
H15 1.051115 0.391520 0.186164 0.045*
C16 0.3757 (4) 0.1830 (3) 0.8431 (3) 0.0339 (8)
H16 0.340369 0.108347 0.784187 0.041*
C17 0.5213 (4) 0.3113 (3) 0.3113 (4) 0.0436 (10)
H17 0.567365 0.383253 0.323314 0.052*
C18 0.4029 (4) 0.3395 (3) 0.9906 (3) 0.0336 (8)
H18 0.391533 0.394425 1.052662 0.040*
C19 0.2083 (4) 0.1828 (4) 0.9242 (4) 0.0597 (13)
H19 0.194385 0.240223 0.988663 0.072*
C20 0.4778 (3) 0.1381 (3) 0.2944 (3) 0.0330 (8)
H20 0.485330 0.063270 0.292212 0.040*
C21 1.1483 (4) 0.1994 (4) 0.5575 (3) 0.0506 (10)
H21 1.208903 0.160533 0.586879 0.061*
C22 1.0612 (3) 0.3315 (3) 0.5173 (3) 0.0342 (8)
H22 1.050573 0.403869 0.514174 0.041*
C23′a 1.2903 (5) 0.4055 (5) 0.6246 (4) 0.0424 (10)
H23′a 1.266365 0.472821 0.607798 0.051*
C23b 1.3127 (16) 0.3484 (16) 0.6433 (13) 0.0462 (14)
H23b 1.337680 0.282073 0.661563 0.055*
C24 0.7540 (3) 0.2480 (3) 0.0891 (3) 0.0384 (9)
H24 0.713359 0.231266 0.013093 0.046*
C25 0.9343 (4) 0.4972 (4) 0.1431 (5) 0.0636 (13)
H25A 0.850344 0.487140 0.087957 0.095*
H25B 0.999186 0.540700 0.131510 0.095*
H25C 0.934447 0.540026 0.217064 0.095*
C26 1.0221 (3) 0.1537 (3) 0.4950 (3) 0.0375 (9)
H26 0.979243 0.076729 0.472868 0.045*
C27 0.2228 (6) 0.0735 (5) 0.9424 (5) 0.0873 (17)
H27A 0.227781 0.013221 0.876814 0.131*
H27B 0.149246 0.046921 0.956157 0.131*
H27C 0.300825 0.089595 1.006198 0.131*
C28 0.3946 (4) 0.2848 (3) 0.2838 (3) 0.0399 (9)
H28 0.336274 0.333743 0.274466 0.048*
C29 1.3835 (4) 0.3636 (3) 0.5730 (3) 0.0410 (9)
H29Aa 1.401824 0.292343 0.580800 0.061*
H29Ba 1.462332 0.423039 0.609524 0.061*
H29Ca 1.347631 0.347960 0.494562 0.061*
H29Db 1.396150 0.288263 0.528911 0.061*
H29Eb 1.466368 0.416342 0.620587 0.061*
H29Fb 1.333670 0.396200 0.523814 0.061*
N1 0.6754 (2) 0.2376 (2) 0.6613 (2) 0.0221 (6)
N2 0.3669 (3) 0.1733 (3) 0.2719 (3) 0.0353 (7)
N3 0.8734 (3) 0.3146 (3) 0.1579 (2) 0.0295 (6)
N4 0.7388 (2) 0.2410 (2) 0.5290 (2) 0.0223 (6)
N5 0.4804 (3) 0.2522 (2) 0.8616 (2) 0.0259 (6)
N6 0.9678 (3) 0.2378 (2) 0.4698 (2) 0.0264 (6)
N7 0.3259 (3) 0.2328 (2) 0.9192 (2) 0.0361 (7)
N8 0.5746 (3) 0.2199 (2) 0.3198 (2) 0.0257 (6)
N9 1.1709 (3) 0.3109 (3) 0.5697 (2) 0.0468 (8)
N10 0.7945 (3) 0.2519 (2) 0.2566 (2) 0.0258 (6)
O1 0.7477 (2) 0.07811 (19) 0.33465 (18) 0.0275 (5)
O2 0.4648 (2) 0.1137 (2) 0.65611 (18) 0.0316 (5)
O3 0.6778 (2) 0.1432 (2) 0.81932 (18) 0.0338 (6)
O4 0.6395 (2) 0.38232 (18) 0.82409 (17) 0.0272 (5)
O5 0.7351 (2) 0.54055 (19) 0.82147 (19) 0.0308 (5)
O6 0.8089 (2) 0.39932 (18) 0.47211 (17) 0.0256 (5)
O7 0.8186 (2) 0.54862 (18) 0.62428 (17) 0.0281 (5)
V1 0.76932 (5) 0.21679 (4) 0.38505 (4) 0.02066 (14)
V2 0.58527 (5) 0.20922 (4) 0.75923 (4) 0.02226 (14)

  1. aOccupancy, 0.75; bOccupancy, 0.25.

1 Source of materials

The title compound is prepared under solvothermal method by the self-assembled reaction in a mixture of ammonium metavanadate (0.34 g, 2 mmol), vanadyl acetoacetonate (0.265 g, 1 mmol), imidazole-4,5-dicarboxylic acid (0.16 g, 1 mmol), 1-isopropylimidazole (5 mL). The mixtures are stirred for 1 h in the air and then transferred to a 25 mL Teflon-lined stainless steel autoclave and was heated under autogenous pressure at 393 K for 3 days. After the reactant are slowly cooled to room temperature, violet block crystals were collected. The yield is 60 % base on V.

2 Experimental details

The structure was solved by direct methods with the Shelxs-2018 program. All H-atoms from C atoms were positioned with idealized geometry and refined isotropic (U iso(H) = 1.2 U eq(C)) and (U iso(H) = 1.5 U eq(C)) using a riding model with C–H = 0.95 Å(imidazole) and C–H = 0.98 Å(methylene), respectively. The C11, C23, C29 of isopropyl groups are processed with part instruction. The occupancy rate is set manually after setting the free occupancy rate. To put some disordered atoms in its place, some simu orders are used in refined process.

3 Comment

The structural chemistry of vanadyl-imidazole complexes is very interesting [5], [6], [7], [8], [9], [10]. However, the crystal structures of vanadyl-imidazole complexes modified by imidazole-carboxylates are very limited [11, 12]. To the best of our knowledge, only two examples of vanadyl-imidazole complexes co-modified by another dicarboxylic acid are reported so far [11, 12], and there is no record of imidazole-4,5-dicarboxylate vanadium complexes with the 1-isopropylimidazole ligand. This work is part of our continuing interest in design, synthesis and characterization of new vanadyl-imidazole complexes with new crystal structure.

The crystal structure of a vanadyl-imidazole complex (C25H33N10O7V2) similar to the title structure is co-modified by imidazole-4,5-dicarboxylic acid and 1-ethylimidazole have been determined previously by us [12].

The molecular structure contains two independent vanadium atoms, which have totally different coordination geometries. The V1 bearing one V=O possesses a distort octahedron coordinated by O6, N4 of imidazole-4,5-dicarboxylate and three N from different 1-isopropylimidazole ligand. Notably, the V–N bond distance from 1-isopropylimidazole ligand are longer than that of imidazole-4,5-dicarboxylate, which may be attributed to the chelating properties of imidazole-4,5-dicarboxylic acid. The V2 bearing two V=O was coordinated with N1 and O4 of imidazole-4,5-dicarboxylic acid and N5 of 1-isopropylimidazole ligand. The V=O, V–N and V–O distances are 1.611–1.627 Å, 2.071–2.097 Å and 2.005 Å, respectively, which implies the V1 formed distorted square pyramidal geometry. The V1 and V2 are tetradentate-bridged by imidazole-4,5-dicarboxylate. It is worth noting that all the V–N distances in title compound are slightly longer than that of in (C25H33N10O7V2), but all the V–O distances are comparable with it [12].

Corresponding author: Xiao–Jie Wang, School of Petrochemical Engineering, Liaoning Petrochemical University, Fushun, Liaoning Province, 113001, P.R. China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: We gratefully acknowledge support by the Liaoning Revitalization Talents Program (XLYC2007130), and Talent Scientific Research Fund of Liaoning Petrochemical University (2016XJJL-019).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT v8.40A; Bruker AXS Inc: Madison, Wisconsin, USA, 2016.Suche in Google Scholar

2. Bourhis, L. J., Dolomanov, O. V., Gildea, R. J., Howard, J. A. K., Puschmann, H. The anatomy of a comprehensive constrained, restrained refinement program for the modern computing environment – Olex2 dissected. Acta Crystallogr. 2015, A71, 59–75; https://doi.org/10.1107/s2053273314022207.Suche in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Sheldrick, G. Using phases to determine the space group. Acta Crystallogr. 2018, A74, a353; https://doi.org/10.1107/s0108767318096472.Suche in Google Scholar

5. Zhang, G., Luan, J., Wang, X. J. The crystal structure of tetra(1-methylimidazole-κ1N)-(sulfate-κ1O) vanadate, C16H24N8O5SV. Z. Kristallogr. N. Cryst. Struct. 2020, 235, 1295–1296, https://doi.org/10.1515/ncrs-2020-0276.Suche in Google Scholar

6. Chen, B. K., Huang, X. Q., Wang, B., Lin, Z. G., Hu, J. F., Chi, Y. N., Hu, C. W. Three new imidazole-functionalized hexanuclear oxidovanadium clusters with exceptional catalytic oxidation properties for alcohols. Chem. Eur. J. 2013, 19, 4408–4413; https://doi.org/10.1002/chem.201203854.Suche in Google Scholar PubMed

7. Huang, H. X., Chen, B. K., Fu, Y. R., Sun, J., Bi, Y. F., Zhou, M. D. Green oxidation of isochromans to isochromanones with molecular oxygen catalyzed by a tetranuclear vanadium cluster. Chin. J. Chem. 2023, 41, 1967–1972; https://doi.org/10.1002/cjoc.202300090.Suche in Google Scholar

8. Smith, T. S., Root, C. A., Kampf, J. W., Rasmussen, P. G., Pecoraro, V. L. Reevaluation of the additivity relationship for vanadyl-imidazole complexes: correlation of the EPR hyperfine constant with ring orientation. J. Am. Chem. Soc. 2000, 122, 767–775; https://doi.org/10.1021/ja991552o.Suche in Google Scholar

9. Kanamori, K., Teraoka, M., Maeda, H., Okamoto, K. Preparation and structure of oxo-bridged dinuclear vanadium complex [VⅢ2(L-his)4((μ–O))]·2H2O. Chem. Lett. 1993, 22, 1731–1734; https://doi.org/10.1246/cl.1993.1731.Suche in Google Scholar

10. Li, X. P., Zhou, K. J. Crystal structure of tetramethylammonium L-histidinatobis (thiocyanato) vanadyl (IV) monohydrate. J. Crystallogr. Spectrosc. Res. 1986, 16, 681–685; https://doi.org/10.1007/bf01181251.Suche in Google Scholar

11. Biswal, D., Pramanik, N. R., Chakrabarti, S., Drew, M. G., Acharya, K., Chandra, S. Syntheses, crystal structures, DFT calculations, protein interaction and anticancer activities of water soluble dipicolinic acid-imidazole based oxidovanadium(IV) complexes. Dalton Trans. 2017, 46, 16682–16702; https://doi.org/10.1039/c7dt02903a.Suche in Google Scholar PubMed

12. Li, N., Wang, X. J., Qin, Y. C., Wang, J. Y. The crystal structure of tetra(1-ethylimidazole-κ1N)-[μ4-imidazole-4,5-dicarboxylato-κ4O,N,O′,N′)]-trioxido-divanadium, C25H33N10O7V2. Z. Kristallogr. N. Cryst. Struct. 2023, 238, 585–587.10.1515/ncrs-2023-0110Suche in Google Scholar
