Crystal structure of catena-poly[(μ2-isophthalato-k3 O,O′:O″)(4-(4-pyridyl)-2,5-dipyrazylpyridine-k3 N,N′,N″)cobalt(II)] trihydrate C26H22N6O7Co1

  • Chao-Jun He , Zhou-Qin Wang and Yu-Fang Wang ORCID logo EMAIL logo
Published/Copyright: June 8, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 4

Abstract

C26H22N6O7Co, triclinic, P 1 ‾ (no. 2), a = 9.0033(4) Å, b = 10.1338(5) Å, c = 15.5122(8) Å, α = 96.164(4)°, β =  100.835 ( 4 ) ∘ , γ =  113.867 ( 5 ) ∘ , V = 1244.20(11) Å3, Z = 2, Rgt (F) = 0.0473, wRref (F 2) = 0.1023, T = 293(2) K.

CCDC no.: 2265369

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Red block
Size: 0.20 × 0.18 × 0.18 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.75 mm−1
Diffractometer, scan mode: SuperNova, ω
θ max, completeness: 28.4°, >99 %
N(hkl)measured , N(hkl)unique, R int: 23,992, 5532, 0.075
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 4418
N(param)refined: 370
Programs: Olex2 [1], Shelx [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Co1 0.73274 (4) 0.09830 (3) 0.18196 (2) 0.02542 (11)
O1 0.7351 (2) 0.25353 (18) 0.11162 (12) 0.0354 (4)
O2 0.6743 (3) 0.3687 (2) 0.21891 (13) 0.0521 (6)
O3 0.7275 (2) 0.87883 (18) 0.20547 (11) 0.0340 (4)
O4 0.7458 (3) 0.95577 (18) 0.08082 (12) 0.0385 (5)
N1 0.4726 (3) 0.0110 (2) 0.17837 (13) 0.0272 (5)
N2 0.1447 (3) −0.0864 (3) 0.19441 (16) 0.0476 (6)
N3 0.7363 (2) 0.1528 (2) 0.31361 (13) 0.0233 (4)
N4 0.9968 (3) 0.2106 (2) 0.25049 (13) 0.0285 (5)
N5 1.3275 (3) 0.3650 (2) 0.35298 (15) 0.0383 (6)
N6 0.7291 (3) 0.3637 (3) 0.76191 (15) 0.0410 (6)
C1 0.3420 (3) −0.0614 (3) 0.10756 (17) 0.0368 (7)
H1 0.3601 −0.0801 0.0514 0.044*
C2 0.1803 (4) −0.1089 (3) 0.1167 (2) 0.0480 (8)
H2 0.0919 −0.1592 0.0659 0.058*
C3 0.2763 (3) −0.0154 (3) 0.26553 (18) 0.0370 (6)
H3 0.2570 0.0009 0.3217 0.044*
C4 0.4400 (3) 0.0347 (2) 0.25847 (16) 0.0253 (5)
C5 0.5902 (3) 0.1177 (2) 0.33538 (15) 0.0241 (5)
C6 0.5853 (3) 0.1585 (3) 0.42237 (16) 0.0281 (6)
H6 0.4827 0.1320 0.4367 0.034*
C7 0.7345 (3) 0.2395 (3) 0.48838 (16) 0.0258 (5)
C8 0.8860 (3) 0.2770 (3) 0.46348 (16) 0.0283 (6)
H8 0.9882 0.3321 0.5056 0.034*
C9 0.8817 (3) 0.2308 (2) 0.37540 (16) 0.0252 (5)
C10 0.7336 (3) 0.2836 (3) 0.58295 (16) 0.0267 (5)
C11 0.5848 (3) 0.2491 (3) 0.60859 (17) 0.0375 (7)
H11 0.4821 0.1981 0.5663 0.045*
C12 0.5898 (4) 0.2906 (3) 0.69690 (18) 0.0410 (7)
H12 0.4879 0.2655 0.7120 0.049*
C13 0.8705 (4) 0.3967 (3) 0.73664 (19) 0.0463 (8)
H13 0.9710 0.4493 0.7804 0.056*
C14 0.8801 (3) 0.3593 (3) 0.65055 (18) 0.0405 (7)
H14 0.9840 0.3845 0.6380 0.049*
C15 1.0315 (3) 0.2619 (3) 0.33917 (16) 0.0263 (5)
C16 1.1968 (3) 0.3380 (3) 0.38927 (18) 0.0353 (6)
H16 1.2179 0.3717 0.4505 0.042*
C17 1.2892 (3) 0.3135 (3) 0.26512 (19) 0.0382 (7)
H17 1.3760 0.3302 0.2371 0.046*
C18 1.1267 (3) 0.2369 (3) 0.21433 (18) 0.0351 (6)
H18 1.1066 0.2025 0.1533 0.042*
C19 0.7076 (3) 0.3586 (3) 0.14536 (18) 0.0295 (6)
C20 0.7197 (3) 0.4764 (2) 0.09212 (16) 0.0256 (5)
C21 0.7299 (4) 0.4571 (3) 0.00422 (18) 0.0365 (7)
H21 0.7326 0.3715 −0.0221 0.044*
C22 0.7362 (4) 0.5643 (3) −0.04462 (18) 0.0447 (8)
H22 0.7409 0.5499 −0.1041 0.054*
C23 0.7356 (3) 0.6930 (3) −0.00554 (17) 0.0349 (6)
H23 0.7389 0.7645 −0.0390 0.042*
C24 0.7302 (3) 0.7160 (2) 0.08291 (16) 0.0248 (5)
C25 0.7202 (3) 0.6070 (2) 0.13090 (16) 0.0264 (5)
H25 0.7136 0.6210 0.1901 0.032*
C26 0.7351 (3) 0.8573 (3) 0.12544 (17) 0.0274 (6)
O5 0.7010 (2) 0.5368 (2) 0.37696 (14) 0.0506 (5)
H5A 0.6999 0.4862 0.3293 0.076*
H5B 0.6018 0.5069 0.3836 0.076*
O6 0.8560 (3) 0.8401 (2) 0.37249 (13) 0.0543 (6)
H6A 0.8337 0.8512 0.3188 0.082*
H6B 0.8009 0.7483 0.3695 0.082*
O7 0.8101 (3) 0.9536 (3) 0.53672 (15) 0.0557 (6)
H7A 0.9040 1.0185 0.5695 0.084*
H7B 0.8223 0.9253 0.4860 0.084*

1 Source of material

A mixture of py-pzpypz (4-(4-pyridyl)-2,5-dipyrazylpyridine, 28 mg, 0.1 mmol), H2ip (isophthalic acid, 33 mg, 0.2 mmol), Co(OAc)2.4H2O (52 mg, 0.2 mmol) and H2O (10 mL) was stirred for 30 min, and the pH value of the solution was adjusted to about 5 with 1 M KOH. The mixture was transferred to a 25 mL Teflon-lined steel vessel and heated at 140 °C for 3 days, and then cooled to room temperature over 30 h. Red block crystals of the title compound were obtained.

2 Experimental details

A suitable crystal was selected and determinated on a SuperNova, Single source at offset/far, EosS2 diffractometer. Using Olex2 [1], the structure was solved with the Shelxt [2] structure solution program and refined with the Shelxl [3] refinement package.

3 Comment

The synthesis of coordination polymers has been a hot topic in recent years, due to their novel structures and a variety potential applications Over the years, arduous effort has been invested in the purposeful design and controllable synthesis of these functional complexes [4–6]. Generally, the construction of the compounds is primarily dependent upon the advisable selection of the central metal and organic ligands [7–9]. Among many strategies for constructing coordination polymers, the self-assembly of neutral N-heterocyclic ligands and polycarboxylates with metal ions under hydro(solvo)thermal conditions has become one of the most effective approachs.

Terpyridine (tpy) ligands are well-established N-donors, and have therefore long been successfully exploited for the assembly of discrete and polymeric coordination complexes [10]. The pyrazine analogues of terpyridine-type ligands have received far less attention with the replacement of one or more pyridine rings by pyrazine rings first reported in 2005 [11]. We previously described a 1D Ni(II) polymer (C26H26NiN6O9) [12].

The ORPEP drawing of the title compound is shown in the Figure 1. The structure consists of a [Co(py-pzpypz)(bdc)] moiety and three isolated water molecules. The Co(II) ion has a distorted octahedron environment with three carboxylate oxygen atoms of two different bdc2− ligands and three chelated nitrogen atoms of the py-pzpypz molecule. The Co–N bond distance vary in the range of 2.0482(19)–2.163(2) Å, and the Co–O bond distances vary in the range of 2.0039(17)–2.2755(16) Å, which are normal bond distances found in other Co complexes [13, 14]. Adjacent Co(II) ions are connected by the carboxylate arms of the bdc2− ligands resulting a chain structure. N-containing heteromacrocyclic ligand py-pzpypz is attached to the main chain as side group (Figure 2).

Figure 1: Coordination environment of the Co(II) ion in title compound.
Figure 1:

Coordination environment of the Co(II) ion in title compound.

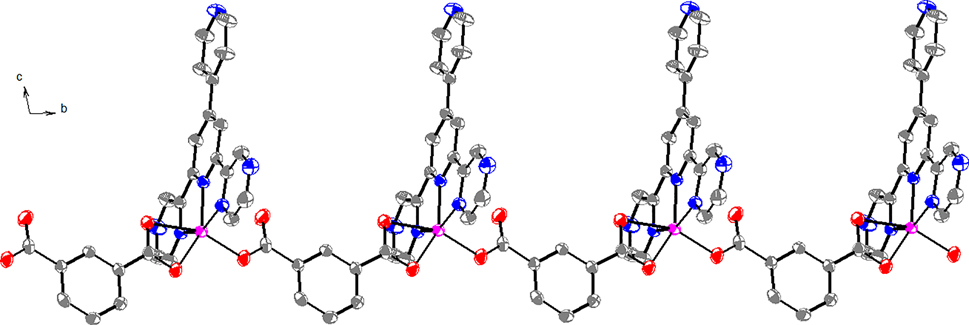

Figure 2: The 1D chain structure of the title compound.
Figure 2:

The 1D chain structure of the title compound.

Intermolecular H-bonds are found in the crystal. The intermolecular hydrogen bonds occur between carboxylate oxygen atoms and water molecules. The intermolecular hydrogen bonds also occur among oxygen atoms from water molecules to others. Thereby, the title compound can be viewed as a chain supramolecular architecture (Figure 2) further extended via these hydrogen bonds.

Corresponding author: Yu-Fang Wang, College of Chemistry and Chemical Engineering, and Henan Key Laboratory of Function-Oriented Porous Materials, Luoyang Normal University, Luoyang, Henan, 471934, P.R. China, E-mail:

Acknowledgements

This work was supported the Science and Technology Project of Henan Province (No. 202102110210).

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Science and Technology Project of Henan Province (No. 202102110210).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. Olex2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

2. Sheldrick, G. M. Shelxtl – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with Shelxl. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Jiang, Y. Y., Liu, H., Li, T., Zhang, K., Gao, P. F., Zhou, M. S., Zhang, L. L., Fu, H. R. Coordination-induced approach of a carbazole-based molecule to modulate packing modes for ultralong room-temperature phosphorescence. Cryst. Growth Des. 2022, 22, 2725–2732; https://doi.org/10.1021/acs.cgd.2c00113.Search in Google Scholar

5. Zhang, H., Ding, Z. J., Luo, Y. H., Geng, W. Y., Wang, Z. X., Zhang, D. E. Assembly of a rod indium–organic framework with fluorescence properties for selective sensing of Cu2+, Fe3+ and nitroaromatics in water. CrystEngComm 2022, 24, 667–673; https://doi.org/10.1039/d1ce01312b.Search in Google Scholar

6. Lu, Y. B., Huang, J., Yuan, X. R., Liu, S. J., Li, R., Liu, H. J., Liu, M. P., Wen, H. R., Zhu, S. D., Xie, Y. R. A three-dimensional porous Mn(II)-metal-organic framework based on a caged structure showing high room-temperature proton conductivity. Cryst. Growth Des. 2022, 22, 1045–1053; https://doi.org/10.1021/acs.cgd.1c00872.Search in Google Scholar

7. Dang, L. L., Li, T. T., Cui, Z., Sui, D., Ma, L. F., Jin, G. X. Selective construction and stability studies of molecular trefoil knot and Solomon link. Dalton Trans. 2021, 50, 16984–16989; https://doi.org/10.1039/d1dt02755g.Search in Google Scholar PubMed

8. Nicola, C. D., Tombesi, A., Moroni, M., Vismara, R., Marchetti, F., Pettinari, R., Nardo, L., Vesco, G., Galli, S., Casassa, S., Pandolfo, L., Pettinari, C. Investigation on the interconversion from DMF-solvated to unsolvated copper(II) pyrazolate coordination polymers. CrystEngComm 2020, 22, 3294–3308; https://doi.org/10.1039/d0ce00370k.Search in Google Scholar

9. Qin, J. H., Wang, H. R., Pan, Q., Zang, S. Q., Hou, H., Fan, Y. Influence of ionic liquids on the syntheses and structures of Mn(II) coordination polymers based on multidentate N-heterocyclic aromatic ligands and bridging carboxylate ligands. Dalton Trans. 2015, 44, 17639–17651; https://doi.org/10.1039/c5dt03026a.Search in Google Scholar PubMed

10. Banerjee, K., Biradha, K. Design and synthesis of mixed valent coordination networks containing pyridine appended terpyridyl, halide, and dicarboxylates. Cryst. Growth Des. 2012, 12, 4264–4274; https://doi.org/10.1021/cg300770b.Search in Google Scholar

11. Darabantu, M., Boully, L., Turck, A., Ple, N. Synthesis of new polyaza heterocycles. Part 42: diazines. Tetrahedron 2005, 61, 2897–2905; https://doi.org/10.1002/chin.200530145.Search in Google Scholar

12. Wang, Y. F., Zhang, S. Q. Crystal structure of the nickel(II) complex aqua-(2,6-di(pyrazin-2-yl)-4,4′-bipyridine-κ3N,N′,N″)-(phthalato-κ2O,O′)nickel(II) tetrahydrate, C26H26N6O9Ni. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 907–909.10.1515/ncrs-2021-0141Search in Google Scholar

13. Wang, Y. F., Li, M. H., Wang, L. Y. Two isomorphic coordination polymers based on triazolyl derivative and dicarboxylate ligand: synthesis, structures, and properties. Russ. J. Gen. Chem. 2020, 90, 305–310; https://doi.org/10.1134/s1070363220020231.Search in Google Scholar

14. Wang, Y. F., Li, S., Wang, L. Y. Crystal structures and magnetic properties of two isomorphic nickel(II) and cobalt(II) coordination polymers-based nitrogen-heterocyclic tricarbolylate ligands. Transition Met. Chem. 2020, 45, 561–568; https://doi.org/10.1007/s11243-020-00408-6.Search in Google Scholar
Received: 2023-03-23
Accepted: 2023-05-25
Published Online: 2023-06-08
Published in Print: 2023-08-28

© 2023 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
