Crystal structure of (E)-3-(3-methoxybenzylidene)benzofuran-2(3H)-one, C16H12O3

  • Liang Liang Zheng ORCID logo , Xiong Li Liu , Zhang Chao Dong , Yang Shi , Bo Wen Pan EMAIL logo and Ting Ting Feng EMAIL logo
Published/Copyright: May 15, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 4

Abstract

C16H12O3, monoclinic, P21/c (no. 14), a = 10.9636(14) Å, b = 12.1767(12) Å, c = 10.1557(13) Å, β = 116.588(16)°, V = 1212.4(3) Å3, Z = 4, Rgt (F) = 0.0366, wR ref (F 2) = 0.1019, T = 250.00(10) K.

CCDC no.: 2254177

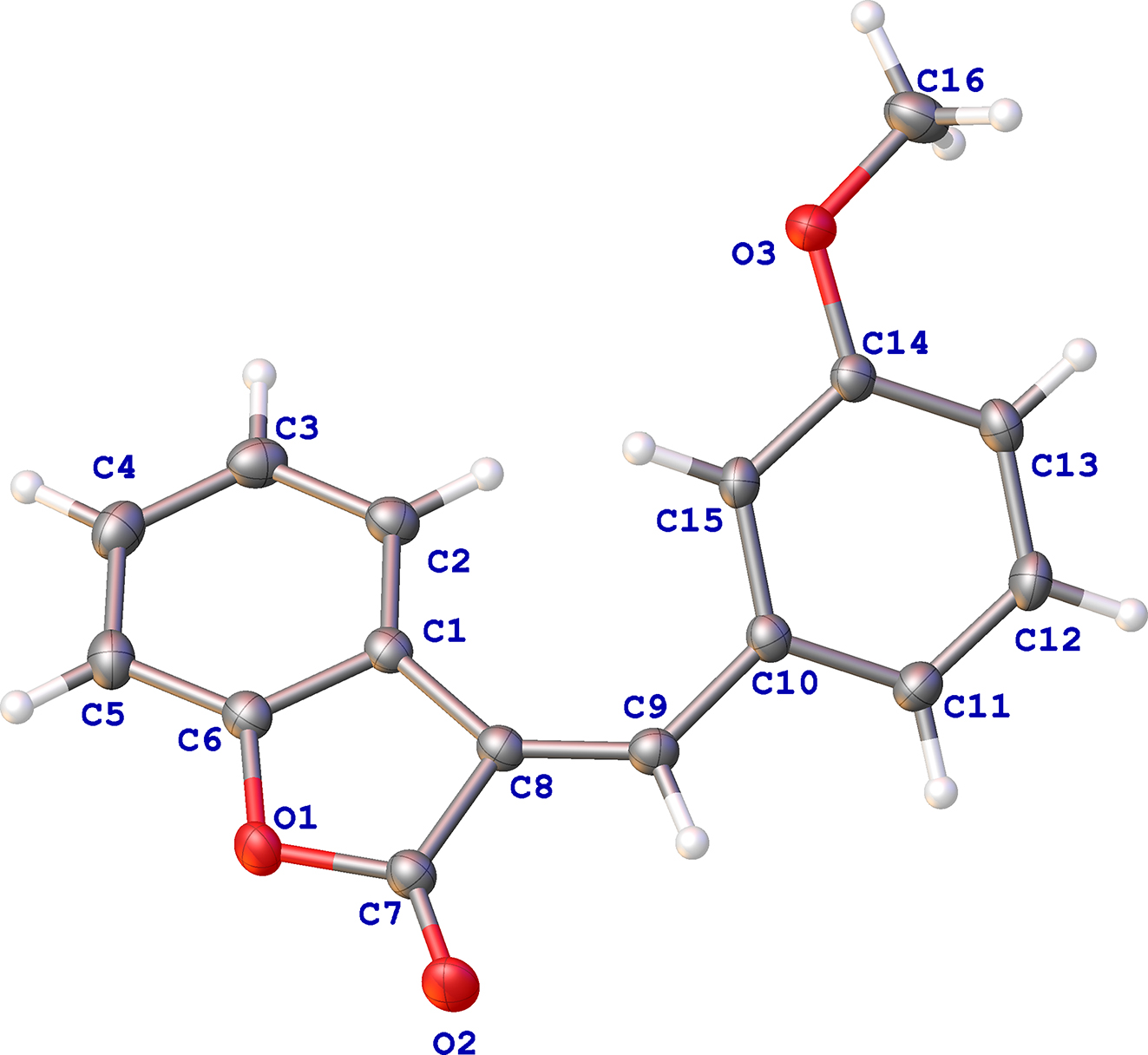

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Yellow block
Size: 0.14 × 0.13 × 0.10 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.10 mm−1
Diffractometer, scan mode: SuperNova, ω
θ max, completeness: 25.0°, >99 %
N(hkl) measured, N(hkl) unique, R int: 5171, 2132, 0.023
Criterion for I obs, N(hkl) gt: I obs > 2 σ(I obs), 1784
N(param)refined: 174
Programs: CrysAlisPRO [1], Olex2 [2], SHELX [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
O1 0.11199 (9) 0.33661 (8) 0.70425 (11) 0.0398 (3)
O2 0.15518 (10) 0.22745 (8) 0.55264 (12) 0.0465 (3)
O3 0.51044 (10) 0.75505 (8) 0.54722 (11) 0.0443 (3)
C1 0.16656 (11) 0.50716 (11) 0.64511 (14) 0.0300 (3)
C2 0.16973 (12) 0.62152 (12) 0.65541 (15) 0.0360 (4)
H2 0.199696 0.664454 0.597333 0.043*
C3 0.12859 (13) 0.67166 (13) 0.75144 (17) 0.0419 (4)
H3 0.130389 0.749480 0.758650 0.050*
C4 0.08478 (13) 0.61005 (14) 0.83729 (16) 0.0431 (4)
H4 0.058756 0.646368 0.903602 0.052*
C5 0.07841 (13) 0.49659 (14) 0.82784 (16) 0.0406 (4)
H5 0.047936 0.453704 0.885519 0.049*
C6 0.11849 (12) 0.44931 (12) 0.73064 (14) 0.0327 (3)
C7 0.15334 (13) 0.31898 (12) 0.59601 (16) 0.0347 (4)
C8 0.19354 (12) 0.42541 (11) 0.55595 (15) 0.0300 (3)
C9 0.24020 (12) 0.42476 (11) 0.45328 (15) 0.0328 (4)
H9 0.232242 0.356137 0.405612 0.039*
C10 0.30091 (12) 0.51235 (11) 0.40359 (15) 0.0302 (3)
C11 0.29074 (13) 0.50617 (13) 0.26137 (15) 0.0370 (4)
H11 0.240963 0.448135 0.197343 0.044*
C12 0.35332 (14) 0.58472 (13) 0.21464 (16) 0.0398 (4)
H12 0.345288 0.580352 0.117688 0.048*
C13 0.42751 (13) 0.66971 (12) 0.30564 (16) 0.0358 (4)
H13 0.470275 0.723088 0.271995 0.043*
C14 0.43835 (12) 0.67564 (11) 0.44696 (15) 0.0314 (4)
C15 0.37609 (12) 0.59705 (11) 0.49536 (15) 0.0310 (3)
H15 0.385066 0.601285 0.592693 0.037*
C16 0.55564 (16) 0.84770 (13) 0.4954 (2) 0.0505 (4)
H16A 0.478031 0.880419 0.411447 0.076*
H16B 0.624540 0.824362 0.464651 0.076*
H16C 0.595443 0.902083 0.574521 0.076*

1 Source of material

In a 250 mL reaction bottle, benzofuranone (2.24 g 16.7 mmol), anhydrous ethanol (150 mL), 3-methoxy-benzaldehyde (2.4 mL 20 mmol) and piperidine (0.33 mL 3.34 mmol) were stirred at 80 °C for 3 h. After the reaction is complete, the solvent is removed using a rotary evaporator. The crude product was subjected to flash column chromatography on silica gel (petroleum ether/ethyl acetate = 12:1).

2 Experimental details

The hydrogen atoms were placed in their geometrically idealized positions to ride on the parent atoms.

3 Comment

Benzofuranones are important bioactive compounds [4]. They have good application potential in pharmacological fields [5–7]. Therefore, the synthesis and modification of phenylprofurone has been a hot topic.

The title compound contains benzofurane, a carbonyl group and a methoxy phenyl group. The bond lengths and angles derived from the title structure are within normal ranges and consistent with those reported previously in similar structures [8], [9], [10]. The C=O bond was determined at the distance of 1.2018(16) Å (C7–O2). The furan ring was identified by the distance of 1.3806(17) Å (C7–O1), respectively. The oxygen atom was determined at the distance of 1.3697(16) Å (C14–O3).

Corresponding author: Bo Wen Pan and Ting Ting Feng, Guizhou University of Traditional Chinese Medicine, Guiyang 550025, P.R. China, E-mail: (B.W. Pan),

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Guizhou Provincial Science and Technology Projects (Qian Ke He Zi ZK [2022] general 480 and [2023] general 404), Key Disciplines of Traditional Chinese Medicine and Ethnic Medicine in Guizhou Province during the 14th Five–Year Plan (QZYYZDXK(JS)-2021–03) and the projects of Guizhou province (Qian Jiao He KY Zi [2022]253, gzwkj2022–232 and gzwkj2022–467).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku, O. D. CrysAlisPro Software; Rigaku Oxford Diffraction [CP/DK]: Japan, 2015.Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Ciscato, L. F., Bartoloni, F. H., Colavite, A. S., Weiss, D., Beckert, R., Schramm, S. Evidence supporting a 1,2-dioxetanone as an intermediate in the benzofuran-2(3H)-one chemiluminescence. Photochem. Photobiol. Sci. 2014, 1, 32–37; https://doi.org/10.1039/c3pp50345c.Search in Google Scholar PubMed

5. Wu, B., Lin, W. H., Gao, H. Y., Zheng, L., Wu, L. J., Kim, C. S. Four new antibacterial constituents from Senecio cannabifolius. Pharm. Biol. 2006, 6, 440–444; https://doi.org/10.1080/13880200600798502.Search in Google Scholar

6. Qiu, R., Kambe, N., Tang, Z., Tong, Z., Yin, S.-F. Recent advances on benzofuranones: synthesis and transformation via c-h functionalization. Synthesis 2006, 6, 440–444.Search in Google Scholar

7. Yang, H., Hu, G.-Y., Chen, J., Wang, Y., Wang, Z.-H. Synthesis, resolution, and antiplatelet activity of 3-substituted 1(3H)-isobenzofuranone. Bioorg. Med. Chem. Lett. 2007, 18, 5210–5213; https://doi.org/10.1016/j.bmcl.2007.06.082.Search in Google Scholar PubMed

8. De, L. F., Bispo, M., de Alcantara, C. C., Wardell, S. M. S. V., de Souza, M. V. N., Wardell, J. L. Variations in the intermolecular interactions in (E) benzaldehyde 7-chloro-1-methyl-4H-quinolinyl-4-ylidene- hydrazone and seven halo derivatives. Z. Kristallogr. N. Cryst. Struct. 2016, 4, 219–235; https://doi.org/10.1515/zkri-2015-1893.Search in Google Scholar

9. Palacios, F., Alonso, C., Fuertes, M., Ezpeleta, J. M., Rubiales, G. Glyoxalate-derived aldimines in cycloaddition reactions with olefins. Eur. J. Org. Chem. 2011, 23, 4318–4326; https://doi.org/10.1002/ejoc.201100395.Search in Google Scholar

10. Marelli, C., Monti, C., Galli, S., Masciocchi, N., Piarulli, U. 2-(2–Hydroxyaryl)cinnamic amides: a new class of axially chiral molecules. Tetrahedron 2006, 62, 8943–8951; https://doi.org/10.1016/j.tet.2006.07.019.Search in Google Scholar
Received: 2023-04-11
Accepted: 2023-05-01
Published Online: 2023-05-15
Published in Print: 2023-08-28

© 2023 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
