The crystal structure of N-(6-chloro-2-methyl-2H-indazol-5-yl)acetamide, C10H10ClN3O

  • Yi-Jing Du , Hong-Shun Sun ORCID logo , Jian-Qiang Wang and Cheng Guo ORCID logo EMAIL logo
Published/Copyright: June 1, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 4

Abstract

C10H10ClN3O, monoclinic, P21/c (no. 14), a = 4.7273(7) Å, b = 10.2148(16) Å, c = 21.283(3) Å, β = 91.458(4)°, V = 1027.4(3) Å3, Z = 4, R g t (F) = 0.0623, w R r e f (F 2) = 0.1287, T = 193 K.

CCDC no.: 2263798

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.23 × 0.20 × 0.15 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.35 mm−1
Diffractometer, scan mode: Rigaku Mercury, Graphite Monochromator
θ max, completeness: 27.5°, >99%
N(hkl) measured , N(hkl) unique, R int: 6853, 2344, 0.046
Criterion for I obs, N(hkl) gt: I obs > 2σ(I obs), 1706
N(param) refined: 142
Programs: CrystalClear [1], Olex2 [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Cl1 0.11780 (17) 0.08569 (8) 0.57527 (4) 0.0408 (2)
O1 0.7893 (4) 0.2507 (2) 0.42905 (10) 0.0362 (5)
N1 0.9433 (5) 0.4723 (2) 0.69723 (13) 0.0319 (6)
N2 0.7694 (5) 0.3748 (3) 0.71506 (12) 0.0343 (6)
N3 0.3650 (5) 0.2464 (3) 0.47584 (12) 0.0305 (6)
H3 0.188 (7) 0.235 (3) 0.4717 (15) 0.039 (10)*
C1 1.1173 (7) 0.5388 (3) 0.74463 (16) 0.0411 (8)
H1A 1.0272 0.5324 0.7855 0.062*
H1B 1.1375 0.6312 0.7331 0.062*
H1C 1.3045 0.4977 0.7472 0.062*
C2 0.9421 (6) 0.4946 (3) 0.63565 (16) 0.0330 (7)
H2 1.0504 0.5584 0.6145 0.040*
C3 0.7509 (6) 0.4060 (3) 0.60817 (14) 0.0281 (6)
C4 0.6502 (6) 0.3339 (3) 0.65979 (14) 0.0284 (6)
C5 0.4476 (6) 0.2349 (3) 0.65020 (15) 0.0320 (7)
H5 0.3740 0.1870 0.6844 0.038*
C6 0.3610 (6) 0.2103 (3) 0.58970 (15) 0.0288 (7)
C7 0.6556 (6) 0.3789 (3) 0.54654 (15) 0.0298 (7)
H7 0.7239 0.4278 0.5121 0.036*
C8 0.4634 (6) 0.2811 (3) 0.53708 (14) 0.0281 (6)
C9 0.5340 (6) 0.2300 (3) 0.42641 (15) 0.0294 (7)
C10 0.3925 (7) 0.1819 (4) 0.36700 (16) 0.0413 (8)
H10A 0.4596 0.2329 0.3313 0.062*
H10B 0.1871 0.1921 0.3699 0.062*
H10C 0.4383 0.0893 0.3609 0.062*

1 Source of material

The title compound was prepared by the reaction of 6-chloro-2-methyl-2H-indazol-5-amine (10 mmol) and acetic acid (10 mL) under reflux for 3 h. After the reaction was completed, the solution was put into ice water (20 mL), and filtered. The residue was purified by flash column chromatography. Colorless block crystals of the title compound were obtained by slow evaporation from a solution of ethyl acetate at room temperature.

2 Experimental details

Using Olex2 [2], the structure was solved with the ShelXT [3] package and refined with the ShelXL [4] program. H atoms bound to C and N atoms were positioned geometrically and allowed to ride on their parent atoms, with C–H = 0.95 Å (phenyl), 0.98 Å (methyl) and with U iso(H) = 1.5U eq(C), and N–H = 0.85 Å and U iso(H) = 1.3U eq(N).

3 Comment

The well known 2H-indazoles, an important class of N-heterocycles, is a frequently found motif in drug substances with important biological activities such as antitumor [5, 6], insecticidal [7], antiprotozoal [8] and antiviral [9].

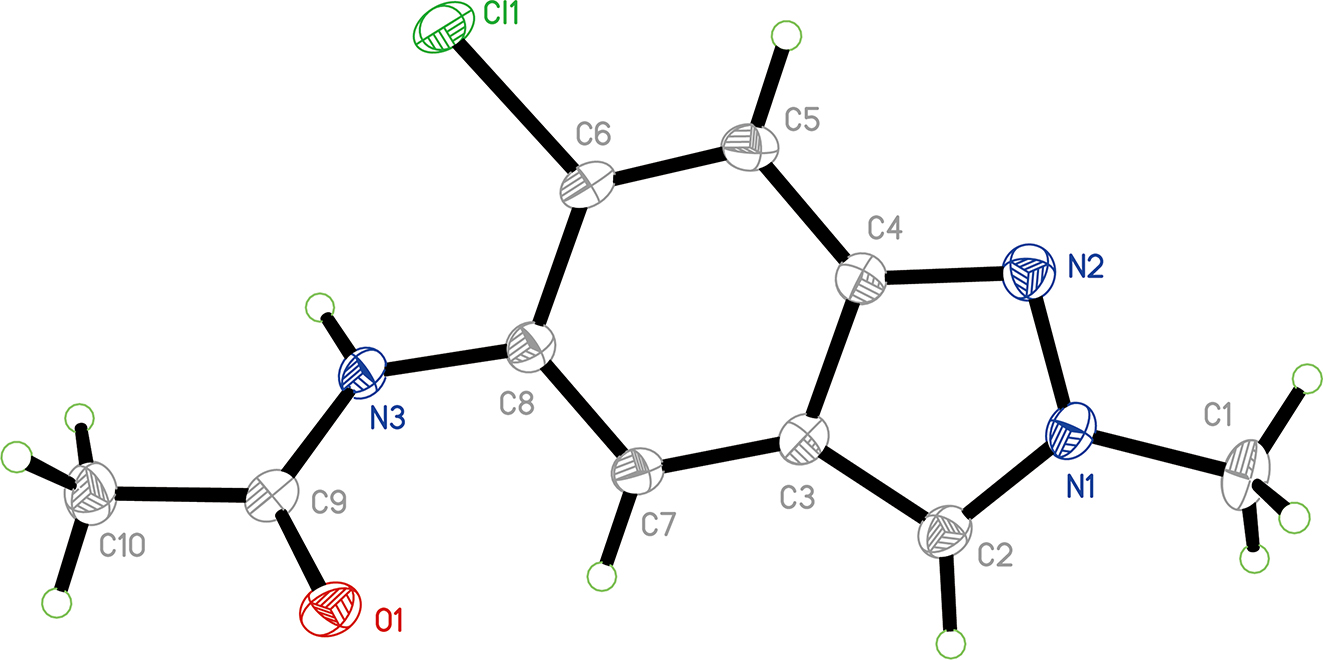

Single-crystal structure analysis revealed that the asymmetric unit consists of one N-(6-chloro-2-methyl-2H-indazol-5-yl)acetamide molecule. The indazole moiety (N1–N2/C2–C8) is planar with an r.m.s. deviation from the mean plane of 0.0692 Å. The acetamino group (N3/C9–C10/O1) and indazole ring are not in the same plane, which is similar to some reported structures of 2H-indazols derivatives [10], [11], [12], [13]. The dihedral angle of them is 43.9 Å. In the solid state structure, classical N–H ⋯ O and weak C–H ⋯ N and C–H ⋯ O hydrogen-bonding interactions result in a chain along [100].

Corresponding author: Cheng Guo, School of Chemistry and Molecular Engineering, Nanjing Tech University, Nanjing, 211816, People’s Republic of China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Natural Science Foundation of Jiangsu Province (No. BK20181486), Natural Science Foundation of Jiangsu Higher Education Institutions (No.17KJB320001), Key Program of Nanjing Polytechnic Institute (No. NJPI-2022–02) and Qing Lan Project of Jiangsu Province.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku. CrystalClear; Rigaku Corporation: Tokyo, Japan, 2007.Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Shelddrick, G. M. SHELXTL–integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

4. Shelddrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

5. Matadamas-Martinez, F., Yepez–Mulia, L., Perez-Koldenkova, V., Cortes–Benitez, F., Leyte–Lugo, M., Palacios-Espinosa, J. F., Rodriguez-Villar, K., Soria-Arteche, O., Perez-Villanueva, J. Synthesis and antitumor activity of 2,3-diphenyl-2H-indazole derivatives as potent antitubulin agents. ChemistrySelect 2022, 7, e202202056; https://doi.org/10.1002/slct.202202056.Search in Google Scholar

6. Panchangam, R. L., Rao, R. N., Balamurali, M. M., Hingamire, T. B., Shanmugam, D., Manickam, V., Chanda, K. Antitumor effects of Ir(III)-2H-indazole complexes for triple negative breast cancer. Inorg. Chem. 2022, 23, 17593–17607; https://doi.org/10.1021/acs.inorgchem.1c02193.Search in Google Scholar PubMed

7. Guo, B., Jiang, B., Dong, Y., Jin, X., Cui, L., Zhang, L., Yang, X. Design, synthesis and insecticidal activity of novel 4,5,6,7-tetrahydro-2H-indazole hydrazide derivatives targeting ecdysone receptor. Chin. J. Pestic. Sci. 2022, 24, 39–48.Search in Google Scholar

8. Rodriguez-Villar, K., Yepez-Mulia, L., Cortes-Gines, M., Aguilera-Perdomo, J. D., Quintana-Salazar, E. A., Del Angel, K. S. O., Cortes-Benitez, F., Palacios-Espinosa, J. F., Soria-Arteche, O., Perez-Villanueva, J. Synthesis, antiprotozoal activity, and cheminformatic analysis of 2-phenyl-2H-indazole derivatives. Molecules 2021, 26, 2145; https://doi.org/10.3390/molecules26082145.Search in Google Scholar PubMed PubMed Central

9. Shimizu, R., Sonoyama, T., Fukuhara, T., Kuwata, A., Matsuo, Y., Kubota, R. Safety, tolerability, and pharmacokinetics of the novel antiviral agent ensitrelvir fumaric acid, a SARS–CoV-2 3CL protease inhibitor, in healthy adults. Antimicrob. Agents Chemother. 2022, 66, e006322; https://doi.org/10.1128/aac.00632-22.Search in Google Scholar PubMed PubMed Central

10. Cui, B., Mi, X., Zhang, J. Crystal structure of 2-(2-(4-methoxyphenyl)-2H-indazol-3-yl)acetonitrile, C16H13N3O. Z. Kristallogr. N. Cryst. Stuct. 2023, 238, 361–362; https://doi.org/10.1515/ncrs-2023-0025.Search in Google Scholar

11. Alotaibi, M. H., Abdel-Wahab, B. F., Aldosari, O. F., Hegazy, A. S., Kariuki, B. M., El-Hiti, G. A. The crystal structure of N-(7-(4-fluorobenzylidene)-3-(4-fluorophenyl)-3,3a,4,5,6,7-hexahydro-2H-indazole-2-carbonothioyl)benzamide, C28H23F2N3OS. Z. Kristallogr. N. Cryst. Stuct. 2019, 234, 1083–1085; https://doi.org/10.1515/ncrs-2019-0281.Search in Google Scholar

12. Boulhaoua, M., Essaghouani, A., Benchidmi, M., Essassi, E. M., Mague, J. T. 1-(5-Nitro-1H-indazol-1-yl)ethanone. IUCrData 2016, 1, x160939; https://doi.org/10.1107/s2414314616009391.Search in Google Scholar

13. Rejouani, F. Z., Mojahidi, S., Rakib, E. M., Alaoui, A. M., Saadi, M., Ammar, L. E. Ethyl 2-(6-nitro-2H-indazol-2-yl)acetate. IUCrData 2016, 1, x161074; https://doi.org/10.1107/s2414314616010749.Search in Google Scholar
Received: 2023-04-20
Accepted: 2023-05-18
Published Online: 2023-06-01
Published in Print: 2023-08-28

© 2023 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
