The crystal structure of 2-amino-4-carboxypyridin-1-ium perchlorate, C6H7ClN2O6

  • Tao Zhang , Yingchun Luo ORCID logo und Hailiang Hu ORCID logo EMAIL logo
Veröffentlicht/Copyright: 31. Mai 2023
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 238 Heft 4

Abstract

C6H7ClN2O6, triclinic, P1̄ (no. 2), a = 5.3033(6) Å, b = 8.8875(10) Å, c = 10.3403(12) Å, α =  73.427 ( 10 ) ° , β = 85.158(10)°, γ = 73.284(10)°, V = 447.38(9) Å3, Z = 2, R gt(F) = 0.0370, wR ref(F 2) = 0.0900, T = 292.99(10) K.

CCDC no.: 2262186

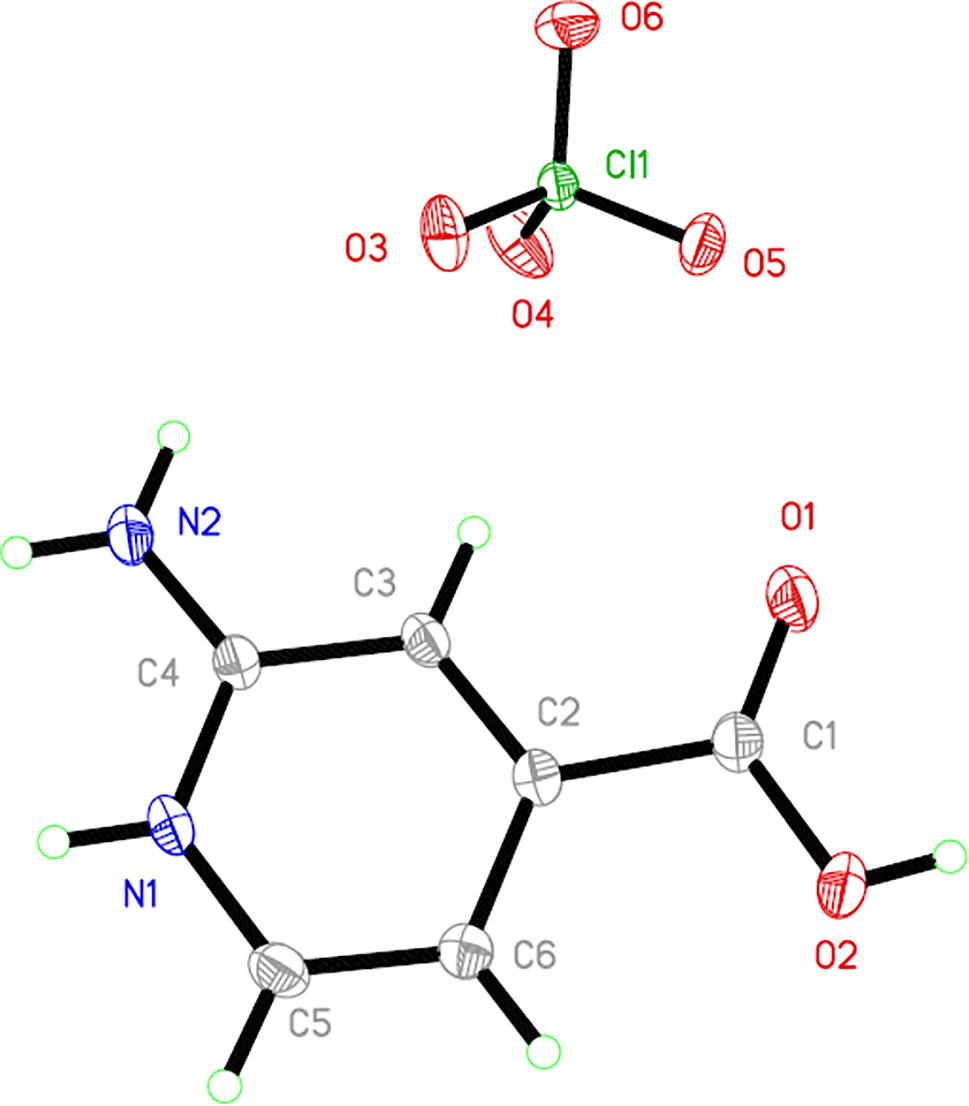

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.24 × 0.18 × 0.12 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.44 mm−1
Diffractometer, scan mode: SuperNova, ω
θ max, completeness: 26.0°, >99%
N(hkl) measured , N(hkl) unique, R int: 3254, 1757, 0.023
Criterion for I obs, N(hkl) gt: I obs > 2σ(I obs), 1500
N(param) refined: 138
Programs: CrysAlisPRO [1], Olex2 [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.7613 (4) 1.2370 (2) 0.5130 (2) 0.0300 (5)
C2 0.8563 (4) 1.0948 (2) 0.6343 (2) 0.0264 (5)
C3 0.7559 (4) 0.9658 (2) 0.6543 (2) 0.0284 (5)
H3 0.632462 0.968911 0.594097 0.034*
C4 0.8365(4) 0.8266(2) 0.7654(2) 0.0279(5)
C5 1.1156(4) 0.9593(3) 0.8315(2) 0.0331(5)
H5 1.237142 0.955291 0.893088 0.040*
C6 1.0432(4) 1.0930(3) 0.7248(2) 0.0305(5)
H6 1.114166 1.180565 0.711548 0.037*
Cl1 0.56788(10) 0.65735(6) 0.14382(5) 0.02828(19)
N1 1.0127(3) 0.8309(2) 0.84978(17) 0.0314(4)
H1 1.062859 0.748259 0.918746 0.038*
N2 0.7452(4) 0.6984(2) 0.78670(19) 0.0395(5)
H2A 0.798067 0.615793 0.855341 0.047*
H2B 0.632652 0.697440 0.731943 0.047*
O1 0.6012(4) 1.23753(19) 0.43705(17) 0.0486(5)
O2 0.8731(3) 1.35487(19) 0.49756(16) 0.0432(4)
H2 0.810556 1.429716 0.431393 0.065*
O3 0.6073(4) 0.6203(2) 0.28660(15) 0.0486(5)
O4 0.7722(3) 0.5484(2) 0.08856(18) 0.0584(6)
O5 0.5760(4) 0.8206(2) 0.08217(17) 0.0503(5)
O6 0.3181(3) 0.6421(2) 0.11778(19) 0.0523(5)

1 Source of materials

An amount of 1.38 g 2-aminopyridine-4-carboxylic acid (10 mmol) was added to 50 mL 35 % perchloric acid solution, stirred for 30 min, then filtered. The clear solution evaporated in a dark room. After one week, a large number of colorless crystals were obtained, washed with deionized water, and dried in air, yield 54 %.

2 Experimental details

The structure was solved by Direct Methods with the SHELXS-2018 program. All H-atoms were positioned with idealized geometry and refined isotropically (U iso(H) = 1.2 U eq(C) or U eq(C)) using a riding model with C–H = 0.930 Å and N–H = 0.860 Å.

3 Comment

Known as a useful ligand with multi-functional groups (pyridine, amino and carboxyl), 2-aminoisonicotinic acid and the related anion have been used to build metal complexes or metal-organic frameworks, including Ti4+, Co2+, Ni2+, Cu2+, Zn2+, and Cd2+, etc. [5], [6], [7], [8], [9], [10]. However, so far we know there has never been reported the crystal of 2-aminoisonicotinic acid or one of its salts. Thus, we here report the title compound, the perchlorate salt of 2-aminoisonicotinic acid.

As shown in the figure, the asymmetrical unit is made of one 2-amino-4-carboxypyridin-1-ium cation and one perchlorate anion. The two neighboring 2-amino-4-carboxypyridin-1-ium cations are linked by the N2–H2B ⋯ O1 hydrogen bonds to form a dimer. These dimers are connected by the hydrogen bonds O2–H2 ⋯ O3, N1–H1 ⋯ O6, and N2–H2A⋯O4 to generate a 3D supramolecular structure. All the bonds are similar to a directly related salt structure [11].

Corresponding author: Hailiang Hu, School of Chemical Engineering, Guizhou Minzu University, Guiyang, 550025, Guizhou, P.R. China, E-mail:

  1. Author contributions: The author has accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: None declared.

  3. Conflict of interest statement: The author declares no conflicts of interest regarding this article.

References

1. CrysAlisPro 1.171.38.43f. Rigaku OD; Oxfordshire, England, 2015.Suche in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Cryst. 2015, C71, 3–8, https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Sheldrick, G. Using phases to determine the space group. Acta Cryst 2018, A74, a353; https://doi.org/10.1107/s0108767318096472.Suche in Google Scholar

5. Conesa-Egea, J., Nogal, N., Martinez, J. I., Fernandez-Moreira, V., Rodriguez-Mendoza, U. R., Gonzalez-Platas, J., Gomez-Garcia, C. J., Delgado, S., Zamora, F., Amo-Ochoa, P, Amo-Ochoa, P. Smart composite films of nanometric thickness based on copper-iodine coordination polymers. Toward sensors. Chem. Sci. 2018, 9, 8000–8010; https://doi.org/10.1039/c8sc03085e.Suche in Google Scholar PubMed PubMed Central

6. Garcia-Valdivia, A. A., Perez-Yanez, S., Garcia, J. A., Fernandez, B., Cepeda, J., Rodriguez-Dieguez, A. Magnetic and photoluminescent sensors based on metal-organic frameworks built up from 2-aminoisonicotinate. Sci. Rep. 2020, 10, 8843; https://doi.org/10.1038/s41598-020-65687-6.Suche in Google Scholar PubMed PubMed Central

7. Wang, Y.-F., Wei, J.-J., Zhai, X.-H. Crystal structure of catena-poly[triaqua(μ2-1,2-bis(4-pyridyl)ethane-κ2N:N′)- (1,2-bis(4-pyridyl)ethane-κN)nickel(II)] 2-aminonicotinate nitrate-1,2-bis(4-pyridyl)ethane-water (2/1/8), C36H44N8NiO12. Z. Kristallogr. N. Cryst. Struct. 2018, 233, 383–385.10.1515/ncrs-2017-0273Suche in Google Scholar

8. Gao, M.-Y., Fang, W.-H., Wen, T., Zhang, L., Zhang, J. Connecting titanium-oxo clusters by nitrogen heterocyclic ligands to produce multiple cluster series with photocatalytic H2 evolution activities. Cryst. Growth Des. 2017, 17, 3592–3595; https://doi.org/10.1021/acs.cgd.7b00413.Suche in Google Scholar

9. Briones, D., Fernandez, B., Calahorro, A. J., Fairen–Jimenez, D., Sanz, R., Martinez, F., Orcajo, G., Sebastian, E. S., Seco, J. M., Gonzalez, C. S., Llopis, J., Rodriguez-Dieguez, A. Highly active anti-diabetic metal-organic framework. Cryst. Growth Des. 2016, 16, 537–540; https://doi.org/10.1021/acs.cgd.5b01274.Suche in Google Scholar

10. Ju, F.-Y., Li, Y.-P., Li, G.-L. Crystal structure of catena-poly[diaqua-bis(μ2-1,3-di(pyridin-4-yl)propane-κ2N:N′)cadmate(II)] bis(2-aminoisonicotinate) tetrahydrate, C38H50CdN8O10. Z. Kristallogr. N. Cryst. Struct. 2016, 231, 379–381; https://doi.org/10.1515/ncrs-2014-9100.Suche in Google Scholar

11. Reiss, G. J., Leske, P. B. 2-Amino-pyridin-1-ium triiodide. Acta Crystallogr. 2013, E69, o1060–o1061.10.1107/S1600536813015389Suche in Google Scholar PubMed PubMed Central

Received: 2023-04-22
Accepted: 2023-05-11
Published Online: 2023-05-31
Published in Print: 2023-08-28

© 2023 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
