The crystal structure of catena-poly[5-aminonicotinic acid-k1 N-m2-bromido-copper(I)], Cu(C6N2H6O2)Br

  • Nuo Chen , Qing-Hua Zheng , Wang Zhao and Wei-Wei Zhou ORCID logo EMAIL logo
Published/Copyright: June 1, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 4

Abstract

[Cu(C6N2H6O2)Br] n , monoclinic, P21/c (no. 14), a = 16.536(6) Å, b = 3.8463(14) Å, c = 14.403(6) Å, β =  115.009 ( 5 ) ∘ , V = 830.2(6) Å3, Z = 4, Rgt (F) = 0.0441, wRref (F 2) = 0.1054, T = 296 K.

CCDC no.: 2254951

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Yellow chip
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 7.40 mm−1
Diffractometer, scan mode: Bruker D8 Venture, φ and ω-scans
θ max, completeness: 27.6°, >99 %
N (hkl)measured, N(hkl)unique, R int: 4571, 1868, 0.037
Criterion for I obs, N(hkl)gt: I obs > 2σ(I obs), 1358
N(param)refined: 110
Programs: Bruker programs [1], DIAMOND [2], OLEX2 [3], SHELX [4, 5]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

x y z U iso*/U eq
Br1 0.04937 (3) 0.60713 (12) 0.89026 (4) 0.03316 (18)
Cu1 0.04263 (5) 0.6119 (2) 0.71430 (6) 0.0449 (2)
N2 0.2571 (3) 0.2995 (14) 0.5384 (3) 0.0462 (13)
H2A 0.209158 0.221538 0.489664 0.055*
H2B 0.306793 0.292385 0.532741 0.055*
O2 0.3932 (3) 0.9469 (14) 0.9578 (3) 0.0588 (13)
O3 0.4754 (3) 0.7980 (16) 0.8761 (4) 0.0720 (16)
H3 0.514998 0.889406 0.926127 0.108*
N1 0.1651 (3) 0.5711 (11) 0.7167 (3) 0.0296 (9)
C1 0.1738 (3) 0.4479 (13) 0.6347 (4) 0.0313 (12)
H1 0.122907 0.364999 0.580441 0.038*
C2 0.2542 (4) 0.4356 (14) 0.6251 (4) 0.0331 (12)
C3 0.3302 (4) 0.5608 (15) 0.7076 (4) 0.0356 (12)
H3A 0.385498 0.558828 0.705148 0.043*
C4 0.3216 (3) 0.6870 (14) 0.7926 (4) 0.0329 (12)
C5 0.3996 (4) 0.8228 (16) 0.8836 (5) 0.0410 (14)
C6 0.2385 (3) 0.6903 (14) 0.7947 (4) 0.0334 (12)
H6 0.233596 0.778236 0.852295 0.040*

1 Source of materials

A mixture of CuBr (2 mmol, 0.286 g), 5-aminonicotinic acid (2 mmol, 0.276 mg), 0.4 mol L−1 NaOH solution (1 mL), H2O (7 mL) was sealed in a 25 mL Teflon-lined steel autoclave, and heated at 443 K for 6 days, then slowly cooled down to room temperature. Yellow block crystals could be seen in the product.

2 Experimental details

Coordinates of hydrogen atoms were added geometrically. Their U iso values were set to 1.2 U eq or 1.5 U eq of the parent atoms.

3 Comment

The 5-aminonicotinic acid and its derivatives are widely used in preparation of coordination compounds, because their complexes exhibit a wide range of applications [6], [7], [8], [9], [10], [11], [12], [13]. But there are few reports on its copper complexes [9], [10], [11], [12], [13].

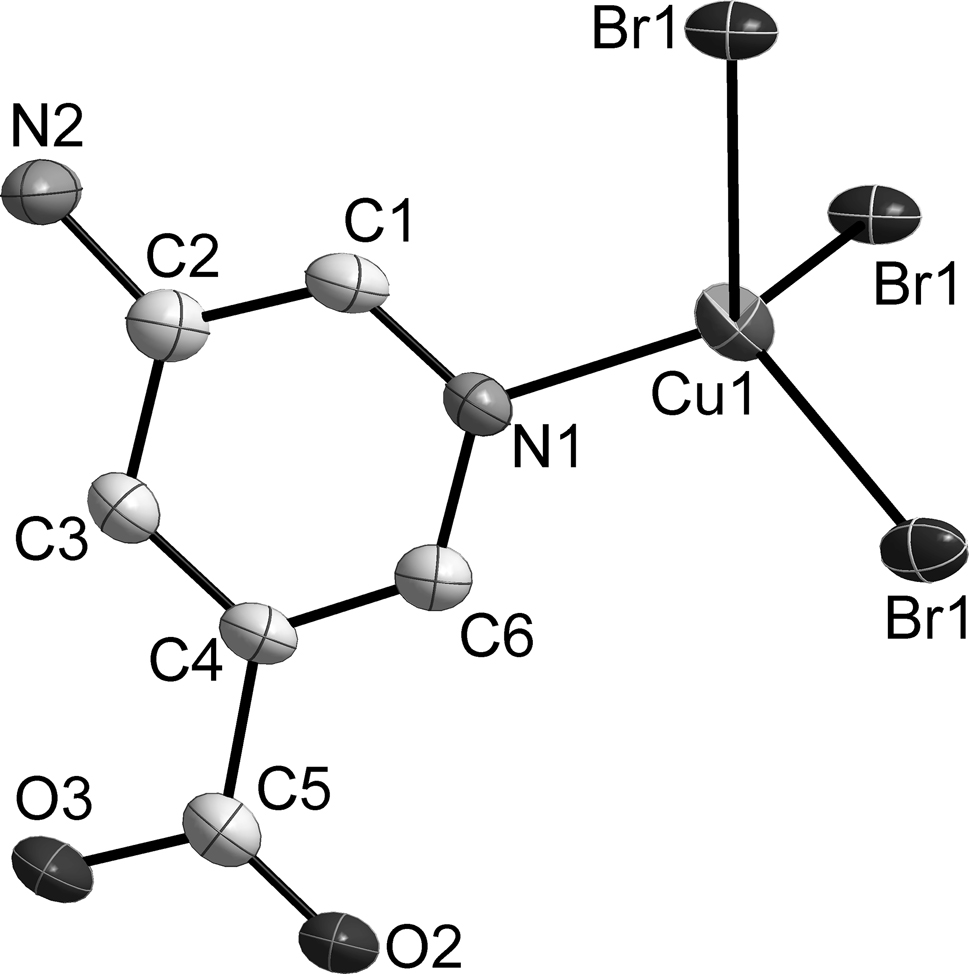

Single-crystal X-ray diffraction analysis reveals that the title compound is a new ladder chain structure. The Cu(I) ion has a distorted tetrahedron geometry coordinated by one N atom from the 5-aminonicotinic acid ligand and three symmetry-related Br ligands. The bond angles of Br⋯Cu⋯N are from 107.3 ∘ to 114.8 ∘ , while the Br⋯Cu⋯Br angles range from 99.554 ( 31 ) ∘ to 111.847 ( 35 ) ∘ . The Cu–N distance is 2.0169(54) Å [11, 12], and the Cu–Br distances are in the range 2.4894(15)–2.5327(10) Å [13].

All Cu(I) ions are linked by μ 3-bridged Br atoms, constructing a one-dimensional ladder-[Cu12Br12]-chain. Each 5-aminonicotinic acid ligand is arranged on both sides of the ladder chain in the trans–trans conformation, adopting monodentate coordination mode.

Corresponding author: Wei-Wei Zhou, School of Chemistry & Materials Engineering, Huainan Normal University, Huainan, Anhui 232038, P.R. China, E-mail:

Acknowledgments

We gratefully acknowledge the financial support NSF (Natural Science Foundation) of Anhui Province (2108085MB53), Project of Huainan City, University NSF of Anhui Province (KJ2020A0647) and the NSF for Distinguished Young Scholars of Anhui University (2022AH020087) and Program for Innovation Research Team in Huainan Normal University (XJTD202006).

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT, APEX3 and SADABS; Bruker AXS Inc.: Madison, WI, USA, 2013.Search in Google Scholar

2. Brandenburg, K. DIAMOND. Visual Crystal Structure Information System. Ver. 4.6.8; Crystal Impact GbR: Bonn, Germany, 2022.Search in Google Scholar

3. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

4. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar PubMed PubMed Central

5. Sheldrick, G. M. SHELXTL – integrated space-group and crystal structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

6. Zhou, W.-W., Zhao, W., Wang, J., Song, M.-J. Crystal structure of poly[bis(μ3-2-aminonicotinic acid-κ3N:O′:O′′)-(oxalate) samarium(III)Copper(I), [SmCu(C6N2H5O2)2(C2O4)]n. Z. Kristallogr. NCS 2023, 238, 39–41.Search in Google Scholar

7. Liu, J., Chen, Z., Hu, J., Sun, H., Liu, Y., Liu, Z., Li, J. Time-resolved color-changing long-afterglow for security systems based on metal-organic hybrids. Inorg. Chem. Front. 2022, 9, 584–591; https://doi.org/10.1039/d1qi01435h.Search in Google Scholar

8. Hou, S.-L., Dong, J., Jiang, X.-J., Jiao, Z.-H., Zhao, B. A noble-metal-free metal-organic framework (MOF) catalyst for the highly efficient conversion of CO2 with propargylic alcohols. Angew. Chem. Int. Ed. 2019, 2, 577–581; https://doi.org/10.1002/anie.201811506.Search in Google Scholar PubMed

9. Ji, X. X., Zhu, X. P., Chen, S. Y., Song, D. X., Wu, S. Y., Zhang, Y., Gao, E. J., Xu, J., Zhu, M. C. Two Cu(II) and Zn(II) complexes derived from 5-(pyrazol-1-yl)nicotinic acid: crystal structure, DNA binding and anticancer studies. J. Solid State Chem. 2022, 305, 122707; https://doi.org/10.1016/j.jssc.2021.122707.Search in Google Scholar

10. Dong, R.-T., Chen, X.-L., Cui, X., Chen, S.-S., Shen, M.-Y., Li, C.-W., Li, Q.-H., Hu, M.-Y., Huang, L.-F., Deng, H. Copper(I)-lanthanide(III) heterometallic metal-organic frameworks constructed from 3-(3-pyridyl)acrylic acid: syntheses, structures, and properties. CrystEngComm 2016, 18, 5547–5561; https://doi.org/10.1039/c6ce00637j.Search in Google Scholar

11. Jiang, X.-L., Jiao, Y.-E., Hou, S.-L., Geng, L.-C., Wang, H.-Z., Zhao, B. Green conversion of CO2 and propargylamines triggered by triply synergistic catalytic effects in metal-organic frameworks. Angew. Chem. Int. Ed. 2021, 37, 20417–20423; https://doi.org/10.1002/ange.202106773.Search in Google Scholar

12. Li, J. P., Khan, M. R., Liu, X., Niu, X. G., Li, B. H., Hao, Y. P., Liu, Z. Y. Synthesis, structures and magnetic properties of Cu(II) and Co(II) compounds based on asymmetric 5-(1H-imidazole-1-yl)-3-pyridine carboxylic acid. Chem. Eur. J. 2020, 39, 3786–3796; https://doi.org/10.1002/ejic.202000595.Search in Google Scholar

13. Wang, Y. F., Khan, M. R., Niu, X. G., Zhang, W. J., Li, Y. L., Li, B. H., Hao, Y. P., Li, J. P., Liu, Z. Y. Synthesis, structures, and antibacterial activities of four similar 1D metal-organic polymers with different metal ions. ZAAC 2020, 11–12, 532–539; https://doi.org/10.1002/zaac.202000093.Search in Google Scholar
Received: 2023-04-23
Accepted: 2023-05-11
Published Online: 2023-06-01
Published in Print: 2023-08-28

© 2023 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
