The crystal structure of catena-poly[bis(6-phenylpyridine-2-carboxylato-κ2 N,O)-(μ2-4,4′-bipyridne-κ2 N:N)cadmium(II)], C34H24N4O4Cd

  • Liu Ping , Wang Li-Hua EMAIL logo und Tai Xi-Shi ORCID logo
Veröffentlicht/Copyright: 1. Juni 2023
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 238 Heft 4

Abstract

C 34 H 24 N 4 O 4 Cd, monoclinic, C2/c (no. 15), a = 17.5723(7) Å, b = 11.3574(4) Å, c = 15.8345(7) Å, β =  112.345 ( 5 ) ° , V = 2922.9(2)  Å 3 , Z = 4, R g t (F) = 0.0265, w R r e f ( F 2 ) = 0.0613, T = 200 K.

CCDC no.: 2263812

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Block, colourless
Size: 0.13 × 0.12 × 0.09 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.79 mm−1
Diffractometer, scan mode: SuperNova, ω-scans
θ max, completeness: 25°, >99 %
N(hkl)measured , N(hkl)unique, R int: 5879, 2574, 0.030
Criterion for I obs, N(hkl)gt: I obs > 2σ(I obs), 2400
N(param)refined: 195
Programs: Bruker programs [1], OLEX2 [2], SHELX [3], DIAMOND [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

x y z U iso*/U eq
Cd1 0.500000 0.38550 (2) 0.750000 0.01761 (9)
O1 0.63719 (9) 0.37679 (13) 0.80362 (12) 0.0265 (4)
O2 0.75446 (10) 0.47327 (17) 0.87204 (14) 0.0494 (5)
N1 0.55439 (11) 0.55001 (17) 0.85284 (13) 0.0250 (4)
N2 0.50012 (11) 0.23581 (17) 0.64730 (13) 0.0235 (4)
C1 0.42839 (17) 0.6118 (2) 0.86948 (18) 0.0355 (7)
C2 0.36646 (19) 0.6972 (3) 0.8459 (2) 0.0505 (8)
H2 0.376030 0.771516 0.827237 0.061*
C3 0.29100 (19) 0.6718 (4) 0.8502 (2) 0.0649 (11)
H3 0.250363 0.729341 0.835096 0.078*
C4 0.2759 (2) 0.5632 (4) 0.8764 (3) 0.0679 (11)
H4 0.224876 0.546648 0.878814 0.082*
C5 0.33590 (17) 0.4778 (3) 0.8995 (2) 0.0522 (8)
H5 0.325390 0.403552 0.917382 0.063*
C6 0.41170 (15) 0.5021 (3) 0.89615 (17) 0.0357 (6)
H6 0.451983 0.443941 0.912013 0.043*
C7 0.51125 (18) 0.6386 (2) 0.87077 (18) 0.0351 (6)
C8 0.5463 (2) 0.7499 (3) 0.8934 (2) 0.0597 (9)
H8 0.515809 0.811629 0.903101 0.072*
C9 0.6262 (2) 0.7682 (3) 0.9015 (3) 0.0680 (11)
H9 0.649663 0.842629 0.915957 0.082*
C10 0.67110 (19) 0.6762 (3) 0.8880 (2) 0.0493 (8)
H10 0.725905 0.686262 0.895817 0.059*
C11 0.63264 (15) 0.5681 (2) 0.86241 (16) 0.0292 (6)
C12 0.67916 (13) 0.4642 (2) 0.84467 (16) 0.0283 (6)
C13 0.56921 (14) 0.1799 (2) 0.65550 (17) 0.0309 (6)
H13 0.618207 0.204551 0.700805 0.037*
C14 0.57194 (14) 0.0871 (2) 0.60026 (18) 0.0306 (6)
H14 0.621811 0.050942 0.608733 0.037*
C15 0.49986 (13) 0.04803 (19) 0.53208 (15) 0.0201 (5)
C16 0.42758 (14) 0.1049 (2) 0.52454 (17) 0.0259 (6)
H16 0.377557 0.081032 0.480643 0.031*
C17 0.43034 (13) 0.1968 (2) 0.58235 (16) 0.0266 (5)
H17 0.381234 0.233736 0.576031 0.032*

1 Source of materials

The title Cd(II) complex was synthesized in the step described below: at room temperature, 0.233 g cadmium nitrate tetrahydrate (0.50 mmol), 0.020 g NaOH (0.5 mmol), and 0.0996 g 6-phenylpyridine-2-carboxylic acid (0.50 mmol) were added to a 100 mL flask containing 15 mL of ethanol solvent and 5 mL water with stirring, and after 0.5 h of reaction, 0.0781 g 4,4 ′ -bipyridine (0.5 mmol) was added to the above solution. The mixture was then reacted for a further 6 h at 75 °C. After cooled, the solution was filtered and the filtrate was allowed to evaporate slowly. The title complex was obtained in 4 weeks.

2 Experimental details

The hydrogen atoms were positioned geometrically (C–H = 0.93 Å). Their U i s o values were set to 1.2 U e q of the parent atoms.

3 Comment

6–Phenylpyridine-2-carboxylate is an excellent pentadentate ligand, and it can form mononuclear cobalt(II) and copper(II) complexes with bidentate N,O-chelate modes [5, 6], binuclear and tetranuclear lead(II) complexes with tridentate N,O:O-chelate modes [7, 8]. To further investigate the coordination diversity of the 6-phenylpyridine-2-carboxylate a new Cd(III) coordination polymer has been synthesized and structurally characterized. X-ray single crystal diffraction analysis indicates that the title Cd(II) complex forms coordination polymer through the bridging effect of 4,4 ′ -bipyridine with the Cd(II)–Cd(II) distance of 11.805 Å. The molecular structure of the Cd(II) complex is given in the figure (symmetry code: a:1‒x, y, 1.5‒z).

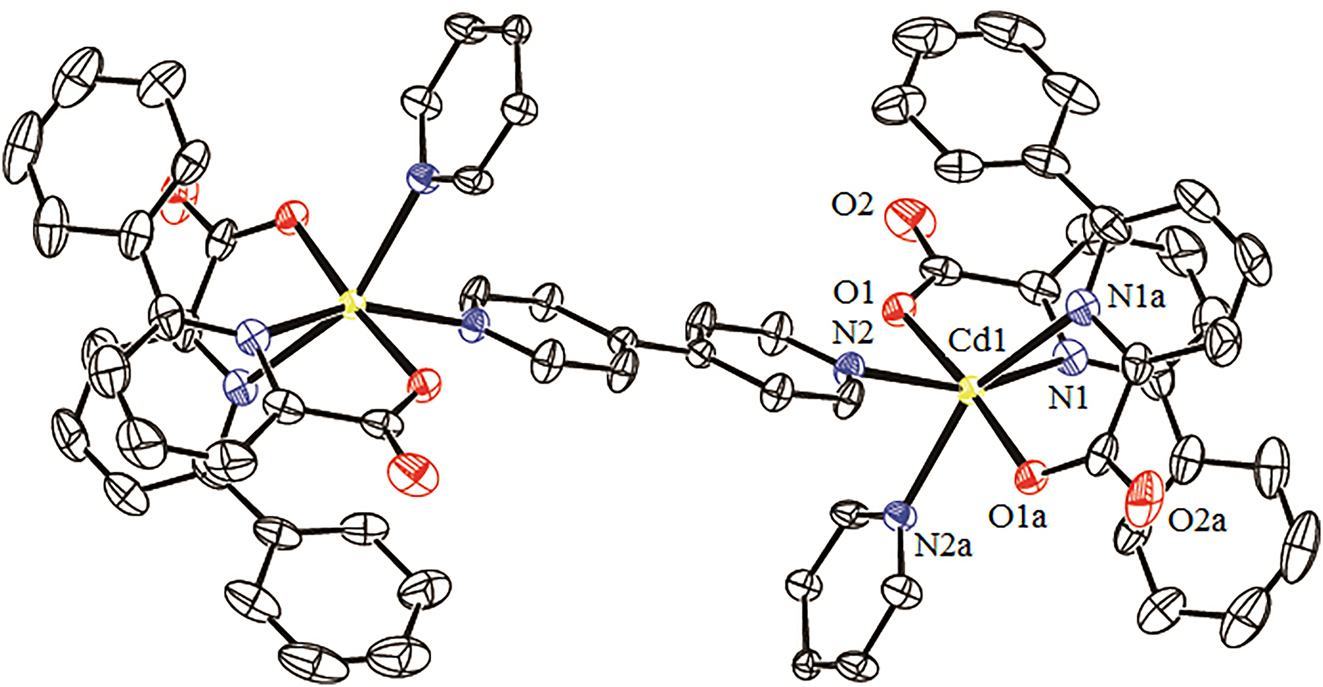

The asymmetric unit consists of one Cd(II)ion, two L − anions, and one 4,4 ′ -bipyridine co-ligand. Each Cd(II) atom is coordinated with two oxygen atoms from two L − ligands, two nitrogen atoms from two L − ligands, and two nitrogen atoms from two 4,4 ′ -bipyridine co-ligands forming a distorted octahedral Cd N 4 O 2 coordination geometry. And N1, N1a, N2, and N2a form the plane of the octahedron, while O1, O1a are in the axial position of the octahedron. The bond angle of O1–Cd–O1a is 174.92 ( 8 ) ° , indicating the octahedral structure is slightly deformed. The Cd–O and Cd–N lengths are 2.2329(15) Å and 2.3531(19)–2.4233(19) Å, respectively. The O–Cd–O, O–Cd–N and N–Cd–N bond angles lie in the range of 174.92 ( 8 ) ° , 71.68(6)– 112.50 ( 6 ) ° , and 79.11(9)– 156.58 ( 6 ) ° , respectively. The bond lengths and bond angles are consistent as reported in the literature [9]. A similar structure has been found in the crystal structure of Zn(II) complex with 6-phenylpyridine-2-carboxylic acid as ligand and 4,4 ′ -bipyridine as co-ligand [10]. The complex molecules form a one-dimensional zigzag chain structure by the bridging of 4,4 ′ -bipyridine.

Corresponding author: Wang Li-Hua, College of Biology and Oceanography, Weifang University, Weifang, Shandong 261061, P.R. China, E-mail:

Funding source: The Science Foundation of Weifang

Award Identifier / Grant number: 2020ZJ1054

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This project was supported by the Science Foundation of Weifang (2020ZJ1054).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2000.Suche in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Brandenburg, K. DIAMOND. Visual Crystal Structure Information System. Ver. 3.2; Crystal Impact: Bonn, Germany, 2012.Suche in Google Scholar

5. Wang, L. H., Liang, L., Li, X. T., Cao, S. H., Tai, X. S. The crystal structure of bis(6-phenylpyridine-2-carboxylato-κ2N,O)copper(II), C24H16N2O4Cu. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 1251–1253.10.1515/ncrs-2021-0293Suche in Google Scholar

6. Gao, X., Tai, X. S. The crystal structure of diaqua-bis(6-phenylpyridine-2-carboxylato-κ2N,O)cobalt(II)-water-N,N-dimethylformamide(1/2/1),C27H31N3O9Co. Z. Kristallogr. N. Cryst. Struct. 2022, 237, 393–395; https://doi.org/10.1515/ncrs-2022-0067.Suche in Google Scholar

7. Tai, X. S., Liang, L., Li, X. T., Cao, S. H., Wang, L. H. Crystal structure of diaqua-bis(u2-6-phenylpyridine-2-carboxylato-κ3N,O:O)-bis(6-phenylpyridine-2-carboxylato-κ2N,O)lead(II)-N,N-dimethylformamide-water(1/2/4), C54H58N6O16Pb2. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 1199–1201; https://doi.org/10.1515/ncrs-2021-0277.Suche in Google Scholar

8. Wang, L. H., Tai, H. W., Li, Q. S., Xia, Y. P., Tai, X. S. The crystal structure of tetrakis(6-phenylpyridine-2-carboxylato-κ2N,O)-bis(u2-6-phenylpyridine-2-carboxylato-k2O:O′)-bis(u2-6-phenylpyridine-2-carboxylato-k3N,O:O)tetralead(II), C48H32N4O8Pb2. Z. Kristallogr. N. Cryst. Struct. 2022, 237, 1113–1116.10.1515/ncrs-2022-0119Suche in Google Scholar

9. Tai, X. S., Kong, F. Y., Zhou, X. J., Xia, Y. P. Synthesis, structural characterization and fluorescent property of Cd(II) coordination polymer based on N-nicotinoylglycine ligand. Crystallogr. Rep. 2022, 67, 209–213; https://doi.org/10.1134/s1063774522020225.Suche in Google Scholar

10. Wang, L. H., Tai, X. S., Xia, Y. P. The crystal structure of catena-poly [(m2-4,4′-bipyridine-κ2N:N)-bis(6-phenylpyridine-2-carboxylato-κ2N,O)zinc(II)], C34H24N4O4Zn. Z. Kristallogr. N. Cryst. Struct. 2022, 237, 305–307; https://doi.org/10.1515/ncrs-2022-0003.Suche in Google Scholar
Received: 2023-04-24
Accepted: 2023-05-18
Published Online: 2023-06-01
Published in Print: 2023-08-28
