Crystal structure of poly[bis(μ 2-2,6-bis(1-imidazoly)pyridine-κ 2 N:N′)copper(II)] diperchlorate dihydrate, C22H22Cl2CuN10O10

  • Sujuan Kan , Yawei Ma , Chunjie Chen and Jun Qian ORCID logo EMAIL logo
Published/Copyright: June 5, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 4

Abstract

C22H22Cl2CuN10O10, monoclinic, P21/c (no. 14), a = 6.8548(14) Å, b = 12.482(3) Å, c = 17.162(4) Å, β = 112.54(3)°, V = 1356.2(6) Å3, Z = 2, R gt (F) = 0.0575, wR ref (F 2) = 0.1726, T = 293 K.

CCDC no.: 2022260

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Red block
Size: 0.18 × 0.15 × 0.10 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 1.08 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θ max, completeness: 25.5°, 99 %
N(hkl)measured, N(hkl)unique, R int: 6240, 2508, 0.029
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2078
N(param)refined: 211
Programs: Bruker [1], Olex2 [2], SHELX [3, 4], PLATON [5]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Cu1 0.5000 0.5000 0.5000 0.0336 (3)
Cl1 0.32171 (19) 0.68092 (10) 0.65334 (7) 0.0503 (4)
O1 0.5277 (7) 0.7155 (4) 0.7063 (3) 0.0900 (15)
O2 0.2022 (8) 0.6611 (5) 0.7019 (3) 0.0968 (17)
O3 0.2170 (12) 0.7560 (5) 0.5919 (4) 0.137 (3)
O4 0.3450 (7) 0.5858 (3) 0.6083 (3) 0.0777 (12)
O5 0.5640 (13) 1.0289 (7) 0.3005 (5) 0.127 (2)
H5A 0.511 (19) 0.986 (8) 0.259 (5) 0.153*
H5B 0.583 (18) 1.096 (3) 0.312 (7) 0.153*
N1 0.4091 (5) 0.3542 (3) 0.5210 (2) 0.0345 (8)
N2 0.3100 (5) 0.1858 (3) 0.49643 (19) 0.0300 (7)
N3 0.1513 (5) 0.1060 (3) 0.3662 (2) 0.0306 (7)
N4 −0.0192 (5) 0.0405 (3) 0.23033 (19) 0.0299 (7)
N5 −0.2300 (6) 0.0241 (3) 0.0985 (2) 0.0341 (8)
C1 0.3212 (7) 0.2819 (3) 0.4623 (3) 0.0353 (9)
H1 0.2730 0.2951 0.4046 0.042*
C2 0.4521 (7) 0.3019 (4) 0.5973 (3) 0.0388 (10)
H2 0.5090 0.3338 0.6503 0.047*
C3 0.3911 (7) 0.1996 (3) 0.5830 (2) 0.0388 (10)
H3 0.4042 0.1470 0.6231 0.047*
C4 0.2296 (6) 0.0908 (3) 0.4493 (2) 0.0291 (8)
C5 0.2334 (7) −0.0059 (3) 0.4881 (3) 0.0362 (10)
H5 0.2898 −0.0123 0.5465 0.043*
C6 0.1513 (7) −0.0939 (3) 0.4368 (3) 0.0405 (10)
H6 0.1514 −0.1607 0.4609 0.049*
C7 0.0679 (7) −0.0816 (3) 0.3505 (3) 0.0391 (10)
H7 0.0118 −0.1393 0.3146 0.047*
C8 0.0705 (6) 0.0208 (3) 0.3193 (3) 0.0315 (9)
C9 −0.1886 (7) −0.0098 (3) 0.1759 (3) 0.0334 (9)
H9A −0.2663 −0.0614 0.1906 0.040*
C10 −0.0764 (7) 0.0988 (3) 0.1046 (3) 0.0401 (10)
H10 −0.0644 0.1356 0.0596 0.048*
C11 0.0525 (7) 0.1102 (3) 0.1856 (3) 0.0390 (10)
H11 0.1677 0.1561 0.2071 0.047*

1 Source of materials

All the reagents were A. R. grade commercially available and used as received without further purification. 0.117 g Cu(ClO4)2⋅2H2O (0.2 mmol) was dissolved in distilled water (3 mL) with strong stirring to obtain a light blue solution. After filtration, distilled water was added to the upper layer of the filtrate as buffer solution. After then, 5 mL methanol solution of 2,6-bis(1-imidazoly)pyridine (2,6–BIP) (0.025 M) was slowly layered on the buffer solution. Purple crystals were obtained after a week at room temperature in dark with a yield of 0.107 g (75 % based Cu). Anal. Calcd. for C22H22Cl2CuN10O10: C, 36.65 %; H, 3.08 %; N, 19.43 %. Found C, 36.93 %; H, 2.99 %; N, 19.94 %. IR (KBr, cm−1): 1601(s), 1503(s), 1462(s), 1315(m), 1394(m), 1245(m), 1070(s), 1012(m) (pyridine: C=N), 804(m), 767(w), 735(w), 657(w), 612(m).

2 Experimental details

The structure was solved by Direct Methods and refined using the SHELX software [3]. All of the hydrogen atoms were added by theoretical method and isotropic displacement parameters were given (U iso = 1.2 U eq, U eq is the equivalent isotropic displacement parameter of the parent atom) [5].

3 Comment

Crystal engineering towards coordination polymers (CPs) is of great contemporary scientific interest due to their fascinating structures and potential applications in gas absorption [6], separation [7], catalysis [8], drug delivery [9], nanoparticle embedding [10] and so on [11]. For example, different rigid and flexible ligands have been extensively employed due to their versatile coordination modes and strong coordination ability [12]. Moreover, many CPs based on semi-rigid ligands such as bis (imidazole) derivatives have also been reported [13, 14]. In this context, the hinged 2,6–BIP molecule, which is a typical semi-rigid ligand has received much attention. The interesting feature of the ligand is that it contains the C–N bonds between three rings that can rotate to some extent.

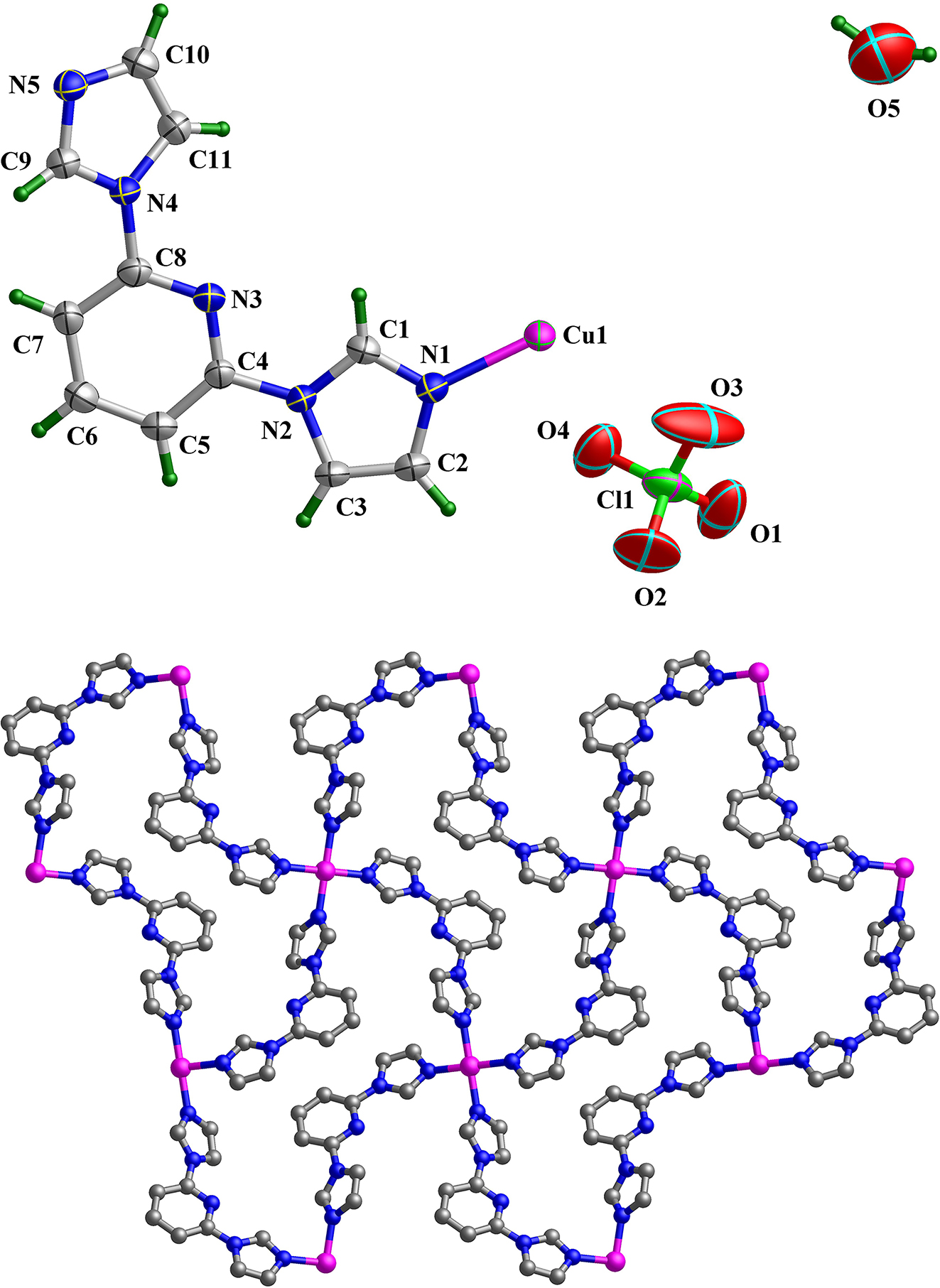

The asymmetric unit of the title structure consists of half [Cu(2,6–BIP)]2+ cation, one ClO− 4 anion and one free H2O molecule (see the upper part of the Figure). The Cu(II) center is 4-coordinated by four N atoms from imidazoly rings of four 2,6–BIP ligands. The Cu–N bond lengths are 1.994(3) Å and 2.001(3) Å, respectively, while the bond angles of N–Cu–N range from 87.81(14)° to 180.0°, which are comparable with similar structures [15]. Owing to the semi-rigid V-shaped structure of the 2,6–BIP ligand, four Cu(II) ions are alternately bridged by four 2,6–BIP ligands to build a square planar ring (lower part of the figure). Such 4-membered rings further extend to a 2D network, which correspond to a sql topology structure [16].

Corresponding author: Jun Qian, School of Chemistry and Chemical Engineering, Jiangsu University, Zhenjiang, Jiangsu 212013, P.R. China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was funded by the funding for this research was provided by National Natural Science Foundation of China (grant No. 51602130).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT, APEX2 and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2009.Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A., Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

4. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

5. Spek, A. L. Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 2003, 36, 7–13; https://doi.org/10.1107/s0021889802022112.Search in Google Scholar

6. Jiang, X., Li, Z., Zhai, Y., Yan, G., Xia, H., Li, Z. Porous coordination polymers based on azamacrocyclic complex: syntheses, solvent induced reversible crystal-to-crystal transformation and gas sorption properties. CrystEngComm 2014, 16, 805–813; https://doi.org/10.1039/c3ce42021c.Search in Google Scholar

7. Li, G. B., Yang, Q. Y., Pan, R. K., Liu, S. G. Diverse cobalt(II) coordination polymers for water/ethanol separation and luminescence for water sensing applications. CrystEngComm 2018, 20, 3891–3897; https://doi.org/10.1039/c8ce00709h.Search in Google Scholar

8. Paul, A., Karmakar, A., Guedes da Silva, M. F. C., Pombeiro, A. J. L. 1D Zn(II) coordination polymers as effective heterogeneous catalysts in microwave-assisted single-pot deacetalization-knoevenagel tandem reactions in solvent-free conditions. Catalysts 2021, 11, 90; https://doi.org/10.3390/catal11010090.Search in Google Scholar

9. Paul, M., Dastidar, P. Coordination polymers derived from non-steroidal antiInflammatory drugs for cell imaging and drug delivery. Chem. Eur. J. 2016, 22, 988–998; https://doi.org/10.1002/chem.201503706.Search in Google Scholar PubMed

10. Ju, E. G., Chen, Z. W., Li, W., Dong, K., Wang, Z. Z., Liu, Z., Pu, F., Ren, J. S., Qu, X. G. Embedding magnetic nanoparticles into coordination polymers to mimic zinc ion transporters for targeted tumor therapy. Chem. Commun. 2016, 52, 12598–12601; https://doi.org/10.1039/c6cc06467a.Search in Google Scholar PubMed

11. Liu, G., Huang, Y., Yang, K., Cao, Z., Zhao, Z., Wang, C. Two new Mn(II) coordination polymers: photocatalytic property and treatment activity on colorectal cancer by inhibiting cancer cell migration and invasion. Arab. J. Chem. 2022, 15, 103584; https://doi.org/10.1016/j.arabjc.2021.103584.Search in Google Scholar

12. Liang, Y., Li, E. R., Wang, K. Y., Guan, Z. J., He, H. H., Zhang, L. L., Zhou, H. C., Huang, F. H., Fang, Y. Organo-macrocycle-containing hierarchical metal-organic frameworks and cages: design, structures, and applications. Chem. Soc. Rev. 2022, 51, 8378–8405; https://doi.org/10.1039/d2cs00232a.Search in Google Scholar PubMed

13. Gogol, A., Nashre-ul-lslam, S. M., Frontera, A., Bhattacharyya, M. K. Supramolecular association in Cu(II) and Co(II) coordination complexes of 3,5-dimethylpyrazole: experimental and theoretical studies. Inorg. Chim. Acta 2019, 484, 133–141; https://doi.org/10.1016/j.ica.2018.09.035.Search in Google Scholar

14. Han, M. L. Crystal structure of catena-poly[diaqua-bis (3-carboxy-5-methoxybenzoato-κO)-(1,2-bis(imidazol-1-yl)ethane-κ2N:N′)cobalt(II)], C26H28CoN4O12, [Co(C9H6O5)2(H2O)2(C8H10N4)]. Z. Kristallogr. N. Cryst. Struct. 2019, 234, 617–618; https://doi.org/10.1515/ncrs-2018-0555.Search in Google Scholar

15. Li, L., Duan, H. J., Qian, J. , Gao, F., Yan, J. Crystal structure of poly[bis(μ2-2,6-bis(1-imidazoly)pyridine-κ2N:N′)-bis(thiocyanato-κ2N)copper(II)] dithiocyanate, C24H18CuN12S2. Z. Kristallogr. N. Cryst. Struct. 2019, 234, 617–618; https://doi.org/10.3892/ijmm.2019.4208.Search in Google Scholar PubMed PubMed Central

16. Qian, J., Yoshikawa, H., Humphrey, M. G., Zhang, J. F., Awaga, K., Zhang, C. In situ formed [M(CN)9] (M = W, Mo) as a building block for the construction of two nona-cyanometalate-bridged heterometallic coordination polymers. CrystEngComm 2019, 21, 4363–4372; https://doi.org/10.1039/c9ce00579j.Search in Google Scholar
Received: 2023-03-31
Accepted: 2023-05-25
Published Online: 2023-06-05
Published in Print: 2023-08-28

© 2023 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
