The crystal structure of (E)-4-fluoro-N′-(1-(2-hydroxyphenyl)propylidene)benzohydrazide, C16H15FN2O2

  • Xiaohua Li , Xin Zhao and Wenqiang Tang ORCID logo EMAIL logo
Published/Copyright: June 20, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 4

Abstract

C16H15FN2O2, monoclinic, P21/c (no. 14), a = 14.6825(16) Å, b = 11.7155(11) Å, c = 8.8285(7) Å, β = 102.753(10)°, V = 1481.2(2) Å3, Z = 4, Rgt (F) = 0.0670 wRref (F 2) = 0.1669, T = 293 K. 

CCDC no.: 2269167

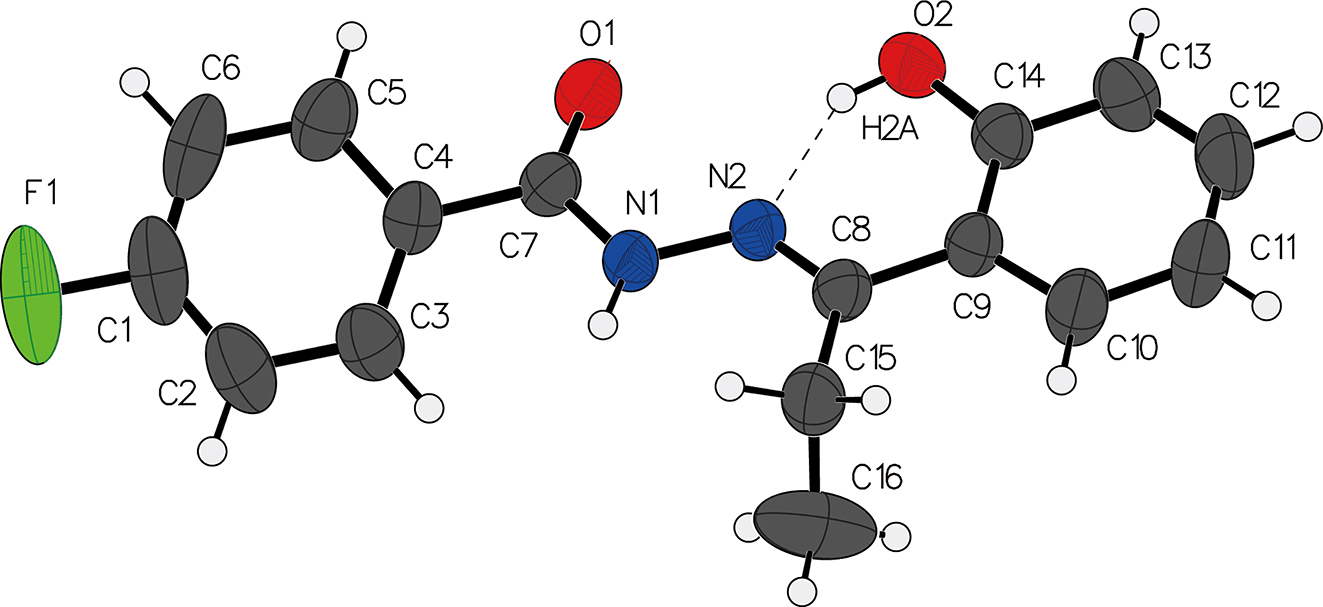

The crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Block, colourless
Size: 0.42 × 0.37 × 0.32 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.09 mm−1
Diffractometer, scan mode: Bruker SMART, φ and ω-scans
θ max, completeness: 29.3°, >99 %
N(hkl)measured, N(hkl)unique, R int: 6706, 3406, 0.023
Criterion for I obs, N(hkl)gt: I obs > 2σ(I obs), 2188
N(param)refined: 192
Programs: Bruker programs [1], SHELX [2, 3], OLEX2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

x y z U iso*/U eq
C1 0.4480 (2) 0.9984 (3) 0.2661 (4) 0.0844 (10)
C2 0.4618 (2) 0.8848 (3) 0.2691 (3) 0.0780 (8)
H2 0.504545 0.852190 0.218435 0.094*
C3 0.41068 (17) 0.8176 (2) 0.3494 (3) 0.0601 (6)
H3 0.419211 0.738868 0.352947 0.072*
C4 0.34696 (16) 0.86685 (18) 0.4244 (2) 0.0461 (5)
C5 0.33580 (19) 0.9843 (2) 0.4208 (3) 0.0620 (7)
H5 0.294012 1.018274 0.472369 0.074*
C6 0.3871 (2) 1.0511 (2) 0.3401 (3) 0.0829 (10)
H6 0.380245 1.130049 0.336522 0.099*
C7 0.28993 (16) 0.79810 (18) 0.5108 (2) 0.0445 (5)
C8 0.18331 (15) 0.52828 (18) 0.4896 (2) 0.0439 (5)
C9 0.12743 (15) 0.47227 (18) 0.5878 (2) 0.0432 (5)
C10 0.09510 (18) 0.3603 (2) 0.5589 (3) 0.0595 (7)
H10 0.111027 0.319859 0.477888 0.071*
C11 0.0404 (2) 0.3081 (2) 0.6470 (3) 0.0687 (7)
H11 0.019206 0.233901 0.624211 0.082*
C12 0.01716 (19) 0.3657 (2) 0.7682 (3) 0.0674 (7)
H12 −0.020125 0.330813 0.827265 0.081*
C13 0.04885 (18) 0.4745 (2) 0.8022 (3) 0.0610 (7)
H13 0.034069 0.512496 0.886060 0.073*
C14 0.10263 (15) 0.52878 (19) 0.7134 (2) 0.0460 (5)
C15 0.20053 (19) 0.4696 (2) 0.3468 (3) 0.0615 (7)
H15A 0.148311 0.419619 0.305276 0.074*
H15B 0.203935 0.526534 0.268487 0.074*
C16 0.2884 (3) 0.4013 (4) 0.3793 (5) 0.1219 (14)
H16A 0.294377 0.361643 0.286823 0.183*
H16B 0.286624 0.347045 0.460038 0.183*
H16C 0.340895 0.451337 0.411932 0.183*
F1 0.49699 (16) 1.0654 (2) 0.1871 (3) 0.1378 (9)
N1 0.26706 (12) 0.69130 (14) 0.45606 (18) 0.0430 (4)
H1 0.284732 0.664779 0.376361 0.052*
N2 0.21402 (12) 0.62795 (14) 0.53535 (18) 0.0418 (4)
O1 0.26594 (12) 0.83618 (13) 0.62555 (16) 0.0597 (5)
O2 0.12761 (12) 0.63765 (13) 0.75253 (18) 0.0563 (5)
H2A 0.159798 0.662198 0.694776 0.085*

1 Source of materials

In the experimental procedure, 1 mmol of 4–fluorobenzohydrazide and 1 mmol of 2′-hydroxypropiophenone were added to a 50 mL round-bottom flask containing 25 mL of absolute alcohol and 5 drops of glacial acetic acid. The resulting solution was stirred at 60 °C for 1 h. The mixture was then stirred for an additional 5 h before the solvent was evaporated to a dry state using a rotary evaporator. The crude product was dissolved in a minimal amount of hot ethanol and then slowly cooled to room temperature, resulting in a single crystal.

2 Experimental details

The data were integrated and scaled using the program SAINT [1], and the structure was solved using SHELXT [2]. The final refinement was performed using SHELXL [3] within the Olex2 software package [4]. The hydrogen atoms were placed in calculated positions and refined isotropically using the riding model.

3 Comment

One of the significant research aspects of the N-acylhydrazone moiety is its ability to exhibit diverse pharmacological activities, including anti-inflammatory, anticonvulsant, antiviral, and anticancer properties [5]. Another crucial application of the N-acylhydrazone moiety is its potential as a versatile scaffold for the synthesis of novel small-molecule therapeutics. The determination of single crystal structure for the N-acylhydrazone moiety is significant for understanding their different conformations and orientations that ultimately affect their biological activities [6], [7], [8].

The title molecule adopts an E configuration, which resulted in a long C=N double bond length. As shown in the figure, the bond length of C8=N2 is 1.284(3) Å and the bond length of C7–N1 is 1.357(3) Å. The dihedral angle between the benzene ring and the plane of the hydrazide group is about 15.9°. The bond distances in the crystal structure are standard, and the angles are close to ideal values [9], [10], [11], [12], [13], [14].

The compound also exhibits an intramolecular hydrogen bonding interaction (O2–H2A⃛N2). The bond length is 1.8085(19) Å, and the bond angle is 145.01(12)°. The 2-hydroxyphenyl group and the hydrazide group are in the same plane, and the dihedral angle between these two plane is about 5.7°, which is due to the hydrogen bonding interactions.

Single crystal structure analysis provides a detailed understanding of the molecular arrangement of this compound in a crystal’s lattice, including bond lengths, bond angles, and dihedral angles, similar to reported structures [15], [16], [17], [18], [19].

Corresponding author: Wenqiang Tang, Xianyang Key Laboratory of Molecular Imaging and Drug Synthesis, School of Pharmacy, Shaanxi Institute of International Trade & Commerce, Xianyang, Shaanxi, China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was financially supported by the projects of key research and development project of Shaanxi Provincial Science and Technology Department (2022SF-448), Scientific research plan project of Shaanxi Provincial Department of Education (22JK0276) and the Xianyang key laboratory of molecular imaging and drug synthesis (2021QXNL–PT-0008).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2, SAINT and SADABS; Bruker AXS Inc.: Madison, WI, USA, 2012.Search in Google Scholar

2. Sheldrick, G. M. SHELXT–Integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

5. Thota, S., Rodrigues, D. A., Pinheiro, P. D. S. M., Lima, L. M., Fraga, C. A. M., Barreiro, E. J. N–Acylhydrazones as drugs. Bioorg. Med. Chem. Lett. 2018, 28, 2797–2806; https://doi.org/10.1016/j.bmcl.2018.07.015.Search in Google Scholar PubMed

6. Xue, L.-W., Han, Y.-J., Zhao, G.-Q., Feng, Y.-X. Synthesis, characterization and crystal structures of N′-(5–Bromo-2-hydroxybenzylidene)-2-fluorobenzohydrazide in unsolvated and monohydrate forms. J. Chem. Crystallogr. 2011, 41, 1599–1603; https://doi.org/10.1007/s10870-011-0146-z.Search in Google Scholar

7. Ajayeoba, T. A., Woods, J. O., Ayeni, A. O., Ajayi, T. J., Akeem, R. A., Hosten, E. C., Akinyele, O. F. Synthesis, crystallographic, computational and molecular docking studies of new acetophenone-benzoylhydrazones. J. Mol. Struct. 2021, 1237, 130275; https://doi.org/10.1016/j.molstruc.2021.130275.Search in Google Scholar

8. Liu, B., Liu, H., Zhang, H., Di, Q., Zhang, H. Crystal engineering of a hydrazone molecule toward high elasticity and bright luminescence. J. Phys. Chem. Lett. 2020, 11, 9178–9183; https://doi.org/10.1021/acs.jpclett.0c02623.Search in Google Scholar PubMed

9. Bai, Z.-C., Li, H., Liu, Y., Jing, Z.-L. N′-(2,4–Dichlorobenzylidene)-2-methoxybenzohydrazide. Acta Crystallogr. E 2006, 62, o2295–o2296; https://doi.org/10.1107/s1600536806017053.Search in Google Scholar

10. Fun, H.-K., Horkaew, J., Chantrapromma, S. (E)-4–Hydroxy-N′-(3-hydroxy-4-methoxybenzylidene) benzohydrazide. Acta Crystallogr. E 2011, 67, o2644–o2645; https://doi.org/10.1107/s1600536811036579.Search in Google Scholar PubMed PubMed Central

11. Yang, J.-G., Pan, F.-Y. 2′-(2–Fluorobenzylidene)-2-hydroxybenzohydrazide. Acta Crystallogr. E 2004, 60, o2009–o2010; https://doi.org/10.1107/s1600536804024614.Search in Google Scholar

12. Hao, Y.-M. Crystal structure of 2-chloro-N′-(2-methoxybenzylidene) benzohydrazide, C15H13ClN2O2. Z. Kristallogr. N. Cryst. Struct. 2011, 226, 11–12; https://doi.org/10.1524/ncrs.2011.0006.Search in Google Scholar

13. Hao, Y.-M. Crystal structure of 3-chloro–N′-(2-hydroxy-3,5-diiodobenzylidene)-benzohydrazide methanol solvate, C14H9ClI2N2O2.CH3OH. Z. Kristallogr. N. Cryst. Struct. 2011, 226, 13–14; https://doi.org/10.1524/ncrs.2011.0007.Search in Google Scholar

14. Hao, Y.-M. Crystal structure of 2-chloro-N′-(2-hydroxy-3,5-dichlorobenzylidene)-benzohydrazide-methanol (1:1), C14H9Cl3N2O2.CH3OH. Z. Kristallogr. N. Cryst. Struct. 2011, 226, 47–48; https://doi.org/10.1524/ncrs.2011.0023.Search in Google Scholar

15. Bai, B., Zhang, M., Ji, N., Wei, J., Wang, H., Li, M. E–Z isomerization of the –C=N– bond in anthracene-based acylhydrazone derivatives under visible light. Chem. Commun. 2017, 53, 2693–2696; https://doi.org/10.1039/c6cc08403f.Search in Google Scholar PubMed

16. Peng, S.-J. Synthesis, crystal structures, and antibacterial activity of two hydrazone derivatives 3-methoxy-N′-(3,5-dibromo-2-hydroxybenzylidene) benzohydrazide methanol solvate and 3-methoxy-N′-(2,4-diclorobenzylidene) benzohydrazide. J. Chem. Crystallogr. 2011, 41, 280–285; https://doi.org/10.1007/s10870-010-9873-9.Search in Google Scholar

17. Zhu, H.-Y. Synthesis, characterization, and crystal structures of 3-bromo-N′-(2-methoxybenzylidene)benzohydrazide and N′-(2-methoxybenzylidene)-3,4-methylenedioxybenzohydrazide. J. Chem. Crystallogr. 2011, 41, 1785–1789; https://doi.org/10.1007/s10870-011-9982-0.Search in Google Scholar

18. Zhu, M.-A., Qiu, X.-Y. Synthesis and crystal structures of N′-(5–Bromo-2-hydroxy-3-methoxybenzylidene)-4-methoxybenzohydrazide and 4-{[1-(5-bromo-2-hydroxy3-methoxyphenyl)methylidene] amino}-1-methyl-2-phenyl-1,2-dihydropyrazol-3-one. J. Chem. Crystallogr. 2011, 41, 69–72; https://doi.org/10.1007/s10870-010-9839-y.Search in Google Scholar

19. Ferraresi-Curotto, V., Echeverría, G. A., Piro, O. E., Pis-Diez, R., González-Baró, A. C. Structural, spectroscopic and DFT study of 4-methoxybenzohydrazide Schiff bases. A new series of polyfunctional ligands. Spectrochim. Acta Part A 2015, 137, 692–700; https://doi.org/10.1016/j.saa.2014.08.095.Search in Google Scholar PubMed
