Crystal structure of methyl ((4-aminobenzyl)sulfonyl)-L-prolinate, C13H18N2O4S

  • Zhen Wang ORCID logo , Feng-Lan Zhao , Gui-Ge Hou ORCID logo and Qing-Guo Meng EMAIL logo
Published/Copyright: May 11, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 4

Abstract

C13H18N2O4S, orthorhombic, P212121 (no. 19), a = 6.8619(2) Å, b = 12.0735(4) Å, c = 16.6591(5) Å, V = 1380.16(7) Å3, Z = 4, R gt (F) = 0.0236, wR ref (F 2) = 0.0604, T = 150 K.

CCDC no.: 2232053

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.14 × 0.12 × 0.10 mm
Wavelength: Cu Kα radiation (1.54178 Å)
μ: 2.24 mm−1
Diffractometer, scan mode: φ and ω
θ max, completeness: 79.0°, 99 %
N(hkl)measured, N(hkl)unique, R int: 20,828, 2946, 0.042
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2872
N(param)refined: 183
Programs: Bruker [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.5972 (3) 0.10403 (16) 0.13039 (11) 0.0262 (4)
H1 0.517115 0.168137 0.128250 0.031*
C2 0.5164 (3) 0.00354 (16) 0.15321 (10) 0.0250 (4)
H2 0.381954 −0.000393 0.166545 0.030*
C3 0.6311 (3) −0.09186 (15) 0.15674 (9) 0.0198 (3)
C4 0.8288 (3) −0.08351 (15) 0.13699 (10) 0.0201 (3)
H4 0.909299 −0.147475 0.138953 0.024*
C5 0.9078 (3) 0.01737 (15) 0.11460 (10) 0.0214 (4)
H5 1.042463 0.021778 0.101744 0.026*
C6 0.7935 (3) 0.11253 (15) 0.11059 (10) 0.0224 (4)
C7 0.8846 (3) 0.22168 (16) 0.08884 (10) 0.0261 (4)
H7A 0.786612 0.269128 0.062011 0.031*
H7B 0.993146 0.209151 0.050759 0.031*
C8 1.2917 (3) 0.40152 (16) 0.12293 (10) 0.0227 (4)
H8A 1.314161 0.356074 0.074345 0.027*
H8B 1.375060 0.373634 0.167020 0.027*
C9 1.3305 (3) 0.52418 (16) 0.10640 (11) 0.0252 (4)
H9A 1.465720 0.544398 0.121083 0.030*
H9B 1.308981 0.541944 0.049063 0.030*
C10 1.1842 (3) 0.58433 (15) 0.15935 (10) 0.0207 (3)
H10A 1.160560 0.660597 0.139818 0.025*
H10B 1.229401 0.587452 0.215737 0.025*
C11 1.0013 (2) 0.51285 (13) 0.15131 (9) 0.0177 (3)
H11 0.919980 0.519648 0.200867 0.021*
C12 0.8778 (2) 0.53899 (14) 0.07726 (10) 0.0185 (3)
C13 0.7337 (3) 0.68444 (15) 0.00261 (10) 0.0237 (4)
H13A 0.611150 0.642766 0.001641 0.036*
H13B 0.805258 0.671372 −0.047409 0.036*
H13C 0.705502 0.763671 0.007956 0.036*
N1 0.5498 (2) −0.19452 (12) 0.17535 (9) 0.0238 (3)
H1A 0.437345 −0.187300 0.201944 0.025*
H1B 0.631536 −0.240553 0.194209 0.035*
N2 1.0839 (2) 0.40101 (12) 0.14615 (9) 0.0191 (3)
O1 1.1177 (2) 0.21852 (11) 0.21203 (7) 0.0263 (3)
O2 0.8100 (2) 0.32514 (11) 0.22329 (8) 0.0276 (3)
O3 0.8086 (2) 0.47123 (11) 0.03267 (8) 0.0301 (3)
O4 0.8508 (2) 0.64820 (11) 0.07014 (7) 0.0244 (3)
S1 0.97480 (6) 0.29069 (3) 0.17654 (2) 0.01842 (13)

1 Source of material

(4–Nitrophenyl)methanesulfonyl chloride (2.81 g, 12.0 mmol), methyl pyrrolidine-2-carboxylate hydrochloride (2.39 g, 14.4 mmol) and 4-dimethylaminopyridine (3.52 g, 28.8 mmol) were dissolved in 48 mL of dichloromethane and reacted at room temperature for 3.0 h. The response endpoint was detected by thin layer chromatography (TLC). When the reaction was stopped, an appropriate amount of ethyl acetate was added to the reaction system, stirred and allowed to stand for 10 min. The filtrate obtained after filtering off the precipitate was concentrated under vacuum. The crude product was purified by silica-gel column chromatography (petroleum ether:ethyl acetate = 3:1, v:v). The white solid (1.62 g, 4.94 mmol) obtained after the reaction was dissolved in 20 mL of super-dry methanol with stannous chloride (5.57 g, 24.7 mmol) and refluxed at a controlled temperature of 343 K for 2.0 h. The response endpoint was detected by thin layer chromatography (TLC). When the reaction was stopped, an appropriate amount of saturated aqueous Na2CO3 solution was added to the reaction system, the pH was adjusted to 7–8, an appropriate amount of ethyl acetate was added, and stirred for 1.0 h. The filtrate was obtained by filtration of diatomaceous earth. The filtrate was successively washed with deionized water and brine, dried over anhydrous sodium sulfate and condensed under vacuum. The crude product was purified by silica-gel column chromatography (petroleum ether:ethyl acetate = 2:1, v:v). The title compound was recrystallized from dichloromethane and methanol (1:1, v:v) system to attain suitable crystals.

2 Experimental details

The H atoms were placed in idealized positions and treated as riding on their parent atoms. The H atoms at N1 were placed in difference maps and treated as riding.

3 Comment

Sulfonamides are important compounds with a wide range of applications [3–5]. The title compound was obtained from the raw material (4-nitrophenyl)methanesulfonyl chloride by substitution and reduction reactions. We further obtained the title compound, methyl ((4-aminobenzyl)sulfonyl)-L-prolinate, as a single crystal.

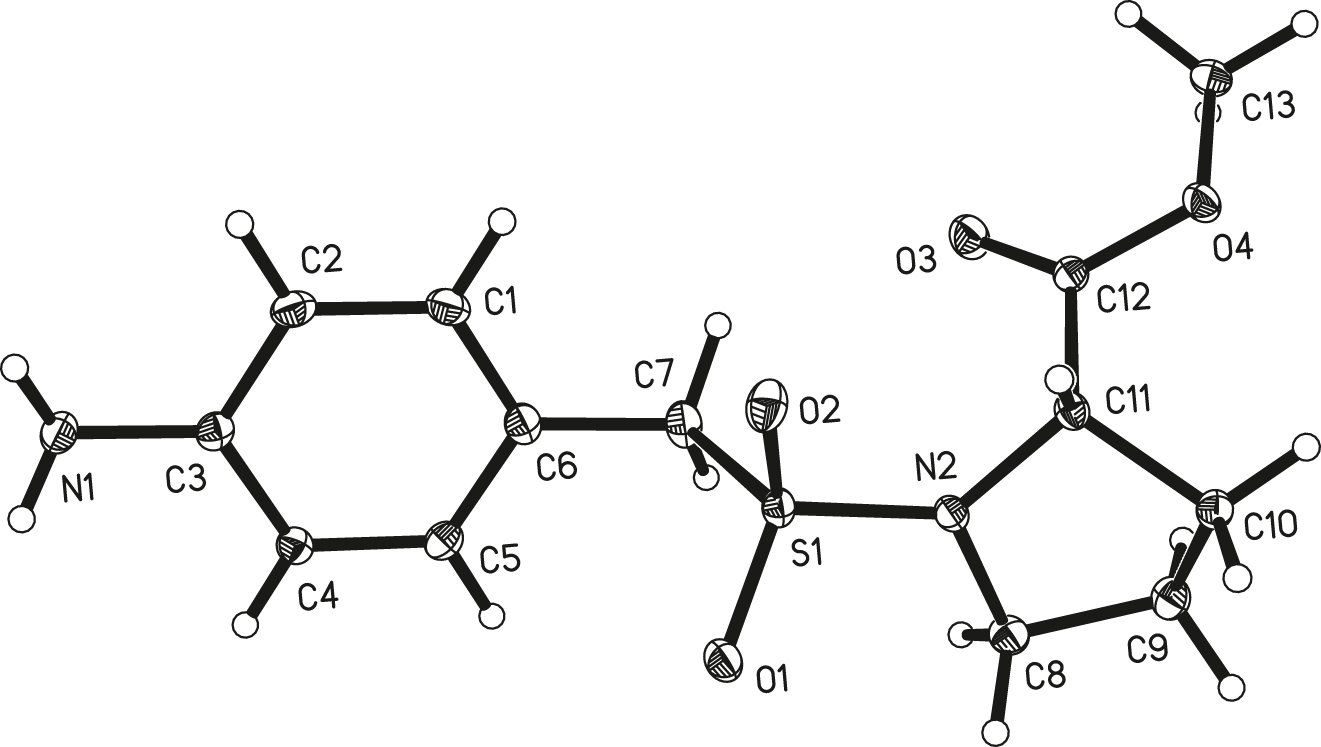

The ORTEP diagram is presented in the Figure. Bond lengths and angles are all in the expected ranges [6]. The whole molecule contains two parts, p-aminobenzenesulfonyl and methyl L-prolinate, linked by N(2)–S(1). The bond length of N(2)–S(1) is 1.6096(15) Å. The bond angle of C(7)–S(1)–N(2) is 106.80(8)° [7]. For the p-aminobenzenesulfonyl side, the amino group at the C(3) position is obtained by reduction of the nitro group, and can act as a proton donor and form hydrogen bonds with other atoms [8, 9]. For the methyl L-prolinate, the C(11) is the chiral center and the molecule adopts the L stereoselective configuration. The carboxyl methyl ester at the C(11) can improve the molecular lipid solubility.

Corresponding author: Qing-Guo Meng, School of Pharmacy, Collaborative Innovation Center of Advanced Drug Delivery System and Biotech Drugs in Universities of Shandong, Key Laboratory of Molecular Pharmacology and Drug Evaluation (Yantai University), Ministry of Education, Yantai University, Yantai, P.R. China, E-mail:

Funding source: Science and Technology Innovation Development Plan of Yantai

Award Identifier / Grant number: 2020XDRH105

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 81473104

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by Science and Technology Innovation Development Plan of Yantai (No. 2020XDRH105) and the National Natural Science Foundation of China (No. 81473104).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2 and SAINT Bruker AXS Inc.: Madison, Wisconsin, USA, 2012.Search in Google Scholar

2. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

3. Premakumari, C., Muralikrishna, A., Padmaja, A., Padmavathi, V., Park, S. J., Kim, T. J., Reddy, G. D. Synthesis, antimicrobial and anticancer activities of amido sulfonamido methane linked bis heterocycles. Arab. J. Chem. 2014, 7, 385–395; https://doi.org/10.1016/j.arabjc.2013.10.024.Search in Google Scholar

4. Rubab, L., Afroz, S., Ahmad, S., Hussain, S., Nawaz, I., Irfan, A., Batool, F., Kotwica-Mojzych, K., Mojzych, M. An update on synthesis of coumarin sulfonamides as enzyme inhibitors and anticancer agents. Molecules 2022, 27, 1604; https://doi.org/10.3390/molecules27051604.Search in Google Scholar PubMed PubMed Central

5. Naicker, T., Brasil, E., Samipillai, M., Govender, T., Baijnath, S. Crystal structure of 2-(4-fluorophenyl)-N-phenyl-2-(phenylamino) ethanesulfonamide-toluene (1/0.5), C23.5H23FN2O2S. Z. Kristallogr. N. Cryst. Struct. 2019, 234, 169–171.10.1515/ncrs-2018-0253Search in Google Scholar

6. Gong, Y. X., Geng, Y. D., Zhou, S. J., Wang, G. Y. The crystal structure of 1-[5-(2-fluorophenyl)-1-(pyridine-3-sulfonyl)-1H-pyrrol-3-yl]-N- methylmethanaminium 3-carboxyprop-2-enoate, C21H20FN3O6S. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 911–913.Search in Google Scholar

7. Xu, Y. R., Tang, H. J., Xu, Y. J., Guo, J. L., Zhao, X., Meng, Q. G., Xiao, J. H. Design, synthesis, bioactivity evaluation, crystal structures, and in silico studies of new α-amino amide derivatives as potential histone deacetylase 6 inhibitors. Molecules 2022, 27, 3335; https://doi.org/10.3390/molecules27103335.Search in Google Scholar PubMed PubMed Central

8. Krishnan, S., Kaliyaperumal, T., Marimuthu, R., Velusamy, S. Crystal structure, Hirshfeld surface, and DFT studies of 4-((pyrrolidin-1-ylsulfonyl)methyl)aniline. Eur. J. Chem. 2021, 12, 419–431; https://doi.org/10.5155/eurjchem.12.4.419-431.2177.Search in Google Scholar

9. Sridhar, B., Ravikumar, K., Krishnan, H., Singh, A. N. Molecular association of almotriptan with oxalate and terephthalate anions. J. Chem. Crystallogr. 2011, 41, 291–296; https://doi.org/10.1007/s10870-010-9875-7.Search in Google Scholar
