The crystal structure of 3-(2-bromophenyl)-1,5-di-p-tolylpentane-1,5-dione, C25H23BrO2

  • Wanxing Liu , Yifan Dai and Guodong Shen ORCID logo EMAIL logo
Published/Copyright: July 4, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 5

Abstract

C25H23BrO2, monoclinic, P21/c (no. 14), a = 9.6229(7) Å, b = 21.7953(16) Å, c = 10.9104(6) Å, β = 109.330(7)°, V = 2159.3(3) Å3, Z = 4, R gt (F) = 0.0499, wR ref (F 2) = 0.1385, T = 293 K.

CCDC no.: 2180352

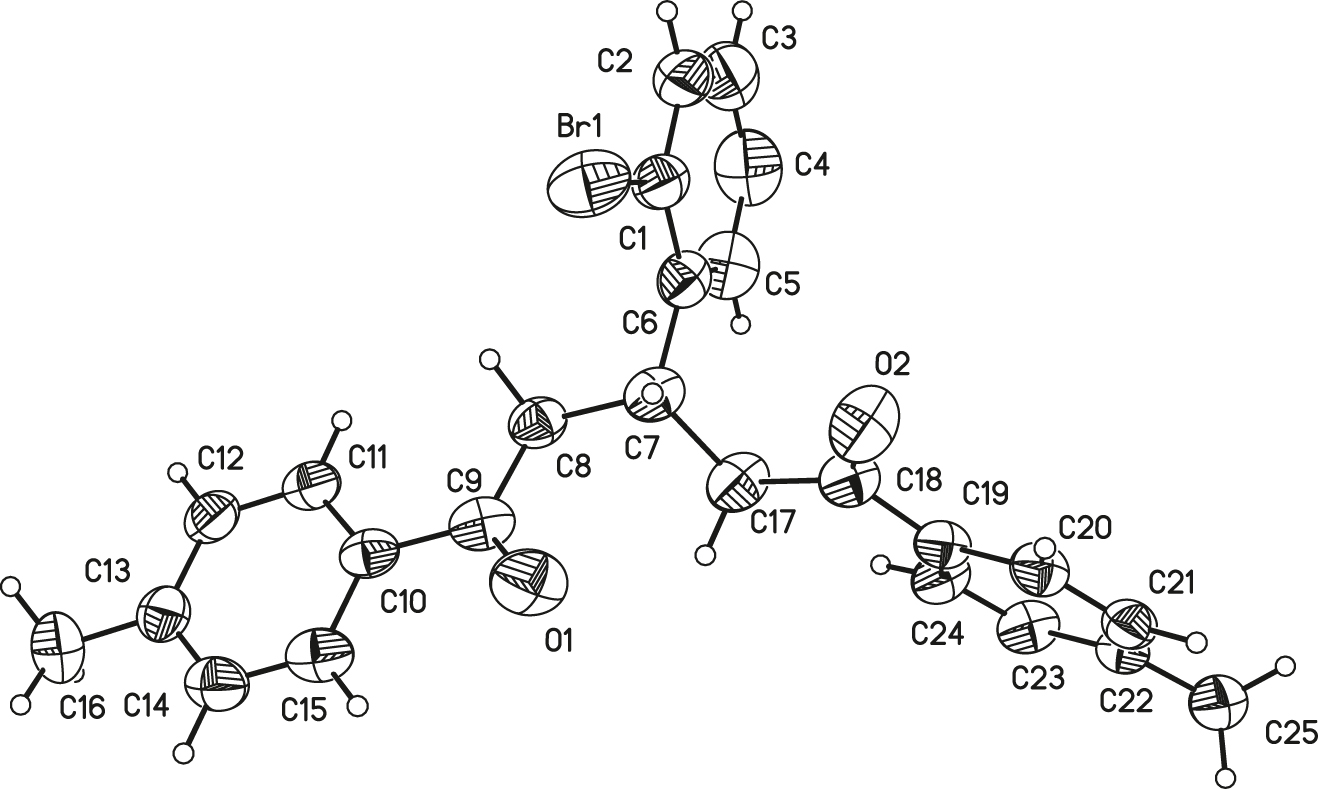

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: White block
Size: 0.12 × 0.12 × 0.11 mm
Wavelength: Cu Kα radiation (1.54184 Å)
μ: 2.72 mm−1
Diffractometer, scan mode: Xcalibur
θ max, completeness: 67.2°, >99%
N(hkl)measured, N(hkl)unique, R int: 7926, 3856, 0.034
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2419
N(param)refined: 255
Programs: CrysAlisPRO [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Br1 0.31890 (6) 0.61708 (3) 0.51571 (5) 0.1179 (3)
O1 0.7750 (3) 0.61008 (16) 0.4402 (3) 0.1142 (11)
O2 0.5713 (3) 0.77499 (14) 0.5150 (2) 0.1077 (10)
C1 0.2475 (4) 0.66468 (18) 0.3636 (4) 0.0796 (10)
C2 0.0970 (5) 0.6748 (2) 0.3157 (5) 0.1022 (14)
H2 0.036177 0.659220 0.358997 0.123*
C3 0.0391 (6) 0.7079 (3) 0.2041 (6) 0.1221 (18)
H3 −0.061785 0.715180 0.171327 0.147*
C4 0.1279 (8) 0.7303 (3) 0.1410 (5) 0.1294 (19)
H4 0.087854 0.752790 0.064983 0.155*
C5 0.2769 (6) 0.7199 (2) 0.1887 (4) 0.1069 (14)
H5 0.335921 0.734977 0.143149 0.128*
C6 0.3426 (4) 0.68737 (17) 0.3036 (3) 0.0737 (9)
C7 0.5061 (4) 0.67364 (18) 0.3517 (3) 0.0753 (10)
H7 0.535334 0.665952 0.445288 0.090*
C8 0.5342 (4) 0.61458 (17) 0.2872 (4) 0.0745 (10)
H8A 0.460899 0.584494 0.289677 0.089*
H8B 0.519606 0.623305 0.196613 0.089*
C9 0.6837 (4) 0.5865 (2) 0.3465 (3) 0.0781 (10)
C10 0.7179 (4) 0.52850 (18) 0.2910 (3) 0.0683 (9)
C11 0.6123 (4) 0.49516 (19) 0.1947 (3) 0.0759 (10)
H11 0.515749 0.509290 0.162501 0.091*
C12 0.6508 (4) 0.44140 (19) 0.1475 (4) 0.0832 (11)
H12 0.579295 0.419614 0.083783 0.100*
C13 0.7920 (5) 0.41940 (19) 0.1923 (4) 0.0826 (11)
C14 0.8958 (4) 0.4521 (2) 0.2880 (4) 0.0886 (12)
H14 0.991881 0.437481 0.320422 0.106*
C15 0.8604 (4) 0.5056 (2) 0.3362 (4) 0.0832 (11)
H15 0.932713 0.526928 0.400111 0.100*
C16 0.8334 (6) 0.3616 (2) 0.1368 (6) 0.1235 (17)
H16A 0.755972 0.331974 0.122578 0.185*
H16B 0.922857 0.345313 0.196675 0.185*
H16C 0.847915 0.370848 0.055829 0.185*
C17 0.6001 (4) 0.72661 (19) 0.3314 (3) 0.0867 (12)
H17A 0.698556 0.711459 0.343596 0.104*
H17B 0.558926 0.740797 0.242364 0.104*
C18 0.6108 (4) 0.77991 (19) 0.4205 (3) 0.0736 (10)
C19 0.6741 (3) 0.83842 (17) 0.3948 (3) 0.0653 (9)
C20 0.7215 (4) 0.88109 (18) 0.4930 (3) 0.0729 (10)
H20 0.717680 0.871504 0.574918 0.088*
C21 0.7741 (4) 0.9372 (2) 0.4732 (4) 0.0778 (10)
H21 0.807197 0.964635 0.541989 0.093*
C22 0.7787 (4) 0.95366 (18) 0.3520 (4) 0.0752 (10)
C23 0.7333 (4) 0.9111 (2) 0.2538 (4) 0.0825 (11)
H23 0.736603 0.921037 0.171908 0.099*
C24 0.6832 (4) 0.8540 (2) 0.2739 (3) 0.0768 (10)
H24 0.655238 0.825764 0.206287 0.092*
C25 0.8297 (5) 1.0167 (2) 0.3283 (5) 0.1040 (14)
H25A 0.934830 1.019291 0.366574 0.156*
H25B 0.784635 1.047111 0.366669 0.156*
H25C 0.801979 1.023914 0.236493 0.156*

Source of material

In a 25 mL round-bottom flask, 2-bromobenzaldehyde (0.25 mmol), 4-methylacetophenone (0.5 mmol) and NaOH (0.5 mmol) were ground together for 40 min. After the reaction was completed, the mixture was washed three times with hot water and recystallized from ethanol, the colourless crystals were obtained, yield: 68%.

Experimental details

All hydrogen atomic positions were taken from a difference Fourier map. Their U iso values were set to 1.2U eq (C, phenyl ring and methylene), 1.5U eq(C, methyl) of the parent atoms, respectively. All the H atoms were refined as riding on their parent atom.

Comment

In the past few decades, the efficient, mild, economical and environmentally friendly approaches have been developed for the generation of value-added 1,5-dione molecules from inexpensive, readily accessible organic feedstocks [4]. Generally, the 1,5-dione molecules were achieved by the Aldol and Michael addition cascade reactions using the inorganic and organic base as catalysts and the preparation of 1,5-dione derivatives has received considerable attention because they could facilitate the efficient construction of complex bioactive molecules in an atom/step economic manner [5]. In this regard, several 1,5-diones have been synthesized and their crystal structure have been described in detail [6], [7], [8], [9]. Regardless of these above results, to date, the crystal structure of 3-(2-bromophenyl)-1,5-di-/p-tolylpentane-1,5-dione has not been presented. In this paper, the title compound was achieved and its crystal structure is reported.

In the title compound, the bond lengths and angles are normal and correspond to those observed in 1,3,5-tri-p-tolylpentane-1,5-dione and 1,5-bis(4-methylphenyl)-3-phenylpentane-1,5-dione [10, 11]. The title molecule is non-planar, the benzene ring (C1–C6) and the two p-methylphenyl rings (C10–C15 and C19–C24) on both sides form the dihedral angles of 88.248(1)° and 76.726(1)°, respectively, which suggests that the p-methylphenyl rings are almost perpendicular to the central benzene ring, and the results are similar with those of the reported 3-(4-chlorophenyl)-1,5-di-/p-tolylpentane-1,5-dione [12]. The dihedral angle between the plane (C17–C19) and the plane (C8–C10) is 85.739(3)°, is larger than that of the reported 3-(3-bromo-4-methoxyphenyl)-1,5-diphenylpentane-1,5-dione [13] and the result indicates two planes are also perpendicular to each other, which may be caused by the a larger steric hindrance of bromo substituent at the 2-position of the central phenyl moiety. Furthermore, the methylene carbon atoms interact with carbonyl oxygen atoms of the adjacent molecule through weak C—H⃛O intermolecular interactions, forming 1D chains.

Corresponding author: Guodong Shen, School of Chemistry & Chemical Engineering Liaocheng University, Liaocheng 252000, Shandong, China, E-mail:

Funding source: Research on Technology of Liaocheng University

Award Identifier / Grant number: K22LD11

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was funded by Research on Technology of Liaocheng University (K22LD11).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Oxford Diffraction Ltd. CrysAlisPRO, version 1.171.41.121a; Rigaku Oxford Diffraction: England, 2021.Search in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar PubMed PubMed Central

4. Sodhi, R. K., Paul, S., Gupta, V. K., Kant, R. Conversion of /a, /b-unsaturated ketones to 1,5-diones via tandem retro–Aldol and Michael addition using Co(acac)2 covalently anchored onto amine functionalized silica. Tetrahedron Lett. 2015, 56, 1944–1948; https://doi.org/10.1016/j.tetlet.2015.02.057.Search in Google Scholar

5. Yan, Y., Yang, J., Yu, Z., Yu, M., Ma, Y.-T., Wang, L., Su, C., Luo, J., Horsman, G. P., Huang, S.-X. Non-enzymatic pyridine ring formation in the biosynthesis of the rubrolone tropolone alkaloids. Nat. Commun. 2016, 7, 13083; https://doi.org/10.1038/ncomms13083.Search in Google Scholar PubMed PubMed Central

6. Lei, X., Bai, X. 1,5–Bis(4-chlorophenyl)-3-[4-(dimethylamino)phenyl]pentane-1,5-dione. Acta Crystallogr. 2009, E65, o514; https://doi.org/10.1107/s1600536809003894.Search in Google Scholar PubMed PubMed Central

7. Yathirajan, H., Malte, K., Narayana, B., Sreevidyab, T., Boltec, M. 1,5-Bis(4-bromophenyl)-3-(3-nitrophenyl)-pentane-1,5-dione. Acta Crystallogr. 2007, E63, o228–o229; https://doi.org/10.1107/s1600536806052585.Search in Google Scholar

8. Qiu, X., Ma, J., Liu, W. 3-(2-Chlorophenyl)-1,5-bis(4-nitrophenyl) pentane- 1,5-dione. Acta Crystallogr. 2006, E62, o4565–o4566; https://doi.org/10.1107/s1600536806037512.Search in Google Scholar

9. Chithiravel, R., Thiruvalluvar, A., Muthusubramanianc, S., Butcher, R. 1,5–Bis(4-chlorophenyl)-3-(4-methyl-phenyl)pentane-1,5-dione. Acta Crystallogr. 2013, E69, o1508–o1509; https://doi.org/10.1107/s1600536813024355.Search in Google Scholar

10. Shen, Y.-L. 1,3,5–Tri-p-tolylpentane-1,5-dione. Acta Crystallogr. 2008, E64, o2330; https://doi.org/10.1107/s1600536808036854.Search in Google Scholar

11. Huang, L., Huang, X.-Q., Xu, D.-Y., Dou, J.-M., Li, D.-C. 1,5-Bis(4-methylphenyl)-3-phenylpentane-1,5-dione. Acta Crystallogr. 2006, E62, o2425–o2426; https://doi.org/10.1107/s160053680601823x.Search in Google Scholar

12. Zheng, J., Liu, S., Zhang, Y., Huang, X. The crystal structure of 3-(4-chlorophenyl)-1,5-di-p-tolylpentane-1,5-dione, C25H23ClO2. Z. Kristallogr. N. Cryst. Struct. 2022, 237, in press; https://doi.org/10.1515/ncrs-2022–0110.10.1515/ncrs-2022-0110Search in Google Scholar

13. Dutkiewicz, G., Chidan Kumar, C., Yathirajan, H., Narayana, B., Kubicki, M. 3-(3-Bromo-4-methoxyphenyl)-1,5-diphenyl pentane-1,5-dione. Acta Crystallogr. 2010, E66, o816; https://doi.org/10.1107/s1600536810008548.Search in Google Scholar
Received: 2022-05-13
Accepted: 2022-06-20
Published Online: 2022-07-04
Published in Print: 2022-10-26

© 2022 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
