Crystal structure of bis(μ2-benzoato-k2O:O′)-bis(μ2-benzoato-k3O,O′:O′)dinitrato-k2O,O′-bis(phenanthroline-k2 N,N′)dierbium(III), C52H36Er2N6O14

  • Zhang Li ORCID logo EMAIL logo , Yu Hai-yan , Wang Ying-lei , Li Ru-lin and Cao Ying-han
Published/Copyright: July 6, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 5

Abstract

C52H36Er2N6O14, triclinic, P 1 ‾ (no. 2), a = 10.6499(5) Å, b = 11.0111(5) Å, c = 11.0380(6) Å, α = 85.030(4)°, β = 81.502(4)°, γ = 68.925(4)°, V = 1193.77(11) Å3, Z = 2, R gt (F) = 0.0263, wR ref (F 2) = 0.0592, T = 150.0 K.

CCDC no.: 2180392

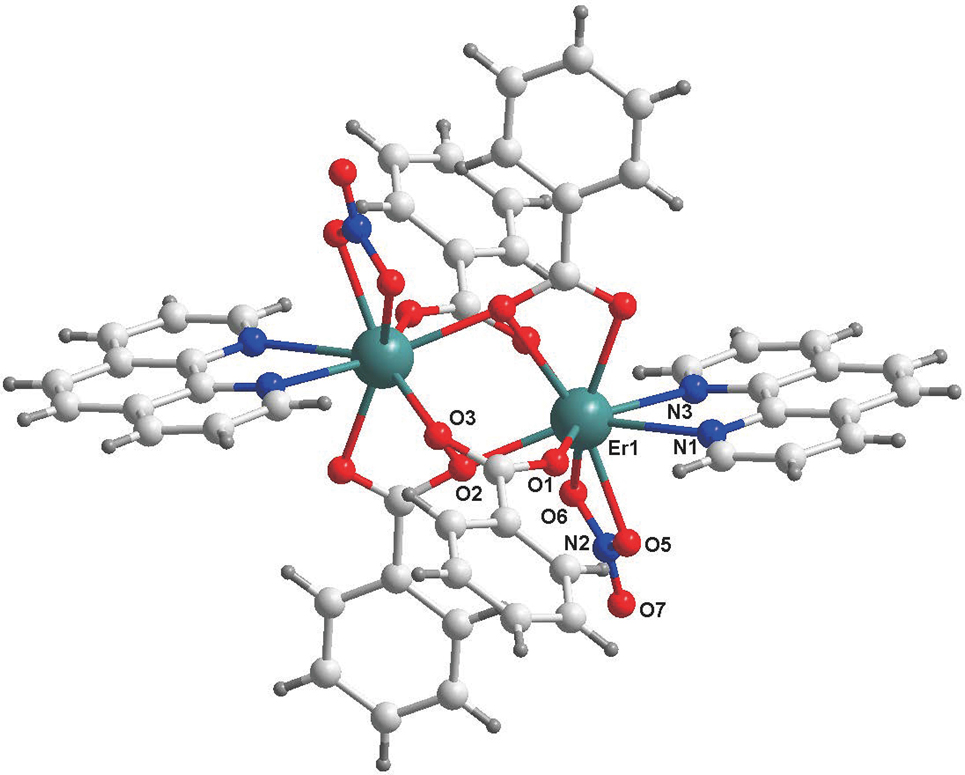

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Pink block
Size: 0.23 × 0.15 × 0.12 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 3.57 mm−1
Diffractometer, scan mode: Xcalibur, ω
θ max, completeness: 26.4°, >99%
N(hkl)measured, N(hkl)unique, R int: 8402, 4875, 0.023
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 4318
N(param)refined: 334
Programs: CrysAlisPRO [1], Olex2 [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Er1 0.62749 (2) 0.49462 (2) 0.35076 (2) 0.02363 (6)
O1 0.7367 (2) 0.3681 (2) 0.5096 (2) 0.0306 (6)
O2 0.4977 (3) 0.3730 (2) 0.4412 (2) 0.0308 (6)
O3 0.5891 (2) 0.3603 (2) 0.6743 (2) 0.0285 (6)
O4 0.3486 (3) 0.3222 (2) 0.5738 (2) 0.0328 (6)
O5 0.7569 (3) 0.3118 (3) 0.2250 (3) 0.0362 (6)
O6 0.5561 (3) 0.4124 (3) 0.1753 (3) 0.0373 (6)
N1 0.8757 (3) 0.4901 (3) 0.3003 (3) 0.0278 (7)
N2 0.6678 (4) 0.3224 (3) 0.1541 (3) 0.0344 (8)
N3 0.6804 (3) 0.6131 (3) 0.1519 (3) 0.0265 (7)
C1 0.4309 (3) 0.2986 (3) 0.4786 (3) 0.0246 (8)
O7 0.6936 (3) 0.2469 (3) 0.0713 (3) 0.0552 (9)
C2 0.7051 (4) 0.3212 (3) 0.6129 (3) 0.0252 (8)
C3 0.9061 (4) 0.5616 (3) 0.2027 (3) 0.0277 (8)
C4 0.8035 (4) 0.6271 (3) 0.1241 (3) 0.0273 (8)
C5 0.5896 (4) 0.6686 (4) 0.0755 (4) 0.0354 (9)
H5 0.506615 0.656583 0.092396 0.042*
C6 0.4526 (4) 0.1803 (3) 0.4090 (3) 0.0287 (8)
C7 0.8142 (4) 0.2112 (3) 0.6677 (3) 0.0266 (8)
C8 0.9712 (4) 0.4306 (4) 0.3704 (4) 0.0382 (10)
H8 0.950884 0.381181 0.437978 0.046*
C9 0.8331 (4) 0.7003 (4) 0.0208 (4) 0.0398 (10)
C10 0.7931 (4) 0.1676 (4) 0.7871 (4) 0.0353 (9)
H10 0.709946 0.206551 0.833838 0.042*
C11 1.0361 (4) 0.5720 (4) 0.1733 (4) 0.0353 (9)
C12 0.5699 (4) 0.1235 (4) 0.3314 (4) 0.0406 (10)
H12 0.638831 0.157971 0.321832 0.049*
C13 0.7317 (5) 0.7601 (4) −0.0551 (4) 0.0501 (12)
H13 0.747657 0.810603 −0.123463 0.060*
C14 1.1016 (4) 0.4370 (4) 0.3494 (4) 0.0450 (11)
H14 1.165146 0.394487 0.402711 0.054*
C15 0.3514 (5) 0.1272 (4) 0.4245 (4) 0.0399 (10)
H15 0.273272 0.163472 0.478704 0.048*
C16 0.6094 (5) 0.7438 (4) −0.0283 (4) 0.0467 (11)
H16 0.541182 0.781887 −0.078147 0.056*
C17 1.0613 (5) 0.6472 (4) 0.0670 (4) 0.0504 (13)
H17 1.146301 0.654664 0.048146 0.060*
C18 1.1332 (4) 0.5060 (4) 0.2505 (4) 0.0456 (11)
H18 1.219982 0.509601 0.233762 0.055*
C19 0.9373 (4) 0.1497 (4) 0.5999 (4) 0.0497 (11)
H19 0.953409 0.176230 0.518666 0.060*
C20 0.8933 (5) 0.0668 (4) 0.8385 (4) 0.0483 (11)
H20 0.877347 0.038601 0.919271 0.058*
C21 0.9661 (5) 0.7073 (5) −0.0065 (4) 0.0519 (12)
H21 0.986551 0.754128 −0.075996 0.062*
C22 0.4812 (7) −0.0336 (4) 0.2814 (5) 0.0676 (17)
H22 0.490113 −0.104517 0.236533 0.081*
C23 1.0148 (5) 0.0091 (4) 0.7713 (5) 0.0576 (13)
H23 1.083009 −0.057440 0.806375 0.069*
C24 1.0369 (5) 0.0491 (5) 0.6516 (5) 0.0679 (16)
H24 1.119620 0.008088 0.604909 0.082*
C25 0.5850 (6) 0.0161 (4) 0.2682 (4) 0.0582 (14)
H25 0.664613 −0.023139 0.216757 0.070*
C26 0.3665 (6) 0.0207 (4) 0.3594 (5) 0.0592 (14)
H26 0.297988 −0.014347 0.368936 0.071*

Source of material

The following compounds 0.0461 g erbium nitrate hexahydrate (0.10 mmol), 0.0180 g 1,10-phenanthroline (0.10 mmol) and 0.0122 g benzoic acid (0.10 mmol) were mixed homogeneously under stirring, then placed in a 25 mL Teflon-lined stainless steel reactor, and finally heated to 120°. Seventy-two hours later, the reactor cooled naturally. Pink crystals were obtained for X-ray single-crystal diffraction test, yield 46% based on Er.

Experimental details

The structure was solved by direct methods with the SHELXS program. All H-atoms were positioned with idealized geometry and refined isotropically (U iso(H) = 1.2 U eq(C) and U iso(H) = 1.2 U eq(N)) using a riding model with C–H = 0.950 Å.

Comment

The four-component dimers of lanthanide complexes composed of lanthanide(III) cations, nitrate, benzoic acid or its derivatives, and 1,10-phenanthroline have been reported with a chemical formula [Ln2(L)4(phen)2(NO3)2] (Ln = lanthanide(III) ions, phen = 1,10-phenanthroline, and L = benzoate or its derivatives) [5], [6], [7], [8], [9], [10], [11]. Also two analogues of erbium complexes (L = 4-acetamidobenzoate [12] and 2-fluorobenzoate [13]) and two isostructures complex (Ln = praseodymium [14] and holmium [15]) have been published elsewhere, respectively. The title complex, with the formula of [Er2(L)4(phen)2(NO3)2] (L = benzoate) has not been reported. The title complex crystallizes in P 1 ‾ located around an inversion center (see the Figure). Consequently the asymmetric unit consists of one Er(III) ion, two benzoates, one phen, and one nitrate. The dimer is made of two asymmetric units linked by four benzoates, which adapt two coordination modes: two of them are in a μ2-k2O:O′ mode while the other two briding ligands use a μ2-k3O,O′:O mode. The distance of the two Er(III) ions is 3.929 Å. The dimers are linked together by weak non-classical hydrogen bonds C10–H10⃛O7, C16–H16⃛O7, and C17–H17⃛O7, and weak π⃛π interactions. All bond lengths are similar to the reported results of its analogues [12, 13].

Corresponding author: Zhang Li, School of Biological and Chemical Engineering, Nanyang Institute of Technology, Nanyang, Henan 473004, P. R. China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: None declared.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Oxford Diffraction Ltd. CrysAlisPro, Version 1.171.33.66; Oxford, England, 2010.Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Sheldrick, G. Using phases to determine the space group. Acta Crystallogr. 2018, A74, a353; https://doi.org/10.1107/s0108767318096472.Search in Google Scholar

5. Xian, C.-Y., Zhu, L.-G., Yu, Q.-S. Synthesis and crystal structure of mixed anion complex of lanthanide [Ce(p-CH3C6H4COO)2(NO3)(phen)]2. Chin. J. Inorg. Chem. 1999, 15, 813–816.Search in Google Scholar

6. Li, X., Jin, Q.-H., Zou, Y.-Q., Yum, K.-B. Crystal structure of di(phenathroline)di[μ-(2,3-dimethoxylbenzato-O,O′)-μ-2,3-dimethoxylbenzato-O,O:O′)]di(nitrate) dineodymium(III), Nd2(NO3)2(C9H9O4)4(C12H8N2)2. Z. Kristallogr. N. Cryst. Struct. 2002, 217, 292–294; https://doi.org/10.1524/ncrs.2002.217.jg.292.Search in Google Scholar

7. Li, X., Jin, L. P., Zheng, X. J., Lu, S. Z., Zhang, J. H. Synthesis, structure and luminescence property of the three ternary and quaternary europium complexes. J. Mol. Struct. 2002, 607, 59–67; https://doi.org/10.1016/s0022-2860(01)00900-0.Search in Google Scholar

8. Li, X. Crystal structure of bis(1,10-phenanthroline)bis(μ-2-methoxybenzoato-O,O′) bis(μ-2-methoxybenzoato-O,O′:O′)dinitrato-dineodymium(III), Nd2(C8O3H7)4(NO3)2(C12H8N2)2. Z. Kristallogr. N. Cryst. Struct. 2005, 220, 407–408; https://doi.org/10.1524/ncrs.2005.220.14.427.Search in Google Scholar

9. Wu, X.-S., Wang, C.-Y., Li, X. Synthesis, crystal structure and properties of two terbium complexes with 4-bromobenzoic acid. Chin. J. Inorg. Chem. 2008, 24, 21–26.Search in Google Scholar

10. Yin, X., Fan, J., Wang, Z. H., Zheng, S. R., Tan, J. B., Zhang, W.-G. Luminescent lanthanide complexes with 4-acetamidobenzoate: synthesis, supramolecular assembly via hydrogen bonds, crystal structures and photoluminescence. J. Solid State Chem. 2011, 184, 1850–1857; https://doi.org/10.1016/j.jssc.2011.05.018.Search in Google Scholar

11. Wu, W.-H., Du, L., Zheng, Y.-R., Qu, Y.-J. Crystal structure of bis(μ2-2-fluorobenzoato-κ2O:O:O′)bis(μ2- 2-fluorobenzoato-κ2O:O′)dinitrato-κ2O,O′bis(1,10-phenathroline-κ2N,N′) diterbium(III), C52H32F4N6O14Tb2. Z. Kristallogr. N. Cryst. Struct. 2016, 231, 823–825.Search in Google Scholar

12. Wang, Z.-H., Fan, J., Zhang, W.-G. Studies of radii-dependent lanthanide coordination behavior with 4-acetamidobenzoate and 1,10-phenanthroline. Z. Anorg. Allg. Chem. 2009, 635, 2333–2339; https://doi.org/10.1002/zaac.200801412.Search in Google Scholar

13. Casanovas, B., Font-Bardia, M., Speed, S., El Fallah, M. S., Vicente, R. Field-induced SMM and visible/NIR-luminescence behaviour of dinuclear LnIII complexes with 2-fluorobenzoate. Eur. J. Inorg. Chem. 2018, 2018, 1928–1937; https://doi.org/10.1002/ejic.201800229.Search in Google Scholar

14. Xian, C.-Y., Zhu, L.-G., Yu, Q.-S. Syntheses, crystal structure and spectra of mixed ligand complex of lanthanide [Ln(BA)2(NO3)(phen)2]. Chem. J. Chin. Univ. 1999, 20, 1504–1508.Search in Google Scholar

15. D’Vries, R. F., Gomez, G. E., Lionello, D. F., Fuertes, M. C., Soler-Illia, G. J. A. A., Ellena, J. Luminescence, chemical sensing and mechanical properties of crystalline materials based on lanthanide -sulfonate coordination polymers. RSC Adv. 2016, 6, 110171–110181; https://doi.org/10.1039/c6ra23516f.Search in Google Scholar
