The crystal structure of the cocrystal 4-hydroxy-3,5-dimethoxybenzoic acid–pyrazine-2-carboxamide(1/1), C14H15N3O6

  • Cheng-Jun Jiang ORCID logo EMAIL logo , Ying-Fan Xia ORCID logo und Yan-Song Xie
Veröffentlicht/Copyright: 14. Juli 2022
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 237 Heft 5

Abstract

C14H15N3O6, monoclinic, C2/c (no. 15), a = 30.1620(13) Å, b = 3.8559(2) Å, c = 27.3897(13) Å, β = 117.610(4)°, V = 2822.7(3) Å3, Z = 8, Rgt (F) = 0.0332, wRref (F 2) = 0.0904, T = 170 K.

CCDC no.: 2164792

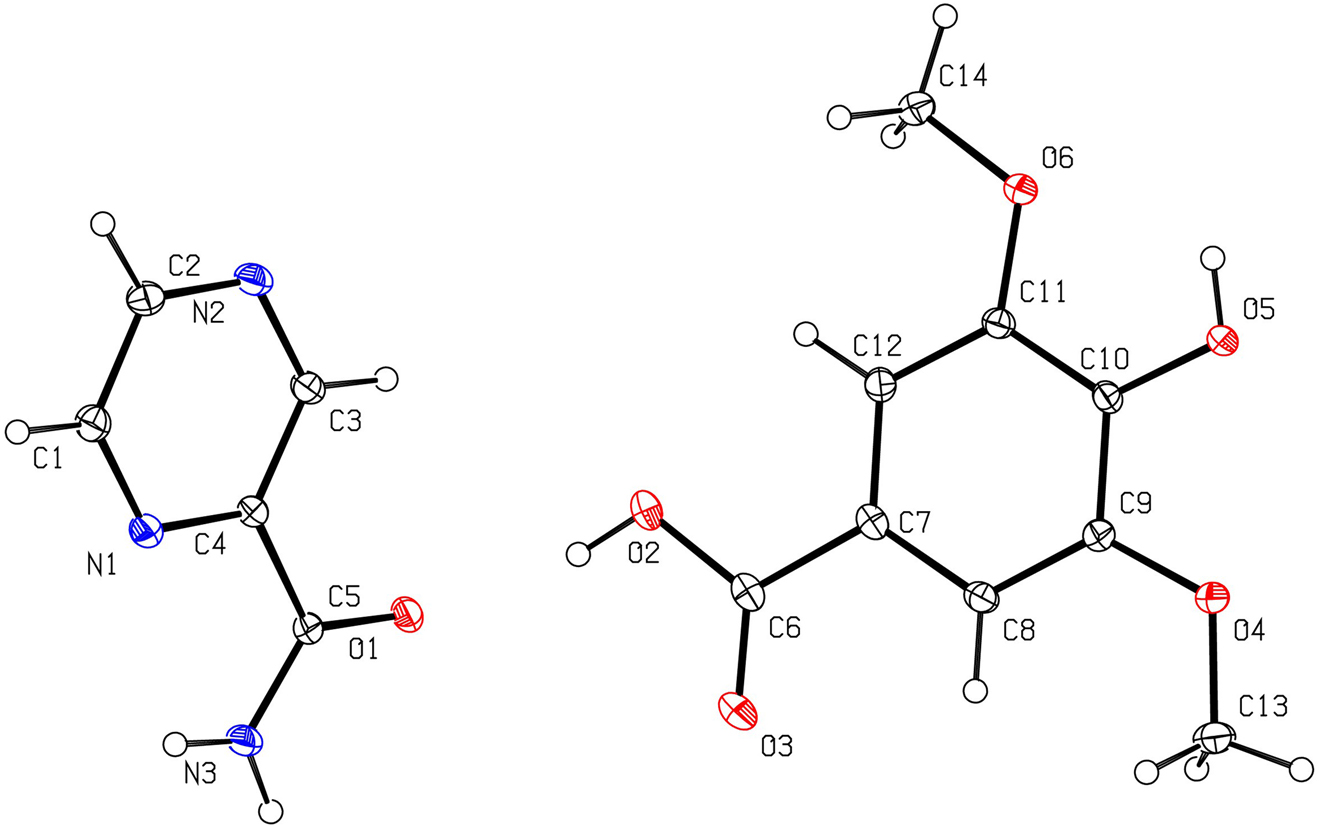

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.48 × 0.32 × 0.25 mm
Wavelength: MoKα radiation (0.71073 Å)
μ: 0.12 mm−1
Diffractometer, scan mode: Bruker D8 Venture, φ and ω
θ max, completeness: 27.1°, >99%
N(hkl)measured, N(hkl)unique, R int: 26886, 3108, 0.023
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2917
N(param)refined: 212
Programs: Bruker [1], Olex2 [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
O1 0.56662 (3) 0.0655 (2) 0.54435 (3) 0.02445 (18)
N1 0.60173 (3) 0.5166 (2) 0.45423 (4) 0.0218 (2)
N2 0.69684 (3) 0.3579 (3) 0.53927 (4) 0.0249 (2)
N3 0.51929 (3) 0.2810 (3) 0.45875 (4) 0.0259 (2)
H3A 0.491294 0.205486 0.457612 0.031*
H3B 0.518530 0.394685 0.430512 0.031*
C1 0.64322 (4) 0.6002 (3) 0.45116 (4) 0.0242 (2)
H1 0.640595 0.720280 0.419648 0.029*
C2 0.69032 (4) 0.5150 (3) 0.49321 (4) 0.0245 (2)
H2A 0.718939 0.571263 0.488832 0.029*
C3 0.65518 (4) 0.2764 (3) 0.54266 (4) 0.0222 (2)
H3 0.657912 0.166425 0.574972 0.027*
C4 0.60813 (3) 0.3495 (3) 0.49992 (4) 0.0184 (2)
C5 0.56231 (4) 0.2240 (3) 0.50270 (4) 0.0193 (2)
O2 0.61489 (3) 0.2606 (3) 0.65175 (3) 0.0328 (2)
H2 0.595774 0.212153 0.618624 0.049*
O3 0.54274 (3) 0.4049 (3) 0.65135 (3) 0.0338 (2)
O4 0.60475 (3) 0.8957 (2) 0.84733 (3) 0.02575 (19)
O5 0.70135 (3) 0.8013 (2) 0.89552 (3) 0.02545 (19)
H5 0.732144 0.780853 0.905804 0.038*
O6 0.74877 (3) 0.4689 (2) 0.84692 (3) 0.02410 (18)
C6 0.58786 (4) 0.3805 (3) 0.67547 (4) 0.0231 (2)
C7 0.61908 (4) 0.4811 (3) 0.73399 (4) 0.0203 (2)
C8 0.59544 (4) 0.6379 (3) 0.76150 (4) 0.0206 (2)
H8 0.560301 0.674983 0.743037 0.025*
C9 0.62340 (4) 0.7399 (3) 0.81596 (4) 0.0195 (2)
C10 0.67530 (4) 0.6872 (3) 0.84306 (4) 0.0191 (2)
C11 0.69814 (4) 0.5182 (3) 0.81547 (4) 0.0188 (2)
C12 0.67039 (4) 0.4186 (3) 0.76080 (4) 0.0200 (2)
H12 0.686214 0.309061 0.741916 0.024*
C13 0.55209 (4) 0.9394 (3) 0.82403 (5) 0.0292 (3)
H13A 0.540312 1.083520 0.790878 0.044*
H13B 0.543925 1.052702 0.850882 0.044*
H13C 0.535728 0.712219 0.814259 0.044*
C14 0.77398 (4) 0.2809 (3) 0.82252 (4) 0.0242 (2)
H14A 0.771375 0.407308 0.790254 0.036*
H14B 0.758633 0.051426 0.811122 0.036*
H14C 0.809313 0.254247 0.849353 0.036*

Source of material

The mixture of pyrazinamide and syringic acid (4-hydroxy- 3,5-dimethoxybenzoic acid) with a molar ratio of 1:1 was dissolved in ethyl acetate, and the resulting mixed solution was stirred at a constant temperature water bath at 50 °C to obtain a clear solution. The solution was filtered and placed in a sample vial, covered with membrane which was punctured. The filtrate was slowly evaporated at room temperature to obtain crystals of the title compound after seven days.

Experimental details

Absorption corrections were applied by using multi-scan program [1]. Using Olex2 [2], the structure was solved with the ShelXT [3] structure solution program using Intrinsic Phasing and refined with the ShelXL [4] refinement package. The H atoms were fixed, fixed Uiso were set to 1.2 times of all C(H) groups and N(H,H) groups; 1.5 times of C(H,H,H) groups and O(H) groups.

Comment

Pyrazinamide (PZA) belongs to nicotinamide analogs. Because of its good antibacterial activity and strong bactericidal effect, it is widely used in the treatment of tuberculosis in clinical practice. However, due to its low water solubility and low bioavailability, its oral absorption effect is severely inhibited. In recent years, drug co-crystal technology, as an emerging technology, enhances the efficacy of drugs by improving the solubility and permeability of drugs [5]. Compared with other crystal engineering techniques, drug co-crystals have unique advantages in reviving older small-molecule drugs. Cocrystals of pyrazinamide were obtained with 2,4-dihydroxybenzoic acid (CCDC: 1554966, NEFFEM), 2,3-dihydroxybenzoic acid (CCDC: 1554791, NEFGIR), 2,6-dihydroxybenzoic acid (CCDC: 1554970, NEFGEN) [6], pyrogallol (CCDC: 904232, HEDRAL),temozolomide (CCDC: 926521, KIJSED) [7], fumaric acid (CCDC: 849830, LATTIL), succinic acid (CCDC: 849831, LATTOR) [8] and so on.

The is one 4-hydroxy-3,5-dimethoxybenzoic acid molecule and one pyrazine-2-carboxamide molecule in the asymmetric unit (see the figure). In the unit cell of the title crystal, the main forces include the p-p stacking between the pyrazine ring and the benzene ring, and the formation of intermolecular hydrogen bonds between the amide group on pyrazinamide and the carboxyl group on syringic acid. The O1 atom on the amide group of the pyrazinamide molecule is a hydrogen bond acceptor, and the H2 atom on the carboxyl group(O2–H2) of syringic acid is a hydrogen bond donor, forming an intermolecular hydrogen bond [O2–H2–O1; d(O2–O1) = 2.7145(10) Å]. The N2 atom on the pyrazine ring is a hydrogen bond acceptor, and the H5 atom on the hydroxyl group (O5–H5) of the syringic acid molecule acts as a hydrogen bond donor, forming an intermolecular hydrogen bond [O5–H5–N2; d(O5–N2) = 2.7538(11) Å]. Amides on pyrazinamide molecules form intramolecular hydrogen bonds [O1–H3A–N3; d(O1–N3) = 2.8814(12) Å].

The structure of the pure 4-hydroxy-3,5-dimethoxybenzoic acid has been reported [9]. It has also been shown that cocrystals of this acid with pyridine-3-carboxamide can be obtained [9].

Corresponding author: Cheng-Jun Jiang, School of Biological and Chemical Engineering, Zhejiang University of Science and Technology, Hangzhou, Liuhe Road 318#, China, E-mail:

Funding source: Zhejiang Province Basic Public Welfare Research Project

Award Identifier / Grant number: LGJ20B060001

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by the Zhejiang Province Basic Public Welfare Research Project (LGJ20B060001).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX3 v. 2016.9?0 and SAINT v. 8.37A; Bruker Axs Inc.: Madison, Wisconsin, USA, 2016.Suche in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Suche in Google Scholar PubMed PubMed Central

4. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

5. Rajendran, M. A., Allada, R., Sajid, S. S. Co-crystals for generic pharmaceuticals: an outlook on solid oral dosage formulations. Recent Adv. Drug Deliv. Formulation 2021, 15, 15–36; https://doi.org/10.2174/2667387815666210203151209.Suche in Google Scholar PubMed

6. Jarzembska, K. N., Hoser, A. A., Varughese, S., Kamiński, R., Malinska, M., Stachowicz, M., Pedireddi, V. R., Wozniak, K. Structural and energetic analysis of molecular assemblies in a series of nicotinamide and pyrazinamide cocrystals with dihydroxybenzoic acids. Cryst. Growth Des. 2017, 17, 4918–4931; https://doi.org/10.1021/acs.cgd.7b00868.Suche in Google Scholar

7. Thakuria, R., Cherukuvada, S., Nangia, A. Crystal structures of pyrogallol, its hydrate, and stable multiple Z’ cocrystals with N-heterocycles containing metastable conformers of pyrogallol. Cryst. Growth Des. 2012, 12, 3944–3953; https://doi.org/10.1021/cg3003367.Suche in Google Scholar

8. Cherukuvada, S., Nangia, A. Fast dissolving eutectic compositions of two anti-tubercular drugs. CrystEngComm 2012, 14, 2579–2588; https://doi.org/10.1039/c2ce06391c.Suche in Google Scholar

9. Thipparaboina, R., Mittapalli, S., Thatikonda, S., Nangia, A., Naidu, V. G. M., Shastri, N. R. Syringic acid: structural elucidation and co-crystallization. Cryst. Growth Des. 2016, 16, 4679–4687; https://doi.org/10.1021/acs.cgd.6b00750.Suche in Google Scholar
Received: 2022-06-12
Accepted: 2022-06-28
Published Online: 2022-07-14
Published in Print: 2022-10-26
