Crystal structure of N 2,N 6-bis(2-(((E)-naphthalen-1-ylmethylene)amino)phenyl)pyridine-2,6-dicarboxamide, C41H29N5O2

  • Wen-Ze Zhao ORCID logo EMAIL logo
Veröffentlicht/Copyright: 3. August 2022
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 237 Heft 5

Abstract

C41H29N5O2, monoclinic, P21/c (no. 14), a = 12.4919(10) Å, b = 19.4010(15) Å, c = 13.2741(11) Å, β = 103.319(2)°, V = 3130.5(4) Å3, Z = 4, R gt (F) = 0.0557, wR ref (F 2) = 0.1746, T = 293(2) K.

CCDC no.: 2195029

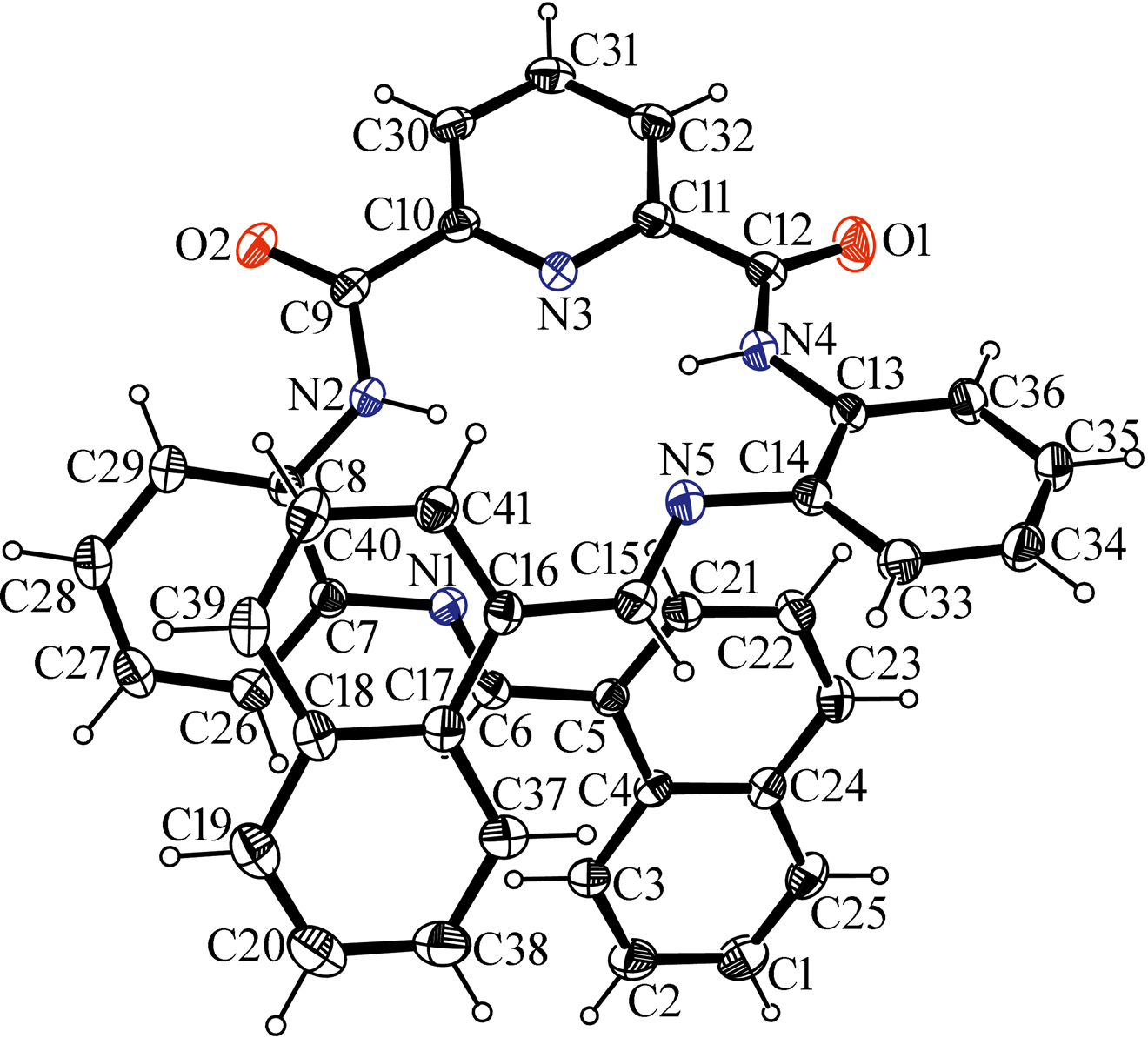

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Yellow block
Size: 0.21 × 0.20 × 0.18 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.08 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θ max, completeness: 25.0°, >99%
N(hkl)measured, N(hkl)unique, R int: 24417, 5497, 0.051
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 3415
N(param)refined: 434
Programs: Olex2 [1], Bruker [2], SHELX [3], Diamond [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
O1 0.55558 (15) 0.89828 (11) 0.60202 (17) 0.0871 (7)
O2 −0.01580 (14) 0.89284 (9) 0.55220 (16) 0.0723 (6)
N1 0.16463 (15) 0.67733 (9) 0.53891 (15) 0.0498 (5)
N2 0.09474 (14) 0.79860 (9) 0.58806 (15) 0.0496 (5)
H2 0.1624 0.7869 0.6112 0.060*
N3 0.27386 (15) 0.87657 (9) 0.59776 (15) 0.0485 (5)
N4 0.46848 (15) 0.82222 (10) 0.68688 (16) 0.0536 (5)
H4 0.4037 0.8113 0.6934 0.064*
N5 0.40741 (15) 0.72101 (10) 0.79487 (15) 0.0526 (5)
C1 0.4327 (3) 0.47170 (16) 0.3112 (2) 0.0788 (9)
H1 0.4595 0.4373 0.2749 0.095*
C2 0.3233 (3) 0.46999 (14) 0.3190 (2) 0.0759 (8)
H2A 0.2773 0.4346 0.2876 0.091*
C3 0.2839 (2) 0.51985 (12) 0.3722 (2) 0.0627 (7)
H3 0.2106 0.5182 0.3762 0.075*
C4 0.35115 (18) 0.57420 (11) 0.42182 (17) 0.0462 (6)
C5 0.31397 (17) 0.62728 (11) 0.48055 (17) 0.0461 (6)
C6 0.20068 (19) 0.63004 (12) 0.49129 (19) 0.0534 (6)
H6 0.1528 0.5951 0.4615 0.064*
C7 0.05402 (18) 0.68051 (11) 0.54692 (18) 0.0466 (6)
C8 0.01750 (17) 0.74509 (11) 0.57391 (17) 0.0447 (5)
C9 0.07538 (19) 0.86649 (12) 0.56963 (18) 0.0497 (6)
C10 0.17666 (19) 0.90770 (11) 0.56695 (18) 0.0484 (6)
C11 0.36343 (19) 0.91161 (12) 0.58841 (19) 0.0520 (6)
C12 0.4725 (2) 0.87695 (12) 0.6258 (2) 0.0559 (6)
C13 0.55342 (18) 0.78010 (12) 0.74166 (18) 0.0476 (6)
C14 0.52119 (18) 0.72621 (12) 0.79889 (18) 0.0488 (6)
C15 0.36329 (19) 0.66305 (13) 0.80264 (19) 0.0542 (6)
H15 0.4068 0.6237 0.8085 0.065*
C16 0.24666 (18) 0.65547 (12) 0.80278 (18) 0.0478 (6)
C17 0.19164 (19) 0.59093 (12) 0.77940 (18) 0.0516 (6)
C18 0.08030 (19) 0.58558 (13) 0.78574 (18) 0.0544 (6)
C19 0.0253 (2) 0.52166 (17) 0.7650 (2) 0.0741 (8)
H19 −0.0470 0.5178 0.7713 0.089*
C20 0.0758 (3) 0.46638 (17) 0.7361 (3) 0.0872 (10)
H20 0.0382 0.4248 0.7225 0.105*
C21 0.38648 (19) 0.67793 (12) 0.52431 (19) 0.0550 (6)
H21 0.3624 0.7125 0.5623 0.066*
C22 0.4947 (2) 0.67939 (13) 0.5140 (2) 0.0613 (7)
H22 0.5417 0.7145 0.5448 0.074*
C23 0.5318 (2) 0.62953 (14) 0.4589 (2) 0.0600 (7)
H23 0.6041 0.6309 0.4518 0.072*
C24 0.46198 (19) 0.57572 (12) 0.41228 (18) 0.0516 (6)
C25 0.4997 (2) 0.52308 (15) 0.3560 (2) 0.0684 (8)
H25 0.5723 0.5238 0.3497 0.082*
C26 −0.0195 (2) 0.62547 (13) 0.5318 (2) 0.0593 (7)
H26 0.0038 0.5822 0.5154 0.071*
C27 −0.1259 (2) 0.63414 (15) 0.5409 (2) 0.0676 (8)
H27 −0.1747 0.5972 0.5290 0.081*
C28 −0.1604 (2) 0.69750 (16) 0.5675 (2) 0.0663 (7)
H28 −0.2323 0.7030 0.5744 0.080*
C29 −0.08965 (18) 0.75267 (13) 0.58379 (19) 0.0557 (6)
H29 −0.1139 0.7953 0.6016 0.067*
C30 0.1655 (2) 0.97436 (12) 0.52825 (19) 0.0564 (7)
H30 0.0966 0.9951 0.5102 0.068*
C31 0.2576 (2) 1.00928 (13) 0.5170 (2) 0.0641 (7)
H31 0.2522 1.0537 0.4901 0.077*
C32 0.3582 (2) 0.97707 (13) 0.5465 (2) 0.0612 (7)
H32 0.4217 0.9991 0.5382 0.073*
C33 0.6012 (2) 0.68441 (13) 0.8593 (2) 0.0584 (7)
H33 0.5809 0.6498 0.8996 0.070*
C34 0.7114 (2) 0.69424 (14) 0.8598 (2) 0.0653 (7)
H34 0.7647 0.6659 0.8997 0.078*
C35 0.7415 (2) 0.74577 (14) 0.8013 (2) 0.0662 (7)
H35 0.8154 0.7518 0.8014 0.079*
C36 0.66370 (19) 0.78886 (13) 0.7422 (2) 0.0590 (7)
H36 0.6852 0.8236 0.7028 0.071*
C37 0.2419 (2) 0.53151 (13) 0.7482 (2) 0.0708 (8)
H37 0.3146 0.5336 0.7423 0.085*
C38 0.1846 (3) 0.47137 (15) 0.7267 (3) 0.0857 (9)
H38 0.2185 0.4331 0.7055 0.103*
C39 0.0263 (2) 0.64432 (16) 0.8120 (2) 0.0647 (7)
H39 −0.0468 0.6410 0.8163 0.078*
C40 0.0794 (2) 0.70590 (15) 0.83114 (19) 0.0623 (7)
H40 0.0422 0.7445 0.8469 0.075*
C41 0.1900 (2) 0.71105 (13) 0.82715 (18) 0.0556 (6)
H41 0.2259 0.7532 0.8414 0.067*

Source of material

A solution of N,N′-(2-aminophenyl)-2,6-dicarboxylimide pyridine (0.69 g, 2 mmol) in methanol (60 mL) was added to a stirred methanol solution (30 mL) of 1-naphthaldehyde (0.62 g, 4 mmol) in a three-necked flask. The reaction mixture was refluxed for 12 h, then the solution was cooled to room temperature. The yellow precipitated residue was removed by filtration and then washed with methanol three times. An amount of 0.93 g of a yellow solid was obtained in 75% yield. Then, a small amount of yellow solid was dissolved in a mixed solution of 30 mL of chloroform and methanol. Single crystals were obtained from a mixture solution by slow evaporation at room temperature.

Experimental details

Crystal data, data collection and structure refinement details are summarized in Table 1. Using Olex2 [1], the structure was solved using Charge Flipping and refined with the ShelXL [3] refinement. All hydrogen atoms were positioned geometrically, with the d(C—H) = 0.97–0.99 Å, U iso(H) = 1.2 times U eq(C) and U iso(H) = 1.5 times U eq (O).

Comment

Schiff base contains imine nitrogen atoms, and pair electrons are present on these imine nitrogen atoms, which easily coordinate with different metal ions, generating coordination compounds. Schiff base metal coordination compounds have some applications [5]. These special properties originate from ligand structures and metal ions. Therefore, it is of great significance to design and synthesize Schiff base ligands. With the existence of a plurality of nitrogen atoms, Schiff base compounds containing 2,6-pyridinediimide units coordinate with metal ions more easily. Therefore, this type of compound has been widely used for the generation of Schiff base coordination compounds and for the identification and detection of metal ions [6].

As reflected by the crystal structure, condensation reaction has occurred between the amino groups of N,N′-(2-aminophenyl)-2,6-dicarboxylimide pyridine and the aldehyde groups of 1-naphthaldehyde, forming the typical “S” structured compound (see the figure). The lengths of imine bonds C6=N1 and C15=N5 are 1.255 Å and 1.267 Å respectively. All bond lengths and bond angles are within the normal range [7, 8]. There are intramolecular hydrogen bonds of N2—H2⃛N1, N2—H2⃛N3, N4—H4⃛N3 and N4—H4⃛N5.

Corresponding author: Wen-Ze Zhao, Shandong Vocational College of Industry, Zibo, Shandong, 550025, P. R. China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: None declared.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

2. Bruker. APEX2, SAINT and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2012.Suche in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Brandenburg, K. DIAMOND. Visual Crystal Structure Information System. Ver. 4.0; Crystal Impact: Bonn, Germany, 2015.Suche in Google Scholar

5. Zhang, X., Wu, S. T., Yang, X. J., Shen, L. Y., Huang, Y. L., Xu, H., Zhang, Q. L., Sun, T., Redshaw, C., Feng, X. Dynamic coordination between a triphenylamine-functionalized salicylaldehyde Schiff base and a copper(II) ion. Inorg. Chem. 2020, 60, 8581–8591.10.1021/acs.inorgchem.1c00523Suche in Google Scholar PubMed

6. Xie, H. F., Yu, C. J., Huang, Y. L., Xu, H., Zhang, Q. L., Sun, X. H., Feng, X., Redshaw, C. A turn-off fluorescent probe for the detection of Cu2+ based on a tetraphenylethylene-functionalized salicylaldehyde Schiff-base. Mater. Chem. Front. 2020, 4, 1500–1506; https://doi.org/10.1039/c9qm00759h.Suche in Google Scholar

7. Park, H., Kim, J., Kwon, E., Kim, T. H. Crystal structure of flucetosulfuron. Acta Crystallogr. 2017, E73, 1439–1442; https://doi.org/10.1107/s2056989017012737.Suche in Google Scholar

8. Kumar, R., Aggarwal, H., Bhowal, R., Chopra, D., Srivastava, A. An electron-rich helical host for the exclusive removal of a planar electron-deficient organic compound. Chem. Eur J. 2019, 25, 10756–10762; https://doi.org/10.1002/chem.201902418.Suche in Google Scholar PubMed

Received: 2022-06-13
Accepted: 2022-07-15
Published Online: 2022-08-03
Published in Print: 2022-10-26
