Crystal structure of di-μ2-hydroxido-tetrakis(6-methylpyridine-2-carboxylato-k2 N,O) diiron(III) trihydrate C28H32Fe2N4O13

  • Hong-Meng Cui ORCID logo EMAIL logo
Veröffentlicht/Copyright: 5. Juli 2022
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 237 Heft 5

Abstract

C28H32Fe2N4O13, monoclinic, P2/n (no. 13), a = 8.0964(3) Å, b = 13.4889(5) Å, c = 14.0543(5) Å, β = 95.190(3)°, V = 1528.60(10) Å3 , Z = 2, Rgt (F) = 0.0405, wR ref(F 2) = 0.0972, T = 173(2) K.

CCDC no.: 2169407

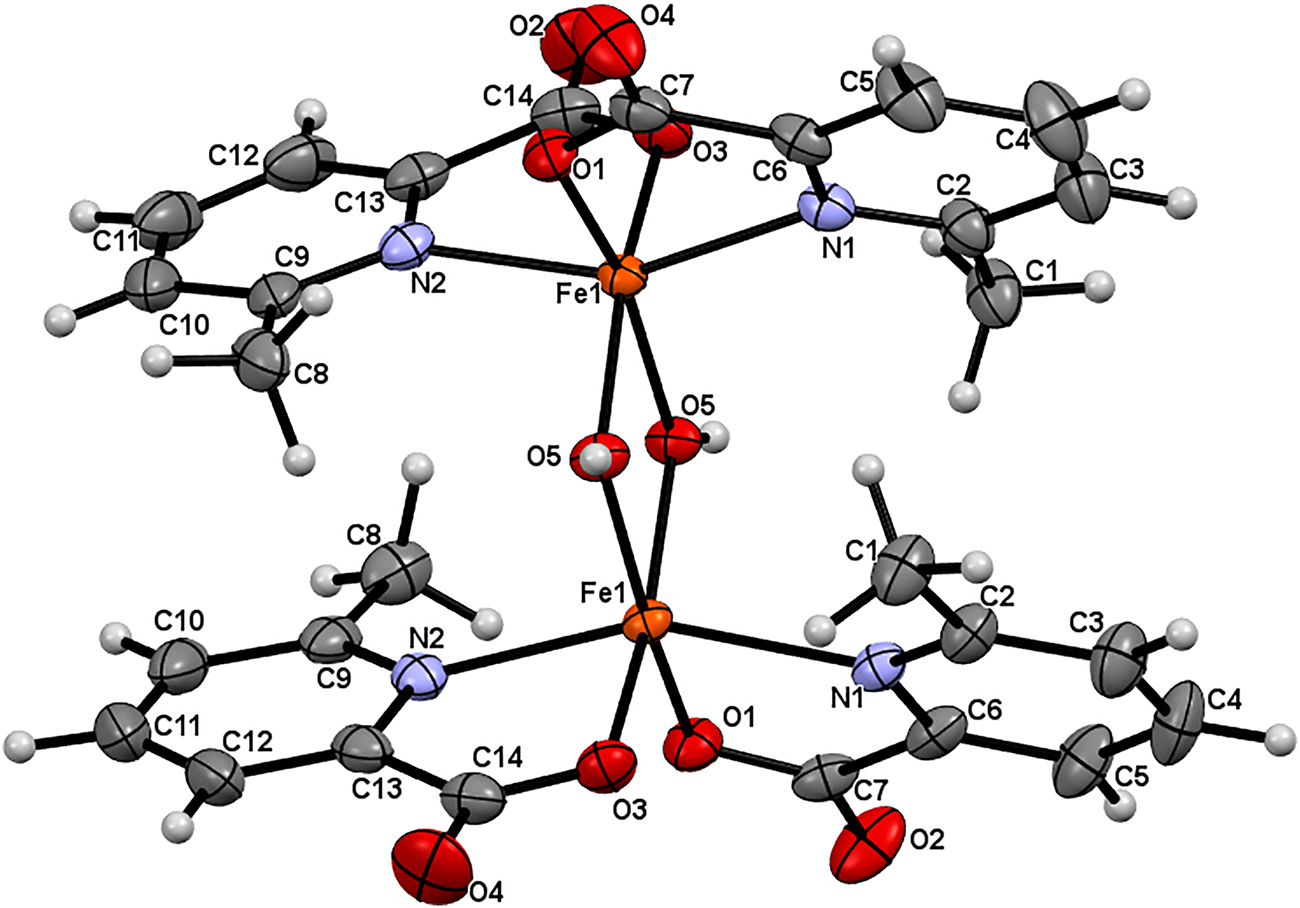

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Red block
Size: 0.17 × 0.10 × 0.05 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 1.02 mm−1
Diffractometer, scan mode: Xcalibur, φ and ω
θ max, completeness: 28.9°, 98%
N(hkl)measured, N(hkl)unique, R int: 10,287, 3566, 0.034
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2670
N(param)refined: 226
Programs: CrysAlisPRO [1], Olex2 [2, 3], SHELX [3], Mercury [4, 5]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Fe1 0.86752 (4) 0.72914 (3) 0.84619 (2) 0.01856 (11)
O1 1.11457 (19) 0.71986 (12) 0.86174 (12) 0.0262 (4)
O2 1.3528 (2) 0.80230 (16) 0.86847 (15) 0.0405 (5)
O3 0.8007 (2) 0.72871 (13) 0.97914 (12) 0.0278 (4)
O4 0.6850 (3) 0.63967 (18) 1.08788 (14) 0.0510 (6)
O5 0.6330 (2) 0.73046 (13) 0.79354 (12) 0.0212 (3)
H5 0.563 (4) 0.743 (2) 0.818 (3) 0.048 (11)*
N1 0.9388 (2) 0.88338 (15) 0.86761 (14) 0.0225 (4)
N2 0.8682 (2) 0.57198 (16) 0.87877 (14) 0.0241 (4)
C1 0.6627 (3) 0.9509 (2) 0.8846 (2) 0.0343 (6)
H1A 0.609291 0.928190 0.823111 0.051*
H1B 0.613702 1.014059 0.901874 0.051*
H1C 0.646227 0.901373 0.933914 0.051*
C2 0.8442 (3) 0.96457 (19) 0.87692 (18) 0.0284 (6)
C3 0.9155 (3) 1.0585 (2) 0.8802 (2) 0.0380 (7)
H3 0.847687 1.115410 0.885441 0.046*
C4 1.0840 (4) 1.0696 (2) 0.8760 (2) 0.0427 (7)
H4 1.133033 1.133645 0.877513 0.051*
C5 1.1808 (3) 0.9851 (2) 0.8694 (2) 0.0372 (7)
H5A 1.297379 0.990375 0.867306 0.045*
C6 1.1053 (3) 0.89439 (19) 0.86614 (17) 0.0260 (5)
C7 1.2014 (3) 0.7985 (2) 0.86437 (17) 0.0261 (5)
C8 1.0186 (3) 0.5124 (2) 0.7468 (2) 0.0357 (6)
H8A 0.945174 0.533604 0.691300 0.054*
H8B 1.075693 0.451183 0.731283 0.054*
H8C 1.100660 0.564315 0.763743 0.054*
C9 0.9185 (3) 0.49403 (19) 0.82930 (19) 0.0298 (6)
C10 0.8784 (4) 0.3976 (2) 0.8568 (2) 0.0414 (7)
H10 0.911758 0.342379 0.821183 0.050*
C11 0.7918 (4) 0.3827 (2) 0.9344 (2) 0.0467 (8)
H11 0.761238 0.317477 0.951444 0.056*
C12 0.7490 (4) 0.4622 (2) 0.9877 (2) 0.0401 (7)
H12 0.692877 0.452825 1.043556 0.048*
C13 0.7890 (3) 0.5556 (2) 0.95853 (17) 0.0286 (6)
C14 0.7527 (3) 0.6475 (2) 1.01402 (18) 0.0304 (6)
O1W 0.750000 0.7497 (5) 1.250000 0.204 (5)
H1W 0.759169 0.716755 1.191366 0.244*
O2W 0.4626 (5) 0.8189 (3) 1.0859 (5) 0.1221 (15)
H2WA 0.500380 0.760399 1.081962 0.183*
H2WB 0.489898 0.798188 1.153989 0.10 (2)*

Source of material

The starting material 6-methyl-2-pyridinecarboxylic acid was bought from the commercial source and used without further treatment. The title compound was prepared by the solvothermal method. Firstly, 6-methyl-2-pyridinecarboxylic acid (27.4 mg, 0.2 mmol) was dissolved in 5 mL methanol with triethylamine (28 μL, 0.2 mmol). Then, the 5 mL methanolic solution of Fe(NO3)3·H2O (40.4 mg, 0.1 mmol) was slowly dropped into the above solution. The mixture was stirred at room temperature for 30 min, then transferred to the Teflon autoclave and heated at 120 °C for three days. After cooling down to room temperature, red block crystals of the title compound were obtained.

Experimental details

Hydrogen atoms were added using riding models.

Comment

Picolinic acid derivatives have been widely studied as complex ligands [6], or functional materials [7]. However, only a limited number of compounds of its 6-methyl substituted derivative (6-methyl-2-pyridinecarboxylic acid) have been reported, and most of them are mononuclear compounds [8, 9].

Fe(III) complex (see the Figure) was achieved by considering the charge balance of the whole motif. All the bond lengths are within normal ranges, similar to its dinuclear analogue with two hydroxyl bridges [10]. The Fe(III) is bridged by two OH− and chelated by two 6-methyl-2-pyridinecarboxylato groups to form a diunclear complex. The diunclear complexes are interlinked to from a 3D supramolecular network by two intermolecular H-bonds C8–H8A···O4 (symmetry code: x + 1/2, −y + 1, z − 1/2) [length 2.58(3) Å, angle 140.8(2)°], O5–H1···O2 (symmetry code: x − 1, y, z) [length 2.06(2) Å, angle 168.4(4)°] between the dinuclear complexes, one H-bonding C1–H1B···O2W (symmetry code: −x + 1, −y + 2, −z + 2) [length 2.34 (7) Å, angle 165.5(8)°] between the dinuclear complex and the water (lattice solvent) molecules.

Corresponding author: Hong-Meng Cui, Weihai Ocean Vocational College, Rongcheng, Shandong 264300, P. R. China, Phone: +86-631-7967572, E-mail:

Acknowledgments

We are very grateful to Luan Hui-Ni Famous Teacher Studio (2019). We thank Doctor Feng-Lei Yang for the help with crystal data deposition.

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: None.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Oxford Diffraction Ltd. CrysAlisPRO, Version 1.171.32.24; Oxford Diffraction Ltd: Abingdon, Oxfordshire, England, 2008.Suche in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

3. Bourhis, L. J., Dolomanov, O. V., Gildea, R. J., Howard, J. A. K., Puschmann, H. The anatomy of a comprehensive constrained, restrained refinement program for the modern computing environment-Olex2 dissected. Acta Crystallogr. 2015, A71, 59–75; https://doi.org/10.1107/s2053273314022207.Suche in Google Scholar

4. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

5. Mercury 3.10 (Build 157083) Copyright: Cambridge Crystallographic Data Centre. http://www.ccdc.cam.ac.uk/mercury/.Suche in Google Scholar

6. Soldin, Z., Kukovec, B. M., Matkovic-Calogovic, D., Popovic, Z. The solvent effect on composition and dimensionality of mercury(II) complexes with picolinic acid. Molecules 2021, 26, 16; https://doi.org/10.3390/molecules26165002.Suche in Google Scholar PubMed PubMed Central

7. Suanzes Pita, J., Urbani, M., Bottari, G., Ince, M., Kumar, S. A., Chandiran, A. K., Yum, J. H., Gratzel, M., Nazeeruddin, M. K., Torres, T. Pyridyl- and picolinic acid substituted zinc(II) phthalocyanines for dye-sensitized solar cells. ChemPlusChem 2017, 82, 1057–1061; https://doi.org/10.1002/cplu.201700048.Suche in Google Scholar PubMed

8. García, F., Perles, J., Zamora, F. Amo-Ochoa, P. Rhodium and copper 6-methylpicolinate complexes. Structural diversity and supramolecular interaction study. Inorg. Chim. Acta 2016, 453, 574–582; https://doi.org/10.1016/j.ica.2016.08.040.Suche in Google Scholar

9. Chishiro, T., Kon, Y., Nakashima, T., Goto, M., Sato, K. Practical iron-catalyzed hydrogen peroxide epoxidation of aromatic olefins using a combination of two kinds of simple picolinate ligands under halide-free reaction conditions. Adv. Synth. Catal. 2014, 356, 623–627; https://doi.org/10.1002/adsc.201300774.Suche in Google Scholar

10. Eshtiagh-Hosseini, H., Alfi, N., Mirzaei, M., Fanwick, P., Fanwick, P. E. Di-μ-hydroxido-bis-[aqua-(pyridine-2,6-dicarboxyl-ato)iron(III)] monohydrate. Acta Crystallogr. 2010, E66, m1450; https://doi.org/10.1107/s1600536810041966.Suche in Google Scholar
Received: 2022-05-09
Accepted: 2022-06-20
Published Online: 2022-07-05
Published in Print: 2022-10-26

© 2022 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
