Crystal structure of (E)-N′-benzylidene-4-nitrobenzohydrazide – methanol (1/1), C15H15N3O4

  • Xin Deng and Zhijian Zhang ORCID logo EMAIL logo
Published/Copyright: July 5, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 5

Abstract

C15H15N3O4, monoclinic, P21/c (no. 14), a = 13.5787(12) Å, b = 6.5393(5) Å, c = 16.3645(14) Å, β = 94.598(8)°, V = 1448.4(2) Å3, Z = 4, R gt (F) = 0.0465, wR ref (F 2) = 0.1106, T = 149.99(10) K.

CCDC no.: 2170962

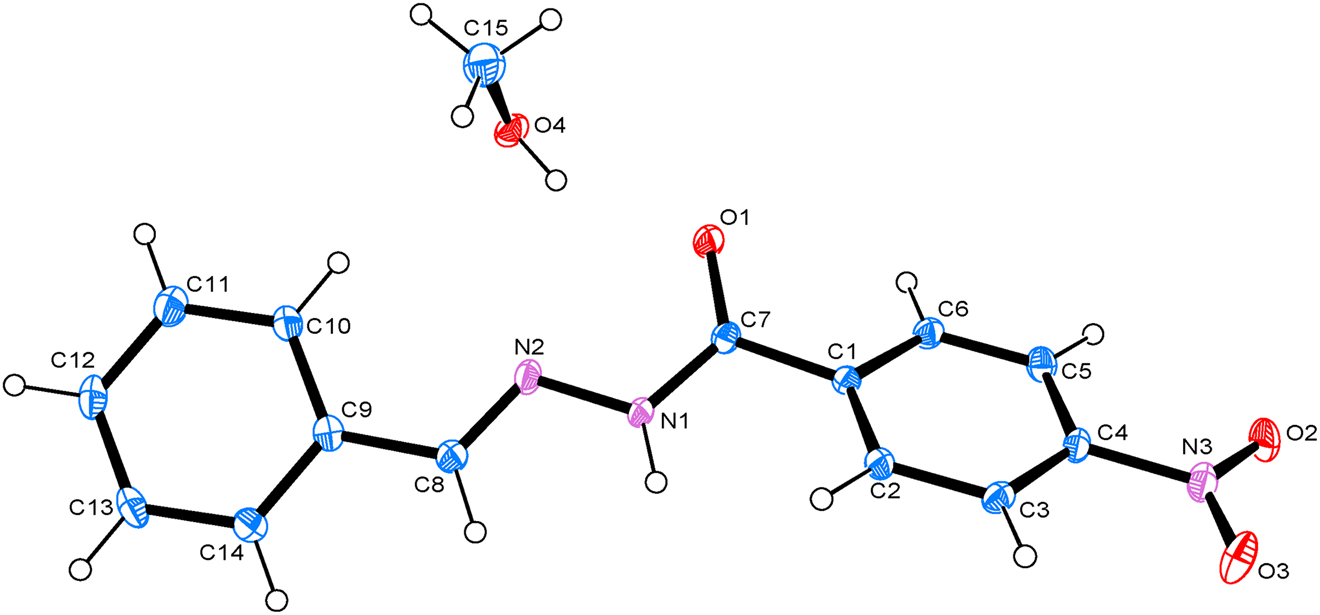

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless block
Size: 0.13 × 0.12 × 0.10 mm
Wavelength: MoKα radiation (0.71073 Å)
μ: 0.10 mm−1
Diffractometer, scan mode: SuperNova, ω
θ max, completeness: 25.1°, >99%
N(hkl)measured, N(hkl)unique, R int: 6846, 2577, 0.032
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2088
N(param)refined: 201
Programs: CrysAlisPRO [1], SHELX [2, 3], WinGX/ORTEP [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.85320 (13) 0.3308 (2) 0.69640 (10) 0.0196 (4)
C2 0.87129 (13) 0.1263 (3) 0.71618 (11) 0.0218 (4)
H2A 0.834548 0.061785 0.754248 0.026*
C3 0.94353 (13) 0.0188 (3) 0.67955 (11) 0.0230 (4)
H3A 0.956484 −0.117283 0.693011 0.028*
C4 0.99598 (13) 0.1179 (3) 0.62255 (11) 0.0221 (4)
C5 0.97937 (13) 0.3207 (3) 0.60125 (11) 0.0249 (4)
H5 1.015686 0.383914 0.562555 0.030*
C6 0.90778 (13) 0.4265 (3) 0.63875 (11) 0.0237 (4)
H6 0.895733 0.563037 0.625507 0.028*
C7 0.77983 (13) 0.4581 (2) 0.73704 (10) 0.0209 (4)
C8 0.55663 (14) 0.3625 (3) 0.81940 (11) 0.0257 (4)
H8 0.551512 0.226722 0.802641 0.031*
C9 0.47776 (13) 0.4511 (3) 0.86366 (11) 0.0236 (4)
C10 0.48136 (14) 0.6511 (3) 0.89301 (12) 0.0289 (5)
H10 0.534736 0.734593 0.883581 0.035*
C11 0.40562 (15) 0.7255 (3) 0.93613 (13) 0.0352 (5)
H11 0.408479 0.858892 0.955890 0.042*
C12 0.32539 (14) 0.6030 (3) 0.95020 (12) 0.0323 (5)
H12 0.274887 0.653378 0.979686 0.039*
C13 0.32096 (14) 0.4060 (3) 0.92023 (12) 0.0316 (5)
H13 0.266749 0.324070 0.928728 0.038*
C14 0.39665 (14) 0.3299 (3) 0.87766 (11) 0.0281 (5)
H14 0.393393 0.196332 0.858139 0.034*
C15 0.72124 (17) 0.9465 (3) 0.89505 (13) 0.0414 (6)
H15A 0.791290 0.965599 0.894572 0.062*
H15B 0.708300 0.818735 0.921011 0.062*
H15C 0.693712 1.056253 0.924843 0.062*
N1 0.70154 (11) 0.3582 (2) 0.76270 (9) 0.0237 (4)
H1 0.694521 0.229036 0.754164 0.028*
N2 0.63247 (11) 0.4658 (2) 0.80300 (9) 0.0243 (4)
N3 1.07158 (11) 0.0030 (3) 0.58203 (9) 0.0289 (4)
O1 0.79181 (9) 0.64431 (17) 0.74479 (8) 0.0297 (3)
O2 1.11450 (10) 0.0903 (2) 0.52886 (9) 0.0369 (4)
O3 1.08699 (11) −0.1752 (2) 0.60235 (9) 0.0404 (4)
O4 0.67749 (10) 0.94499 (17) 0.81329 (8) 0.0291 (3)
H4 0.693270 0.839935 0.790297 0.044*

Source of material

All chemicals were purchased from commercial sources and used as received without further purification. The 4-nitrobenzhydrazide (5 mmol, 0.906 g) and benzaldehyde (5 mmol, 0.531 g) were dissolved in MeOH (20 mL). The mixture was refluxed for 8 h, and then the precipitate was collected by filtration. The solid was filtered out and the title product was obtained by recrystallization from methanol.

Experimental details

All H-atoms bonded to C atoms were placed geometrically and refined using a riding model with common isotropic displacement factors U iso(H) = 1.2 or 1.5 U eq(parent atom).

Comment

Acylhydrazone compounds are the condensation products of hydrazides with aldehydes and ketones. They have extensive research and important applications in analytical chemistry, pesticides and medicine [5], [6], [7]. However, acylhydrazone derivatives are rarely developed as antiviral drugs, so the synthesis and crystal structure of acylhydrazone derivatives are of great significance to study the antiviral activity.

The title molecule exhibits an E configuration (see the Figure). In the C–C bond length directly connected to the benzene ring, C1–C7 and C8–C9 are 1.495 and 1.460 Å, respectively, they are shorter than normal C–C bonds. The bond length of C8=N2 is 1.278 Å, which is similar to those reported in the literature [8, 9]. The bond length of C7=O1 and C7–N1 are 1.234 and 1.343 Å, respectively, they are similar to those reported in the literature [10], but the bond lengths change after coordination between acylhydrazone ligands and metals [11], [12], [13]. Due to the existence of amide-imino alcohol tautomerism, the energy of acylhydrazone is lower when it is not coordinated with metal, and the energy of imino alcohol is lower after coordination with metal, and can be supported in the literature [14].

The asymmetric unit is shown in the figure, which contains one target molecule plus one methanol. The free methanol in the molecule participates in the construction of hydrogen bonds. The oxygen atom O4 of methanol provides two hydrogen bonds to O1 and N2 of the acylhydrazone molecule (O4⃛O1 = 2.7949(17) Å; O4⃛N2 = 3.1948(18) Å), while the N1 and C8 of acylhydrazone molecule provide two hydrogen bonds to another methanol O4 (N1⃛O4′ = 2.8524(18) Å; C8⃛O4′ = 3.191(2) Å; ’ = x, y − 1, z).

Corresponding author: Zhijian Zhang, College of Chemistry and Materials Science, Hengyang Normal University, Hengyang, Hunan 421008, China, E-mail:

Funding source: Science Foundation of Hengyang Normal University of China

Award Identifier / Grant number: 2021QD04

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was funded by Science Foundation of Hengyang Normal University of China (2021QD04).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku OD. CrysAlisPRO; Rigaku Oxford Diffraction Ltd: Yarnton, Oxfordshire, England, 2017.Search in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 2012, 45, 849–854; https://doi.org/10.1107/s0021889812029111.Search in Google Scholar

5. Zhang, H., Min, S., Zhang, L., Li, L. Design, synthesis and protein-binding character of an acylhydrazone anticancer candidate. J. Mol. Liq. 2022, 348, 118034; https://doi.org/10.1016/j.molliq.2021.118034.Search in Google Scholar

6. Fang, H., Cai, G., Hu, Y., Zhang, J. A tetraphenylethylene-based acylhydrazone gel for selective luminescence sensing. Chem. Commun. 2018, 54, 3045–3048; https://doi.org/10.1039/c8cc00008e.Search in Google Scholar PubMed

7. Ren, Z., Lv, M., Sun, Z., Li, T., Zhang, S., Xu, H. Regioselective hemisynthesis and insecticidal activity of C8-hydrazones/acylhydrazones/sulfonylhydrazones coumarin-type derivatives of osthole. Bioorg. Med. Chem. Lett 2021, 40, 127962; https://doi.org/10.1016/j.bmcl.2021.127962.Search in Google Scholar PubMed

8. Yin, Z.-G., Wang, Q.-L., Qian, H.-Y., Zhang, C.-X. Crystal structure of N′-(2,6-dichlorobenzylidene)-4-nitrobenzohydrazide, C14H9Cl2N3O3. Z. Kristallogr. N. Cryst. Struct. 2011, 226, 381–382; https://doi.org/10.1524/ncrs.2011.0171.Search in Google Scholar

9. Jiang, X.-Y., Chen, L.-L., Hu, S.-S., Liu, H.-Y., Xu, H.-J., Song, C.-F. Crystal structure of (E)-4-chloro-N′-(4-(diethylamino)benzylidene) benzohydrazide, C18H20ClN3O. Z. Kristallogr. N. Cryst. Struct. 2016, 231, 557–559; https://doi.org/10.1515/ncrs-2015-0187.Search in Google Scholar

10. Jiang, W., Qin, Q., Xiao, X., Tan, Y. Diorganotin(IV) complexes based on tridentate ONO ligands as potential anticancer agents. J. Inorg. Biochem. 2022, 232, 111808; https://doi.org/10.1016/j.jinorgbio.2022.111808.Search in Google Scholar PubMed

11. Jiang, W., Tan, Y., Peng, Y. Aroylhydrazone diorganotin complexes causes DNA damage and apoptotic cell death: from chemical synthesis to biochemical effects. Int. J. Mol. Sci. 2021, 22, 13525; https://doi.org/10.3390/ijms222413525.Search in Google Scholar PubMed PubMed Central

12. Tan, Y.-X., Nan, X.-L., Tan, Y.-L., Hang, Z.-J., Jiang, W.-J. Self-assembly syntheses, crystal structures and quantum chemistry of two UO2+2 complexes. Chin. J. Struct. Chem. 2021, 40, 1673–1679.Search in Google Scholar

13. Yu, H., Tan, Y., Kuang, D., Zhang, F., Jiang, W. Synthesis, structure and biological activity of diphenyltin complexes based on O,N, O-tridentate ligands. Inorg. Chim. Acta 2019, 496, 119044; https://doi.org/10.1016/j.ica.2019.119044.Search in Google Scholar

14. Kusakiewicz-Dawid, A., Porada, M., Dziuk, B., Siodłak, D. Annular tautomerism of 3(5)-disubstituted-1H-pyrazoles with ester and amide groups. Molecules 2019, 24, 2632.10.3390/molecules24142632Search in Google Scholar PubMed PubMed Central
