Crystal structre of 1,4-bis(bromomethyl)-2,3,5,6-tetramethylbenzene, C12H16Br2

  • Wenqi Song ORCID logo , Mingxu Zhao , Yanfang Zhu , Jianjing Gao und Yuzhen Zhao ORCID logo EMAIL logo
Veröffentlicht/Copyright: 5. Juli 2022
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 237 Heft 5

Abstract

C12H16Br2, monoclinic, P21/c (no. 14), a = 7.9423(5) Å, b = 4.4163(3) Å, c = 16.8127(10) Å, β = 94.534(4)°, V = 587.87(6) Å3, Z = 2, Rgt (F) = 0.0376, wRref (F 2) = 0.1016, T = 173 K.

CCDC no.: 2168949

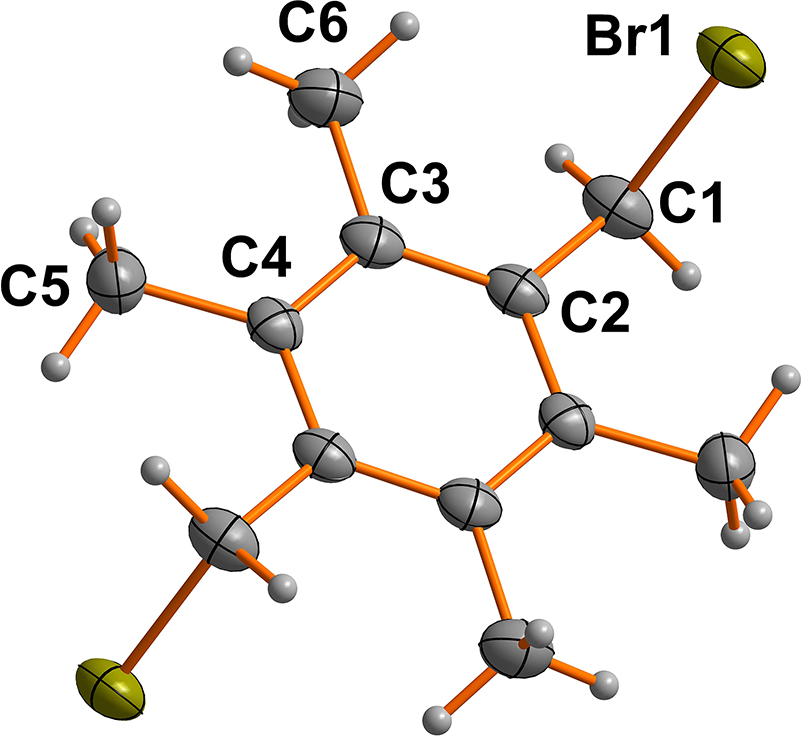

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Block
Size: 0.12 × 0.11 × 0.10 mm
Wavelength: Ga Kα radiation (1.34139 Å)
μ: 5.57 mm−1
Diffractometer, scan mode: Bruker D8 VENTURE Metaljet PHOTON II, φ and ω
θ max, completeness: 60.3°, 99%
N(hkl)measured, N(hkl)unique, R int: 4095, 1333, 0.039
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 1066
N(param)refined: 66
Programs: Bruker [1], Olex2 [2, 3], SHELX [4, 5]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Br1 0.86356 (5) 0.34688 (10) 0.68181 (2) 0.03993 (19)
C1 0.6912 (5) 0.1198 (8) 0.6139 (2) 0.0344 (8)
H1A 0.747474 −0.040050 0.584292 0.041*
H1B 0.611904 0.020101 0.648147 0.041*
C2 0.5945 (4) 0.3245 (8) 0.5557 (2) 0.0277 (7)
C3 0.6510 (4) 0.3664 (8) 0.4794 (2) 0.0291 (7)
C4 0.5549 (4) 0.5378 (8) 0.42288 (19) 0.0281 (7)
C5 0.6072 (5) 0.5692 (11) 0.3389 (2) 0.0410 (9)
H5A 0.507074 0.605676 0.302307 0.061*
H5B 0.662945 0.382554 0.323535 0.061*
H5C 0.685578 0.739705 0.336443 0.061*
C6 0.8168 (5) 0.2266 (10) 0.4600 (2) 0.0399 (9)
H6A 0.899374 0.245834 0.506158 0.060*
H6B 0.858855 0.331573 0.414151 0.060*
H6C 0.799434 0.011979 0.447000 0.060*

Source of material

1.4-Bis(bromomethyl)-2,3,5,6-tetramethylbenzene was synthesized and carried out according to the literature [6]. In brief, 13.42 g (0.1 mol) of durene were first dissolved in 50 mL of hot glacial acetic acid before paraformaldehyde 6.15 g (0.20 mol) and 40 mL of a 31% HBr/acetic acid solution were added. The mixture was kept for 8 h at 120 °C and then poured into 100 mL of water. The product was filtered off on a G3 glass frit and dried in vacuum.

Experimental details

All the H atoms were placed geometrically and refined without any constraints or restraints.

Comment

Bromomethyl-substituted benzene derivatives are important synthetic materials for construction of heterocyclic frameworks which have been extensively and widely used [6]. 1.4-Bis(bromomethyl)-2,3,5,6-tetramethylbenzene was one of the used compounds that is important. For example, 1.4-bis(bromomethyl)-2,3,5,6-tetramethylbenzene can be used for the construction of a new organic piperidine derivative named as 4-methyl-1-({2,3,5,6-tetramethyl-4-[(4-methylpiperidinyl) methyl]phenyl}methyl)piperidine, which possesses better antidiabetic, antioxidant and DNA binding abilities [7]. Similarly, Caroline Daisy et al. reported the synthesis of the biologically important 2-(2,4,6-trimethylbenzylthio)benzo[d]thiazole by using 1.4-bis(bromomethyl)-2,3,5,6-tetramethylbenzene [8]. Liu et al. reported two macrocyclic bis-benzimidazolium salts based sensors for anions sensing prepared by using 1.4-bis(bromomethyl)-2,3,5,6-tetramethylbenzene [9]. However, there is no report on crystal structure of the title compound.

The title compound crystalizes in the monoclinic space group P21/c. The asymmetric unit is defined by one half of the title molecule. The molecules reside around an inversion center of the aforementioned space group (see the Figure). Bond lengths and angles in crystal structure are within normal ranges [10].

Corresponding authors: Yuzhen Zhao, Xi’an Key Laboratory of Advanced Photo-Electronics Materials and Energy Conversion Device, Xijing University, Xi’an, Shaanxi 710123, China; and School of Electronic Information, Xijing University, Xi’an, Shaanxi 710123, China, E-mail:

Funding source: Natural Science Foundation of Shaanxi Science and Technology Department https://orcid.org/0000-0003-1491-050X

Award Identifier / Grant number: 2022JQ-127

Funding source: Special Scientific Research Project of Shaanxi Education Department https://orcid.org/0000-0003-1491-050X

Award Identifier / Grant number: 21JK0955

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This project was funded Natural Science Foundation of Shaanxi Science and Technology Department (No. 2022JQ-127) and the Special Scientific Research Project of Shaanxi Education Department (No: 21JK0955). This work was supported by the the Youth Innovation Team of Shaanxi Universities.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. BRUKER. SAINT, APEX2 and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2009.Suche in Google Scholar

2. Bourhis, L. J., Dolomanov, O. V., Gildea, R. J., Howard, J. A. K., Puschmann, H. The anatomy of a comprehensive constrained, restrained refinement program for the modern computing environment-Olex2 dissected. Acta Crystallogr. 2015, A71, 59–75; https://doi.org/10.1107/s2053273314022207.Suche in Google Scholar

3. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Suche in Google Scholar

4. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

5. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Suche in Google Scholar PubMed PubMed Central

6. van der Made, A. W., van der Made, R. H. A convenient procedure for bromomethylation of aromatic compounds. Selective mono-, bis-, or trisbromomethylation. J. Org. Chem. 1993, 58, 1262–1263; https://doi.org/10.1021/jo00057a046.Suche in Google Scholar

7. Nandini Asha, R., Sankarganesh, M., Bhuvanesh, N., Ravindran Durai Nayagam, B. Synthesis, structural, spectral, antidiabetic, DNA interactions and molecular docking investigations of a piperidine derivative. J. Mol. Struct. 2022, 1250, 131692; https://doi.org/10.1016/j.molstruc.2021.131692.Suche in Google Scholar

8. Daisy, C., Nandini Asha, R., Suresh Kumar, G. S., Vadivel, E., Bhuvanesh, N., Ravindran Durai Nayagam, B. Experimental and theoretical studies of 2-mercaptobenzothiazole with 2-bromomethylmesitylene and 1,4-bis(bromomethyl) durene. J. Mol. Struct. 2022, 2020, 128894.10.1016/j.molstruc.2020.128894Suche in Google Scholar

9. Liu, Y., Zhao, Z., Huo, R., Liu, Q. Two macrocycle-based sensors for anions sensing. Sci. Rep. 2019, 9, 502; https://doi.org/10.1038/s41598-018-36916-w.Suche in Google Scholar PubMed PubMed Central

10. Basaran, R., Dou, S.-Q., Weiss, A. On the persistence of molecular symmetry in the solid state and the role of molecular group dipole moments. Centrosymmetry in bis-(chloromethyl)benzenes. Ber. Bunsenges. Phys. Chem. 1992, 96, 1688–1698; https://doi.org/10.1002/bbpc.19920961131.Suche in Google Scholar
Received: 2022-05-05
Accepted: 2022-06-20
Published Online: 2022-07-05
Published in Print: 2022-10-26

© 2022 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
