Crystal structure of (Z)-4-(furan-2-yl((4-iodophenyl)amino)methylene)-5-methyl-2(p-tolyl)-2,4-dihydro-3H-pyrazol-3-one, C21H16I N3O2

  • Zhang Li , Wu Qiong , Tong-Yin Jin , Ya-Zhai Zhang , Xiao-Zhong Wang and Heng-Qiang Zhang ORCID logo EMAIL logo
Published/Copyright: April 5, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 3

Abstract

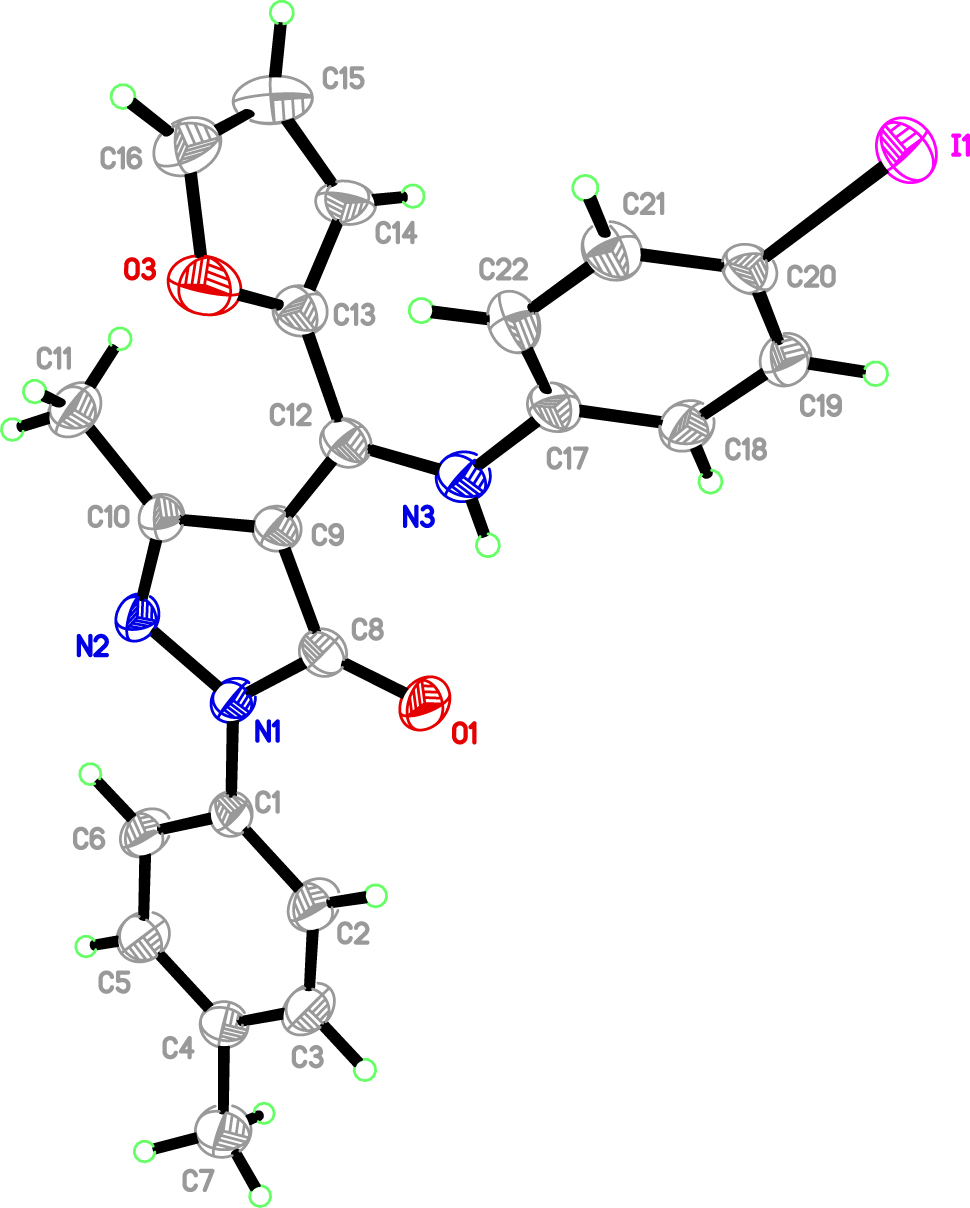

C21H16I N3O2, monoclinic, P21/c (no. 14), a = 12.7439(9) Å, b = 11.8391(8) Å, c = 13.4459(7) Å, β = 99.803(5)°, V = 1999.0(2) Å3, Z = 4, R gt (F) = 0.0365, wR ref (F 2) = 0.0905, T = 293(2) K.

CCDC no.: 2161233

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Yellow block
Size: 0.20 × 0.18 × 0.16 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 1.62 mm−1
Diffractometer, scan mode: Enhance X-ray source
θ max, completeness: 26.0°, >99%
N(hkl)measured, N(hkl)unique, R int: 8887, 3932, 0.023
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2943
N(param)refined: 260
Programs: CrysAlisPRO [1], SHELX [2], WinGX/ORTEP [3], PLATON [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.3712 (2) −0.0607 (3) 0.7844 (2) 0.0437 (8)
C2 0.3524 (3) −0.1590 (3) 0.7297 (3) 0.0652 (11)
H2 0.318428 −0.156558 0.662833 0.078*
C3 0.3841 (3) −0.2611 (3) 0.7742 (3) 0.0706 (12)
H3 0.370880 −0.326692 0.736113 0.085*
C4 0.4343 (3) −0.2696 (3) 0.8726 (3) 0.0534 (9)
C5 0.4550 (3) −0.1709 (3) 0.9250 (3) 0.0650 (11)
H5 0.491487 −0.173180 0.991029 0.078*
C6 0.4229 (3) −0.0676 (3) 0.8822 (3) 0.0609 (10)
H6 0.436659 −0.002082 0.920330 0.073*
C7 0.4652 (4) −0.3822 (3) 0.9206 (4) 0.0753 (12)
H7A 0.531208 −0.374794 0.966750 0.113*
H7B 0.473561 −0.436138 0.869258 0.113*
H7C 0.410636 −0.407447 0.956580 0.113*
C8 0.2741 (3) 0.0711 (3) 0.6529 (2) 0.0474 (8)
C9 0.2675 (3) 0.1930 (3) 0.6509 (2) 0.0460 (8)
C10 0.3288 (3) 0.2287 (3) 0.7452 (3) 0.0488 (8)
C11 0.3480 (4) 0.3456 (3) 0.7861 (3) 0.0711 (12)
H11A 0.387369 0.342077 0.853535 0.107*
H11B 0.280964 0.382373 0.786777 0.107*
H11C 0.387952 0.387587 0.744141 0.107*
C12 0.2064 (3) 0.2514 (3) 0.5730 (2) 0.0480 (8)
C13 0.1963 (3) 0.3744 (3) 0.5742 (3) 0.0508 (9)
C14 0.1132 (3) 0.4370 (3) 0.5823 (3) 0.0607 (10)
H14 0.046827 0.410798 0.591899 0.073*
C15 0.1421 (4) 0.5490 (4) 0.5741 (4) 0.0824 (14)
H15 0.099557 0.611645 0.580225 0.099*
C16 0.2387 (4) 0.5510 (4) 0.5562 (4) 0.0797 (13)
H16 0.277347 0.615506 0.546490 0.096*
C17 0.0883 (3) 0.2341 (3) 0.4048 (2) 0.0498 (9)
C18 0.0001 (3) 0.1723 (3) 0.3628 (3) 0.0554 (9)
H18 −0.017347 0.106851 0.394562 0.066*
C19 −0.0627 (3) 0.2069 (3) 0.2738 (3) 0.0545 (9)
H19 −0.121684 0.164630 0.245134 0.065*
C20 −0.0368 (3) 0.3046 (3) 0.2281 (2) 0.0484 (8)
C21 0.0523 (3) 0.3650 (3) 0.2682 (3) 0.0538 (9)
H21 0.070007 0.429840 0.235710 0.065*
C22 0.1158 (3) 0.3301 (3) 0.3564 (3) 0.0554 (9)
H22 0.176583 0.370686 0.383087 0.066*
H3A 0.151 (3) 0.128 (3) 0.500 (3) 0.057 (13)*
I1 −0.13391 (2) 0.36276 (2) 0.09648 (2) 0.06770 (14)
N1 0.3383 (2) 0.0463 (2) 0.7428 (2) 0.0460 (7)
N2 0.3706 (2) 0.1439 (2) 0.7984 (2) 0.0506 (7)
N3 0.1503 (3) 0.1940 (3) 0.4959 (2) 0.0607 (9)
O1 0.2290 (2) 0.0018 (2) 0.59017 (18) 0.0671 (7)
O3 0.2754 (2) 0.4394 (3) 0.5540 (3) 0.0889 (9)

Source of material

All reagents were obtained from commercial sources and used without further purification. A mixture of 40 mL 1-p-tolyl-3-methyl-4-(2-furoyl)-5-pyrazolone (PTMFP) (20 mmol, 5.345 g), and 30 mL 4-iodoaniline (20 mmol, 4.381 g) was refluxed for 7 h, with a few drops of glacial acetic acid as a catalyst. After cooled to the room temperature, the mixture was filtrated and the collected solid was washed with ethanol and dried in the air. Yellow block crystals were obtained by evaporation of an ethanol/dichloromethane (1:1) solution for a few days.

Experimental details

The structure was solved by direct methods with the SHELXS-2018 program [2]. The H atom bonded to N3 was located in difference maps and refined freely. Other H placed in calculated positions, with C–H = 0.93 for phenyl and furyl, 0.96 for methyl H atoms, and refined as riding, with U iso(H) = 1.2 U eq(C) for phenyl and furyl and 1.5 U eq(C) for methyl H.

Comment

4-Acylpyrazolones are an interesting class of β-diketones, containing a pyrazole-bearing chelating arm. Their metal complexes are used for the separation of elements with similar properties [5]. In recent years, people have reported Schiff bases derived from acylpyrazolones and its complexes, which possess high antibacterial activation [5, 6]. In order to expand this field, we synthesized the title compound derived from PTMFP.

In the title crystal structure, atoms O1, C8, C9 and C12 of the PTMFP moiety and atom N3 of 4-iodoaniline group are coplanar. The dihedral angle between this mean plane and the pyrazole ring of PTMFP is 3.25(3)°. The bond length of d(C9–C12) = 1.380 (4) Å indicates the delocalization of the electrons. The atom O2 of PTMFP and the N3 atom of the 4-iodaniline group are on the same side of C9–C12 bond, which are available for coordination with metals. A strong intramolecular hydrogen bond N3–H3A⃛O1 is also indicative of the enamine-keto form. All bond lengths and angles are comparable with those found for related compounds [7], [8], [9]. In the crystal, molecules are linked via weak C–H⃛N and C–H⃛O hydrogen bonds.

Corresponding author: Heng-Qiang Zhang, Department of Chemistry, Hebei Normal University for Nationalities, Chengde 067000, People’s Republic of China, E-mail:

Funding source: Health Commission of Hebei Province http://dx.doi.org/10.13039/501100008240

Award Identifier / Grant number: 20201320

Funding source: Foundation of Hebei Education Department http://dx.doi.org/10.13039/501100003482

Award Identifier / Grant number: ZD2020412

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This study was financially supported by the Health Commission of Hebei Province (No. 20201320) and the Foundation of Hebei Education Department (No. ZD2020412).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku, O. D. CrysAlisPRO. Rigaku Oxford Diffraction Ltd: Yarnton, England, 2015.Search in Google Scholar

2. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

3. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 2012, 45, 849–854; https://doi.org/10.1107/s0021889812029111.Search in Google Scholar

4. Spek, A. L. Structure validation in chemical crystallography. Acta Crystallogr. 2009, D65, 148–155; https://doi.org/10.1107/s090744490804362x.Search in Google Scholar

5. Li, J.-Z., Li, Y. G., Yu, W.-J. Synthesis, characterization and bioactivity of complexes of rare earth with bis-Schiff base from furoylpyrazolone. J. Rare Earths 2000, 18, 233–236.Search in Google Scholar

6. Zhang, H.-Q., Li, J.-Z., Zhang, Y., Zhang, D. Synthesis, crystal structure and thermal stability of a one-dimensional chain acylpyrazolone complex Zn(C26H15N3O2Cl)2. Chin. J. Inorg. Chem. 2008, 24, 990–993.Search in Google Scholar

7. Zhang, H.-Q., Yang, X., Wu, Q., Chen, H.-L. Crystal structure of (4Z)-4-{[(2-chlorophenyl)amino](furan-2-yl)methylidene}-3-methyl-1-phenyl-4,5-dihydro-1H-pyrazol-5-one. Acta Crystallogr. 2015, E71, o177–o178; https://doi.org/10.1107/s2056989015002698.Search in Google Scholar

8. Zhang, H.-Q., Wu, Q., Jin, T.-Y., Li, Y.-Y., Chen, H.-L. Crystal structure of (Z)-2-(4-chlorophenyl)-4-(furan-2-yl(phenylamino)methylene)-5-methyl-2,4-dihydro-3H-pyrazol-3-one, C21H16ClN3O2. Z. Kristallogr. N. Cryst. Struct. 2018, 233, 883–884; https://doi.org/10.1515/ncrs-2018-0075.Search in Google Scholar

9. Zhang, B.-Q., Zhang, L., Zhang, H.-Q., Zhao, C.-L., Chen, B. Crystal structure of (Z)-4-(furan-2-yl(p-tolylamino)methylene)-3-methyl-1-p-tolyl-1H-pyrazol-5(4H)-one, C23H21N3O2. Z. Kristallogr. N. Cryst. Struct. 2016, 231, 281–283; https://doi.org/10.1515/ncrs-2015-0120.Search in Google Scholar
Received: 2022-02-17
Accepted: 2022-03-23
Published Online: 2022-04-05
Published in Print: 2022-06-27
