The crystal structure of cobalt cadmium bis(hydrogenphosphate) bis(phosphate(V)) tetrahydrate, H10O20P4Co3.14Cd1.86

  • Xiu-Hua Zhang , Jin-Xiao Mi , Zhi-Biao Hu , Ze-Hai Qiu and Wu-Hua Chen ORCID logo EMAIL logo
Published/Copyright: April 4, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 3

Abstract

H10O20P4Co3.14Cd1.86, monoclinic, C2/c (no. 15), a = 17.5779(6) Å, b = 9.0747(3) Å, c = 9.4946(3) Å, β = 96.636(3)°, V = 1504.38(9) Å3, Z = 1, R gt (F) = 0.0273, wR ref (F2) = 0.0646, T = 293(2) K.

CCDC no.: 2157686

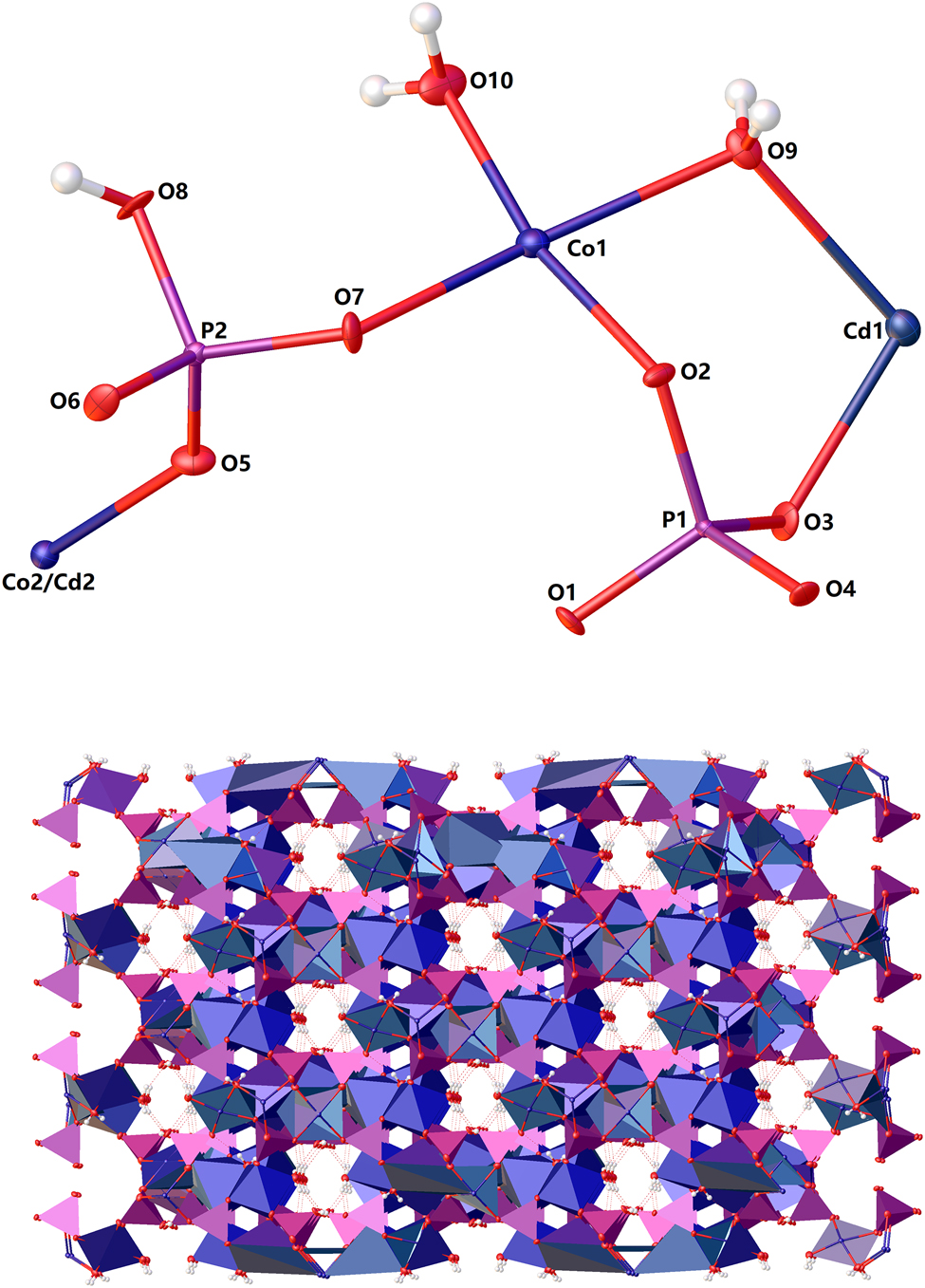

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Purple needle
Size: 0.32 × 0.06 × 0.05 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 6.52 mm−1
Diffractometer, scan mode: New Xcalibur, ω
θmax, completeness: 29.1°, >99%
N(hkl)measured, N(hkl)unique, Rint: 3496, 1737, 0.022
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 1612
N(param)refined: 145
Programs: CrysAlisPRO [1], SHELX [2, 3], Olex2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
Cd1a 0.82478 (2) 0.02895 (4) 0.63265 (3) 0.01053 (13)
Co1b 0.82478 (2) 0.02895 (4) 0.63265 (3) 0.01053 (13)
Co2c 0.68240 (3) 0.08560 (6) 0.31409 (6) 0.0104 (2)
Cd2d 0.68240 (3) 0.08560 (6) 0.31409 (6) 0.0104 (2)
Co3e 0.5000 0.60654 (6) 0.2500 0.0103 (2)
Cd3f 0.5000 0.60654 (6) 0.2500 0.0103 (2)
P1 0.83862 (6) 0.26486 (11) 0.37391 (11) 0.0094 (3)
P2 0.58188 (6) 0.31913 (11) 0.09070 (11) 0.0102 (3)
O1 0.79877 (16) 0.4095 (3) 0.3268 (3) 0.0141 (6)
O2 0.79559 (16) 0.1362 (3) 0.2952 (3) 0.0144 (6)
O3 0.83591 (17) 0.2462 (3) 0.5347 (3) 0.0158 (6)
O4 0.92300 (16) 0.2669 (3) 0.3425 (3) 0.0134 (6)
O5 0.57549 (18) 0.4356 (3) 0.2025 (3) 0.0188 (7)
O6 0.58378 (17) 0.3848 (3) −0.0565 (3) 0.0168 (7)
O7 0.65331 (17) 0.2275 (3) 0.1376 (3) 0.0162 (6)
O8 0.51077 (18) 0.2139 (4) 0.0821 (3) 0.0201 (7)
H8 0.4872 0.2184 0.0025 0.030*
O9 0.73606 (19) −0.0815 (4) 0.4633 (3) 0.0176 (7)
O10 0.57932 (18) −0.0038 (4) 0.3424 (4) 0.0228 (7)
H10A 0.5798 −0.0365 0.4280 0.034*
H10B 0.5691 −0.0766 0.2844 0.034*
H9A 0.709 (3) −0.118 (7) 0.519 (6) 0.06 (2)*
H9B 0.759 (3) −0.141 (5) 0.415 (5) 0.029 (15)*

  1. aOccupancy: 0.740 (6); bOccupancy: 0.260 (6); cOccupancy: 0.974 (5); dOccupancy: 0.026 (5); eOccupancy: 0.666 (6); fOccupancy: 0.334 (6).

Source of material

A mixture containing CoSO4·7H2O (0.840 g), Cd(NO3)·4H2O (0.680 g), H3PO4 (aq. 85%) (0.35 mL), and deionized water (H2O) (16.0 mL), with pH value 6.0, was prepared by mixing these components and sealing in a 25 mL Teflon-lined stainless steel autoclave (70% of the total volume of the autoclave). Then, the resulting slurry was heated to 458 K in an oven and maintained at the temperature for one week. Then, the dark purple purity-phase crystals of the title compound (about 31% yield based on Co) were obtained. The results of elemental analyses provided the chemical compositions: (wt.%) for the title compound: H, 1.24; P, 14.06; Co, 20.98; Cd, 25.04 (in contrast, anal. calcd. (wt.%): H, 1.18; P, 14.61; Co, 21.80; Cd, 24.70; O, 37.71).

Experimental details

The hydrogen atoms were placed at calculated positions with the SHELX program. Coordinates of hydrogen atoms were refined without any constraints or restraints.

Comment

In recent decades, transition metal phospates and phosphonates have attracted great attention for its outstanding physicochemical properties (such as heterogeneous catalysis, ion exchange, optical, magnetic, etc.) and potential real-world applications. In the phosphates the relatively high charge in (PO4)3− tetrahedra is not only favor of the formation of anionic frameworks, but also favor of the high degree of mechanical and thermal stability [5, 6]. Moreover, cobalt phosphates have received more interest owing to its feasibility for catalytic properties [7], [8], [9], [10]. The 3d transition element Co can offer a wide variety of frameworks to perform diverse redox reactions under conventional catalytic conditions [11]. Herein, we report a new hureaulite (Mn5[PO3(OH)]2(PO4)2·4H2O)-type Co/Cd phosphate, Co2.56Cd2.44[PO3(OH)]2(PO4)2·4H2O. In general, Mn element in hureaulite being replaced by diverse transition-metal elements will lead to different physicochemical properties. Although some hurealite-type compounds, e.g. Co5[PO3(OH)]2(PO4)2·4H2O [12], Mn5[PO3(OH)]2(PO4)2·4H2O [13], Cd5[PO3(OH)]2(PO4)2·4H2O [14], Mn3.75Co1.25[PO3(OH)]2(PO4)2·4H2O [15], Mn3Co2[PO3(OH)]2(PO4)2·4H2O [15], Mn2.5Co2.5[PO3(OH)]2(PO4)2·4H2O [15], Mn2Co3[PO3(OH)]2(PO4)2·4H2O [15], have been synthesized and studied, analogous isostructural compound, which Co and Cd elements collectively replace Mn element, has never been reported.

Single-crystal X-ray diffraction structure study reveals that the title compound is isostructural with hureaulite, showing a 3D-network structure. Compared to hureaulite, all the five Mn sites in Mn5[PO3(OH)]2(PO4)2·4H2O are replaced collectively by Co and Cd atoms. The title structure contains two and a half Co/Cd sharing sites, with the total Co/Cd atom occupancy rate about 3.14:1.86, two hydrogen phospate ion [PO3(OH)]2−, two phosphate ions (PO4)3−, and four coordinated waters (H2O). The Co/Cd phosphate is constructed by penta–Co/Cd ([Co3.14Cd1.86(HPO4)2(PO4)2(H2O)4]) 0D neutral clusters as secondary building units. The five-membered Co3.14Cd1.86 clusters were terminated by water molecule O(9) (H2O), which is then connected by the O(1) from P(1) phosphate and the water molecule O(10) (H2O) to form a 2D layer. The layers are further linked by monohydrate phosphates and phosphates in ν1:ν2:ν2:μ5 and ν2:ν2:ν2:ν1:μ7 modes to construct a 3D structure [13]. Each CoII/CdII ion possesses a distorted Co/CdO6 octahedron geometry and it is noteworthy that Co(3)/Cd(3) is on the mirror plane. The Co(1)/Cd(1)–O, Co(2)/Cd(2)–O and Co(3)/Cd(3)–O bond lengths vary in the range of 2.198(3)–2.333(3) Å, 2.031(3)–2.211(3) Å, 2.124(3)–2.235(3) Å. The P(1)–O and P(2)–O bond lengths are in the normal range of 1.530(3)–1.546(3) Å and 1.511(3)–1.568(3) Å respectively. Bond valence sum (BVS) calculations show that all P atoms have the oxidation state of +5 respectively. The angles of Co/Cd–O–Co/Cd are from 98.03(11)–110.40(14)° and the intracluster metal-metal separations through ν–O bridges are 3.384 and 3.731 Å for Co(1)/Cd(1)⋯Co(2)/Cd(2) and Co(1)/Cd(1)⋯Co(3)/Cd(3). The P(1) phosphate links seven Co/Cd ions, while the P(2) one connects five Co/Cd ions. The Co3.14Cd1.86 penta-nuclear clusters are connected through O(1) and O(9) (H2O) to form the 3D configuration.

Corresponding author: Wu-Hua Chen, Fujian Provincial Key Laboratory of Clean Energy Materials, Fujian Provincial Colleges and University Engineering Research Center of Solid Waste Resource Utilization, Longyan University, Longyan, 364012, Fujian Province, People’s Republic of China, E-mail:

Funding source: Natural Science Foundation of Fujian Province

Award Identifier / Grant number: 2020J01367

Funding source: Qimai Science and Technology Innovation Foundation of Xinluo County

Award Identifier / Grant number: 2022XLQM04

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: The work was supported by the Natural Science Foundation of Fujian Province (No. 2020J01367) and the Qimai Science and Technology Innovation Foundation of Xinluo County (No. 2022XLQM04).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Oxford Diffraction Ltd CrysAlisPRO; Oxford Diffraction Ltd: Abingdon, Oxfordshire, England, 2015.Search in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

5. Haushalter, R. C., Mundi, L. A. Reduced molybdenum phosphates: octahedral-tetrahedral framework solids with tunnels, cages, and micropores. Chem. Mater. 1993, 4, 31–48.10.1021/cm00019a012Search in Google Scholar

6. Clearfied, A. Role of ion exchange in solid-state chemistry. Chem. Rev. 1988, 88, 125–148.10.1021/cr00083a007Search in Google Scholar

7. Hartl, A., Park, S.-H., Hoelzel, M., Paul, N., Gilles, R. Proton conductivity in a hureaulite-type compound, Mn5[(PO4)2(PO3(OH))2](HOH)4. J. Solid State Chem. 2019, 277, 290–302; https://doi.org/10.1016/j.jssc.2019.06.029.Search in Google Scholar

8. Sronsri, C., U-yen, K., Sittipol, W. Application of synthetic hureaulite as a new precursor for the synthesis of lithiophilite nanoparticles. Solid State Sci. 2020, 110, 106469; https://doi.org/10.1016/j.solidstatesciences.2020.106469.Search in Google Scholar

9. Zhao, H., Yuan, Z. Y. Design strategies of transition metal phosphate and phosphonate electrocatalysts for energy-related reactions. ChemSusChem 2021, 14, 130–149; https://doi.org/10.1002/cssc.202002103.Search in Google Scholar

10. Bhanaja, P., Kim, Y., Paul, B., Lin, J., Alshehri, S. M., Ahamad, T., Kaneti, Y. V., Bhaumik, A., Yamauch, Y. Facile synthesis of nanopporous transition metal-based phosphates for oxygen evolution reaction. ChemCatChem 2020, 12, 1–7.10.1002/cctc.201901803Search in Google Scholar

11. Chen, W.-H., Xiong, J.-H., Teng, X., Mi, J.-X., Hu, Z.-B., Wang, H., Chen, Z. A novel heterogeneous Co(II)–Fenton-like catalyst for efficient photodegradation by visible light over extended pH. Sci. China Chem. 2020, 63, 1825–1836; https://doi.org/10.1007/s11426-020-9885-3.Search in Google Scholar

12. Han, Z., Tian, A., Peng, J., Zhai, X. A new three-dimensional cobalt phosphate: Co5(OH2)4(HPO4)2(PO4)2. Solid State Chem. 2006, 179, 3209–3213; https://doi.org/10.1016/j.jssc.2006.05.014.Search in Google Scholar

13. Li, B., Jiang, N., Tian, J., Li, T., Hou, G., Zhang, J. Exploration of the slow relaxation behavior in the manganese phosphate network. Dalton Trans. 2014, 43, 9267–9270; https://doi.org/10.1039/c4dt00703d.Search in Google Scholar

14. Hideki, A., Masaru, A., lwai, S. Synthesis and crystal structure of cadmium hydrogen phosphate hydrate (author’s transl). Tokyo. Reports of the Institute for Medical and Dental Engineering, Tokyo Medical and Dental University. 1976, 10, 63–68.Search in Google Scholar

15. Larrea, E. S., Mesa, J. L., Pizarro, J. L., Arriortua, M. I., Rojo, T. Hydrothermal synthesis, thermal, structural, spectroscopic and magnetic studies of the Mn5−xCox(HPO4)2(PO4)2(H2O)4 (x = 1.25, 2, 2.5 and 3) finite solid solution. J. Solid Chem. 2007, 180, 1686–1697; https://doi.org/10.1016/j.jssc.2007.03.012.Search in Google Scholar
Received: 2022-02-09
Accepted: 2022-03-11
Published Online: 2022-04-04
Published in Print: 2022-06-27
