Crystal structure of bis((3-bromosalicylidene)-ethylenediaminato-κ4N,N′,O,O′) nickel (II), C16H12Br2NiN2O2

  • Jianchang Xiao , Cun Zhou , Xu Xindi , Hua Lei and Qiong Wu ORCID logo EMAIL logo
Published/Copyright: April 24, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 4

Abstract

C16H12Br2NiN2O2, monoclinic, P21/c (no. 14), a = 11.7989(9) Å, b = 11.9007(7) Å, c = 12.7164(17) Å, β = 119.779(7)°, V = 1549.8(3) Å3, Z = 4, Rgt(F) = 0.0324, wRref(F2) = 0.0687, T = 173(2) K.

CCDC no.: 1919057

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Red block
Size:0.09 × 0.09 × 0.08 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:6.42 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:5819, 2723, 0.027
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2289
N(param)refined:208
Programs:Bruker [1], SHELX [2], [3], Olex2 [4], Diamond [5]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Br1−0.15935(4)0.06272(4)−0.22080(4)0.01653(12)
Br2−0.48446(4)−0.04963(4)−0.63680(4)0.01761(13)
Ni1−0.03013(5)−0.13163(4)−0.47173(5)0.00912(14)
O1−0.0440(3)−0.0561(2)−0.3518(2)0.0114(6)
O2−0.2094(3)−0.1326(2)−0.5524(2)0.0122(6)
N10.1493(3)−0.1216(3)−0.3927(3)0.0101(7)
N2−0.0174(3)−0.2148(3)−0.5884(3)0.0099(7)
C10.0505(4)−0.0219(3)−0.2475(4)0.0105(9)
C20.0197(4)0.0360(3)−0.1671(4)0.0153(9)
C30.1148(4)0.0700(3)−0.0543(4)0.0178(10)
H30.09100.1060−0.00330.021*
C40.2458(4)0.0517(4)−0.0152(4)0.0186(10)
H40.30960.07480.06150.022*
C50.2801(4)−0.0009(4)−0.0910(4)0.0154(9)
H50.3680−0.0123−0.06540.018*
C60.1852(4)−0.0379(3)−0.2066(4)0.0109(9)
C70.2265(4)−0.0850(3)−0.2855(4)0.0123(9)
H70.3158−0.0894−0.25710.015*
C80.2030(4)−0.1515(3)−0.4723(4)0.0126(9)
H8A0.2926−0.1769−0.42440.015*
H8B0.2007−0.0872−0.52000.015*
C90.1177(4)−0.2447(3)−0.5535(4)0.0146(9)
H9A0.1273−0.2510−0.62470.018*
H9B0.1415−0.3159−0.51080.018*
C10−0.1121(4)−0.2495(3)−0.6915(4)0.0098(9)
H10−0.0904−0.2910−0.74090.012*
C11−0.2470(4)−0.2284(3)−0.7343(4)0.0124(9)
C12−0.3377(4)−0.2640(3)−0.8521(4)0.0150(10)
H12−0.3089−0.3056−0.89630.018*
C13−0.4673(4)−0.2386(4)−0.9029(4)0.0172(10)
H13−0.5266−0.2640−0.98020.021*
C14−0.5100(4)−0.1738(3)−0.8373(4)0.0162(10)
H14−0.5973−0.1530−0.87240.019*
C15−0.4227(4)−0.1411(3)−0.7210(4)0.0139(9)
C16−0.2880(4)−0.1667(3)−0.6632(4)0.0099(9)

Source of material

All commercially available reagents were used as supplied. The halogenated tetradentate Schiff base ligand (3Br-salen) was prepared by mixing 3-bromosalicylaldehyd (0.147 g, 1.0 mmol) and ethylenediamine (0.03 g, 0.5 mmol) in 30 mL of methanol. Then, NiCl2⋅6H2O (0.237 g, 1 mmol) was added to the aforementioned red solution. The resulting red suspension was heated for another 3 h. After cooling, the red filtrate was sealed in a beaker and kept undisturbed at room temperature. The red block crystals of the title compound were afforded after one week.

Experimental details

The structure was solved by direct methods. Hydrogen atoms were placed in calculated positions and included in the refinement in the riding model approximation, with Uiso(H) set to 1.2Ueq(C).

Comment

The study on Schiff base complexes have attracted intense attention due to their preparative accessibility and structural diversity [6], [7], [8], [9]. Nickel and its complexes widely exist in living organisms, having allergic and metastasis effects on tissue and hormone. In this field, a large number of salen-type Schiff-base ligands have been used for the construction of Ni(II) complexes [10], [11]. However, related research about halogenated Schiff base ligands is still rare [12]. With the aim of exploring the relationship between the constitution of Schiff-base ligands and the complex structures, we have engaged in the research of isolating Ni complexes with different halogenated Schiff bases.

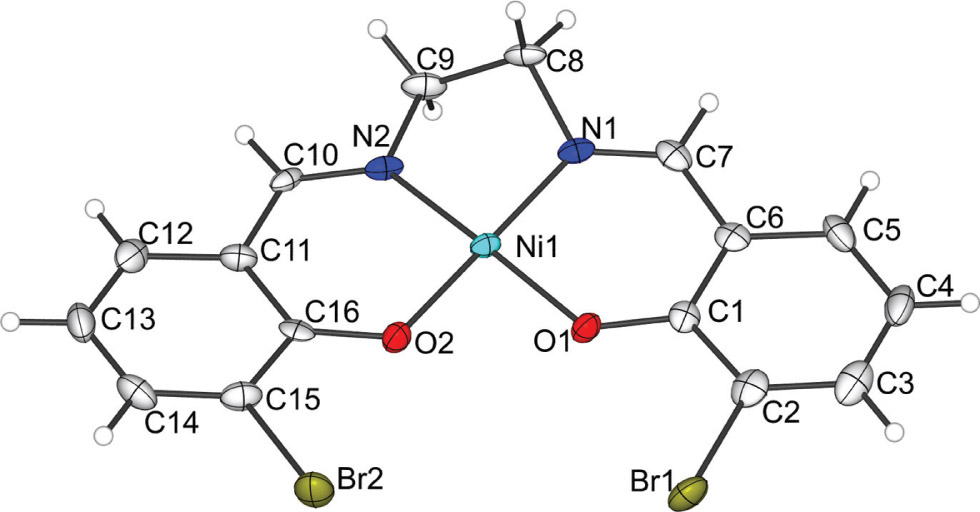

The title compound crystallizes in the space group P21/c, which is constructed by one crystallographically unique Ni(II) and one dibromo substituated schiff-base ligand 3Br-salen. As shown in the figure, the central Ni atom exhibits a tetra-coordinated geometry, which is defined by N2O2 in the equatorial plane from 3Br-salen. The bond lengths of Ni(1)-O(1), Ni(1)-O(2), Ni(1)-N(1) and Ni(1)-N(2) are 1.839(5), 1.843(4), 1.837(5) and 1.850(6) Å, respectively. In the crystal structure, the neutral molecules are linked by weak intermolecular C—H⋯O hydrogen bonds and aromatic face-to-face interactions to form a three-dimensional supermolecular network. [C8—H8(B)⋯O1: 3.234(5) Å; interactions Cg1⋯Cg2i (symmetry code: 1 − X, 1 − Y, −Z) centroid-to-centroid distance = 3.8392 Å, where Cg1 is the centroid of the C1—C6 ring and Cg2 is the centroid of the C11—C16 ring].

Acknowledgements

This work was supported by Fund for Less Developed Regions of the National Natural Science Foundation of China (no. 31760257); Joint Basic Research Program (partial)of Yunnan Local Undergraduate Universities (2017FH001-002); The reserve academic and technical leaders of Yunnan Province (2019HB098).

References

1. Bruker. SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

3. Sheldrick, G. M.: SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

4. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

5. Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Version 3.2i. Crystal Impact, Bonn, Germany (2012).Search in Google Scholar

6. Seifzadeh, D.; Basharnavaz, H.; Bezaatpour, A.: A Schiff base compound as effective corrosion inhibitor for magnesium in acidic media. Mater. Chem. Phys. 138 (2013) 794–802.10.1016/j.matchemphys.2012.12.063Search in Google Scholar

7. Baleizão, C.; Gigante, B.; Das, D.; Álvaro, M.; Garcia, H.; Corma, A.: Periodic mesoporous organosilica incorporating a catalytically active vanadyl Schiff base complex in the framework. J. Catal. 223 (2004) 106–113.10.1016/j.jcat.2004.01.016Search in Google Scholar

8. Lin, S.; Wu, Q.; Tan, H.; Wang, E.: A new organic–inorganic hybrid based on Mn–salen and decavanadate. J. Coord. Chem. 64 (2011) 3661–3669.10.1080/00958972.2011.628990Search in Google Scholar

9. Wu, Q.; Tang, Y.; Li, J.; Li, Y.; Fang, Y.: Crystal structure of rac-trans-N,N′-bis(3,5-diiodosalicylidene)-1,2-cyclohexanediamine, C20H18I4N2O2. Z. Kristallogr. NCS 234 (2019) 69–70.10.1515/ncrs-2018-0173Search in Google Scholar

10. Andruh, M.: Compartmental Schiff-base ligands–a rich library of tectons in designing magnetic and luminescent materials. Chem. Commun. 47 (2011) 3025–3042.10.1039/c0cc04506cSearch in Google Scholar PubMed

11. Banerjee, S.; Drew, M. G. B.; Lu, C. Z.; Tercero, J.; Diaz, C.; Ghosh, A.: Dinuclear complexes of MII thiocyanate (M = Ni and Cu) containing a tridentate Schiff–base ligand: synthesis, structural diversity and magnetic properties. Eur. J. Inorg. Chem. 2005 (2005) 2376–2383.10.1002/ejic.200500080Search in Google Scholar

12. Wu, Q.; Tang, Y.; Zi, Q.: Synthesis, crystallographic structure, Hirshfeld surface analysis and DFT calculations of two salen-type halogenated Schiff-base Ni(II) complexes. Polyhedron 166 (2019) 123–129.10.1016/j.poly.2019.03.021Search in Google Scholar
