The crystal structure of 3,6-di-tert-butyl-1,8-diiodo-9-methyl-9H-carbazole, C21H25I2N

  • Wei-Jun Zhang EMAIL logo and Tao Zeng
Published/Copyright: April 16, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 4

Abstract

C21H25I2N, monoclinic, P21/m (no. 11), a = 10.2277(18) Å, b = 7.6698(13) Å, c = 13.142(2) Å, β = 93.819(2)°, V = 1028.6(3) Å3, Z = 2, Rgt(F) = 0.0261, wRref(F2) = 0.0680, T = 296(2) K.

CCDC no.: 1985680

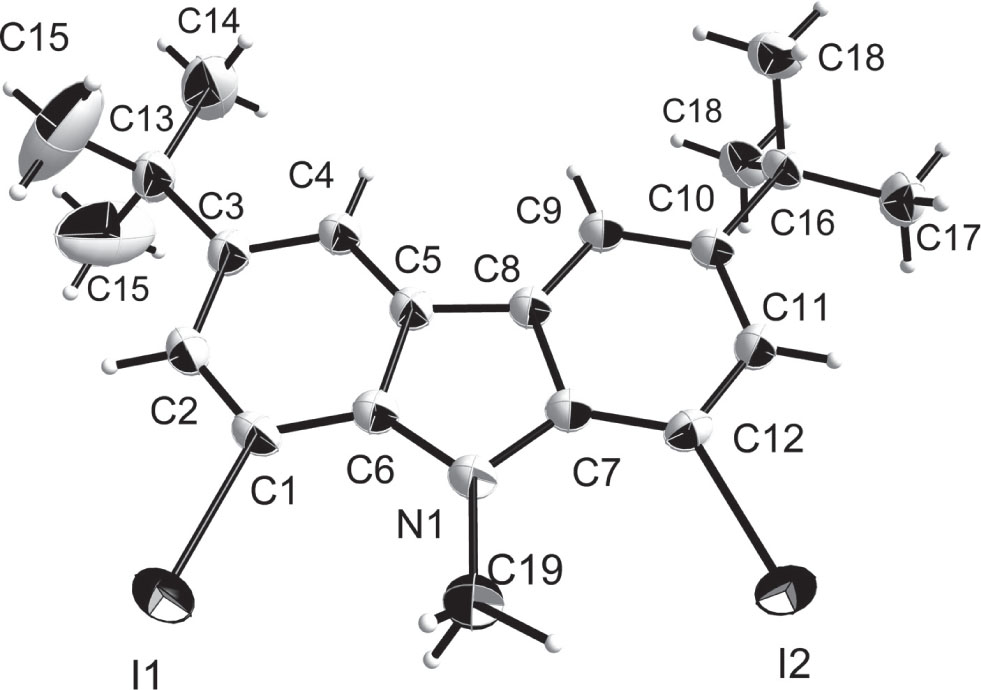

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow prism
Size:0.42 × 0.32 × 0.21 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:3.06 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:27.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:11161, 2494, 0.019
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2311
N(param)refined:157
Programs:Bruker [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.4434(3)0.25000.2539(3)0.0338(7)
C20.5181(3)0.25000.1695(3)0.0367(7)
H20.47470.25000.10500.044*
C30.6557(4)0.25000.1763(3)0.0356(7)
C40.7181(3)0.25000.2733(3)0.0329(7)
H40.80910.25000.28120.039*
C50.6449(3)0.25000.3591(3)0.0312(7)
C60.5068(3)0.25000.3520(3)0.0311(6)
C70.5706(3)0.25000.5201(3)0.0314(7)
C80.6856(3)0.25000.4660(2)0.0299(6)
C90.8104(3)0.25000.5162(3)0.0325(7)
H90.88420.25000.47860.039*
C100.8247(3)0.25000.6218(3)0.0306(6)
C110.7100(3)0.25000.6750(3)0.0333(7)
H110.71840.25000.74590.040*
C120.5849(3)0.25000.6271(3)0.0322(7)
C130.7312(4)0.25000.0796(3)0.0451(9)
C140.8782(5)0.25000.1012(4)0.086(2)
H14A0.9096(10)0.1483(7)0.1405(12)0.103*
H14B0.9259(14)0.25000.0397(12)0.103*
C150.6955(6)0.0888(9)0.0174(4)0.131(3)
H15A0.60220.08400.00380.197*
H15B0.7245−0.01320.05480.197*
H15C0.73720.0934−0.04590.197*
C160.9617(3)0.25000.6761(3)0.0329(7)
C170.9589(4)0.25000.7928(3)0.0470(9)
H17A0.9152(17)0.1481(7)0.8160(19)0.056*
H17B1.0466(17)0.25000.827(3)0.056*
C181.0369(3)0.4121(4)0.6448(2)0.0452(6)
H18A1.04730.40870.57280.068*
H18B1.12150.41440.68100.068*
H18C0.98880.51490.66100.068*
C190.3263(4)0.25000.4745(4)0.087(2)
H19A0.2726(8)0.1489(7)0.4465(13)0.104*
H19B0.3080(17)0.25000.5464(10)0.104*
I10.23957(2)0.25000.21878(2)0.05099(11)
I20.43329(2)0.25000.72794(2)0.04864(11)
N10.4623(3)0.25000.4499(2)0.0346(6)

Source of material

At room temperature 0.5 mL of KOH (50%, 8.95 mmol) was added to a stirred solution of 1.0 g of 3,6-di-tert-butyl-9H-carbazole (3.58 mmol) and 0.115 g of tetrabutylammoniumbromid in 14 mL of DMSO. After stirred for half an hour, 0.33 mL of CH3I (5.37 mmol) was added dropwise. Then the mixture was warmed to 80 °C and stirred for 5 h. The reaction was quenched by ice water, and extracted by dichloromethane (3 × 50 mL). The organic layer was dried with Na2SO4 anhydride. The solvent was removed in vacuo. The residue was purified by recrystallization using ethanol to yield 3,6-di-tert-butyl-9-methyl-9H-carbazole as a white solid. To a solution of 3,6-di-tert-butyl-9-methyl-9H-carbazole (0.743 g, 1.47 mmol) in CH2Cl2 (5 mL) and CH3COOH (5 mL), N-iodosuccinimide (0.682 g, 3.03 mmol) was added, and the mixture was stirred at 20 °C for 16 h. CH2Cl2 was added, and the organic phase was washed with aqueous NaHCO3 and water. After drying over Na2SO4, the solution was filtered. Removal of the solvent in vacuo and column chromatography (hexane) afforded 3,6-di-tert-butyl-1,8-diiodo-9-methyl-9H-carbazole as a white solid. Crystals of the title compound were obtained by slow evaporation in CH2Cl2 within 1 week.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms. There is a disorder of one of the t-butyl groups (C14/C5; about 20%), which was not included in the refinement.

Comment

Carbazoles have been widely used as building blocks to construct organic light-emitting devices (OLEDs) and phosphorescence materials [3], [4], [5], [6]. Polycabazoles which are substituated at different positions showed completely different properties. Poly(2,7-carbazole)s generally have smaller band gaps than the corresponding poly(3,6-carbazole)s because of the linear conjugation of the 2,7-positions. Thus, the promising applications are in optoelectronic devices, such as organic light-emitting diodes (OLEDs), organic field effect transistors (OFETs), and organic photovoltaics. Poly(1,8-carbazole)s showed blue-light emission [7], [8]. Efficient synthetic routes for the 2,7-dihalogenocarbazole derivatives are reported [9], [10]. However, the synthesis of 1,8-dihalogenocarbazole derivatives have rarely been reported [11]. Herein, we reported the synthesis of 3,6-di-tert-butyl-1,8-diiodo-9-methyl-9H-carbazole, which is a educt for the syntheses of complex systems [12]. The single crystal structure (see the figure) verifies that all bond lengths are in normal ranges.

Acknowledgements

The work was supported by National Natural Science Foundation of China No. 21602055; Natural Science Foundation of Hunan Province No. 2017JJ3094 and Undergraduate Research Study and Innovative Experiment of Hunan Provincial (2016-636).

References

1. Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

2. Sheldrick, G. M.: SHELXT-integrated space-group and crystal-structure determination. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar

3. Tao, X.-T.; Zhang, Y.-D.; Wada, T.; Sasabe, H.; Suzuki, H.; Watanabe, T.; Miyata, M.: Hyperbranched polymers for electroluminescence applications. Adv. Mater. 10 (1998) 226–230.10.1002/(SICI)1521-4095(199802)10:3<226::AID-ADMA226>3.0.CO;2-ESearch in Google Scholar

4. Zhang, Z.-B.; Motonaga, M.; Fujiki, M.; McKenna, C. E.: The first optically active polycarbazoles. Macromolecules 36 (2003) 6956–6958.10.1021/ma0344184Search in Google Scholar

5. Hung, W.-Y.; Chi, L.-C.; Chen, W.-J.; Chen, Y.-M.; Chou, S.-H.; Wong, K.-T.: A new benzimidazole/carbazole hybrid bipolar material for highly efficient deep-blue electrofluorescence, yellow-green electrophosphorescence, and two-color-based white OLEDs. J. Mater. Chem. 45 (2010) 10113–10119.10.1039/c0jm02143aSearch in Google Scholar

6. Grazulevicius, J. V.; Strohriegl, P.; Pielichowski, J.; Pielichowski, K.: Carbazole-containing polymers: synthesis, properties and applications. Prog. Polym. Sci. 28 (2003) 1297–1353.10.1016/S0079-6700(03)00036-4Search in Google Scholar

7. Blouin, N.; Leclerc, M.: Poly(2,7-carbazole)s: structure-property relationships. Acc. Chem. Res. 41 (2008) 1110–1119.10.1021/ar800057kSearch in Google Scholar

8. Wakim, S.; Aeich, B.-R.; Tao, Y.; Leclerc, M.: Charge transport, photovoltaic, and thermoelectric properties of poly(2,7-carbazole) and poly(indolo[3,2-b]carbazole) derivatives. Polym. Rev. 48 (2008) 432–462.10.1080/15583720802231726Search in Google Scholar

9. Morin, J.-F.; Leclerc, M.: Syntheses of conjugated polymers derived from N-alkyl-2,7-carbazoles. Macromolecules 34 (2001) 4680–4682.10.1021/ma010152uSearch in Google Scholar

10. Dierschke, F.; Grimsdale, A. C.; Meullen, K.: Efficient synthesis of 2,7-dibromocarbazoles as components for electroactive materials. Synthesis 16 (2003) 2470–2472.10.1002/chin.200410120Search in Google Scholar

11. Michinobu, T.; Osako, H.; Shigehara, K.: Synthesis and properties of conjugated poly(1,8-carbazole)s. Macromolecules 42 (2009) 8172–8180.10.1021/ma901502bSearch in Google Scholar

12. Kleinhans, G.; Hansmann, M. M.; Guisado-Barrios, G.; Liles, D. C.; Bertrand, G.; Bezuidenhout, D. I.: Nucleophilic T-shaped (LXL)Au(I)-Pincer complexes: protonation and alkylation. J. Am. Chem. Soc. 138 (2016) 15873–15876.10.1021/jacs.6b11359Search in Google Scholar PubMed

Received: 2020-02-22
Accepted: 2020-03-19
Published Online: 2020-04-16
Published in Print: 2020-06-25

©2020 Wei-Jun Zhang et al., published by De Gruyter, Berlin/Boston
