Crystal structure of 1-(3-chlorophenyl)-4-(4-(((2,3-dihydro-1H-inden-5-yl)oxy)methyl)phenethyl)piperazine, C28H31ClN2O

  • Aiqing Feng ORCID logo EMAIL logo and Bin Lv
Published/Copyright: March 25, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 4

Abstract

C28H31ClN2O, monoclinic, P1̄ (no. 2), a = 21.9309(11) Å, b = 9.9648(5) Å, c = 11.0049(7) Å, β = 93.403(6)°, V = 2400.7(2) Å3, Z = 4, Rgt(F) = 0.0566, wRref(F2) = 0.1355, T = 293 K.

CCDC no.: 1983018

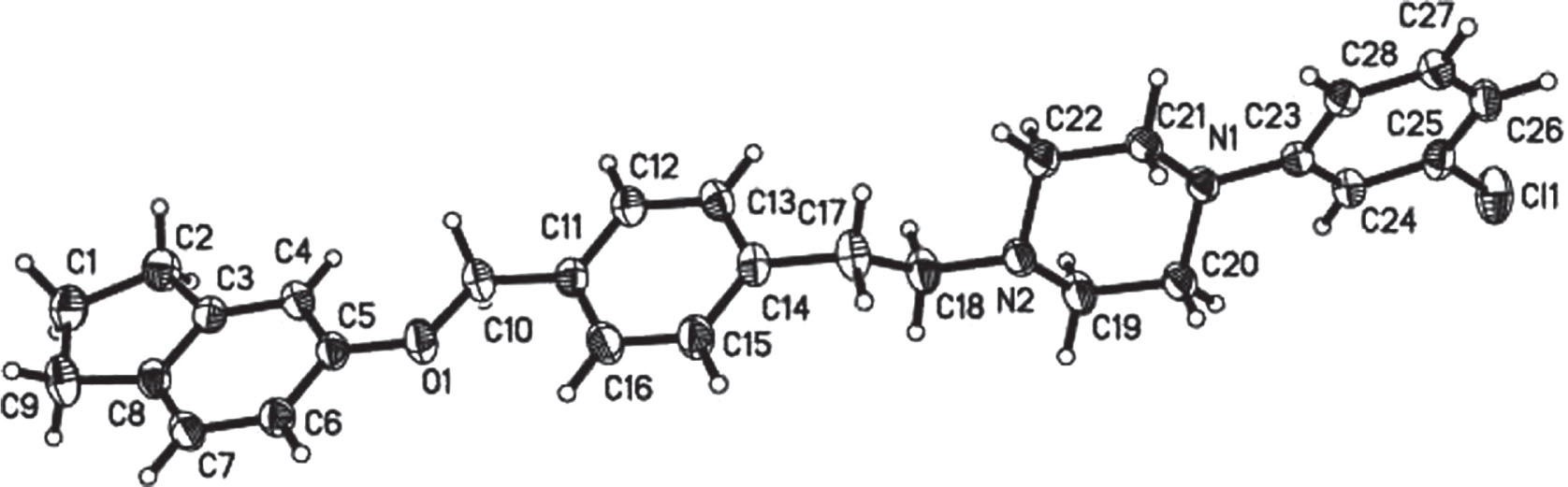

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.18 × 0.15 × 0.13 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.18 mm−1
Diffractometer, scan mode:SuperNova, ω
θmax, completeness:25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:12758, 4213, 0.028
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2973
N(param)refined:289
Programs:SHELX [1], Olex2 [2], CrysAlisPRO [3]

Source of material

The title compound was synthesized from 4-(((2,3-dihydro-1H-inden-5-yl)oxy)methyl)phenethyl 4-methylbenzenesulfonate in form of light yellow crystals. To a solution of 4-(((2,3-dihydro-1H-inden-5-yl)oxy)methyl)phenethyl 4-methyl-benzenesulfonate (100 mg, 0.23 mmol) in acetonitrile (CH3CN, 10 mL) was added 1-(3-chlorophenyl)piperazine (54 mg, 0.27 mmol) and potassium carbonate (190 mg, 1.38 mmol). The reaction mixture was stirred at reflux for 16 h. The mixture was filtered before cooling to ambient. The filtrate was concentrated in vacuo and the residue was purified by silica gel column chromatography using ethyl acetate/petroleum ether (1/15, v/v) as eluent to obtain the product as a light yellow solid. Yield: 71%; Mp. 83-84 °C (HCl salt); 1H NMR (500 MHz, CDCl3) δ [ppm] 7.40 (d, J = 7.9 Hz, 2H), 7.28 (d, J = 2.3 Hz, 1H), 7.20 (t, J = 8.1 Hz, 1H), 7.15 (d, J = 8.2 Hz, 1H), 6.92 (t, J = 2.0 Hz, 1H), 6.90 (s, 1H), 6.86–6.79 (m, 3H), 5.04 (s, 2H), 3.35–3.18 (m, 4H), 2.99–2.81 (m, 6H), 2.71 (dd, J = 16.0, 7.0 Hz, 6H), 2.16–2.05 (m, 2H). 13C NMR (126 MHz, CDCl3) δ [ppm] 157.81, 152.29, 145.75, 139.72, 136.48, 135.29, 134.99, 130.05, 128.92, 127.74, 124.76, 119.36, 115.81, 113.91, 112.84, 110.94, 70.10, 60.30, 53.00, 48.62, 33.21, 32.02, 29.73, 25.86; HRMS (ESI) m/z [M + 1]+: calcd. for C28H31ClN2O, 447.2198, found, 447.2196.

Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cl10.95801(3)0.13164(8)0.32362(9)0.0820(3)
O10.30527(8)0.36018(18)0.92112(17)0.0575(5)
N10.75550(8)0.3461(2)0.42215(18)0.0448(5)
N20.65779(9)0.3809(2)0.58260(18)0.0482(5)
C10.05755(13)0.1458(4)1.0455(3)0.0779(10)
H1A0.02070.17340.99900.094*
H1B0.04810.06771.09340.094*
C20.10706(12)0.1124(3)0.9606(3)0.0633(8)
H2A0.12230.02220.97550.076*
H2B0.09160.11910.87640.076*
C30.15654(11)0.2140(2)0.9881(2)0.0471(6)
C40.21119(11)0.2312(3)0.9320(2)0.0497(6)
H40.22110.17510.86860.060*
C50.25040(11)0.3321(3)0.9713(2)0.0475(6)
C60.23540(11)0.4163(3)1.0657(2)0.0502(7)
H60.26190.48471.09160.060*
C70.18104(12)0.3982(3)1.1210(2)0.0529(7)
H70.17110.45441.18420.063*
C80.14149(11)0.2969(3)1.0826(2)0.0498(6)
C90.08040(13)0.2580(3)1.1277(3)0.0719(9)
H9A0.08480.22791.21160.086*
H9B0.05240.33341.12250.086*
C100.32434(11)0.2709(3)0.8299(2)0.0533(7)
H10A0.29360.26760.76280.064*
H10B0.32920.18130.86330.064*
C110.38385(11)0.3184(2)0.7847(2)0.0463(6)
C120.40245(11)0.2679(3)0.6751(2)0.0508(7)
H120.37780.20680.63130.061*
C130.45739(11)0.3079(3)0.6307(2)0.0525(7)
H130.46900.27230.55740.063*
C140.49538(11)0.3990(3)0.6920(3)0.0507(7)
C150.47636(12)0.4489(3)0.8006(3)0.0602(8)
H150.50080.51070.84410.072*
C160.42141(12)0.4086(3)0.8465(3)0.0591(7)
H160.41000.44340.92020.071*
C170.55386(12)0.4451(3)0.6399(3)0.0621(8)
H17A0.54480.47600.55720.074*
H17B0.56990.52080.68710.074*
C180.60224(11)0.3379(3)0.6388(3)0.0596(8)
H18A0.61280.31040.72190.072*
H18B0.58550.26040.59510.072*
C190.70695(11)0.2854(3)0.6097(3)0.0619(8)
H19A0.69500.19790.57810.074*
H19B0.71420.27760.69720.074*
C200.76509(11)0.3295(3)0.5540(2)0.0571(7)
H20A0.77870.41390.59030.069*
H20B0.79680.26320.57150.069*
C210.70578(10)0.4401(3)0.3939(2)0.0470(6)
H21A0.69830.44670.30640.056*
H21B0.71710.52840.42480.056*
C220.64837(11)0.3936(3)0.4506(2)0.0495(6)
H22A0.61580.45740.43150.059*
H22B0.63600.30760.41620.059*
C230.80744(10)0.3531(2)0.3537(2)0.0426(6)
C240.85340(11)0.2564(2)0.3714(2)0.0469(6)
H240.85050.19160.43160.056*
C250.90288(11)0.2568(3)0.3000(2)0.0501(7)
C260.90951(12)0.3506(3)0.2096(3)0.0559(7)
H260.94310.34950.16190.067*
C270.86455(12)0.4456(3)0.1928(2)0.0555(7)
H270.86800.51020.13250.067*
C280.81439(11)0.4480(3)0.2628(2)0.0479(6)
H280.78480.51400.24900.057*

Experimental details

The hydrogen atoms were placed in calculated positions and refined using a riding model on attached atoms with isotropic thermal parameters 1.2 times those of their carrier atoms.

Comment

Arylpiperazines are great important kinds of drug molecules, and have various bioactivties such as antiarrhythmic, diuretic, antiallergic, antidepressant, anxiolytic, antipsychotic, antimalarial, and antiplasmodial [4], [5], [6], [7], [8], [9], [10], [11], [12]. Some of these compounds have good receptor-blocking properties [13]. According to experiments of the testprostate cancer cells, arylpiperazine derivatives have displayed significant cytotoxic [14]. Although some crystal structures of arylpiperazine derivatives have been reported recently [15], [16], the different functional groups and organic ligands would lead to different properties. Therefore, to further study and explore the new arylpiperazine, we report the crystal structure of the title compound.

The molecule of the title compound displays the 2,3-dihydro-1H-indene, piperazine ring, and two benzene ring groups. One nitrogen atom of piperazine connects the phenylethyl moiety via C—N bond, and the other N links to the carbon atom of chlorobenzene. Furthermore, the above mentioned phenylethyl extends connection of 2,3-dihydro-1H-indene group a C—O bond (see the figure). The 2,3-dihydro-1H-indene group, piperazine unit, and two aryl moieties are not in the same plane. The whole molecule displays a twisty conformation. In the molecule, the Cl1—C25, O1—C10, O1—C5, N1—C20, N1—C23, N1—C21, N2—C22, N2—C19, and N2—C18 bond lengths are found to be 1.746(3) Å, 1.423(3) Å, 1.382(3) Å, 1.464(3) Å, 1.404(3) Å, 1.457(3) Å, 1.461(3) Å, 1.455(3) Å, and 1.463(3) Å, respectively, which are nearly equal to other typical single bonds. The bond angles C5—O1—C10, C23—N1—C20, C23—N1—C21, C21—N1—C20, C22—N2—C18, C19—N2—C22, C19—N2—C18, N2—C22—C21, N1—C20—C19, C24—C23—N1, C28—C23—N1, N1—C21—C22, C24—C25—Cl1, C26—C25—Cl1, N2—C19—C20, N2—C18—C17, O1—C10—C11, O1—C5—C6, 115.3(2)°, and C4—C5—O1 are 117.05(19)°, 117.67(19)°, 118.31(19)°, 110.22(19)°, 112.0(2)°, 108.7(2)°, 110.32(19)°, 111.4(2)°, 111.1(2)°, 119.4(2)°, 123.1(2)°, 110.3(2)°, 118.4(2)°, 119.32(19)°, 111.0(2)°, 113.6(2)°, 109.6(2)°, and 115.3(2)°, respectively.

Acknowledgements

The work was supported by Science and Technology Planning Project of Henan Province of China (172102110105) for financial assistances.

References

1. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

3. Agilent Technologies: CrysAlisPRO Software system. Agilent Technologies UK Ltd, Oxford, UK (2011).Search in Google Scholar

4. Szkaradek, N.; Rapacz, A.; Pytka, K.; Filipek, B.; Siwek, A.; Cegla, M.; Marona, H.: Synthesis and preliminary evaluation of pharmacological properties of some piperazine derivatives of xanthone. Bioorg. Med. Chem. 21 (2013) 514–522.10.1016/j.bmc.2012.11.014Search in Google Scholar

5. Cecchetti, V.; Fravolini, A.; Schiaffella, F.; Tabarrini, O.; Bruni, G.; Segret, G.: o-Chlorobenzenesulfonamidic derivatives of (aryloxy) propanolamines as beta-blocking/diuretic agents. J. Med. Chem. 36 (1993) 157–161.10.1021/jm00053a020Search in Google Scholar

6. Walsh, D. A.; Chen, Y. H.; Green, J. B.; Nolan, J. C.; Yannit, J. M.: The synthesis and antiallergy activity of 1-(aryloxy)-4-(4-arylpiperazinyl)-2-butanol derivatives. J. Med. Chem. 33 (1990) 1823–1827.10.1021/jm00168a044Search in Google Scholar

7. Seo, H. J.; Park, E. J.; Kim, M. J.; Kang, S. Y.; Lee, S. H.; Kim, H. J.; Lee, K. N.; Jung, M. E.; Lee, M.; Kim, M. S.; Son, E. J.; Park, W. K.; Kim, J.; Lee, J.: Design and synthesis of novel arylpiperazine derivatives containing the imidazole core targeting 5-HT(2A) receptor and 5-HT transporter. J. Med. Chem. 54 (2011) 6305–6318.10.1021/jm200682bSearch in Google Scholar

8. Kikumoto, R.; Tobe, A.; Fukami, H.; Egawa, M.: Synthesis and antianxiety activity of (omega-piperazinylalkoxy)indan derivatives. J. Med. Chem. 26 (1983) 246–250.10.1021/jm00356a024Search in Google Scholar

9. Jaen, J. C.; Wise, L. D.; Heffner, T. G.; Pugsley, T. A.; Meltzed, L. T.: Dopamine autoreceptor agonists as potential antipsychotics. 1. (aminoalkoxy)anilines. J. Med. Chem. 31 (1988) 1621–1625.10.1021/jm00403a022Search in Google Scholar

10. Cross, R. M.; Namelikonda, N. K.; Mutka, T. S.; Luong, L.; Kyle, D. E.; Manetsch, R.: Synthesis, antimalarial activity, and structure-activity relationship of 7-(2-phenoxyethoxy)-4(1H)-quinolones. J. Med. Chem. 54 (2011) 8321–8327.10.1021/jm200718mSearch in Google Scholar

11. Clarkson, C.; Musonda, C. C.; Chibale, K.; Campbella, W. E.; Smitha, P.: Synthesis of totarol amino alcohol derivatives and their antiplasmodial activity and cytotoxicity. Bioorg. Med. Chem. 11 (2003) 4417–4422.10.1016/S0968-0896(03)00491-7Search in Google Scholar

12. Berardi, F.; Abate, C.; Ferorelli, S.; De Robertis, A. F.; Leopoldo, M.; Colabufo, N. A.; Niso, M.; Perrone, R.: Novel 4-(4-aryl)cyclohexyl-1-(2-pyridyl)piperazines as Δ8-Δ7 sterol isomerase (emopamil binding protein) selective ligands with antiproliferative activity. J. Med. Chem. 51 (2008) 7523–7531.10.1021/jm800965bSearch in Google Scholar PubMed

13. Leopoldo, M.; Lacivita, E.; Passafiume, E.; Contino, M.; Colabufo, N. A.; Berardi, F.; Perrone, R.: 4-[ω-[4-Arylpiperazin-1-yl]alkoxy]phenyl) imidazo[1,2-a]pyridine derivatives: fluorescent high-affinity dopamine D3 receptor ligands as potential probes for receptor visualization. J. Med. Chem. 50 (2007) 5043–5047.10.1021/jm070721+Search in Google Scholar PubMed

14. Chen, H.; Yu, Y.-Z.; Tian, X.-M.; Wang, C.-L.; Qian, Y.-N.; Deng, Z.-A.; Zhang, J.-X.; Lv, D.-J.; Zhang, H.-B.; Shen, J.-L.; Yuan, M.; Zhao, S.-C.: Synthesis and biological evaluation of arylpiperazine derivatives as potential anti-prostate cancer agents. Bioorg. Med. Chem. 27 (2019) 133–143.10.1016/j.bmc.2018.11.029Search in Google Scholar PubMed

15. Chen, H.; Jia, H.-X.: Crystal structure of 2-(4-(2-fluorophenyl) piperazin-1-yl) ehthyl) benzyl)benzoisothiazol-3(2H)-one1,1-dioxide, C26H26FN3O3S – a saccharin derivative. Z. Kristalllogr. NCS 233 (2018) 111–113.10.1515/ncrs-2017-0197Search in Google Scholar

16. Chen, H.; Jia, H.-X.; Xu, Q.-T.: Crystal structure of ure of 1-(4-((benzo(1,3)dioxol-5-yloxy)methyl)phenethyl)-4-(3-chlorophenyl)piperazin-1-ium chloride, C26H28Cl2N2O3. Z. Kristalllogr. NCS 233 (2018) 107–109.10.1515/ncrs-2017-0196Search in Google Scholar
