Crystal structure of 4′-amino-3′,5′-diisopropyl-(1,1′-biphenyl)-4-carbonitrile, C19H22N2

  • Shuang-Ming Mo and Da-Bin Shi ORCID logo EMAIL logo
Published/Copyright: April 16, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 4

Abstract

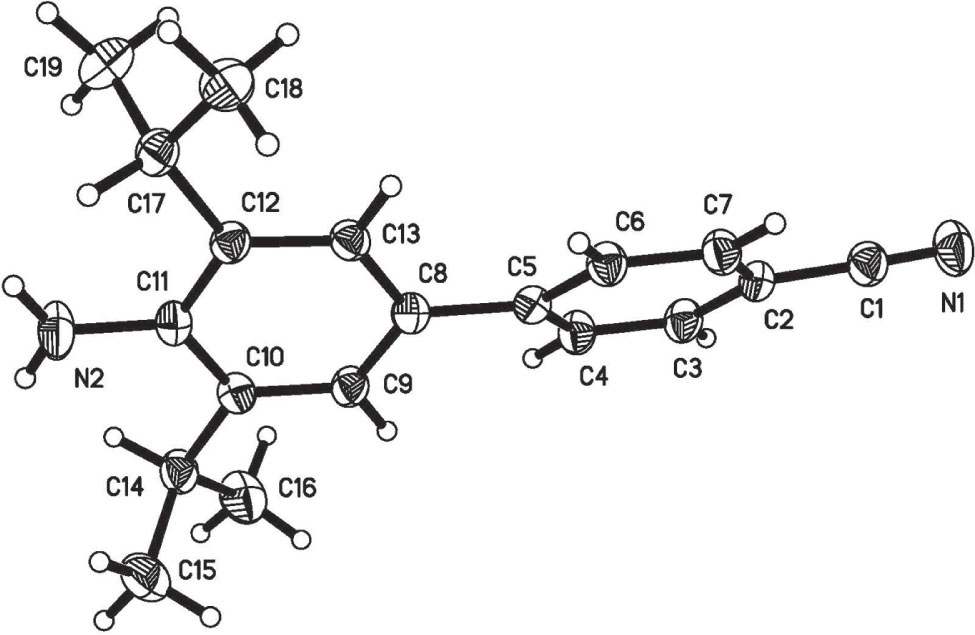

C19H22N2, triclinic, P1̄ (no. 2), a = 8.1330(5) Å, b = 9.3474(5) Å, c = 12.1520(8) Å, α = 87.278(5)°, β = 71.092(6)°, γ = 66.190(6)°, V = 795.88(9) Å3, Z = 2, Rgt(F) = 0.0498, wRref(F2) = 0.1415, T = 293(2) K.

CCDC no.: 1971170

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.20 × 0.20 × 0.20 mm
Wavelength:Cu Kα radiation (1.54178 Å)
μ:0.52 mm−1
Diffractometer, scan mode:SuperNova, φ and ω
θmax, completeness:73.5°, 99%
N(hkl)measured, N(hkl)unique, Rint:4642, 3041, 0.026
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2743
N(param)refined:195
Programs:CrysAlisPRO [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C11.36460(18)−0.09322(15)0.10047(11)0.0297(3)
C21.27955(17)−0.00035(15)0.21130(10)0.0258(3)
C31.29136(18)−0.07450(14)0.31218(11)0.0274(3)
H31.359314−0.1826830.3073590.033*
C41.20179(17)0.01314(14)0.41956(10)0.0270(3)
H41.211578−0.0372840.4864710.032*
C51.09649(16)0.17618(13)0.43025(10)0.0231(3)
C61.08856(17)0.24886(14)0.32721(10)0.0252(3)
H61.0214900.3571200.3316410.030*
C71.17870(18)0.16237(14)0.21921(10)0.0269(3)
H71.1721720.2125510.1518280.032*
C80.99380(17)0.26620(13)0.54654(10)0.0232(3)
C91.05474(17)0.21262(13)0.64188(10)0.0243(3)
H91.1654120.1215050.6299840.029*
C100.95688(17)0.28982(14)0.75331(10)0.0244(3)
C110.78960(17)0.42900(14)0.77139(10)0.0246(3)
C120.72247(17)0.48523(13)0.67690(10)0.0234(3)
C130.82646(17)0.40341(13)0.56731(10)0.0234(3)
H130.7834380.4410930.5050850.028*
C141.02937(19)0.22927(15)0.85452(11)0.0292(3)
H140.9178410.2505890.9248250.035*
C151.1394(2)0.31898(18)0.87570(13)0.0414(4)
H15A1.2529910.2965210.8095740.062*
H15B1.1733000.2869220.9444090.062*
H15C1.0608770.4297310.8864070.062*
C161.1522(2)0.05297(17)0.83884(13)0.0407(4)
H16A1.087289−0.0020940.8184070.061*
H16B1.1749050.0196800.9105130.061*
H16C1.2716570.0303700.7777450.061*
C170.53474(17)0.62867(14)0.69937(11)0.0280(3)
H170.5331370.7065640.7513760.034*
C180.5060(2)0.70635(15)0.58957(12)0.0349(3)
H18A0.6152220.7265850.5469190.052*
H18B0.3943110.8035830.6114860.052*
H18C0.4903680.6376870.5413280.052*
C190.36701(19)0.58555(17)0.76319(14)0.0406(4)
H19A0.3554300.5190230.7109770.061*
H19B0.2515290.6795670.7890310.061*
H19C0.3890930.5310890.8294890.061*
N11.42881(18)−0.16902(14)0.01327(10)0.0393(3)
N20.69287(17)0.50982(13)0.88095(9)0.0359(3)
H2A0.7343840.4754830.9379470.043*
H2B0.5909940.5945940.8923350.043*

Source of material

In a flask, 2,6-diisopropyl aniline (9.4 g, 53 mmol) was introduced in 50 mL CH2Cl2/MeOH (1/1). After that, Br2 (8.5 g, 107 mmol) in 50 mL CH2Cl2/MeOH (1/1) was added dropwise over 30 min. The mixture was stirred at 25 °C for 20 h, yielding a dark suspension. After complete consumption of the starting material, the solvent was removed under reduced pressure. The crude product was recrystallized from 1/1 CH2Cl2/hexane (50 mL). The precipitate was filtered and washed with 20 mL of cold hexane. The residue was neutralized with 75 mL (5 mL g−1) of 20 wt% aqueous NaOH solution for 4 h. Upon extraction with diethyl ether for three times, the organic extracts were combined, and dried over sodium sulfate, and filtered. Removal of volatiles under reduced pressure yielded 12.5 g (92%) of 4-bromo-2,6-diisopropylaniline as a yellow oil.

Synthesis of the title compound [4]. A mixture of (4-cyanophenyl)boronic acid (8.1 g, 55 mmol, 1.1 equiv), 4-bromo-2,6-diisopropylaniline (12.8 g, 50 mmol), palladium tetrakis(triphenylphosphine) (1.1 g, 1 mmol, 2 mol%), and potassium carbonate (17.4 g, 165 mmol, 3.3 equiv) in 200 mL dioxane/H2O (3/1) was stirred under nitrogen for 72 h at 90 °C. After the mixture was cooled to room temperature, it was extracted with CH2Cl2 and washed with H2O. The organic layer was dried with MgSO4, and the solvent was removed. The resulting crude product was purified by column chromatography using silica gel and petroleum ether/ethyl acetate (20/1) as the eluent. The product was obtained (10.8 g, 78.0% yield). Crystals were obtained by slow evaporation of an ethanol solution at room temperature over a period of seven days, yield: 0.68 g (92%). M.p.: 182–183 °C. Elemental analysis – found: C, 81.91%; H, 7.92%; N, 10.12%; calculated for C20H25NO2: C, 81.97%; H, 7.97%; N, 10.06%.

Experimental details

Data were collected via CrysAlisPRO [1], the structure of crystal was solved by SHELXT [2] and refined by SHELXL [3].

Comment

Xenylamine derivatives were usually used as ligands to construct organometallic complexes, used in various catalytic reactions [5], [6], [7]. Yuan et al. [8] reported a series of phenyl substituted α-diimine nickel complexes activated by Et2AlCl exhibiting high activities toward ethylene polymerization to afford highly branched polyethylene. Coates et al. reported precision chain-walking polymerization of linear 1-alkenes using the sandwich α-diimine nickel catalysts, which afforded semicrystalline polyethylene [9]. Finally the syntheses, crystal structure, spectroscopic characterization, and physical properties of a class of benzidine radical cations were reported [10]. As part of this project, we have previously reported the synthesis and crystal structure of a diphenylamine [11].

In the crystal structure, the dihedral angle between the planes of two phenyl rings is 27.9° (cf. the figure). Bond lengths and bond angles within the molecule are in agreement with the values reported. The bond lengths of C1—N1 and C11—N2 are 1.1452(17) Å and 1.3781(15) Å, respectively. As a result of the conjugation of the aromatic rings, the bond length of C5—C8 is 1.4776(16) Å, which is shorter than that of typical C—C single bond. There is an intermolecular hydrogen bond (d D⋯A 3.037 Å; H⋯A 2.341 Å) between N2—H2B⋯N1′(′ = x − 1, y + 1, z + 1), which produces a one dimensional chain to stabilize the crystal structure.

Acknowledgements

We are grateful for financial support from National Natural Science Foundation of China (grant no. 21861045).

References

1. Rigaku Corporation. CrysAlisPRO. Rigaku Corporation, Yarnton, Oxfordshire, England (2015).Search in Google Scholar

2. Sheldrick, G. M.: SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M.: Crystal structure refnement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Shi, D.; Ren, Y.; Jiang, H.; Cai, B.; Lu, J.: Synthesis, structures, and properties of two three-dimensional metal-organic frameworks, based on concurrent ligand extension. Inorg. Chem. 51 (2012) 6498–6506.10.1021/ic202624eSearch in Google Scholar PubMed

5. Bakhoda, A.; Jiang, Q.; Bertke, J. A.; Cundari, T. R.; Warren, T. H.: Elusive terminal copper arylnitrene intermediates. Angew. Chem. Int. Ed. 56 (2017) 6426–6430.10.1002/anie.201611275Search in Google Scholar PubMed

6. Xiong, T.; Zhang, Q.: New amination strategies based on nitrogen-centered radical chemistry. Chem. Soc. Rev. 45 (2016) 3069–3087.10.1039/C5CS00852BSearch in Google Scholar

7. Wan, J.-P.; Jing, Y.: Recent advances in copper-catalyzed C—H bond amidation. Beilstein J. Org. Chem. 11 (2015) 2209–2222.10.3762/bjoc.11.240Search in Google Scholar PubMed PubMed Central

8. Yuan, J. C.; Wang, F. Z.; Yuan, B. N.; Jia, Z.; Song, F. Y.; Li, J.: Highly active ortho-phenyl substituted α-diimine nickel catalysts for chain walking polymerization of ethylene: synthesis of the nanosized dendritic polyethylene. J. Mol. Catal. A: Chem. 370 (2013) 132–139.10.1016/j.molcata.2013.01.016Search in Google Scholar

9. Vaidya, T.; Klimovica, K.; LaPointe, A. M.; Keresztes, I.; Lobkovsky, E. B.; Daugulis, O.; Coates, G. W.: Secondary alkene insertion and precision chain-walking: a new route to semicrystalline polyethylene from α-olefins by combining two rare catalytic events. J. Am. Chem. Soc. 136 (2014) 7213–7216.10.1021/ja502130wSearch in Google Scholar PubMed

10. Chen, X.; Ma, B.; Wang, X.; Yao, S.; Ni, L.; Zhou, Z.; Li, Y.; Huang, W.; Ma, J.; Zuo, J.; Wang, X.: From monomers to π stacks, from nonconductive to conductive: syntheses, characterization, and crystal structures of benzidine radical cations. Chem. Eur. J. 18 (2012) 11828–11836.10.1002/chem.201103972Search in Google Scholar PubMed

11. Zhang, M.-Y.; Shi, D.-B.: Crystal structure of methyl 4′-amino-3′,5′-diisopropyl-(1,1′-biphenyl)-4-carboxylate, C20H25NO2. Z. Kristallogr. NCS 233 (2018) 421–422.10.1515/ncrs-2017-0324Search in Google Scholar
