The crystal structure of catena-poly[bis[3-azoniapentane-1,5-diammonium][bis(μ4-oxo)-tetrakis(μ3-oxo)-heptakis(μ2-oxo)-tetradecaoxo-octa-molybdenum] dihydrate], (C8H36N6O29Mo8)n

  • Chen Wu-Hua ORCID logo , Yang Dai-Bin and Jiang Zhao-Bin
Published/Copyright: April 16, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 4

Abstract

(C8H36N6O29Mo8)n, monoclinic, P21/n (no. 14), a = 10.5883(4) Å, b = 9.4385(3) Å, c = 16.5154(7) Å, β = 94.616(4)°, V = 1645.15(11) Å3, Z = 2, Rgt(F) = 0.0359, wRref(F2) = 0.0887, T = 293(2) K.

CCDC no.: 1991666

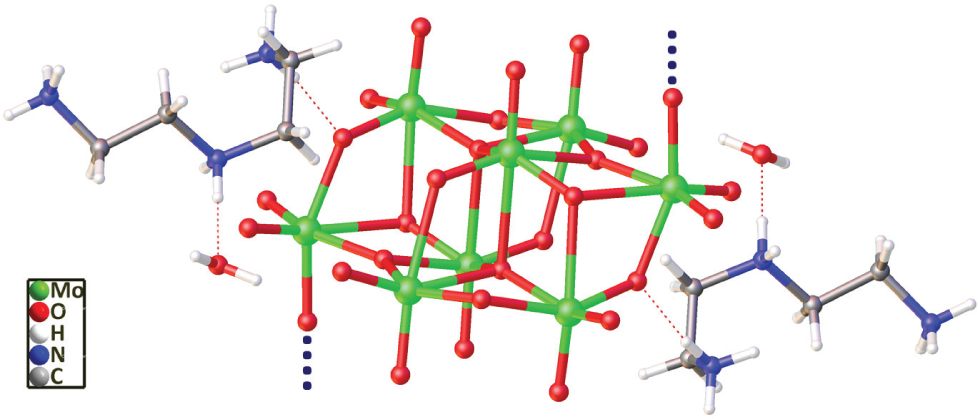

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.35 × 0.12 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:3.06 mm−1
Diffractometer, scan mode:Rigaku R-axis Spider, ω
θmax, completeness:29.1°, >99%
N(hkl)measured, N(hkl)unique, Rint:7986, 3862, 0.034
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3305
N(param)refined:237
Programs:CrysAlisPRO [1], SHELX [2], IL MILIONE [3], Olex2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
N11.2837(4)0.0225(4)0.6841(3)0.0200(9)
H1A1.3257−0.05680.67470.024*
H1B1.24680.01410.73040.024*
H1C1.33750.09510.68770.024*
N20.9989(4)0.2005(4)0.5836(3)0.0231(10)
H2A0.94750.13490.60140.028*
H2B1.00900.18180.53170.028*
N30.8651(4)0.3089(4)0.7276(2)0.0224(10)
H3A0.78450.30420.70790.027*
H3B0.86950.34580.77730.027*
H3C0.89840.22230.72970.027*
C11.1860(5)0.0475(5)0.6167(3)0.0231(12)
H1D1.1231−0.02730.61490.028*
H1E1.22440.04850.56530.028*
C21.1242(5)0.1897(5)0.6310(3)0.0186(10)
H2C1.11310.20060.68840.022*
H2D1.17900.26530.61500.022*
C30.9371(6)0.3426(5)0.5890(3)0.0274(13)
H3D0.85040.33600.56540.033*
H3E0.98110.40990.55690.033*
C40.9361(5)0.3987(5)0.6746(3)0.0227(11)
H4A1.02280.40720.69790.027*
H4B0.89910.49280.67270.027*
Mo10.59059(4)0.11377(4)0.57971(2)0.01048(11)
Mo20.49507(4)0.38202(4)0.68995(2)0.01144(11)
Mo30.33160(4)0.64184(4)0.60210(2)0.01034(11)
Mo40.59967(4)0.64559(4)0.51736(2)0.00917(11)
O10.50000.00000.50000.0202(11)
O20.7462(3)0.0747(3)0.5688(2)0.0192(8)
O30.5530(3)0.0189(3)0.6623(2)0.0187(8)
O40.6341(3)0.2866(3)0.65119(19)0.0141(7)
O50.4382(4)0.2572(3)0.7535(2)0.0206(8)
O60.5707(3)0.5047(3)0.7536(2)0.0200(8)
O70.3274(3)0.4760(3)0.67031(19)0.0135(7)
O80.5044(3)0.5171(3)0.58180(19)0.0122(7)
O90.3926(3)0.7544(3)0.6782(2)0.0191(8)
O100.1765(3)0.6908(3)0.5862(2)0.0208(8)
O110.4103(3)0.7267(3)0.51454(19)0.0134(7)
O120.6698(3)0.7552(3)0.5902(2)0.0169(7)
O130.7218(3)0.5302(3)0.49550(19)0.0136(7)
O140.5840(3)0.7540(3)0.42088(18)0.0113(7)
O151.0635(4)0.1702(5)0.4266(3)0.0398(11)
H15A1.14350.17170.42450.060*
H15B1.02930.22790.39190.060*

Source of material

A mixture containing Na2WO4 ⋅ 2 H2O (1.050 g), diethylenetriamine (4.0 mL), H2SO4 (0.5 M, 3.0 mL) and deionized water (H2O) (10.0 mL) was prepared by mixing these components and sealed in a 25 mL Teflon-lined stainless steel autoclave (75% of the total volume of the autoclave). Then, the resulting slurry (pH = 7.0) was heated to 448 K in an oven and maintained at the temperature for five days. Then, the colourless purity-phase crystals of the title compound (about 61% yield based on Mo) were obtained.

Experimental details

All the hydrogen atoms were placed at calculated positions and refined as riding on their parent atoms with the SHELX program [2]. Non-hydrogen atoms were refined anisotropically.

Comment

Polyoxometalates (POMs) often exhibit intriguing structures and outstanding properties [5], [6], [7]. Studies on POMs have also focused on their applications, such as photochemistry, catalysis, medicinal chemistry and physical sciences, etc. [8], [9], [10]. Polytungstates are an important classes of POMs.

Herein, we report the structure of a one-dimensional octamolybdate, [(H3dien)2(Mo8O27) ⋅ 2 H2O]n (dien = diethylenetriamine). The asymmetric unit consists of one protonated [H3dien]3+cations, one half of an homopolymolybdate radical polyanion [Mo8O27]6− and one crystal water molecule. All Mo atoms are in a six-coordination state. The O atoms within the anion can be divided into four types in accordance to their bonding modes, namely, terminal, μ2, μ3- and μ4. All bond distances and angles are within the expected ranges. The structure is closely related to that of the bis(tris(2 ammonioethyl)amine analogue [11]. The shortest Mo—O distances range from 1.705(3) to 1.750(3) Å for terminal oxygen atoms (Mo—Ot). The O—Mo—O bond angles are in the range of 71.50(11)–177.44(13)°. Bond valence sum calculations [12] on the Mo sites afford 6.05, 5.97, 6.03 and 5.94 for Mo1, Mo2, Mo3 and Mo4 respectively. These calculation results reveal the symmetry-independent Mo sites are in the +6 oxidation state, as expected.

References

1. Oxford Diffraction Ltd. CrysAlisPRO. Oxford Diffraction Ltd, Abingdon, Oxfordshire, England (2015).Search in Google Scholar

2. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

3. Burla, M. C.; Caliandro, R.; Camalli, M.; Carrozzini, B.; Cascarano, G. L.; De Caro, L.; Giacovazzo, C.; Polidori, G.; Siliqi, D.; Spagna, R.: IL MILIONE: a suite of computer programs for crystal structure solution of proteins. J. Appl. Crystallogr. 40 (2007) 609–613.10.1107/S0021889807010941Search in Google Scholar

4. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

5. Chen, W.-H.; Lai, Y.-Z.; Hu, Z.-B.; Liu, J.-X.; Guo, X.-G.; Yuan, Q.-L.; Zhao, J.-H.; Mi, J.-X.; Luo, J.-S.: A new redox-based and stepwise synthetic strategy lead to an unprecedented mixed-valence Keggin-type tungstovanadophosphate (WVI/VIV) bi-capped by vanadium(VIII)-complexes. New J. Chem. 42 (2018) 8738–8744.10.1039/C8NJ00714DSearch in Google Scholar

6. Hill, C. L. (Ed): Special thematic issue on polyoxometalates. Chem. Rev. 98 (1998) 1–390.Search in Google Scholar

7. Lin, X.; Huang, B.; Xiong, Z.; Fang, T.; Zhang, X.; Xiao, Z.; Wu, P.: Supramolecular architectures of polyoxometalate hybrids originating from halogen and hydrogen-bonding interactions. ChemistrySelect 24 (2018) 11008–11011.10.1002/slct.201802912Search in Google Scholar

8. Chen, W.-H.; Hu, Z.-B.; Zhou, J.-C.; Xiong, J.-H.; Luo, J.-S.; Zhang, H.-Q.; Mi, J.-X.: Two new sandwich-type phosphomolybdates: thermal decomposition and photocatalytic degradation behavior of a UV-excited solid-phase Fenton catalyst. Eur. J. Inorg. Chem. 2019 (2019) 3015–3022.10.1002/ejic.201900288Search in Google Scholar

9. Wang, B.; Meng, R.-Q.; Bi, L.-H.; Wu, L.-X.: A novel detection of hydrogen peroxide based on a luminescent polyoxometalate. Dalton Trans. 40 (2011) 5298–5301.10.1039/c1dt10259aSearch in Google Scholar PubMed

10. Pan, D.; Chen, J.; Tao, W.; Nie, L.; Yao, S.: Polyoxometalate-modified carbon nanotubes: new catalyst support for methanol electro-oxidation. Langmuir 22 (2002) 5872–5876.10.1021/la053171wSearch in Google Scholar PubMed

11. Hubbard, D. J.; Johnston, A. R.; Casalongue, H. S.; Sarjeant, A. N.; Norquist, A. J.: Catena-[bis(tris(2-Ammonioethyl)amine) bis(μ4-oxo)-tetrakis(μ3-oxo)-heptakis(μ2-oxo)-tetradecaoxo-octa-molybdenum(vi) dihydrate]. Inorg. Chem. 47 (2008) 8518–8525.10.1021/ic800572gSearch in Google Scholar PubMed

12. Brese, N. E.; O’Keeffe, M.: Bond-valence parameters for solids. Acta Crystallogr. B47 (1991) 192–197.10.1107/S0108768190011041Search in Google Scholar

Received: 2020-02-05
Accepted: 2020-03-20
Published Online: 2020-04-16
Published in Print: 2020-06-25
