Crystal structure of poly[μ2-diaqua-(μ2-2-amino-4,5-dicyano-κ2N:N′-imidazol-1-ide)sodium(I)], C5H6N5O2Na

  • Xue Mei ORCID logo , Wang Jianlong EMAIL logo , Yan Sheng ORCID logo , Yang Kaixin , Gao Pengxiang and Duan Jiale
Published/Copyright: April 24, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 4

Abstract

C5H6N5O2Na, triclinic, P1̄ (no. 2), a = 7.0140(10) Å, b = 7.4328(13) Å, c = 8.9483(16) Å, α = 103.303(7)°, β = 103.719(6)°, γ = 103.634(6)°, V = 419.73(12) Å3, Z = 2, Rgt(F) = 0.0622, wRref(F2) = 0.1795, T = 170(2) K.

CCDC no.: 1993117

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.10 × 0.08 × 0.05 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.16 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:27.6°, 99%
N(hkl)measured, N(hkl)unique, Rint:5029, 1909, 0.055
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1565
N(param)refined:142
Programs:Bruker [1], SHELX [2], [3], [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Na10.07801(15)0.28107(15)0.04930(12)0.0264(3)
O1−0.2281(3)0.0081(3)−0.0042(2)0.0278(5)
O20.0416(3)0.4298(3)−0.1643(2)0.0303(5)
N10.7994(3)1.1747(3)0.5303(2)0.0223(5)
N20.5901(3)1.0520(3)0.2691(2)0.0211(5)
N30.8449(4)0.7871(3)0.6842(3)0.0291(5)
N40.7273(4)1.3952(3)0.3837(3)0.0300(5)
N50.4167(4)0.5437(3)0.1687(3)0.0311(5)
C10.7394(4)0.9765(3)0.4878(3)0.0200(5)
C20.7049(4)1.2094(3)0.3954(3)0.0215(5)
C30.6112(4)0.9004(3)0.3293(3)0.0200(5)
C40.7994(4)0.8734(3)0.5969(3)0.0219(5)
C50.5042(4)0.7040(4)0.2393(3)0.0232(5)
H1A−0.343(5)−0.017(5)−0.086(4)0.034(8)*
H1B−0.272(6)0.019(5)0.065(5)0.046(11)*
H2A0.139(9)0.488(8)−0.177(7)0.10(2)*
H2B−0.051(6)0.344(6)−0.256(5)0.048(10)*
H4A0.792(6)1.491(5)0.471(5)0.043(10)*
H4B0.609(5)1.407(5)0.323(4)0.034(8)*

Source of material

Sodium chloride (0.58 g) and deionized water (10 mL) form an aqueous solution, and 2-amino-4,5-dicyanimidazole (1.33 g) was dissolved in methanol (25 mL). Drop the sodium chloride solution into the methanol solution, which was refluxed for 24 h. The reaction mixture was filtered, and the filtrate was naturally evaporated to obtain transparent crystals.

Experimental details

The Uiso of the H-atoms were constrained to 1.2 times Ueq of nitrogen atoms and 1.5 times Ueq of oxygen atoms at water.

Comment

Cyanoimidazoles are important intermediates for the preparation of pyrimidine bases and other organic compounds, and also important organic ligands [5], [6], [7], [8]. The metal complexes of 2-amino-4,5-dicyanoimidazole have important applications in MOF materials [9], [10].

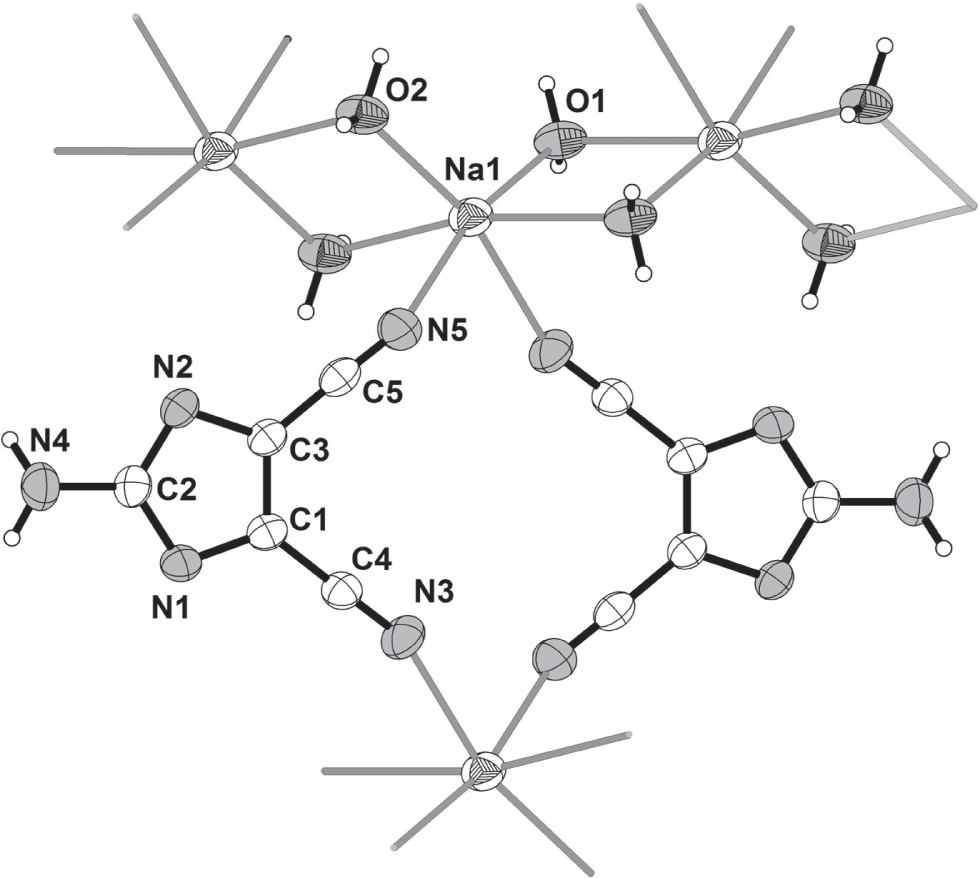

In the asymmetric unit of title compound (cf. the figure), there are one 2-amino-4,5-dicyano-imidazol-1-ide anion, one sodium(I) ion and two water molecules. The dihedral angles between the two cyano, amino and imidazole rings are: 37.29° (C3, C5, N5), 31.40° (C1, C4, N3) and 40.85° (N4, H4A, H4B), respectively. All bond lengths and angles are within normal ranges and in good agreement with those found for the structure of 2-amino-4,5-dicyanoimidazole [11]. In the crystal structure, sodium is sixfold coordinated by two nitrogen atoms groups and four oxygen (see the figure). Each sodium ion can form two parallelograms with two adjacent sodium ions and the four oxygen atoms to create a chain structure. These chains are connected by the organic ligands to a layered structure by the bridging effect of cyano groups and coordinated water molecules. The title structure contains several classical hydrogen bonds.

Acknowledgements

We are grateful for the support of Beijing Ernst NMR Technology Co., Ltd.

References

1. Bruker. APEX3, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2016).Search in Google Scholar

2. Krause, L.; Herbst-Irmer, R.; Sheldrick, G. M.; Stalke, D.: Comparison of silver and molybdenum microfocus X-ray sources for single-crystal structure determination. J. Appl. Crystallogr. 48 (2015) 3–10.10.1107/S1600576714022985Search in Google Scholar

3. Sheldrick, G. M.: SHELXT-integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar

4. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar

5. Rasmussen, P. G.; Bailey, O. H.; Bayon, J. C.: Complexes of tetracyanobiimidazole. 1. dimeric and tetrameric species. Inorg. Chem. 23 (1984) 338–343.10.1021/ic00171a014Search in Google Scholar

6. Rasmussen, P. G.; Bailey, O. H.; Bayon, J. C.; Butler, W. M.: Complexes of tetracyanobiimidazole. 2. monomeric species. Inorg. Chem. 23 (1984) 343–349.10.1021/ic00171a015Search in Google Scholar

7. Glowiak, T.; Grech, E.; Malarski, Z.; Sobczyk, L.: A network of hydrogen bonds in the polyanion of 2-amino-4,5-dicyanoimidazole formed in the 2:1 adduct with 1,8-bis (dimethylamino) naphthalene. J. Mol. Struct. 403 (1997) 73–82.10.1016/S0022-2860(96)09394-5Search in Google Scholar

8. Thurber, E. L.; Rasmussen, P. G.: Approaches to novel AB heteroaromatic polyamides based on cyanoimidazoles. J. Polym. Sci. Part A: Polym. Chem. 31 (1993) 351–364.10.1002/pola.1993.080310207Search in Google Scholar

9. Zhu, J. L.; Jiang, G. Q.; Guo, X. Q.; Tang, Y. F.; Wang, M.: Crystal structure of poly[bis(μ-2-amino-4,5-dicyanoimidazolato-κ2N1: N3)-trans-bis(N,N′-dimethylformamide-κO)cadmium]. Acta Crystallogr. E71 (2015) 1022–1025.10.1107/S2056989015014516Search in Google Scholar PubMed PubMed Central

10. Yang, H.; Sang, R. L.; Xu, X.; Xu, L.: An unprecedented 3-D SHG MOF material of silver(I) induced by chiral triple helices. Chem. Commun. 49 (2013) 2909–2911.10.1039/c3cc40516hSearch in Google Scholar PubMed

11. Hardgrove, G. L.; Jons, S. D.: Structure of 2-amino-4,5-dicyanoimidazole. Acta Crystallogr. C47 (1991) 337–339.10.1107/S0108270190004851Search in Google Scholar

Received: 2020-03-01
Accepted: 2020-03-27
Published Online: 2020-04-24
Published in Print: 2020-06-25

©2020 Xue Mei et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
