Crystal structure of 1-[3-(trifluoromethyl)cinnamoyl]-3-(pyridin-2-yl-κN)pyrazole-κ2N-bis(2-phenylpyridinato-k2C,N)iridium(III) hexafluorophosphate complex, [C40H28F3IrN5O]PF6

  • Yan Yi Chong ORCID logo , Wun Fui Mark-Lee ORCID logo , Ishak Ahmad and Mohammad B. Kassim ORCID logo EMAIL logo
Published/Copyright: March 25, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 4

Abstract

[C40H28F3IrN5O]PF6, monoclinic, P21/c (no. 14), a = 20.2282(19) Å, b = 14.5095(11) Å, c = 12.6091(10) Å, β = 96.937(3)°, V = 3673.7(5) Å3, Z = 4, Rgt(F) = 0.0498, wRref(F2) = 0.1250, T = 107(2) K.

CCDC no.: 1985469

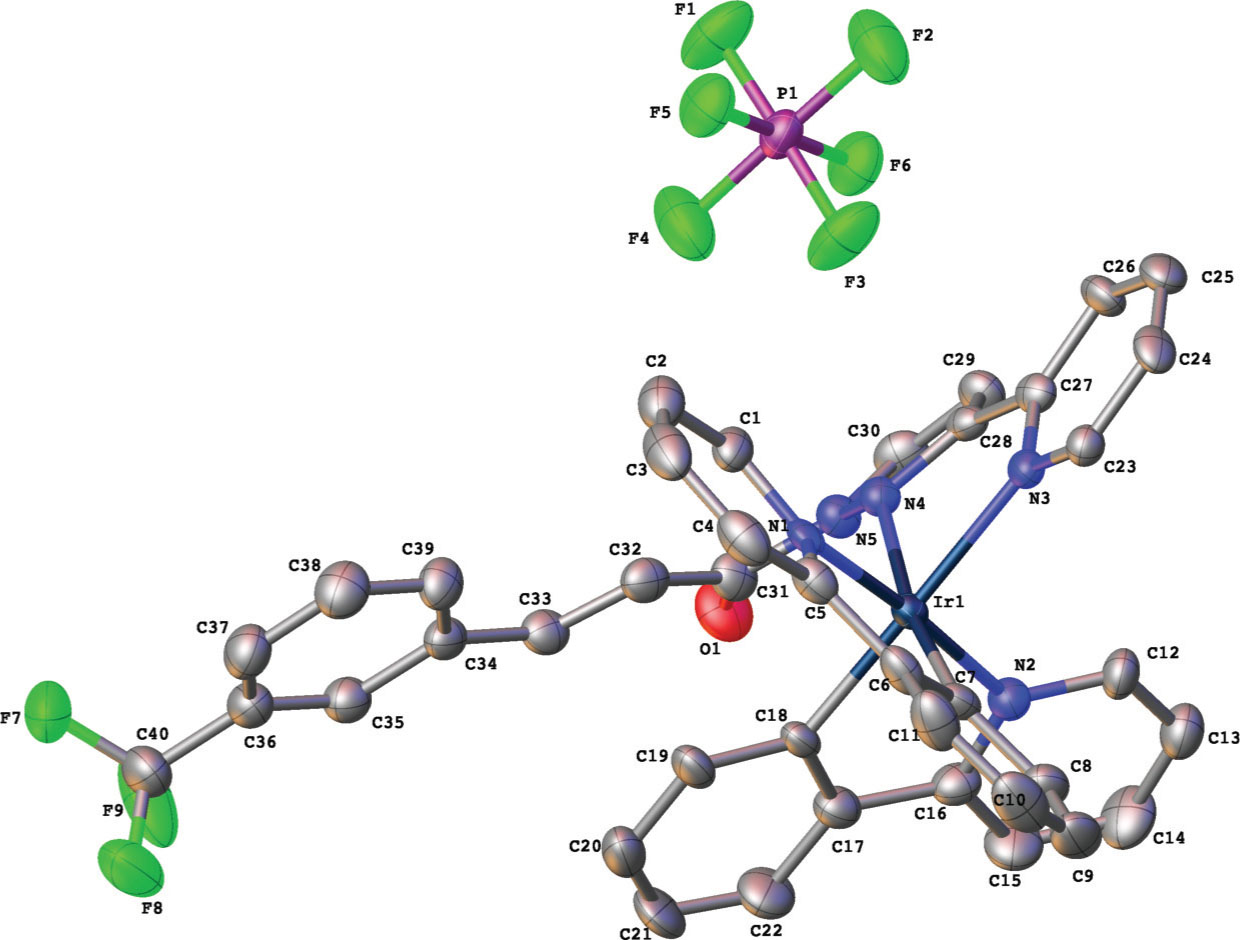

The crystal structure is shown in the figure (hydrogen atoms are omitted for clarity). Table 1 contains crystallographic data and Table 2 shows the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Orange plate
Size:0.30 × 0.18 × 0.11 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:3.77 mm−1
Diffractometer, scan mode:Bruker D8 QUEST PHOTON 100, φ and ω-scans
θmax, completeness:28.3°, >99%
N(hkl)measured, N(hkl)unique, Rint:112848, 9126, 0.182
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 6926
N(param)refined:496
Programs:Bruker programs [1], SHELX [2], SHELXT [3], SHELXL [4] and Olex2 [5]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Ir10.22452(2)0.42037(2)0.46589(2)0.02025(8)
P10.10114(10)0.78265(12)0.43177(14)0.0346(4)
F10.4711(3)0.5441(4)−0.1143(4)0.0725(11)
F20.5112(2)0.6570(4)−0.0172(4)0.0638(10)
F30.4420(3)0.6840(4)−0.1540(4)0.0725(11)
F40.1493(2)0.7922(4)0.5429(4)0.0638(10)
F50.1008(3)0.8932(3)0.4195(4)0.0665(10)
F60.0532(3)0.7725(3)0.3191(4)0.0665(10)
F70.1022(2)0.6740(3)0.4440(4)0.0509(11)
F80.1649(3)0.7771(4)0.3704(4)0.0704(16)
F90.0364(3)0.7871(5)0.4928(4)0.0777(18)
O10.4095(2)0.6461(4)0.5037(4)0.0459(12)
N10.1617(2)0.4429(3)0.3292(4)0.0225(10)
N20.2915(2)0.3892(4)0.5963(4)0.0260(10)
N30.1432(2)0.4576(3)0.5522(4)0.0232(10)
N40.2473(2)0.5635(3)0.5201(4)0.0231(10)
N50.3060(3)0.6123(4)0.5394(4)0.0273(11)
C10.1477(3)0.5262(5)0.2859(5)0.0294(13)
H10.1670100.5792510.3213760.035*
C20.1057(3)0.5376(6)0.1906(5)0.0389(16)
H20.0963230.5971600.1611650.047*
C30.0784(3)0.4599(6)0.1407(5)0.0435(18)
H30.0508810.4651490.0743220.052*
C40.0906(3)0.3745(5)0.1863(5)0.0388(16)
H40.0706550.3212790.1522020.047*
C50.1319(3)0.3659(4)0.2817(5)0.0280(13)
C60.1484(3)0.2813(4)0.3409(5)0.0305(14)
C70.1947(3)0.2910(4)0.4335(5)0.0268(12)
C80.2114(4)0.2122(4)0.4949(6)0.0365(15)
H80.2427670.2166360.5571680.044*
C90.1827(4)0.1275(5)0.4657(7)0.0445(18)
H90.1947870.0745230.5079140.053*
C100.1368(4)0.1197(5)0.3760(7)0.051(2)
H100.1170980.0616440.3567800.061*
C110.1196(4)0.1961(5)0.3144(6)0.0412(17)
H110.0876880.1906320.2530010.049*
C120.2755(3)0.3808(5)0.6968(5)0.0325(14)
H120.2301900.3864020.7087160.039*
C130.3228(4)0.3645(5)0.7822(5)0.0387(16)
H130.3103670.3582960.8521840.046*
C140.3886(4)0.3572(6)0.7648(6)0.0487(19)
H140.4223290.3467980.8227530.058*
C150.4045(4)0.3651(6)0.6619(6)0.0476(19)
H150.4496410.3600140.6487180.057*
C160.3553(3)0.3805(4)0.5780(5)0.0315(14)
C170.3651(3)0.3856(5)0.4643(5)0.0327(14)
C180.3059(3)0.3957(4)0.3930(5)0.0256(12)
C190.3113(4)0.3906(4)0.2832(5)0.0326(14)
H190.2721040.3934840.2334460.039*
C200.3726(4)0.3813(5)0.2461(6)0.0452(18)
H200.3752610.3780410.1715420.054*
C210.4304(4)0.3769(6)0.3182(7)0.053(2)
H210.4725310.3738670.2922910.064*
C220.4271(4)0.3769(6)0.4260(7)0.0485(19)
H220.4665700.3710020.4746530.058*
C230.0857(3)0.4111(4)0.5534(5)0.0248(12)
H230.0798910.3546480.5153730.030*
C240.0349(3)0.4422(5)0.6077(5)0.0342(15)
H24−0.0048500.4072610.6077900.041*
C250.0425(3)0.5248(5)0.6618(5)0.0361(15)
H250.0077660.5477420.6989430.043*
C260.1008(3)0.5739(5)0.6618(5)0.0320(14)
H260.1068960.6307430.6990770.038*
C270.1502(3)0.5393(4)0.6068(4)0.0247(12)
C280.2125(3)0.5862(4)0.5992(5)0.0246(12)
C290.2475(3)0.6510(4)0.6686(5)0.0317(14)
H290.2329790.6793060.7296980.038*
C300.3062(3)0.6640(4)0.6293(5)0.0345(14)
H300.3415330.7026260.6594350.041*
C310.3547(3)0.6205(4)0.4665(5)0.0313(14)
C320.3323(3)0.6062(4)0.3529(5)0.0319(14)
H320.2872080.5906230.3301900.038*
C330.3752(3)0.6149(4)0.2821(5)0.0319(13)
H330.4201180.6271540.3095710.038*
C340.3606(3)0.6077(4)0.1661(5)0.0303(13)
C350.4135(3)0.6175(5)0.1033(5)0.0347(14)
H350.4576330.6266380.1367390.042*
C360.4009(3)0.6139(5)−0.0062(5)0.0352(14)
C370.3378(4)0.5999(5)−0.0565(6)0.0411(16)
H370.3302510.596262−0.1321880.049*
C380.2852(4)0.5913(5)0.0030(7)0.0440(17)
H380.2412440.583123−0.0317200.053*
C390.2966(3)0.5945(5)0.1137(6)0.0348(15)
H390.2602530.5875420.1542360.042*
C400.4571(4)0.6230(5)−0.0728(6)0.0429(17)

Source of material

3-(Dimethylamino)-1-(2-pyridyl)-2-propen-1-one, hydrazine hydrate, 3-(trifluoromethyl)cinnamoyl chloride, iridium trichloride hydrate, 2-phenylpyridine, ammonium hexafluorophosphate and solvents were purchased and used without further purification.

The synthesis of the complex involves a total of four steps.

In the first step, 2-(1H-pyrazol-3-yl)pyridine (PyPzH) was synthesised according to the literature [5]. Subsequently, PyPzH was reacted with 3-(trifluoromethyl)cinnamoyl chloride to produce 1-[3-(trifluoromethyl)cinnamoyl]-3-(pyridin-2-yl)pyrazole (3-CF3CnPyPz) [6], [7], [8].

Next, iridium trichloride hydrate (0.352 g, 1.0 mmol) with 2-phenylpyridine (0.388 g, 2.5 mmol) were dissolved in a mixture of 2-ethoxyethanol (30 mL) and water (10 mL), and then refluxed for 24 h. The solution was cooled to room temperature, and the resulting yellow precipitate was collected by filtration through a Büchner funnel. The precipitate was washed with an excess of water and dried under vacuum. The crude cyclometalated chlorido-bridged dimer was directly used for the next step without purification.

In the final step, the aforementioned chlorido-bridged dimer (1.0 mmol) and 3-CF3CnPyPz ligand (2.5 mmol) were dissolved in dichloromethane (30 mL). The solution was refluxed under argon for 7 h. After cooling to room temperature, ammonium hexafluorophosphate (NH4PF6) in methanol (5 mL) was added and the mixture was stirred for 15 min. The solvent was then reduced under atmospheric pressure and the crude product was purified by column chromatography on silica gel with CH2Cl2/CH3OH (98:2) as eluent. The complex was obtained as orange powders. Yield: 67%. IR (ATR, cm−1): 1716 [ν(C=O)], 1605 [ν(C=Npyridine)], 1476 [ν(C=Cpyridine)], 832 [ν(PF6)]. 1H NMR (CDCl3, 400 MHz) δ (ppm): 8.35 (d, J = 7.6 Hz, 1H), 8.31 (d, J = 3.2 Hz, 1H), 8.16 (td, J = 8.0 Hz, 1H), 8.05 (d, J = 5.6 Hz, 1H), 8.02 (d, J = 8.0 Hz, 1H), 7.87–7.93 (m, 2H), 7.70–7.77 (m, 3H), 7.65 (d, J = 7.6 Hz, 1H), 7.59 (t, J = 7.6 Hz, 1H), 7.49–7.52 (m, 3H), 7.42–7.45 (m, 1H), 7.36–7.38 (m, 2H), 7.21–7.26 (m, 2H), 7.03–7.10 (m, 2H), 6.90 (td, J = 7.6 Hz, 1H), 6.82 (td, J = 8.0 Hz, 1H), 6.44–6.49 (m, 2H), 6.19 (d, J = 7.6 Hz, 1H), 6.12 (d, J = 7.6 Hz, 1H). MS (ESI): Found: 844.2006. C40H28F3IrN5O requires 844.1880.

Experimental details

All hydrogen atoms were positioned geometrically and allowed to ride on their respective parent atoms with C—H distances = 0.95 Å, and with Uiso(H) = 1.2Ueq for aryl and alkene H atoms. The PF6− anion molecule was refined with geometrical constraints (SADI) and displacement parameter constraints (EADP). The large R(int) parameter results from a non-optimal data collection. The resulting R-factors however verifies the structure assignments.

Comment

Phosphorescent cyclometalated Ir(III) complexes have attracted extensive interest due to their broad range of emission colours and high phosphorescence quantum efficiencies [9], [10]. These unique properties are quintessential for a complex to be explored as a promising candidate in the applications of organic light-emitting diodes (OLEDs) [11], [12] and light-emitting electrochemical cells (LEECs) [13], [14]. The archetypal Ir(III) phenylpyridine based complexes are widely employed in OLEDs and LEECs due to their high quantum yields, stability and facile colour tunability [15], [16]. The photophysical properties of these Ir(III) complexes can be tuned by utilising different ancillary ligands [17], [18] and also by employing various substituents on the phenylpyridine moieties and ancillary ligands [19], [20]. The photophysical properties of Ir(III) phenylpyridine complex with pyridylpyrazole moieties as an ancillary ligand has been studied for LEECs application [21]. Herein, we tune the emission of the aforementioned Ir(III) complex by attaching a cinnamoyl group to the pyridylpyrazole moieties. The crystal structure and the photophysical properties of the title complex were investigated.

In the crystal structure of the title compound, the Ir(III) metal centre adopts a distorted octahedral geometry, and is coordinated by two 2-phenylpyridyl (PPy) ligands and one 3-CF3CnPyPz ligand. The PPy ligands are arranged in a cis-C,C and trans-N,N chelate dispositions, which resemble those of previously reported [Ir(PPy)2(N^N)]+ complexes (N^N = polypyridine chelating ligand) [9], [22]. The bond lengths and angles around the iridium centre are similar to those related structures of Ir(C^N)2(N^N)]+ complexes (C^N = C-,N-donor cyclometalated ligand and N^N = polypyridine chelating ligand) [23], [24]. The Ir—N bond distances between the Ir centre and the pyridylpyrazole moiety, namely Ir(1)—N(3) and Ir(1)—N(4), are longer than those between the Ir centre and the PPy ligands, i.e. Ir(1)—N(1) and Ir(1)—N(2), which reflects the stronger trans influence of the phenyl groups of the PPy cyclometalated ligand [9], [25]. The pyridine and pyrazole moieties in the same ancillary ligand are slightly distorted from each other with an angle of 22.0(3)°. The trifluoromethyl-cinnamoyl fragment is tilted with respect to the pyridylpyrazole mean plane with a dihedral angle of 133.3(13)°. The vinyl hydrogens, —CH=CH— showed a trans configuration, with the H(32)—C(32)=C(33)—H(33) torsion angle of −176.6(6)°.

An extraordinary phenomenon is observed for the packing of the title complex, in which the PF6− counter ions play a crucial role to form the packing scheme of this structure. Two adjacent molecules form a centrosymmetric dimer via a non-classical C(22)—H(22)⋯O(1) hydrogen bond and these dimers are connected by five C—H⋯F contacts, generating a two-dimensional network when viewed along the c axis. Interestingly, there were no significant π⋯π interactions formed between the heterocylic rings of the neighbouring complexes despite the presence of 7 heterocyclic rings. However, a weak π⋯π interaction (between the pyrazole and pyridine rings of the ancillary ligand) is observed.

The absorption and photoluminescence spectra of the titled complex in CH3CN solution were investigated. Intense absorption bands between 210–300 nm was assigned to the spin allowed π–π* intraligand transitions [26], [27]. The weaker and broad absorption band in the range of 350–500 nm were assigned to the mixture of metal-to-ligand charge transfer (spin allowed 1MLCT and spin forbidden 3MLCT) [22], [28] and ligand-centered (LC) transitions [23], [29]. The complex displayed a broad emission band at 493 nm. The broad and featureless photoluminescence spectrum indicates that the emissive excited states have predominantly 3MLCT characters [30], [31].

Acknowledgements

The authors thank the Ministry of Higher Education for MyPhD support for CYY, Universiti Kebangsaan Malaysia (UKM) for GGP-2017-091, MI-2018-012 and Universiti Putra Malaysia (UPM) for GP-IPM/2020/9683100 research grant. We are also grateful to the Centre for Advanced Materials and Renewable Resources, Faculty of Science and Technology (UKM) for their provision of experimental facilities and Center for Research and Instrumentation Management (UKM) for the X-ray analysis provided.

References

1. Bruker. APEX3, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2016).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

3. Sheldrick, G. M.: SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

4. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

5. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

6. Mark-Lee, W. F.; Chong, Y. Y.; Law, K. P.; Ahmad, I.; Kassim M. B.: Synthesis, structure and density functional theory (DFT) study of a rhenium(I) pyridylpyrazol complex as a potential photocatalyst for CO2 reduction. Sains Malaysiana. 47 (2018) 1491–1499.10.17576/jsm-2018-4707-17Search in Google Scholar

7. Mark-Lee, W. F.; Chong, Y. Y.; Kassim, M. B.: Supramolecular structures of rhenium(I) complexes mediated by ligand planarity via the interplay of substituents. Acta Cryst. C. 74 (2018) 997–1006.10.1107/S2053229618010586Search in Google Scholar PubMed

8. Shelton, A. H.; Stephenson, A.; Ward, M. D.; Kassim, M. B.: 1-Benzoyl-3-(pyridin-2-yl)-1H-pyrazole. Acta Crystallogr. E67 (2011) o2445.10.1107/S1600536811033368Search in Google Scholar PubMed PubMed Central

9. Zhang, F.; Li, W.; Wei, D.; Dong, X.; Li, S.; Li, Z.; Zhang, F.; Wei, X.; Wei, B.; Cao, G.; Zhai, B.: Solution-processed organic light-emitting diodes based on a blue-emitting cationic iridium(III) complex using 2-(1H-pyrazol-1-yl)pyridine as ancillary ligand. Inorg. Chim. Acta 453 (2016) 115–121.10.1016/j.ica.2016.07.052Search in Google Scholar

10. Tang, M.; Zhu, S.; Liu, R.; Wang, J.; Zhang, Z.; Zhu, H.: Synthesis, characterization and optical properties of novel Ir(III) complexes bearing N-heterocycle substituents. J. Organomet. Chem. 880 (2019) 363–367.10.1016/j.jorganchem.2018.11.031Search in Google Scholar

11. Bolink, H. J.; Coronado, E.; Garcia Santamaria, S.; Sessolo, M.; Evans, N.; Klein, C.; Baranoff, E.; Kalyanasundaram, K.; Gräetzel, M.; Nazeeruddin, M. K.: Highly phosphorescent perfect green emitting iridium(III) complex for application in OLEDs. ChemComm. 31 (2007) 3276–3278.10.1039/b707879jSearch in Google Scholar PubMed

12. Yang, C.-H.; Fang, K.-H.; Chen, C.-H.; Sun, I.: High efficiency mer-iridium complexes for organic light-emitting diodes. ChemComm. 19 (2004) 2232–2233.10.1039/b406958gSearch in Google Scholar PubMed

13. Sunesh, C. D.; Shanmugasundaram, K.; Subeesh, M. S.; Chitumalla, R. K.; Jang, J.; Choe, Y.: Blue and blue-green light-emitting cationic iridium complexes: Synthesis, characterization, and optoelectronic properties. ACS Appl. Mater. Interfaces 7 (2015) 7741–7751.10.1021/acsami.5b00875Search in Google Scholar PubMed

14. Costa, R. D.; Ortí, E.; Bolink, H. J.; Graber, S.; Housecroft, C. E.; Constable, E. C.: Intramolecular π-stacking in a phenylpyrazole-based iridium complex and its use in light-emitting electrochemical cells. J. Am. Chem. Soc. 132 (2010) 5978–5980.10.1021/ja1010674Search in Google Scholar PubMed

15. Coppo, P.; Plummer, E. A.; De Cola, L.: Tuning iridium(III) phenylpyridine complexes in the ”almost blue” region. ChemComm. 15 (2004) 1774–1775.10.1039/B406851CSearch in Google Scholar PubMed

16. He, L.; Duan, L.; Qiao, J.; Zhang, D.; Wang, L.; Qiu, Y.: Enhanced stability of blue-green light-emitting electrochemical cells based on a cationic iridium complex with 2-(1-phenyl-1H-pyrazol-3-yl)pyridine as the ancillary ligand. ChemComm. 47 (2011) 6467–6469.10.1039/c1cc11263eSearch in Google Scholar PubMed

17. Shang, X.; Han, D.; Li, D.; Guan, S.; Wu, Z.: Theoretical study on the electronic structures and photophysical properties of a series of Ir(III) complexes based on substituted 2-(pyrazol-3-yl)pyridine ligand. Chem. Phys. Lett. 588 (2013) 68–75.10.1016/j.cplett.2013.10.041Search in Google Scholar

18. Chen, L.; Wu, Z.; Yang, J.; Zhang, S.: The synthesis and crystal structure of bis(2-(benzo[d]thiazol-2-yl)-5-methylbenzen-1-ido-κ2C,N)-(N,N′-diethyldithiocarbamato-κ2S,S′)iridium(III), C33H30N3S4Ir. Z. Kristallogr. NCS 234 (2019) 1173–1176.10.1515/ncrs-2019-0308Search in Google Scholar

19. Ho, C.-L.; Lam, C.-S.; Sun, N.; Ma, D.; Liu, L.; Yu, Z.-Q.; Xue, L.; Lin, Z.; Li, H.; Lo, Y. H.; Wong, W.-Y.: Synthesis, characterization, and electroluminescent properties of iridium(III) 2-phenylpyridine-type complexes containing trifluoromethyl substituents and various main-group moieties. Isr. J. Chem. 54 (2014) 999–1014.10.1002/ijch.201400076Search in Google Scholar

20. Zanoni, K. P. S.; Kariyazaki, B. K.; Ito, A.; Brennaman, M. K.; Meyer, T. J.; Murakami Iha, N. Y.: Blue-green iridium(III) emitter and comprehensive photophysical elucidation of heteroleptic cyclometalated iridium(III) complexes. Inorg. Chem. 53 (2014) 4089–4099.10.1021/ic500070sSearch in Google Scholar PubMed

21. He, L.; Duan, L.; Qiao, J.; Wang, R.; Wei, P.; Wang, L.; Qiu, Y.: Blue-emitting cationic iridium complexes with 2-(1H-pyrazol-1-yl)pyridine as the ancillary ligand for efficient light-emitting electrochemical cells. Adv. Funct. Mater. 18 (2008) 2123–2131.10.1002/adfm.200701505Search in Google Scholar

22. Stagni, S.; Colella, S.; Palazzi, A.; Valenti, G.; Zacchini, S.; Paolucci, F.; Marcaccio, M.; Albuquerque, R. Q.; De Cola, L.: Essential role of the ancillary ligand in the color tuning of iridium tetrazolate complexes. Inorg. Chem. 47 (2008) 10509–10521.10.1021/ic801157kSearch in Google Scholar PubMed

23. He, L.; Ma, D.; Duan, L.; Wei, Y.; Qiao, J.; Zhang, D.; Dong, G.; Wang, L.; Qiu, Y.: Control of intramolecular π–π stacking interaction in cationic iridium complexes via fluorination of pendant phenyl rings. Inorg. Chem. 51 (2012) 4502–4510.10.1021/ic2021325Search in Google Scholar PubMed

24. Zubaidi, Z. N.; Metherell, A. J.; Baggaley, E.; Ward, M. D.: Ir(III) and Ir(III)/Re(I) complexes of a new bis(pyrazolyl-pyridine) bridging ligand containing a naphthalene-2,7-diyl spacer: Structural and photophysical properties. Polyhedron 133 (2017) 68–74.10.1016/j.poly.2017.05.017Search in Google Scholar

25. Orselli, E.; Kottas, G. S.; Konradsson, A. E.; Coppo, P.; Fröhlich, R.; De Cola, L.; Van Dijken, A.; Büchel, M.; Börner, H.: Blue-emitting iridium complexes with substituted 1,2,4-triazole ligands: Synthesis, photophysics, and devices. Inorg. Chem. 46 (2007) 11082–11093.10.1021/ic701110pSearch in Google Scholar PubMed

26. Sykes, D.; Parker, S. C.; Sazanovich, I. V.; Stephenson, A.; Weinstein, J. A.; Ward, M. D.: d→f Energy transfer in Ir(III)/Eu(III) dyads: Use of a naphthyl spacer as a spatial and energetic “stepping stone”. Inorg. Chem. 52 (2013) 10500–10511.10.1021/ic401410gSearch in Google Scholar PubMed PubMed Central

27. Zhang, K. Y.; Lo, K. K.-W.: Synthesis, properties, and live-cell imaging studies of luminescent cyclometalated iridium(III) polypyridine complexes containing two or three biotin pendants. Inorg. Chem. 48 (2009) 6011–6025.10.1021/ic900412nSearch in Google Scholar PubMed

28. Connell, T. U.; White, J. M.; Smith, T. A.; Donnelly, P. S.: Luminescent iridium(III) cyclometalated complexes with 1,2,3-triazole “click” ligands. Inorg. Chem. 55 (2016) 2776–2790.10.1021/acs.inorgchem.5b02607Search in Google Scholar PubMed

29. Song, Y.-H.; Chiu, Y.-C.; Chi, Y.; Cheng, Y.-M.; Lai, C.-H.; Chou, P.-T.; Wong, K.-T.; Tsai, M.-H.; Wu, C.-C.: Phosphorescent iridium(III) complexes with nonconjugated cyclometalated ligands. Chem. Eur. J. 14 (2008) 5423–5434.10.1002/chem.200800050Search in Google Scholar PubMed

30. Jayabharathi, J.; Thanikachalam, V.; Srinivasan, N.; Perumal, M. V.: Evidence for strong mixing between the LC and MLCT excited states in some heteroleptic iridium(III) complexes. J. Fluoresc. 21 (2011) 1585–1597.10.1007/s10895-011-0847-xSearch in Google Scholar PubMed

31. Jayabharathi, J.; Thanikachalam, V.; Sathishkumar, R.: Highly phosphorescent green emitting iridium(III) complex for application in OLEDs. New J. Chem. 39 (2015) 235–245.10.1039/C4NJ01334DSearch in Google Scholar
