Crystal structure of bis(5-ethoxy-2-(((1-hydroxy-2-methyl-3-oxidopropan-2-yl)imino)methyl)phenolato-κ3N,O,O’)manganese(IV) – methanol (1/1), C27H38MnN2O9

  • Ge Yuan , Wang Dengwu , Huo Xiaoping , Yang Liguo ORCID logo and Zhang Cuihong EMAIL logo
Published/Copyright: April 24, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 4

Abstract

C27H38MnN2O9, monoclinic, C2/c (no. 15), a = 14.9473(14) Å, b = 17.8744(16) Å, c = 12.5536(11) Å, β = 122.596(5)°, V = 2825.7(5) Å3, Z = 4, Rgt(F) = 0.0423, wRref(F2) = 0.1295, T = 298 K [1], [2], [3].

CCDC no.: 1995024

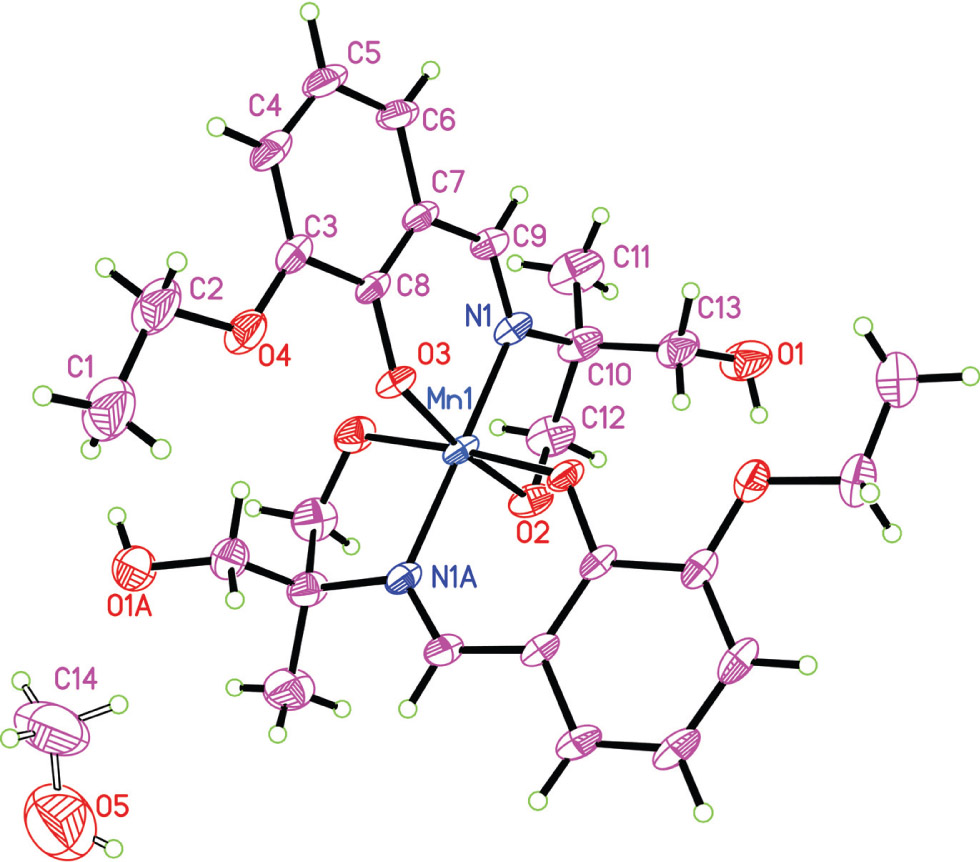

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Black block
Size:0.10 × 0.08 × 0.06 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.52 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:27.7°, >99%
N(hkl)measured, N(hkl)unique, Rint:17608, 3293, 0.031
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2815
N(param)refined:190
Programs:Bruker [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Mn10.50000.32403(2)0.25000.03507(15)
N10.41569(14)0.31641(9)0.32834(15)0.0399(4)
O10.13220(17)0.27866(15)0.09058(19)0.0830(7)
H10.12300.26780.02190.124*
C10.9096(3)0.5192(3)0.5444(4)0.1122(15)
H1A0.92510.46940.53000.168*
H1B0.97480.54560.59860.168*
H1C0.86890.54500.46510.168*
O20.40465(13)0.25313(9)0.13883(14)0.0519(4)
C20.8481(2)0.5154(2)0.6048(3)0.0847(10)
H2A0.88870.48990.68560.102*
H2B0.83130.56530.61900.102*
C30.68750(16)0.45971(11)0.56169(17)0.0412(4)
O30.58391(11)0.40026(8)0.36528(12)0.0401(3)
O40.75377(13)0.47538(10)0.52193(15)0.0559(4)
C40.70129(19)0.48240(12)0.67480(19)0.0503(5)
H40.76040.51090.73080.060*
C50.6281(2)0.46338(13)0.70632(19)0.0544(6)
H50.63780.47990.78210.065*
O5a0.9823(18)0.2709(5)0.2212(15)0.184(5)
H5Aa0.93150.28240.15120.276*
C14a0.9832(11)0.3169(8)0.3160(12)0.149(4)
H14Aa1.03140.35800.33680.223*
H14Ba1.00580.28760.39040.223*
H14Ca0.91310.33600.28390.223*
C60.54248(19)0.42071(13)0.62626(19)0.0485(5)
H60.49380.40800.64770.058*
C70.52667(16)0.39528(11)0.51017(16)0.0380(4)
C90.43811(17)0.34812(12)0.43249(18)0.0420(4)
H90.39190.33920.45920.050*
C80.59748(15)0.41624(10)0.47493(16)0.0350(4)
C100.3213(2)0.26645(13)0.2568(2)0.0527(6)
C110.2938(3)0.22313(18)0.3405(3)0.0822(10)
H11A0.35650.19910.40770.123*
H11B0.24110.18600.29080.123*
H11C0.26660.25710.37570.123*
C120.3539(2)0.21321(14)0.1884(3)0.0642(7)
H12A0.40170.17540.24690.077*
H12B0.29160.18820.12040.077*
C130.2291(2)0.31772(15)0.1639(2)0.0581(6)
H13A0.22050.35690.21110.070*
H13B0.24670.34130.10790.070*

  1. aOccupancy. 0.5.

Source of material

The organic ligand was synthesized from the reaction of o-vanillin (100 mg, 0.65 mmol) and 2-amino-2-methylpropane-1,3-diol (70 mg, 0.65 mmol) according to the procedure reported earlier [4]. The ligand (0.010 mol) and manganese acetate (0.01 mol) was added to methanolic solution (30 mL), the mixture refluxed for 24 h with the formation of a yellow powder. The solid was filtered off washed with water, methanol and ether and dried under vacuum. Yield (2.5 g, 32%).

Experimental details

The C-bound H atoms were geometrically placed (C—H = 0.95–0.98 Å) and refined as riding with Uiso(H) = 1.2–1.5 Ueq(C) [1], [2], [3]. The methanol molecule has a large ellipsoid due to the disorder around a center of twofold axis.

Comment

Schiff base compounds show photochromism and thermochromism in the solid state by proton transfer from the hydroxy O atom to the imine N atom. Lots of the complexes with the schiff base ligand have been synthesized. One new schiff base ligand was synthesized by our group. Then one manganese complex with the new ligand has been synthesized. The similar complexes have been reported [4], [5], [6], [7], [8].

As shown in the Figure, the asymmetric unit of the title structure contains one half of the manganes complex (located on a twofold axis) and one half of methanol molecule (near a twofold axis). The bond lengths of Mn1—O2, Mn1—O3 and Mn1—N1 are 1.854, 1.889 and 1.976 Å, respectively, which are similar with the Ni complex [9]. In the Ni complex, the coordination environment is the same with the compound one.

Acknowledgements

This work was supported by Scientific Research Program Funded by Shaanxi Provincial Education Department (No. 19JK0909), the Science Research Foundation of Xijing University (No. XJ18B06).

References

1. BRUKER. SAINT, APEX2 and SADABS. Bruker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

2. Sheldrick, G. M.: SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Tatar, L.; Nazir, H.; Gumuser, M.; Kale, C.; Atakol, O.: Synthesis, crystal structure and electrochemical behaviour of water soluble Schiff bases. Z. Kristallogr. NCS 220 (2005) 639–642.10.1524/zkri.220.7.639.67102Search in Google Scholar

5. Asgedom, G.; Sreedhara, A.; Kivikoski, J.; Valkonen, J.; Kolehmainen, E.; Rao, C. P.: Alkoxo bound monooxo- and dioxovanadium(V) complexes: synthesis, characterization, X-ray crystal structures, and solution reactivity studies. Inorg. Chem. 35 (1996) 5674–5683.10.1021/ic960061rSearch in Google Scholar PubMed

6. Dey, M.; Rao, C. P.; Saarenketo, P. K.; Rissanen, K.; Kolehmainen, E.; Guionneau, P.: Mn(IV) and Co(III)-complexes of -OH-rich ligands possessing O2N, O3N and O4N cores: syntheses, characterization and crystal structures. Polyhedron 22 (2003) 3515–3521.10.1016/j.poly.2003.09.015Search in Google Scholar

7. Yuce, S.; Albayrak, C.; Odabasoglu, M.; Buyukgungor, O.: (Z)-6-{[1,3-Dihydroxy-2-(hydroxy-methyl)propan-2-yliminio]methyl}-2-ethoxyphenolate, (Z)-6-{[1,3-dihydroxy-2-(hydroxymethyl)propan-2-yliminio]methyl}-4-nitratocyclohexa-2,4-dienone monohydrate and (R,E)-2-[(1-hydroxybutan-2-ylimino)methyl]phenol. Acta. Crystallogr. C62 (2006) o389–o393.10.1107/S0108270106017252Search in Google Scholar PubMed

8. Sartaj, T.; Samira, A.; Farukh, A.; Claudio, P.; Fabio, M.; Norberto, M.; Giulio, L.; Riccardo, P.: Mixed-ligand Cu(II)-vanillin Schiff base complexes; effect of coligands on their DNA binding, DNA cleavage, SOD mimetic and anticancer activity. Eur. J. Med. Chem. 60 (2013) 216–232.10.1016/j.ejmech.2012.08.019Search in Google Scholar PubMed

9. Zhou, T.; Zhou, R. J.; Zhe, A.: Bis(6-methoxy-2-{[tris(hydroxymethyl)-methyl]iminomethyl}phenolato)nickel(II) dihydrate. Acta Crystallogr. C65 (2009) m779.10.1107/S1600536809022028Search in Google Scholar PubMed PubMed Central

Received: 2020-03-10
Accepted: 2020-04-06
Published Online: 2020-04-24
Published in Print: 2020-06-25

©2020 Ge Yuan et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
