Crystal structure of {tris((1H-benzo[d]imidazol-2-yl)methyl)amine-κ4N,N′,N′′,N′′′}-(nitrito-κ2O,O′)nickel(II) perchlorate – ethanol (1/1), C26H27ClN8NiO7

  • Xin-Lun Li , Zhong-Ping Luo , Jun-Chao Zhang und Feng-Mei Nie EMAIL logo
Veröffentlicht/Copyright: 25. März 2020
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 235 Heft 4

Abstract

C26H27ClN8NiO7, triclinic, P1̄ (no. 2), a = 9.893(2) Å, b = 11.503(2) Å, c = 13.295(3) Å, α = 78.77(3)°, β = 70.52(3)°, γ = 83.40(3)°, V = 1397.0(6) Å3, Z = 2, Rgt(F) = 0.0423, wRref(F2) = 0.1032, T = 153.15 K.

CCDC no.: 1976381

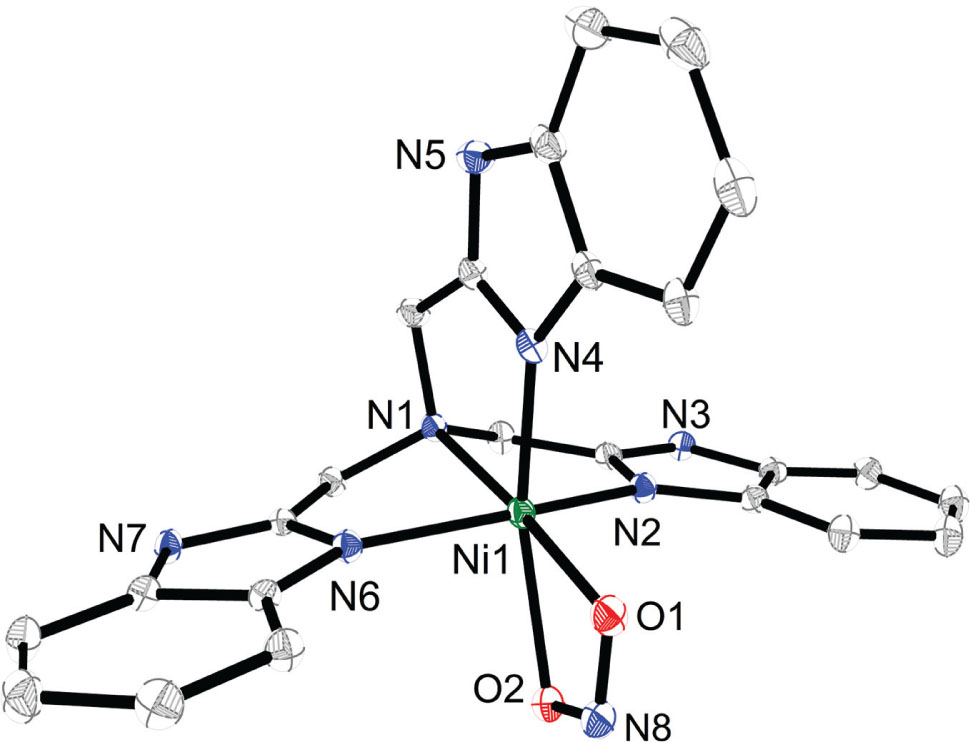

The cationic complex, which is the main part of the title salt is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Green block
Size:0.23 × 0.21 × 0.16 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.85 mm−1
Diffractometer, scan mode:XTALAB, φ and ω
θmax, completeness:27.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:16933, 6358, 0.039
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 6056
N(param)refined:389
Programs:Olex2 [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Ni10.43233(3)0.14083(2)0.74578(2)0.02002(9)
Cl10.25409(6)−0.39307(5)1.00241(5)0.03244(14)
O10.50066(18)0.00607(14)0.65473(12)0.0302(3)
O20.35826(18)−0.04480(14)0.81061(13)0.0314(4)
O30.3721(3)−0.3376(2)0.91963(18)0.0672(7)
O40.25618(19)−0.37812(16)1.10737(14)0.0381(4)
O50.1256(3)−0.3367(3)0.9878(2)0.1014(12)
O60.2615(3)−0.5151(2)0.9962(2)0.0780(8)
O70.6033(2)−0.32853(16)0.67500(17)0.0458(5)
H0.5319−0.28020.68940.055*
N20.24016(18)0.19413(15)0.72507(14)0.0225(3)
N30.03104(18)0.29489(16)0.77405(14)0.0237(4)
H3−0.03820.34120.80960.028*
N10.36007(18)0.27940(15)0.85386(13)0.0213(3)
N40.53141(19)0.27803(16)0.63908(14)0.0232(4)
N50.5987(2)0.46313(17)0.60621(15)0.0281(4)
H50.60750.53440.61750.034*
N70.62793(19)0.12731(15)0.97679(14)0.0232(4)
H70.62150.15171.03700.028*
N60.57172(18)0.10429(15)0.83369(13)0.0218(3)
N80.4357(2)−0.07853(18)0.72414(16)0.0340(4)
C10.1619(2)0.17750(18)0.65931(16)0.0220(4)
C20.1973(2)0.1130(2)0.57457(17)0.0271(4)
H20.28770.07080.55200.032*
C30.0950(2)0.1134(2)0.52501(18)0.0322(5)
H3A0.11500.06920.46780.039*
C4−0.0380(3)0.1772(2)0.55656(19)0.0330(5)
H4−0.10520.17530.52000.040*
C5−0.0733(2)0.2426(2)0.63934(18)0.0295(5)
H5A−0.16270.28650.66030.035*
C60.0290(2)0.24072(19)0.69031(17)0.0238(4)
C70.1581(2)0.26406(18)0.79134(16)0.0222(4)
C80.2024(2)0.3019(2)0.87704(17)0.0254(4)
H8A0.17670.38750.87850.030*
H8B0.15120.25700.94880.030*
C90.4435(2)0.38625(19)0.79463(17)0.0265(4)
H9A0.37680.45750.79680.032*
H9B0.51220.39680.83140.032*
C100.5238(2)0.37549(19)0.67955(17)0.0242(4)
C110.6149(2)0.3037(2)0.53035(16)0.0246(4)
C120.6528(2)0.2349(2)0.44874(18)0.0286(5)
H120.62130.15680.46180.034*
C130.7386(2)0.2860(2)0.34737(18)0.0345(5)
H130.76550.24220.28940.041*
C140.7864(2)0.4006(3)0.32859(19)0.0377(6)
H140.84750.43150.25860.045*
C150.7476(3)0.4700(2)0.4086(2)0.0354(5)
H150.77960.54800.39530.043*
C160.6590(2)0.4197(2)0.50992(18)0.0277(5)
C170.3994(2)0.23089(18)0.95308(16)0.0230(4)
H17A0.32160.18311.00660.028*
H17B0.41410.29640.98610.028*
C180.5346(2)0.15523(17)0.92095(16)0.0200(4)
C190.6985(2)0.03809(18)0.83292(16)0.0214(4)
C200.7843(2)−0.0344(2)0.76110(18)0.0279(5)
H200.7589−0.04690.70130.033*
C210.9078(2)−0.0877(2)0.7801(2)0.0326(5)
H210.9687−0.13720.73200.039*
C220.9457(2)−0.0703(2)0.8690(2)0.0355(5)
H221.0323−0.10740.87890.043*
C230.8597(2)−0.0005(2)0.9420(2)0.0322(5)
H230.88410.01021.00280.039*
C240.7357(2)0.05330(19)0.92230(17)0.0234(4)
C250.6876(4)−0.3348(3)0.7436(3)0.0638(10)
HA0.6401−0.38260.81490.077*
HB0.6970−0.25400.75510.077*
C260.8322(3)−0.3899(3)0.6938(4)0.0834(14)
HC0.8750−0.34680.62040.125*
HD0.8234−0.47300.69060.125*
HE0.8936−0.38620.73760.125*

Source of material

Tris(2-benzimidazolylmethyl)amine (ntb) was synthesized according to the literature method [3]. An ethanol (10 mL) solution of ntb (0.080 g, 0.20 mmol) was added into an ethanol (20 mL) solution of Ni(ClO4)2 ⋅ 6H2O (0.074 g, 0.20 mmol) and sodium nitrite (0.014 g, 0.20 mmol), forming a clear green solution. The solution was stirred for one hour and then filtered. The filtrate was evaporated for three days to form green crystals.

Experimental details

The methyl groups were idealized and refined using rigid groups allowed to rotate about the N—C bond. The Uiso values of the hydrogen atoms of methyl groups were set to 1.5 Ueq(C) and the Uiso values of all other hydrogen atoms were set to 1.2 Ueq(C).

Comment

The nitrite anion is an ambidentate ligand which can form linkage isomers [4]. It can coordinate to metal ions in various ways. In the mononuclear complex, three coordination modes can often be observed, as unidentate N-(nitro) and O-(nitrito) coordination or as bidentate O,O-(nitrito) coordination [5]. It is known that the coordination mode of nitrite is mainly influenced by the steric hindrance imposed by the ancillary ligands. Tris(2-benzimidazolylmethyl)amine (ntb) is such a rigid tripodal tetradentate ligand [6], [7], [8]. In order to see how the ancillary ligand may influence the coordination mode of nitrite, a new complex [Ni(ntb)(NO2)]ClO4 ⋅ CH3CH2OH was prepared and characterized.

The title compound consists of a discrete [Ni(ntb)(NO2)]+ cation, a perchlorate anion and a non-coordinated solvent molecule of ethanol. In the complex cation, the nickel(II) ion is coordinated by four N atoms from ntb and two O atoms from nitrite, forming a distorted octahedral geometry (as shown in the figure, 50° displacement ellipsoids, hydrogen atoms omitted for clarity). The tertiary amine N1, two benzimidazole N2, N6, and the oxygen O1 atoms define the equatorial plane. Equatorial bond angles are in the range of 78.25(7)°–102.05(7)°, deviating from 90° remarkably [9]. Axial positions are occupied by O2 and N4 with a bond angle O2—Ni1—N4 of 158.66(7)°, showing a serious distorted octahedral environment. As expected, the tripodal ntb ligand coordinates to the nickel(II) ion with the three benzimidazole groups in a T shape. The plane of the nitrite is coplanar with one of them. The three Ni—Nbenzimidazole distances are from 2.005(2) Å to 2.0481(18) Å. The distance between Ni1 and tertiary amine N1 is 2.2498(18) Å, significantly longer than the Ni—Nbenzimidazole bond lengths, which is attributed to the steric requirement of the tripodal tetradentate ligand ntb [6], [7].

It is worth noting that the nitrite exhibits an asymmetrical bidentate chelating mode with two obvious different Ni—O bond lengths, Ni1—O1 [2.0663(17) Å], Ni1—O2 [2.2497(18) Å]. The same asymmetrical bidentate chelating mode was also observed in a ferrous complex [Fe(ntb)(κ2-O2N)]BF4 (2.104(4) Å and 2.338(4) Å for Fe1—O1 and Fe1—O2) [10]. But in [Cu(ntb)(NO2)]NO2, only mono-coordination of nitrite can be observed [a mixture of both κ1-NO2 and κ1-ONO linkage isomers] [11].

In the complex, two of the [Ni(ntb)NO2]+ cations are interlinked anti-symmetrically by hydrogen bonds to form a dimolecular unit. These dimolecular units are further interacted to form 1D chain structure by hydrogen bonds through the perchlorate anion and benzimidazole groups of ntb. The 1D chains are further expanded into 2D network structure by weak π–π stacking interactions.

Acknowledgements

This study was supported by Scientific Research Base Development Program of the Beijing Municipal Commission of Education (No. KM201910028013).

References

1. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

2. Rigaku: CrystalClear-SM Expert. Rigaku Corporation, Tokyo, Japan (2011).Suche in Google Scholar

3. Thompson, L. K.; Ramaswamy, B. S.; Seymour, E. A.: Cobalt(II) and zinc(II) complexes of ‘tripod’ ligand tris(2-benzimidazolylmethyl)amine. some five-coordinated derivates and some with mixed stereochemistries. Can. J. Chem. 55 (1977) 878–888.10.1139/v77-122Suche in Google Scholar

4. Brayshaw, S. L.; Easun, T. L.; George, M. W.; Griffin, A. M. E.; Jhonson, A. L.; Raithby, P. R.; Savarese, T. L.; Schiffers, S.; Warren, J. E.; Warren, M. R.; Teat, S. J.: Photocrystallographic identification of metastable nitrito linkage isomers in a series of nickel(II) complexes. Dalton Trans. 41 (2012) 90–97.10.1039/C1DT11379HSuche in Google Scholar

5. Golchoubian, H.; Kocheksaraee, S. K.; Moayyedi, G.: Nitrite-bonded nickel(II) complex of N-cyclohexyl-N-(2-pyridinylmethyl)amine; synthesis, spectroscopic characterization, X-ray structure and DFT calculations. Polyhedron 123 (2017) 376–384.10.1016/j.poly.2016.12.014Suche in Google Scholar

6. Contreras, R.; Flores-Parra, A.; Migangos, E.; Téllez, F.; López-Sandoval, H.; Barba-Behrens, N.: From mono to polydentate azole and benzazole derivatives, versatile ligands for main group and transition metal atoms. Coord. Chem. Rev. 253 (2009) 1979–1999.10.1016/j.ccr.2009.02.020Suche in Google Scholar

7. Nie, F. M.; Chen, J.; Lu, F.: Synthesis, crystal structures and magnetic studies of terephthalato- and fumarato-bridged dinickel(II) complexes with tripodal poly-benzimidazole ligand. Inorg. Chim. Acta 365 (2011) 190–195.10.1016/j.ica.2010.09.009Suche in Google Scholar

8. Nie, F. M.; Li, Z.; Dong, Z. Y.; Yang, Y. L.: Crystal structure of (isonicotinato-O,O′)-[tris(2-benzimdazoly-N,N′, N′′-methyl)amine-N]nickel(II) perchlorate-methanol-water, [NiN(C24H21N6)(C6H4NO2)]ClO4 ⋅ CH3OH ⋅ H2O. Z. Kristallogr. NCS 224 (2009) 437–439.10.1524/ncrs.2009.0191Suche in Google Scholar

9. Chen, J.; Zhang, H.: Crystal structure of dinitrato-κO-bis(tris((1H-benzo[d]imidazol-2-yl)methyl)amine-κ4N,N′,N′′,N′′′)-(μ2-cyclohexane-1,4-dicarboxylato-κ4O,O′:O′′,O′′′)dimanganese(II) – methanol – water (1/6/2), C62H80Mn2N16O18. Z. Kristallogr. NCS 232 (2017) 775–777.10.1515/ncrs-2017-0029Suche in Google Scholar

10. Woollard-Shore, J. G.; Holland, J. P.; Jones, M. W.; Dilworth, J. R.: Nitrite reduction by copper complexes. Dalton Trans. 39 (2010) 1576–1585.10.1039/B913463HSuche in Google Scholar PubMed

11. Tsou, C. C.; Yang, W. L.; Liaw, W. F.: Nitrite activation to nitric oxide via one-fold protonation of iron(II)-O,O-nitrito complex: relevance to the nitrite reductase activity of deoxyhemoglobin and deoxyhemerythrin. J. Am. Chem. Soc. 135 (2013) 18758–18761.10.1021/ja4105864Suche in Google Scholar PubMed

Received: 2019-11-26
Accepted: 2020-01-09
Published Online: 2020-03-25
Published in Print: 2020-06-25

©2020 Xin-Lun Li et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
