Crystal structure of poly[(5-bimethylamino-1-naphthalenesulfonato-κO)-(μ3-hexamethylenetetramino-κ3N:N′:N′′)silver(I)] dihydrate, C36H52Ag2N10O8S2

  • Jin-Ke Jiang , Gang Yang , Li-Ying Sun , Chun-Yan Wang and Feng Wang ORCID logo EMAIL logo
Published/Copyright: April 10, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 4

abstract

C36H52Ag2N10O8S2, orthorhombic, Pna21 (no. 33), a = 11.7911(16) Å, b = 31.310(5) Å, c = 10.6883(11) Å, V = 3945.9(9) Å3, Z = 4, Rgt(F) = 0.0353, wRref(F2) = 0.0784, T = 293(2) K.

CCDC no.: 1985662

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.24 × 0.20 × 0.17 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.16 mm−1
Diffractometer, scan mode:XtaLAB Pro, ω
θmax, completeness:25.0°, 99%
N(hkl)measured, N(hkl)unique, Rint:18516, 6557, 0.039
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 5756
N(param)refined:533
Programs:CrysAlisPRO [1], SHELX [2], [4], WinGX/ORTEP [3], Diamond [5]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.8936(7)0.4023(2)0.0835(8)0.0415(19)
C20.8990(6)0.4128(2)0.2067(11)0.0465(17)
H380.8457400.4017850.2621100.056*
C30.9831(9)0.4399(3)0.2508(8)0.058(2)
H370.9868860.4459760.3358820.070*
C41.0592(8)0.4575(3)0.1725(7)0.050(2)
H391.1168040.4746310.2043360.060*
C51.0526(7)0.4502(2)0.0426(7)0.0393(17)
C60.9702(7)0.4210(2)−0.0026(7)0.0354(17)
C70.9696(7)0.4119(3)−0.1325(8)0.0443(19)
H420.9138670.394310−0.1660440.053*
C81.0498(8)0.4289(3)−0.2076(8)0.051(2)
H411.0512210.421078−0.2915390.062*
C91.1310(8)0.4577(3)−0.1633(8)0.047(2)
H401.1857980.468418−0.2174180.056*
C101.1301(7)0.4702(3)−0.0417(7)0.0421(18)
C111.1556(9)0.5395(3)0.0584(10)0.063(3)
H431.2074040.5514220.1181410.094*
H441.0856290.5323780.0993380.094*
H451.1412930.559914−0.0066580.094*
C121.3028(8)0.5111(4)−0.0746(11)0.071(3)
H461.3548080.528794−0.0288040.107*
H471.2778620.526045−0.1481450.107*
H481.3400310.485131−0.0987090.107*
C130.3356(6)0.4125(2)0.5543(7)0.0355(16)
C140.2435(7)0.4306(3)0.4986(7)0.045(2)
H250.1909220.4135600.4571880.054*
C150.2279(7)0.4749(3)0.5036(8)0.046(2)
H260.1640190.4873710.4678160.055*
C160.3071(7)0.4996(3)0.5614(8)0.043(2)
H270.2958990.5289570.5652730.052*
C170.4054(6)0.4821(2)0.6155(7)0.0354(17)
C180.4193(7)0.4372(2)0.6165(7)0.0362(17)
C190.5138(7)0.4203(3)0.6798(7)0.045(2)
H280.5262940.3909310.6782180.054*
C200.5867(7)0.4456(3)0.7427(8)0.053(2)
H290.6459070.4334350.7878390.064*
C210.5739(8)0.4897(3)0.7407(7)0.052(2)
H300.6255530.5067250.7834600.062*
C220.4878(7)0.5082(3)0.6776(7)0.0417(19)
C230.5012(9)0.5709(3)0.5515(9)0.062(3)
H310.4650390.5548030.4862370.093*
H320.5819740.5699340.5401530.093*
H330.4759110.5999990.5482010.093*
C240.5280(12)0.5769(4)0.7693(9)0.080(4)
H340.5048670.5663090.8496310.120*
H350.5074740.6064440.7619870.120*
H360.6087030.5739870.7608320.120*
C250.4003(8)0.1671(3)0.4466(8)0.0372(19)
H30.3273910.1610230.4085700.045*
H40.4561710.1485990.4077270.045*
C260.5401(6)0.2209(2)0.4833(5)0.0262(14)
H70.5599230.2507010.4706900.031*
H80.5986280.2036170.4447560.031*
C270.3429(6)0.2386(2)0.4824(6)0.0278(15)
H110.2701580.2328980.4433390.033*
H120.3605560.2685180.4699210.033*
C280.5038(6)0.1668(2)0.6351(7)0.0350(17)
H50.5612940.1485350.5981920.042*
H60.4998670.1602910.7237280.042*
C290.3078(6)0.1841(2)0.6337(7)0.0380(17)
H10.3018680.1774790.7221260.046*
H20.2351330.1779150.5950320.046*
C300.4473(5)0.2383(2)0.6726(6)0.0260(15)
H90.4661200.2681360.6600390.031*
H100.4440660.2331540.7620390.031*
C310.2515(8)0.3406(2)0.9520(8)0.0325(17)
H130.3228580.3484040.9131320.039*
H140.1923320.3582910.9161410.039*
C320.3193(6)0.2697(2)0.9818(6)0.0263(14)
H170.3062790.2396620.9650050.032*
H180.3908000.2776630.9433030.032*
C330.2151(5)0.2654(2)1.1742(6)0.0280(15)
H230.1993990.2354031.1592000.034*
H240.2186240.2697151.2639770.034*
C340.1511(6)0.3364(2)1.1435(6)0.0310(15)
H210.0914520.3543311.1095450.037*
H220.1551580.3416691.2328610.037*
C350.3479(6)0.3222(2)1.1403(6)0.0317(16)
H150.3523790.3274381.2295890.038*
H160.4199430.3301361.1032660.038*
C360.1182(6)0.2841(2)0.9859(6)0.0262(14)
H190.0579980.3012340.9497730.031*
H200.1009490.2542930.9697240.031*
Ag10.21235(4)0.27894(2)0.71427(6)0.03515(13)
Ag2−0.04739(4)0.27043(2)1.21066(6)0.05288(19)
N11.2047(6)0.5011(2)0.0043(7)0.0514(18)
N20.4723(7)0.5526(2)0.6719(6)0.0508(19)
N30.3945(5)0.1575(2)0.5775(6)0.0376(15)
N40.4309(5)0.21218(19)0.4216(5)0.0279(12)
N50.5370(5)0.21191(18)0.6186(5)0.0249(12)
N60.3346(5)0.22975(18)0.6179(5)0.0272(12)
N70.2267(5)0.29519(18)0.9258(5)0.0257(12)
N80.2581(5)0.34818(18)1.0866(5)0.0329(14)
N90.1220(5)0.29132(18)1.1221(5)0.0271(12)
N100.3266(4)0.27648(18)1.1181(5)0.0241(12)
O10.8779(6)0.3269(2)0.0005(11)0.092(3)
O20.7288(5)0.3744(2)−0.0579(7)0.0673(18)
O1W0.5611(8)0.3159(2)−0.1566(9)0.085(2)
H1A0.5148230.334154−0.1864780.128*
H1B0.6047710.330523−0.1099060.128*
O30.7408(7)0.3478(3)0.1495(7)0.091(3)
O2W0.5953(7)0.3075(2)0.3213(8)0.074(2)
H2A0.6444000.3261270.3007480.111*
H2B0.5355620.3218510.3361040.111*
O40.4576(6)0.34722(19)0.4915(6)0.0614(18)
O50.2535(7)0.3422(2)0.4683(8)0.065(2)
O60.3418(6)0.34098(18)0.6726(5)0.0630(19)
S10.80208(17)0.35937(6)0.0399(2)0.0470(5)
S20.34806(19)0.35643(6)0.5454(2)0.0445(5)

Experimental details

Data of a single crystal were collected via CrysAlisPRO at 293 K [1], structure was solved by SHELXT [2] within WinGX [3], refined by SHELXL [4] and the graphics were finished using Diamond [5].

Experimental detail

Hydrogen atoms of the organic ligands are positioned using a riding model [4]. The coordinates of the hydrogen atoms of the water molecules are refined freely. Uiso parameters of all hydrogen atoms are constrained depending of the attached parent atoms.

Comment

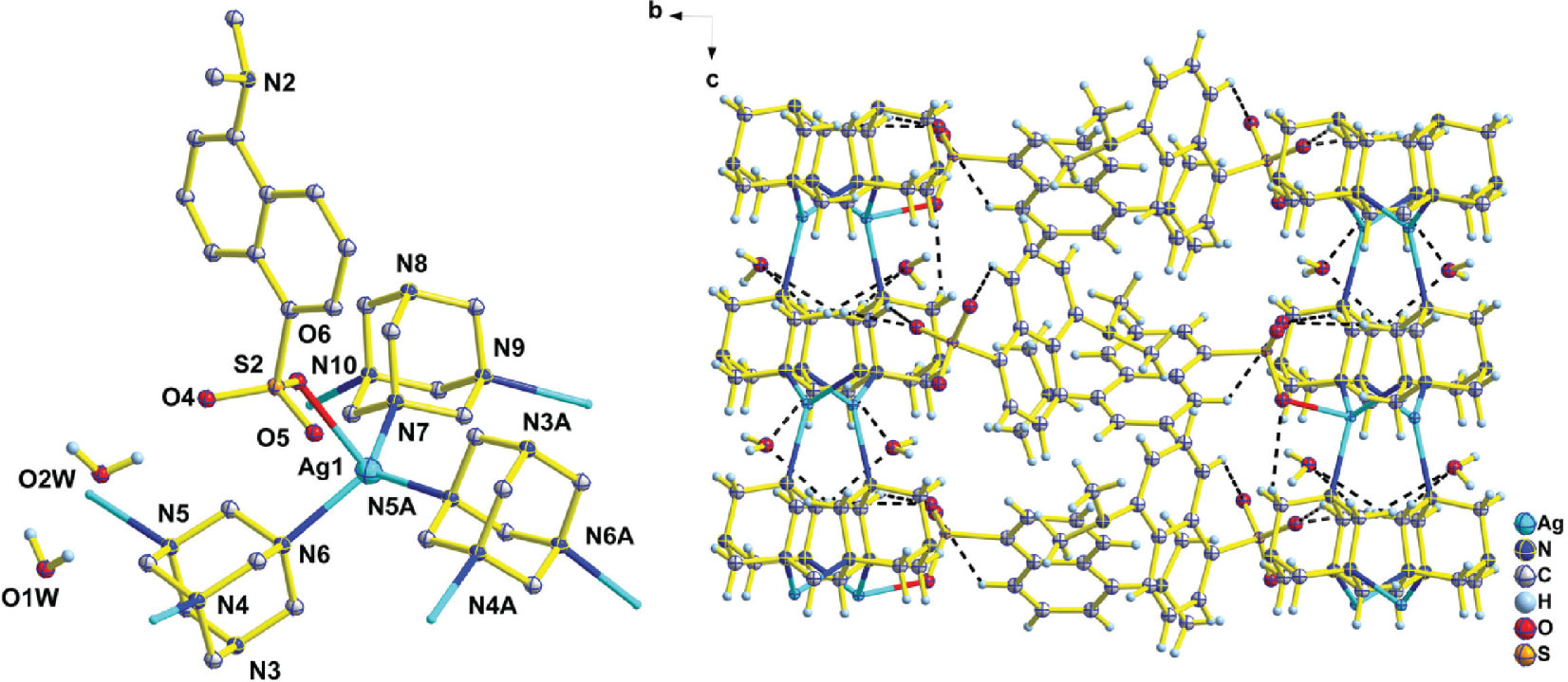

As is depicted in the left part of the figure, the Ag1 is four-coordinated by three nitrogen atoms and one oxygen atom. And three nitrogen atoms come from three hexamethylenetetramine ligands, one oxygen atom comes from 5-bimethylamino-1-naphthalenesulfonate. The bond distances of Ag—O and Ag—N are in the normal ranges. Additionally, there are two free water molecules. Most importantly, the weak interaction CH⋯O also plays an important role in forming a 3D structure [6-8] (cf. right part of the figure). (symmetry codes: A = −1/2 + x, 1/2 − y, z).

Acknowledgements

This work was supported by the Youth Foundation of Jilin Agricultural Science and Technology University (no. 201811439036).

References

1. Rigaku Corporation: CrysAlisPRO. Rigaku Corporation, Yarnton, Oxfordshire, England (2015).Search in Google Scholar

2. Sheldrick, G. M.: SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

4. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

5. Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Ver. 3.2., Crystal Impact, Bonn, Germany (2012).Search in Google Scholar

6. Wu, H.; Dong, X.-W.; Ma, J.-F.; Liu, H.-Y.; Yang, J.; Bai, H.-Y.: Influence of anionic sulfonate-containing and nitrogen-containing mixed-ligands on the structures of silver coordination polymers. Dalton Trans. 17 (2009) 3162–3174.10.1039/b814942aSearch in Google Scholar PubMed

7. Jiang, J.-K.; Li, X.-X.; Jiang, H.; Dong, X.-W.: Crystal structure of poly[aqua (μ2-2-amino-1,4-benzenedisulfonato-κ3N,O:O′)-(μ4-hexamethylenetetramino-κ4N:N′:N′′: N′′′)disilver(I)]monohydrate, C12H21Ag2N5O8S2. Z. Kristallogr. NCS 234 (2019) 1251–1252.10.1515/ncrs-2019-0372Search in Google Scholar

8. Liu, F.-J.; Sun, D.; Hao, H.-J.; Huang, R.-B.; Zheng, L.-S.: A novel photolumine scent silver(I) wire supported by 4-tertbutylbenzoate and ligand-unsupported Ag-Ag interactions. Inorg. Chem. Commun. 15 (2012) 136–139.10.1016/j.inoche.2011.10.009Search in Google Scholar
