Crystal structure of (E)-2-cyano-N′-(1-(3-ethylpyrazin-2-yl)ethylidene)acetohydrazide, C11H3N5O

  • Xiao-Li Gao ORCID logo EMAIL logo
Published/Copyright: December 7, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 2

Abstract

C11H3N5O, monoclinic, P21/c (no. 14), a = 15.727(4) Å, b = 5.0572(12) Å, c = 15.452(4) Å, β = 105.007(4)°, V = 1187.1(5) Å3, Z = 4, Rgt(F) = 0.0408, wRref(F2) = 0.1123, T = 296 K.

CCDC no.: 1967400

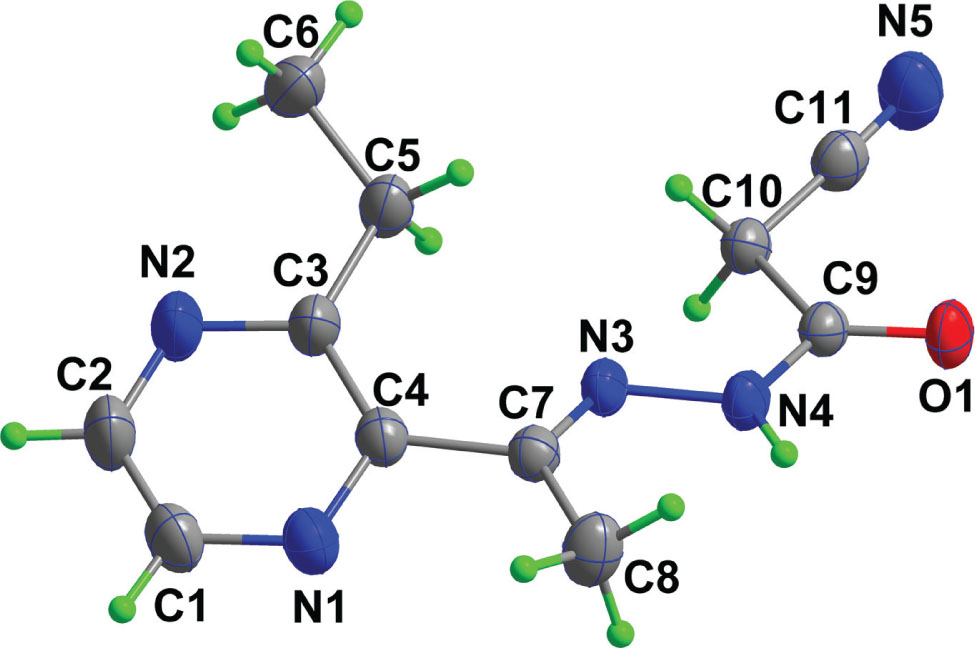

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.20 × 0.08 × 0.06 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.09 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:5635, 2075, 0.038
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1217
N(param)refined:195
Programs:Bruker [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.54196(8)0.1900(3)0.58487(9)0.0618(5)
N10.11477(11)0.4601(3)0.36013(11)0.0648(5)
N2a0.0898(5)0.7985(12)0.4933(5)0.0703(15)
N2Ab0.0718(16)0.695(4)0.5028(18)0.075(5)
N30.32346(10)0.3869(3)0.50430(10)0.0508(5)
N40.40022(10)0.2469(3)0.51117(10)0.0516(5)
H40.40130.11830.47510.062*
N50.60456(13)0.6104(4)0.76141(14)0.0932(8)
C10.04327(15)0.6103(5)0.34847(16)0.0757(7)
H10.00130.60690.29360.091*
C20.03031(16)0.7684(6)0.41479(19)0.0903(9)
H2Aa−0.02250.86030.40510.108*
H2Bb−0.00470.91900.40220.108*
C3a0.1629(5)0.6503(14)0.5094(6)0.0573(16)
C3Ab0.1440(14)0.555(3)0.5102(17)0.043(4)
C40.17363(12)0.4720(4)0.43961(13)0.0547(6)
C5a0.2246(3)0.6648(11)0.6007(3)0.0686(17)
H5Aa0.27730.75820.59660.082*
H5Ba0.24180.48650.62100.082*
C5Ab0.1879(9)0.523(2)0.6085(8)0.074(4)
H5AAb0.14440.48830.64150.089*
H5ABb0.22910.37660.61790.089*
C6a0.1879(3)0.7996(8)0.6700(2)0.0861(15)
H6Aa0.17100.97720.65110.129*
H6Ba0.23190.80350.72620.129*
H6Ca0.13730.70420.67690.129*
C6Ab0.2348(9)0.774(3)0.6391(11)0.087(5)
H6AAb0.29350.76390.63190.130*
H6ABb0.23710.80210.70110.130*
H6ACb0.20400.91770.60400.130*
C70.25479(13)0.3139(4)0.44497(13)0.0496(5)
C80.25146(14)0.0942(4)0.37922(15)0.0718(7)
H8A0.27930.15030.33390.108*
H8B0.19120.04900.35180.108*
H8C0.2817−0.05750.40980.108*
C90.47309(13)0.3121(4)0.57439(12)0.0473(5)
C100.46550(12)0.5517(4)0.63004(12)0.0506(5)
H10A0.45660.70810.59240.061*
H10B0.41490.53220.65440.061*
C110.54454(14)0.5844(4)0.70304(14)0.0602(6)

  1. aOccupancy: 0.753(8), bOccupancy: 0.247(8).

Source of material

Cyanoacetic acid hydrazide (0.099 g, 1 mmol) and 3-ethyl-2-aceto-pyrazine (0.150 g, 1 mmol) were dissolved in methanol (20 mL). The reaction mixture was refluxed for 1 h and cooled to room temperature. The reaction mixture was filtered and set aside to crystallize for several days, giving colorless block crystals.

Experimental details

The structure was solved by direct methods and refined with the SHELX crystallographic software package [2]. The N2, C3, C5, and C6 atoms occupied two positions, with the occupancy value of N2/N2A, C3/C3A, C5/C5A or C6/C6A being 0.75/0.25 (see Table 2). The hydrogen atoms were placed at calculated positions and refined as riding atoms with isotropic displacement parameters.

Comment

Hydrozones derived from 2-aceto-pyrazine and their metal complexes have been widely investigated mainly due to their excellent biological activities [3], [4], [5]. However, most studies focused on aryl-hydrazones, whereas those on alkyl-hydrazones are relatively rare [3], [4], [5].

There is one molecule in the asymmetric unit (see the figure). In the title crystal structure, the hydrazone molecule is in a ketone form and adopts an E configuration at the C=N double bond. All bond distances and angles are in their normal ranges, and can be compared with those in previously reported 2-cyanoacetic acid hydrazone compounds [6], [7]. The dihedral angle between the mean plane of the pyrazine ring (N1, N2/C1—C4) and the —C=O(CH2)CN (O1, N5/C9—C11) group is 14.2°. In the solid state, two molecules are linked with each other into a centrosymmetric dimer by a pair of intermolecular N—H⋯O hydrogen bonds, forming a R22(8) ring motif similar to the corresponding structure in the literature [7].

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 21671124

Funding statement: This work was supported by the National Natural Science Foundation of China (grant no. 21671124).

References

1. Bruker. APEX2, SAINT v7.60A and SAINT v7.60A. Bruker AXS Inc., Madison, WI, USA (2008).Search in Google Scholar

2. Sheldrick, G. M.: Crystal structure refinement with SHELX. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

3. Xu, J.; Zhou, T.; Xu, Z.-Q.; Gu, X.-N.; Wu, W.-N.; Chen, H.; Wang, Y.; Jia, L.; Zhu, T.-F.; Chen, R.-H.: Synthesis, crystal structures and antitumor activities of copper(II) complexes with a 2-acetylpyrazine isonicotinoyl hydrazone ligand. J. Mol. Struct. 1128 (2017) 448–454.10.1016/j.molstruc.2016.09.016Search in Google Scholar

4. Wang, W.-W.; Wang, Y.; Zhang, L.; Song, Y.-F.; Wu, W.-N.; Chen, Z.: Syntheses, crystal structures and DNA-binding properties of Cu(II)/Ni(II) complexes with acylhydrazone ligand bearing pyrazine unit. Chin. J. Inorg. Chem. 35 (2019) 563–568.Search in Google Scholar

5. Hou, X.-F.; Zhao, X.-L.; Zhang, L.; Wu, W.-N.; Wang, Y.: Co(II)/Zn(II)/Cu(II) complexes containing hydrazone ligand bearing pyrazine unit: syntheses, crystal structures and fluorescence properties. Chin. J. Inorg. Chem. 34 (2018) 201–205.Search in Google Scholar

6. Yusufzai, S. K.; Osman, H.; Wahab, H. A.; Rosli, M. M.; Razak, I. A.: 2-Cyano-N′-[(E)-1-(2-oxo-2H-chromen-3-yl)ethyl-idene] acetohydrazide. Acta Crystallogr. E68 (2012) o2005.10.1107/S1600536812019915Search in Google Scholar PubMed PubMed Central

7. Zhang, X.-Y.; Han, X.-L.; Qian, Z.-B.: 2-Cyano-N′-[1-(pyridin-2-yl)ethylidene]acetohydrazide. Acta Crystallogr. E68 (2012) o3203.10.1107/S1600536812042869Search in Google Scholar PubMed PubMed Central

Received: 2019-10-14
Accepted: 2019-11-22
Published Online: 2019-12-07
Published in Print: 2020-02-25
