Crystal structure of methyl (E)-N2-((3-methylquinolin-8-yl)sulfonyl)-Nω′-nitro-L-argininate - ethanol (1/1), C19H28N6O7S

  • Binli Jiang ORCID logo and Guo-Chun Zhou EMAIL logo
Published/Copyright: October 25, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 2

Abstract

C19H28N6O7S, monoclinic, P21 (no. 4), a = 8.1573(1) Å, b = 17.4823(1) Å, c = 9.1162(1) Å, β = 116.432(1)°, V = 1164.14(2) Å3, Z = 2, Rgt(F) = 0.0273, wRref(F2) = 0.0732, T = 170(2) K.

CCDC no.: 1922467

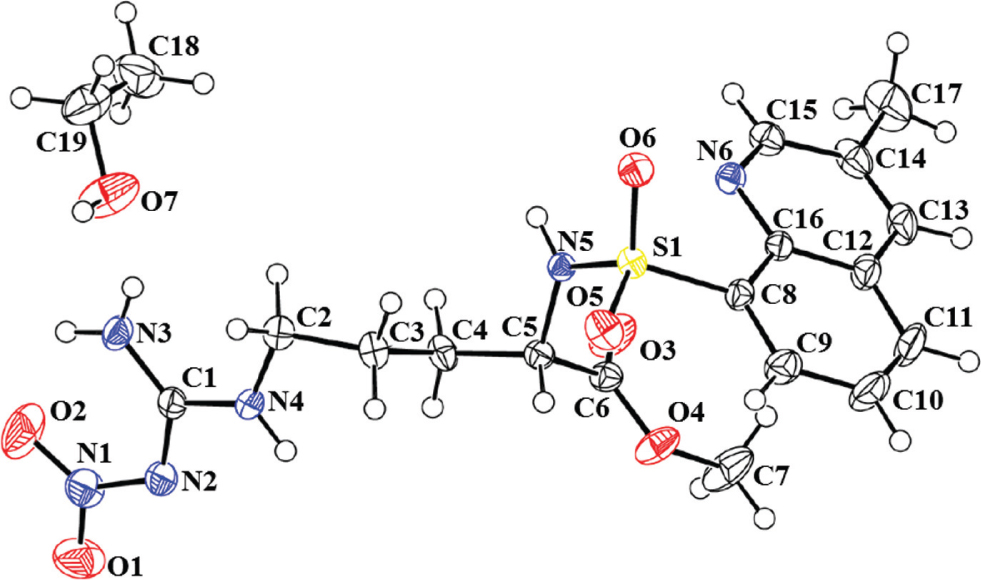

The crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Block, colorless
Size:0.31 × 0.25 × 0.22 mm
Wavelength:Cu Kα radiation (1.54184 Å)
μ:1.69 mm−1
Diffractometer, scan mode:XtaLAB Synergy R, ω-scans
θmax, completeness:75.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:21113, 4394, 0.019
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4350
N(param)refined:302
Programs:CrysAlisPRO [1], SHELX [2], [3], DIAMOND [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
S10.85986(6)0.37651(3)0.28561(5)0.01876(12)
O1−0.3533(3)0.65911(14)0.2025(3)0.0560(6)
O2−0.1375(3)0.71613(14)0.4088(3)0.0587(6)
O30.4740(3)0.50527(11)−0.0885(2)0.0422(5)
O40.4055(2)0.38181(11)−0.09722(18)0.0349(4)
O50.7888(2)0.31740(9)0.3507(2)0.0295(4)
O61.0424(2)0.40402(9)0.38129(17)0.0259(3)
N1−0.1905(3)0.66482(12)0.3028(3)0.0348(5)
N2−0.0780(3)0.61244(11)0.2883(3)0.0285(4)
N30.1913(3)0.66470(11)0.5140(2)0.0260(4)
H3A0.3101830.6605620.5745240.031*
H3B0.1303770.7021120.5320390.031*
N40.1968(2)0.55826(11)0.3690(2)0.0260(4)
H40.1363620.5262890.2882890.031*
N50.7264(2)0.45014(10)0.2511(2)0.0177(3)
H50.7729610.4958320.2855170.021*
N60.9252(2)0.46816(11)0.0431(2)0.0210(4)
C10.1039(3)0.61466(13)0.3957(3)0.0222(4)
C20.3924(3)0.54635(15)0.4655(3)0.0282(5)
H2A0.4187710.5336800.5797160.034*
H2B0.4588110.5940000.4672020.034*
C30.4586(3)0.48193(14)0.3938(3)0.0254(5)
H3C0.3921530.4344500.3933060.030*
H3D0.5904480.4731060.4647810.030*
C40.4304(3)0.49857(14)0.2203(3)0.0245(4)
H4A0.4782110.5502160.2165720.029*
H4B0.2977410.4982260.1451880.029*
C50.5270(3)0.43976(12)0.1620(2)0.0204(4)
H5A0.4954510.3873210.1851750.024*
C60.4652(3)0.44737(12)−0.0218(2)0.0224(4)
C70.3542(5)0.3810(2)−0.2722(3)0.0489(7)
H7A0.2503330.415568−0.3291600.073*
H7B0.3195610.328988−0.3147190.073*
H7C0.4582390.398010−0.2902960.073*
C80.8428(3)0.34286(12)0.0965(2)0.0208(4)
C90.7882(3)0.26874(14)0.0494(3)0.0320(5)
H90.7583530.2359600.1171080.038*
C100.7769(4)0.24199(17)−0.1011(4)0.0435(6)
H100.7402430.190735−0.1340140.052*
C110.8181(4)0.28883(17)−0.1994(3)0.0405(6)
H110.8121470.269419−0.2989630.049*
C120.8694(3)0.36586(14)−0.1558(3)0.0277(5)
C130.9044(3)0.41828(17)−0.2564(3)0.0331(5)
H130.9017240.401232−0.3564230.040*
C140.9418(3)0.49288(16)−0.2117(3)0.0321(5)
C150.9493(3)0.51471(14)−0.0593(3)0.0262(5)
H150.9735430.566946−0.0285660.031*
C160.8826(3)0.39381(12)−0.0049(2)0.0203(4)
C170.9782(4)0.5516(2)−0.3143(3)0.0499(8)
H17A1.1061810.568157−0.2578810.075*
H17B0.8976570.595800−0.3314600.075*
H17C0.9542920.529222−0.4205090.075*
O70.5473(3)0.65204(13)0.8022(2)0.0552(6)
H70.5477950.6259400.8797710.083*
C180.6725(5)0.7570(2)0.7241(5)0.0571(9)
H18A0.5495940.7758870.6516620.086*
H18B0.7139030.7223150.6629880.086*
H18C0.7571690.8003280.7652710.086*
C190.6675(4)0.71484(18)0.8660(4)0.0485(7)
H19A0.7917000.6966630.9415590.058*
H19B0.6236750.7491520.9275020.058*

Source of materials

Procedures for preparation of methyl (E)-N2-((3-methylquinolin-8-yl)sulfonyl)-Nω′-nitro-L-argininate was adapted from the reported paper [5], [6]. Sodium carbonate (3.64 g, 34.3 mmol) was added to a solution of methyl Nω′-nitro-L-argininate (4.00 g, 17.15 mmol) in water (40 mL) under stirring. The mixture was stirred for 1 hour at 0 °C. Then a solution of 3-methylquinoline-8-sulfonyl chloride (7.46 g, 30.87 mmol) in tetrahydrofuran (40 mL) was added and the mixture was warmed up to room temperature and stirred for 4 hours.

The crude residue was purified by flash column chromatography with an appropriate eluting solvent system. Off-white, Yield, 85%. 1H NMR (400 MHz, DMSO) δ 8.86 (d, J = 2.2 Hz, 1H), 8.27 (s, 1H), 8.21 (dd, J = 7.3, 1.3 Hz, 1H), 8.17 (dd, J = 8.3, 1.2 Hz, 1H), 7.90 (d, J = 8.5 Hz, 1H), 7.72–7.64 (m, 1H), 4.36– 4.26 (m, 1H), 3.18 (s, 3H), 3.11–2.99 (m, 2H), 2.53 (s, 3H), 1.72–1.33 (m, 5H), 1.23 (s, 2H). 13C NMR (101 MHz, CDCl3): δ 171.34, 159.25, 153.11, 141.17, 135.66, 135.52, 133.08, 132.36, 129.51, 128.66, 125.52, 55.71, 52.13, 40.35, 30.19, 24.33, 18.74. HR-MS(ESI+) m/z calcd. for C17H23N6O6S [M + H]+: 439.1400, Found: 439.1422 (M + H); IR (cm−1): 3408(w), 3295(w), 3250(w), 1737(s), 1623(s), 1596(s), 1538(w), 1418(m), 1331(m), 1253(s), 1221(m), 1160(s), 1138(m), 1008(w), 937(w), 886(w), 770(m), 679(m), 582(s), 536(m), 489(w).

The ethanol solvate was synthesized by the following procedure. An amount of 1 mmol methyl(E)-N2-((3-methylquinolin-8-yl)sulfonyl)-Nω′-nitro-L-argininate was dissolved in a mixed solvent of 5 mL absolute ethanol and 1 mL dichloromethane, then the solution was stayed in room temperature for slow evaporation. Colorless crystals were formed after three days. Yield: 80%.

Experimental details

The structure was solved with the ShelXT [2] structure solution program and refined with the XL [3] refinement package. The positions of the hydrogen atoms were generated geometrically. The figure was drawn by Diamond 4.0 [4].

Comment

The title compound is an important intermediate for the thrombin inhibitor argatroban. Argatroban was synthesized in 1970 [7]. The crystal structure of this intermediate is benefit to understand the reaction mechanism. Two related structures were found in the CSD: One is Nη-nitro-L-arginine methyl ester hydrochloride, and the other is L-nitroargininium picrate [8], [9].

The asymmetric unit contains one tite molecule and one ethanol. The bond lengths and angles within these moieties are in the expected ranges. The S1—N5 distance is 1.6237(17) Å. The C5—N5 distance is 1.470(3) Å. Viewing nitroguanidine part closer. For C—N bond, the distance of C1—N2, C1—N3, C1—N4 is 1.367(3) Å, 1.324(3) Å and 1.330(3) Å, respectively. For N—N bond, the distance of N1—N2 is 1.344(3) Å.

There are four intermolecular hydrogen bonds: N3—H3A⋯O7 (dN⋯O = 2.932(1) Å; ∠NHO = 153°, ′′ = 1 − x; +1/2 + y; 1 − z), N4—H4⋯N6 (dN⋯N = 3.218(1) Å; ∠NHN = 165°, ′′ = −1 + x; y; z), N5—H5⋯N2 (dN⋯N = 3.198(1) Å; ∠NHN = 157°, ′′ = 1 + x; y; z) and O7—H7⋯O3 (dO⋯O = 2.909(1) Å; ∠OHO = 136°, ′′ = 1 − x; −1/2 + y; −z). Intermolecular hydrogen bonds extend the structure to a three dimensional framework.
