Crystal structure of dimethylammonium 5-fluorouracil-1-acetate, C8H12N3O4F

  • Xiao Zhang ORCID logo EMAIL logo , Kaiyun Li and Sen Liang ORCID logo
Published/Copyright: December 20, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 2

Abstract

C8H12N3O4F, monoclinic, P21/c (no. 14), a = 4.8090(3) Å, b = 9.9340(6) Å, c = 22.2437(13) Å, β = 90.138(8)°, V = 1062.64(11) Å3, Z = 4, Rgt(F) = 0.0452, wRref(F2) = 0.1227, T = 293(2) K.

CCDC no.: 1964557

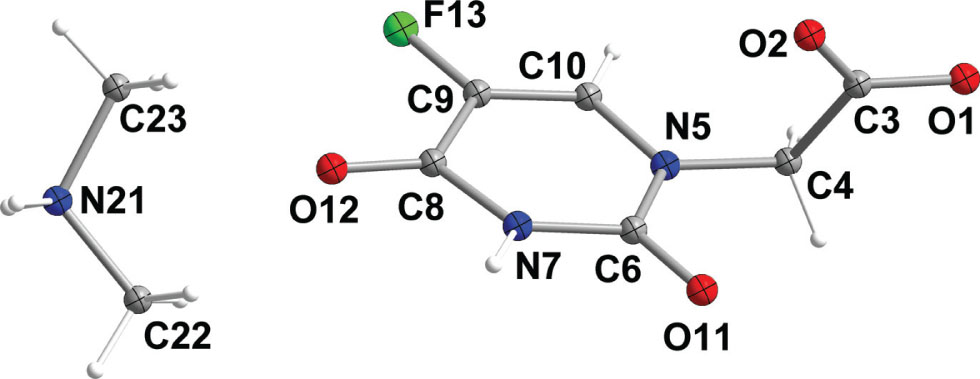

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless needle
Size:0.17 × 0.15 × 0.11 mm
Wavelength:Cu Kα radiation (1.54178 Å)
μ:1.11 mm−1
Diffractometer, scan mode:Bruker APEX-III, φ and ω
θmax, completeness:73.6°, >99%
N(hkl)measured, N(hkl)unique, Rint:3999, 2076, 0.035
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1637
N(param)refined:147
Programs:SHELX [1], Diamond [2], Bruker [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
F130.7841(3)0.09962(12)0.49448(5)0.0267(3)
O10.3712(3)0.45061(14)0.25356(6)0.0203(3)
O20.1524(3)0.31808(13)0.32033(6)0.0194(3)
O110.1585(3)0.52371(13)0.43199(6)0.0183(3)
O120.3714(3)0.20050(14)0.57022(6)0.0223(3)
N50.5141(3)0.38024(16)0.41055(7)0.0160(4)
N70.2662(3)0.35912(16)0.49992(6)0.0157(3)
H70.11390.38370.52410.019*
C30.3380(4)0.39767(19)0.30545(8)0.0162(4)
C40.5545(4)0.44330(19)0.35168(8)0.0168(4)
H4A0.73870.42120.33700.020*
H4B0.54420.54030.35610.020*
C60.3035(4)0.42648(18)0.44629(8)0.0150(4)
C80.4171(4)0.24957(19)0.52092(8)0.0170(4)
C90.6262(4)0.20551(19)0.47827(8)0.0181(4)
C100.6699(4)0.26921(19)0.42643(8)0.0177(4)
H100.80760.23830.40060.021*
N210.1248(3)0.90736(15)0.30591(7)0.0178(4)
H21A−0.02970.92470.28530.021*
H21B0.26900.92920.28280.021*
C220.1366(5)0.7613(2)0.31927(9)0.0270(5)
H22A0.30310.74170.34150.041*
H22B0.13710.71140.28230.041*
H22C−0.02260.73610.34270.041*
C230.1292(5)0.9925(2)0.36074(9)0.0223(4)
H23A−0.03210.97350.38460.033*
H23B0.12851.08570.34940.033*
H23C0.29380.97330.38370.033*

Source of material

5-Fluorouracil-1-acetic acid was obtained by the literature method [4]. 5-Fluorouracil-1-acetic acid (0.054 g, 0.3 mmol) and AgBF4 (0.058 g, 0.3 mmol) were dissolved in CH3OH (4 mL) under ultrasonication. After adding 0.3 mmol phenanthroline, DMF (2 mL) was added to the mixture under ultrasonication. The mixture was sealed and heated to 70 °C for 20 h. Then the solution was cooled to room temperature and filtered, slow evaporation afforded colorless needle crystals of the title compound as an unexpected result.

Experimental details

All hydrogen atoms were positioned geometrically and allowed to ride on their parent atoms.

Comment

Pharmaceutical cocrystal compounds [5] have been extensively studied in their structures and pharmacological activity. The stability of some drug molecules will be improved after forming cocrystals with other biocompatible molecules. That’s very important for drug industry. 5-Fluorouracil (5-FU) and its derivatives as the first and the most important organic anticancer drugs have been widely investigated over sixty years [6]. Although our original intention is to combine some bioactive groups like 5-FU with coinage metal complexes [7], [8], [9], [10], we fail to get the target silver complex. Only salt title compound has been obtained and is reported here. The dimethylammonium part of the title compound deduces from the decomposition of DMF [11].

The title compound has four anions and four cations in the unit cell. The bond lengths and angles are in the normal ranges [4]. Similar to bis(4-dimethylamino-pyridin-1-ium) tetrafluorosuccinate [12], the 5-fluorouracil-1-acetate and dimethylammonium form strong N—H⋯O hydrogen bonds. The adjacent 5-FU groups are forming 5-FU and 5-FU mismatch basepairs via N—H⋯O duplicate hydrogen bonds. This observation is rarely reported in the crystal structures of 5-FU derivatives.

Acknowledgements

This work was financially supported by the Key Scientific Research Projects in 2017 at North Minzu University (No. 2017KJ07).

References

1. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

2. Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Version 3.2i. Crystal Impact, Bonn, Germany (2012).Search in Google Scholar

3. Bruker. APEX3 and SAINT. Bruker AXS Inc., Madison, WI, USA (2012).Search in Google Scholar

4. Hu, M. L.; Yuan, J. X.; Morsali, A.: LaIII complexes of uracil-1-acetic acid, [La(phen)X3]n, X = uracil-1-acetate (UA) and 5-fluorouracil-1-acetate (5-FUA), two 2D coordination polymer, structural and thermal studies. Solid State Sci. 8 (2006) 981–987.10.1016/j.solidstatesciences.2006.02.050Search in Google Scholar

5. Qiao, N.; Li, M.; Schlindwein, W.; Malek, N.; Davies, A.; Trappitt, G.: Pharmaceutical cocrystals: an overview. Int. J. Pharm. 419 (2011) 1–11.10.1016/j.ijpharm.2011.07.037Search in Google Scholar PubMed

6. Heidelberger, C.; Chaudhuri, N. K.; Danneberg, P.; Mooren, D.; Griesbach, L.; Duschinsky, R.; Schnitzer, R. J.; Pleven, E.; Scheiner, J.: Fluorinated pyrimidines, a new class of tumour-inhibitory compounds. Nature 179 (1957) 663–666.10.1038/179663a0Search in Google Scholar PubMed

7. Liu, K.-G.; Rouhani, F.; Shan, Q.-D.; Wang, R.; Li, J.; Hu, M.-L.; Cheng, X.; Morsali, A.: Ultrasonic-assisted fabrication of thin-film electrochemical detector of H2O2 based on ferrocene-functionalized silver cluster. Ultrason. Sonochem. 56 (2019) 305–312.10.1016/j.ultsonch.2019.04.009Search in Google Scholar PubMed

8. Li, J.-Z.; Bigdeli, F.; Gao, X.-M.; Wang, R.; Wei, X.-W.; Yan, X.-W.; Hu, M.-L.; Liu, K.-G.; Morsali, A.: Trivalent tetrahedral anion template: a 26-nucleus silver alkynyl cluster encapsulating vanadate. Inorg. Chem. 58 (2019) 5397–5400.10.1021/acs.inorgchem.9b00264Search in Google Scholar PubMed

9. Liu, K.-G.; Shan, Q.-D.; Nie, J.; Yan, X.-W.: A 2D supramolecular network based on aromatic π⋯π stacking interactions. Z. Anorg. Allg. Chem. 644 (2018) 82–85.10.1002/zaac.201700377Search in Google Scholar

10. Liu, K.-G.; Wang, R.; Han, H.-Y.; Shan, Q.-D.; Nie, J.; Yan, X.-W.: Incorporating ferrocenecarboxylato(-1) into a [CuI2(μ-dppm)2]2+ (dppm = bis(diphenylphosphino)methane) scaffold for hydrogen peroxide sensing. J. Coord. Chem. 71 (2018) 3500–3509.10.1080/00958972.2018.1521966Search in Google Scholar

11. Muzart, J. N.: N-Dimethylformamide: much more than a solvent. Tetrahedron 65 (2009) 8313–8323.10.1016/j.tet.2009.06.091Search in Google Scholar

12. Liu, K.-G.; Nie, J.: Crystal structure of bis(4-dimethylamino-pyridin-1-ium) tetrafluorosuccinate, C18H22F4N4O4. Z. Kristallogr. NCS 233 (2018) 321–323.10.1515/ncrs-2017-0318Search in Google Scholar

Received: 2019-09-12
Accepted: 2019-11-08
Published Online: 2019-12-20
Published in Print: 2020-02-25

©2019 Xiao Zhang et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
