Crystal structure and anti-inflammatory activity of (3E,5E)-1-((4-bromophenyl)sulfonyl)-3-(pyridin-4-ylmethylene)-5-(2-(trifluoromethyl)benzylidene)piperidin-4-one, C25H18BrF3N2O3S

  • Xian-Yong Bai , Qing-Guo Meng , Gui-Ge Hou ORCID logo and Yun Hou ORCID logo EMAIL logo
Published/Copyright: December 18, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 2

Abstract

C25H18BrF3N2O3S, monoclinic, P21/n (no. 14), a = 9.9295(11) Å, b = 21.755(2) Å, c = 10.2358(11) Å, β = 95.022(10)°, V = 2202.6(4) Å3, Z = 4, Rgt(F) = 0.0373, wRref(F2) = 0.0795, T = 100(1) K.

CCDC no.: 1868652

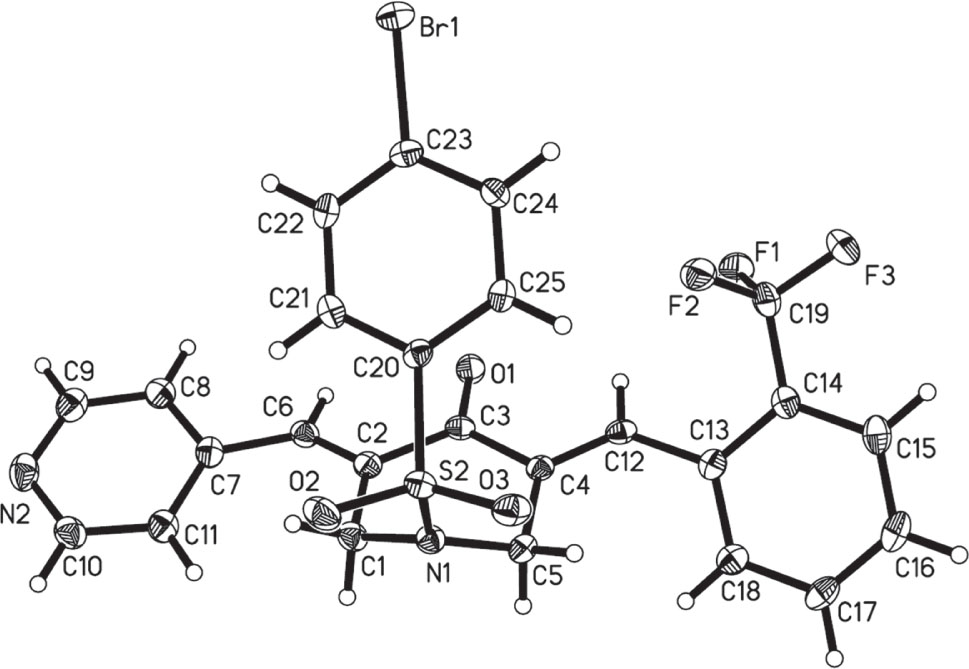

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.13 × 0.12 × 0.11 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:2.02 mm−1
Diffractometer, scan mode:SuperNova, ω
θmax, completeness:29.6°, >99%
N(hkl)measured, N(hkl)unique, Rint:12079, 5268, 0.033
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4330
N(param)refined:316
Programs:CrysAlisPRO [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Br10.94649(2)0.17973(2)0.23919(2)0.02123(8)
C10.6314(2)0.48747(10)0.2622(2)0.0189(5)
H1A0.7277000.4957260.2672760.023*
H1B0.5843720.5264520.2510110.023*
C20.5932(2)0.44730(10)0.1443(2)0.0166(5)
C30.4946(2)0.39606(10)0.1566(2)0.0169(5)
C40.4248(2)0.39128(10)0.2798(2)0.0157(5)
C50.4576(2)0.43918(10)0.3829(2)0.0175(5)
H5A0.3984470.4743020.3659710.021*
H5B0.4415150.4225850.4680750.021*
C60.6410(2)0.45364(10)0.0267(2)0.0187(5)
H60.6049420.426157−0.0365890.022*
C70.7400(2)0.49637(10)−0.0189(2)0.0188(5)
C80.7997(2)0.48110(11)−0.1330(2)0.0214(5)
H80.7733290.445593−0.1789420.026*
C90.8969(3)0.51825(12)−0.1773(2)0.0255(6)
H90.9354520.506655−0.2531100.031*
C100.8800(3)0.58616(11)−0.0110(2)0.0238(5)
H100.9067760.6225750.0312540.029*
C110.7805(2)0.55170(11)0.0408(2)0.0217(5)
H110.7410840.5652970.1146480.026*
C120.3408(2)0.34436(10)0.2906(2)0.0171(5)
H120.3353900.3157410.2228800.021*
C130.2558(2)0.33301(10)0.3982(2)0.0171(5)
C140.2337(2)0.27337(10)0.4443(2)0.0177(5)
C150.1478(2)0.26352(11)0.5412(2)0.0223(5)
H150.1330240.2237410.5700340.027*
C160.0837(2)0.31234(12)0.5957(2)0.0244(6)
H160.0258410.3054710.6608970.029*
C170.1057(2)0.37105(11)0.5533(2)0.0224(5)
H170.0636380.4040170.5909190.027*
C180.1897(2)0.38142(11)0.4553(2)0.0193(5)
H180.2025150.4213920.4267030.023*
C190.3092(2)0.22032(11)0.3935(2)0.0214(5)
C200.7680(2)0.35671(10)0.4060(2)0.0152(5)
C210.8570(2)0.36054(10)0.3094(2)0.0187(5)
H210.8822090.3987060.2786790.022*
C220.9082(2)0.30734(10)0.2590(2)0.0178(5)
H220.9676920.3093180.1938880.021*
C230.8701(2)0.25173(10)0.3062(2)0.0169(5)
C240.7802(2)0.24705(10)0.4012(2)0.0179(5)
H240.7551300.2086830.4310490.021*
C250.7277(2)0.30013(10)0.4517(2)0.0164(5)
H250.6664160.2978970.5152050.020*
F10.28225(14)0.21058(6)0.26410(12)0.0271(3)
F20.44372(13)0.22854(6)0.41137(13)0.0261(3)
F30.28415(16)0.16732(6)0.45231(14)0.0305(3)
N10.59818(19)0.45915(8)0.38476(17)0.0166(4)
N20.9401(2)0.57049(10)−0.11773(19)0.0270(5)
O10.47048(17)0.35949(7)0.06761(14)0.0217(4)
O20.82831(16)0.46570(7)0.48795(15)0.0231(4)
O30.65387(17)0.40849(7)0.59584(14)0.0214(4)
S20.71535(6)0.42498(2)0.47970(5)0.01684(13)

Source of material

The title compound was prepared in a two step protocol of a Claisen-Schmidt condensation followed by a N-sulfonylation. Firstly, 2-(trifluoromethyl)benzaldehyde (1.74 g, 10.0 mmol), 4-pyridinecarboxaldehyde (1.07 g, 10.0 mmol) and 4-piperidone hydrate hydrochloride (1.35 g, 10.0 mmol) were dissolved in dilute acetic acid (25 mL). This mixture was passed through by dry HCL gas for 30 min. After stirring at room temperature for 24 h (monitored by thin-layer chromatography (TLC)), the precipitate was collected and washed with cold acetone. The precipitates were added into 100 mL water, and the pH value was adjusted to 7 by aqueous Na2CO3 solution. The precipitates were filtered and washed by water. The crude product was purified on silica gel by column using methanol/petroleum ether/EtOAc (1:10:10, v/v/v) as the eluent to afford intermediates. Secondly, the intermediate (0.69 g, 2.0 mmol), and 4-bromobenzenesulfonyl chloride (0.46 g, 2.2 mmol) were dissolved in dichloromethane (50 mL). Two drops of pyridine were added. After stirring for 6 h at room temperature, the precipitate was collected, washed with water and recrystallized from dichloromethane/methanol (1:1, v/v) to get light yellow crystals of title compound.

The anti-inflammatory activities of title compound were evaluated by inhibition of LPS-induced NO secretion on mouse RAW264.7 macrophages. Pyrrolidine dithiocarbamate (PDTC) was used as a reference standard. When the concentration of the title compound was 6.0 μM, it had no significant toxicity on experimental RAW264.7 cells. Firstly, RAW264.7 cells were pretreated for 2.0 hours with 30 μM of PDTC or 6.0 μM of title compound, respectively. Secondly, the cells were treated with LPS (1.0 μg/mL) for 22 h, and then the collected culture media were centrifuged at 1000 rpm for 10 min. The expression levels of NO secretion in the media were determined by ELISA with an ELISA kit (eBioScience, San Diego, CA). The experiment was carried out in triplicate.

Experimental details

The H atoms were placed in idealized positions and treated as riding on their parent atoms, with d(C—H) = 0.97 Å (methylene), Uiso(H) = 1.2Ueq(C), and d(C—H) = 0.93 Å (aromatic), Uiso(H) = 1.2Ueq(C).

Comment

Curcumin analogues, like the 3,5-bis(arylidene)-4-piperidone (BAPs), contain two α,β-unsaturated keto groups, and have greater predilection or sequential interaction for bio-thiols in tumors rather than normal cells [4], [5]. Some BAPs with antitumor and anti-inflammatory properties better than curcumin [6] were reported by our group [7], [8], [9]. They involve some strong electron-withdrawing groups (-NO2, -CN, -CF3) and electron-donating substitutes (-NHAc, -OMe, -CMe3) improving antitumor and anti-inflammatory activity to different extent [10], [11], [12].

An asymmetric BAP is obtained by the use of a 4-pyridine substituent, and a trifluoromethylphenyl substituent, respectively (see the figure) [8]. Our interests lie in incorporation of different substituents on the end of N-phenylsulfonyl substituent, and find the desired and improved antitumor and anti-inflammatory activities.

Single-crystal structure analysis reveals that the title compound contains one drug molecule in the asymmetric unit (cf. the figure). Bond lengths and angles are all in the expected ranges. The pyridyl and arylidene moieties on both sides of central piperidone adopt the E stereochemistry [13, 14] . The dihedral angle between the mean plane of the pyridyl and the mean plane of the piperidone moiety is 12°, while the dihedral angle between the mean plane of the aryl and the mean plane of the piperidone moiety is 46°. In addition, the N-phenylsulfonyl substituents are going to stretch in the direction of the carbonyl group of the central piperidone. The title compound looks like an “organic clip” [15], [16]. The dihedral angle between the mean plane of the N-phenylsulfonyl and the mean plane of the piperidone ring is 42°.

In our study, the effect of title compound on pro-inflammatory cytokine (NO) production in mouse RAW264.7 cells induced by LPS was examined by ELISA. PDTC was as a reference standard. After treatment with PDTC, the expression rate for NO production in RAW264.7 cells was 68.32 ± 2.69%. For title compound, the expression rate of NO production could reach 55.39 ± 0.91%. The result showed that title compound displayed potential inhibitory effect on LPS-induced NO secretion than PDTC [8], [17].

Acknowledgements

This work was supported by the National Natural Science Foundation of China (no. 81601049) and Shandong Provincial Natural Science Foundation (No. ZR2019MB032).

References

1. Rigaku, O. D.: CrysAlisPRO. Rigaku Oxford Diffraction Ltd, Yarnton, Oxfordshire, England (2017).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Li, N.; Xin, W. Y.; Yao, B. R.; Cong, W.; Wang, C. H.; Hou, G. G.: N-phenylsulfonyl-3,5-bis(arylidene)-4-piperidone derivatives as activation NF-κB inhibitors in hepatic carcinoma cell lines. Eur. J. Med. Chem. 155 (2018) 531–544.10.1016/j.ejmech.2018.06.027Search in Google Scholar PubMed

5. Zhang, L. S.; Chen, Q.; Hou, G. G.; Zhao, W.; Hou, Y.: Hydroxyl-substituted double Schiff-base condensed 4-piperidone/cyclohexanones as potential anticancer agents with biological evaluation. J. Enzyme Inhib. Med. Chem. 34 (2019) 264–271.10.1080/14756366.2018.1501042Search in Google Scholar PubMed PubMed Central

6. Nelson, K. M.; Dahlin, J. L.; Bisson, J.; Graham, J.; Pauli, G. F.; Walters, M. A.: The essential medicinal chemistry of curcumin. J. Med. Chem. 60 (2017) 1620–1637.10.1021/acs.jmedchem.6b00975Search in Google Scholar PubMed PubMed Central

7. Li, N.; Xin, W. Y.; Yao, B. R.; Wang, C. H.; Cong, W.; Zhao, F.; Li, H. J.; Hou, Y.; Meng, Q. G.; Hou, G. G.: Novel dissymmetric 3,5-bis(arylidene)-4-piperidones as potential antitumor agents with biological evaluation in vitro and in vivo. Eur. J. Med. Chem. 147 (2018) 21–33.10.1016/j.ejmech.2018.01.088Search in Google Scholar PubMed

8. Yao, B. R.; Sun, Y.; Chen, S. L.; Suo, H. D.; Zhang, Y. L.; Wei, H.; Wang, C. H.; Zhao, F.; Cong, W.; Xin, W. Y.; Hou, G. G.: Dissymmetric pyridyl-substituted 3,5-bis(arylidene)-4-piperidones as anti-hepatoma agents by inhibiting NF-κB pathway activation. Eur. J. Med. Chem. 167 (2019) 187–199.10.1016/j.ejmech.2019.02.020Search in Google Scholar PubMed

9. Li, N.; Bai, X. Y.; Zhang, L. S.; Hou, Y.: Synthesis, crystal structures and anti-inflammatory activity of four 3,5-bis(arylidene)-N-benzenesulfonyl-4-piperidone derivatives. Acta Cryst. C74 (2018) 1171–1179.10.1107/S2053229618013232Search in Google Scholar PubMed

10. Liu, L. D.; Liu, S. L.; Hou, G. G.: Crystal structure of 4-((E)-((E)-5-(2-fluorobenzylidene)-1-((4-fluorophenyl)sulfonyl)-4-oxopiperidin-3-ylidene)methyl)benzonitrile, C26H18F2N2O3S. Z. Kristallogr. NCS 233 (2018) 1063–1065.10.1515/ncrs-2018-0174Search in Google Scholar

11. Li, X. Y.; Meng, Q. G.; Hou, G. G.: Crystal structure of (3E,5E)-3,5-bis(4-cyanobenzylidene)-1-((4-fluorophenyl)sulfonyl)piperidin-4-one, C27H18FN3O3S. Z. Kristallogr. NCS 234 (2019) 771–773.10.1515/ncrs-2019-0097Search in Google Scholar

12. Sun, Y.; Wang, S. X.; Hou, G. G.: Crystal structure of (3E,5E)-3,5-bis(3-nitrobenzylidene)-1-((4-(trifluoromethyl)phenyl)sulfonyl)piperidin-4-one-dichloromethane (2/1), C53H38Cl2F6N6O14S2. Z. Kristallogr. NCS 234 (2019) 1047–1049.10.1515/ncrs-2019-0253Search in Google Scholar

13. Yao, B. R.; Li, N.; Wang, C. H.; Hou, G. G.; Meng, Q. G.; Yan, K.: Novel asymmetric 3,5-bis(arylidene)piperidin-4-one derivatives: synthesis, crystal structures and cytotoxicity. Acta Crystallogr. C74 (2018) 659–665.10.1107/S2053229618006605Search in Google Scholar PubMed

14. Su, C. M.; Hou, G. G.; Wang, C. H.; Zhang, H. Q.; Yang, C.; Liu, M.; Hou, Y.: Potential multifunctional agents with anti-hepatoma and anti-inflammation properties by inhibiting NF-κB activation. J. Enzyme Inhib. Med. Chem. 34 (2019) 1287–1297.10.1080/14756366.2019.1635124Search in Google Scholar PubMed PubMed Central

15. Hou, G. G.; Zhao, H. J.; Sun, J. F.; Lin, D.; Dai, X. P.; Han, J. T.; Zhao, H.: Synthesis, structure and luminescence of Co-crystals with hexagonal channels: arranging disposition and π–π interactions. CrystEngComm 15 (2013) 577–585.10.1039/C2CE25759ASearch in Google Scholar

16. Dong, Y. B.; Sun, T.; Ma, J. P.; Zhao, X. X.; Huang, R. Q.: Ag(I) and Cu(II) discrete and polymeric complexes based on single- and double-armed oxadiazole-bridging organic clips. Inorg. Chem. 45 (2006) 10613–10628.10.1021/ic0612552Search in Google Scholar PubMed

17. He, G.; Karin, M.: NF-κB and STAT3-key players in liver inflammation and cancer. Cell Res. 21 (2011) 159–168.10.1038/cr.2010.183Search in Google Scholar PubMed PubMed Central

Received: 2019-09-21
Accepted: 2019-11-20
Published Online: 2019-12-18
Published in Print: 2020-02-25

©2019 Xian-Yong Bai et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
