The crystal structure of (5-chloro-2-hydroxy-N-(4-methoxy-2-oxidobenzylidene)benzohydrazonato-κ3N,O,O′)-(pyridine-κ1N)copper(II), C20H16ClCuN3O4

  • Wang Xin , Li Shuli , Yang Liguo ORCID logo EMAIL logo , Song Haixiang and Niu Yongsheng
Published/Copyright: December 5, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 2

Abstract

C20H16ClCuN3O4, triclinic, P1̄ (no. 2), a = 7.629(4) Å, b = 8.893(5) Å, c = 14.193(8) Å, α = 88.603(6)°, β = 81.093(6)°, γ = 83.715(6)°, V = 945.6(9) Å3, Z = 2, Rgt(F) = 0.0245, wRref(F2) = 0.0709, T = 296(2) K.

CCDC no.: 1964895

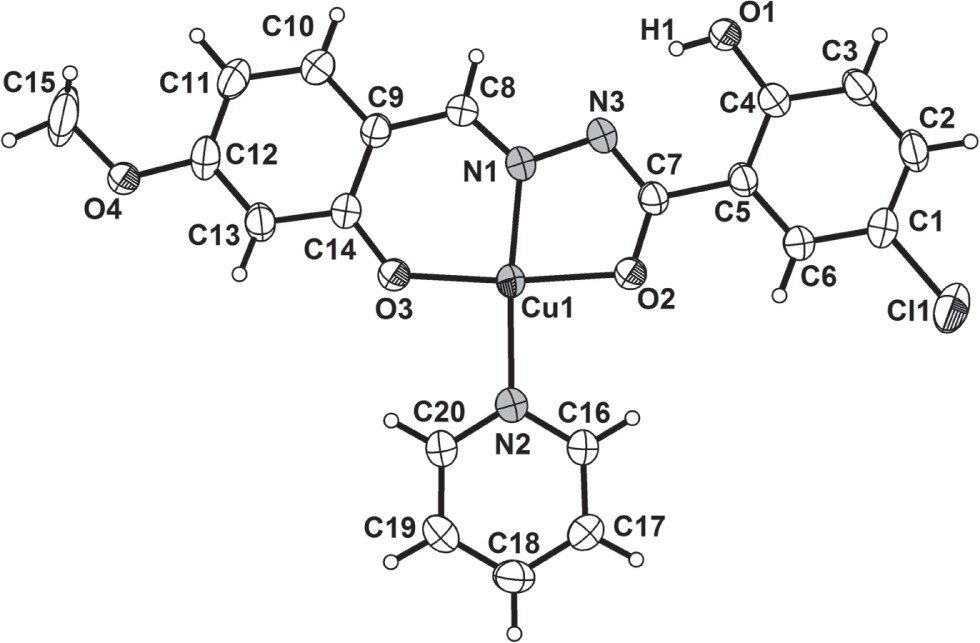

The crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.33 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω-scans
θmax, completeness:27.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:27248, 4325, 0.022
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4033
N(param)refined:264
Programs:Bruker programs [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cu10.19265(2)0.48068(2)0.54625(2)0.03257(7)
N10.33452(17)0.62957(14)0.48025(9)0.0322(3)
O10.5673(2)0.94101(15)0.59279(9)0.0531(3)
H10.53450.88530.55530.080*
Cl10.25167(10)0.82672(8)0.98876(4)0.07745(19)
C10.3469(3)0.8565(2)0.87016(12)0.0448(4)
C20.4604(3)0.9683(2)0.84987(13)0.0464(4)
H20.48721.02590.89860.056*
O20.24477(15)0.58381(13)0.65634(8)0.0372(2)
N20.12065(17)0.29834(14)0.62477(9)0.0336(3)
O30.13323(15)0.40800(13)0.43103(8)0.0371(2)
N30.39653(18)0.72729(15)0.54005(9)0.0362(3)
C30.5333(2)0.99298(19)0.75623(13)0.0438(4)
H30.60961.06790.74210.053*
C40.4945(2)0.90753(18)0.68250(12)0.0368(3)
O40.1675(2)0.3031(2)0.10903(10)0.0660(4)
C50.3828(2)0.79102(17)0.70432(11)0.0328(3)
C60.3092(2)0.76768(19)0.79939(11)0.0387(3)
H60.23460.69190.81480.046*
C70.33859(19)0.69396(17)0.62998(11)0.0320(3)
C80.3831(2)0.64364(17)0.38936(11)0.0339(3)
H80.45870.71660.36790.041*
C90.3267(2)0.55272(17)0.31959(10)0.0329(3)
C100.3919(2)0.5777(2)0.22270(11)0.0413(4)
H100.47050.65060.20720.050*
C110.3443(3)0.4992(2)0.14997(12)0.0465(4)
H110.38850.51910.08660.056*
C120.2279(2)0.3887(2)0.17393(12)0.0435(4)
C130.1631(2)0.35871(19)0.26819(11)0.0391(3)
H130.08770.28310.28230.047*
C140.20797(19)0.43926(17)0.34310(10)0.0324(3)
C150.2294(4)0.3250(4)0.01095(16)0.0907(10)
H15A0.18900.4258−0.00770.136*
H15B0.18360.2533−0.02580.136*
H15C0.35740.3108−0.00020.136*
C160.1098(2)0.2974(2)0.72013(12)0.0425(4)
H160.14290.38010.74930.051*
C170.0515(3)0.1789(2)0.77645(13)0.0476(4)
H170.04550.18240.84230.057*
C180.0024(3)0.0560(2)0.73497(14)0.0489(4)
H18−0.0375−0.02500.77170.059*
C190.0137(3)0.0558(2)0.63768(15)0.0628(6)
H19−0.0187−0.02620.60740.075*
C200.0731(3)0.1774(2)0.58478(13)0.0503(4)
H200.08050.17520.51880.060*

Source of material

2-Hydroxy-4-methoxybenzaldehyde 5-chlorosalicylhydrazide (0.32 g, 1 mmol) in 10 mL methanol and 1 mL pyridine was stirred at room temperature for 1 h. The mixture was filtered, and left at room temperature. After a few days, colourless block crystals formed. Yield (0.22 g, 50%).

Experimental details

The C-bound H atoms were geometrically placed (C—H = 0.95–0.98 Å) and refined as riding with Uiso(H) = 1.2–1.5 Ueq(C). The N-bound H atoms were located in a difference Fourier map but were refined with a distance restraint of N—H = 0.88 ± 0.01 Å, and with Uiso(H) set to 1.2 Uequiv(N) [1], [2], [3].

Discussion

Polydentate Schiff base ligands are important for the development of the coordination chemistry [4], [5]. Aroylhydrazone Schiff bases are one type of a polydentate ligand, which are known for a variety of molecular architectures and coordination polyhedra [6], [7], [8]. The metal complexes of such Schiff bases have several applications in biological probes [9], DNA cleaving agents [10], catalysts [11], sensing matrials [12] and corrosion inhibitors [13]. The Schiff base ligand has been synthesized by our group. The figure shows the title compound. The complex consists of one ligand, one pyridine molecule and one Cu atom. A similar complex has been reported [14]. The Cu atom is in a slightly distorted square coordination environment, with two oxygen atoms and one nitrogen atom from the chelate ligand, one nitrogen atom from the pyridine molecule. The bond lengths of Cu1—O2, Cu1—O3, Cu1—N1 and Cu—N2 are 1.945, 1.909, 1.934 and 2.022 Å, respectively, which are as expected [15].

Acknowledgements

The authors gratefully acknowledge Scientific and technological project of Henan province (192102310232), the Anyang Key Laboratory for Chemical Biosensing (21302003), Key discipline of environmental engineer of Anyang Institute of Technology.

References

1. SMART and SAINT for Windows NT Software Reference Manuals, Version 5.0, Bruker Analytical X-Ray Systems, Madison, WI (1997).Search in Google Scholar

2. Sheldrick, G. M.: SADABS, A software for empirical absorption correction; University of Göttingen: Göttingen, Germany (1997).Search in Google Scholar

3. SHELXL Reference Manual, version 5.1; Bruker analytical X-ray systems: Madison, WI (1997).Search in Google Scholar

4. Uppadine, L. H.; Lehn, J. M.: Three-level synthetic strategy towards mixed valence and hheterometallic [2×2] Gridlike Arrays. Angew. Chem. Int. Edit. 47 (2004) 240–243.10.1002/anie.200352937Search in Google Scholar

5. Ruiz-Perez, C.; Gonzalez-Platas, J.; Lotter, H.; Lezama, L.; Solans, X.; Dominguez, S.; Zarza, P. M.; Rocio, M. J.; Palacios, M. S.; Gili, P.: Structure and properties of Cu (II)(o-hydroxypropiophenone-salicylhydrazide) (2, 2′-bipyridyl)[Cu (OHP-SHZ)(bipy)] and Cu (II)(o-hydroxypropiophenone-salicylhydrazide)(2, 2′-bipyridylamine) monohydrate [Cu(OHP-SHZ)(bipyam)] H2O. Inorg. Chim. Acta. 255 (1997) 139–148.10.1016/S0020-1693(96)05375-3Search in Google Scholar

6. Banerjee, S.; Mondal, S.; Sen, S.; Das, S.; Hughes, D. L.; Rizzoli, C.; Desplanches, C.; Mandal, C.; Mitra, S.: Four new dinuclear Cu (II) hydrazone complexes using various organic spacers: syntheses, crystal structures, DNA binding and cleavage studies and selective cell inhibitory effect towards leukemic and normal lymphocytes. Dalton Trans. 34 (2009) 6849–6860.10.1039/b903072gSearch in Google Scholar PubMed

7. Gaur, R.; Mishra, L.: Synthesis and characterization of Ru (II)-DMSO-Cl-chalcone complexes: DNA binding, nuclease, and topoisomerase II inhibitory activity. Inorg. Chem. 51 (2012) 3059–3070.10.1021/ic202440rSearch in Google Scholar PubMed

8. Lee, J. Y.; Farha, O. K.; Roberts, J.;Scheidt, K. A.; Nguyen, S. T.; Hupp, J. T.: Metal-organic framework materials as catalysts. Chem. Soc. Rev. 38 (2009) 1450–1459.10.1039/b807080fSearch in Google Scholar PubMed

9. Singh, D. P.; Raghuvanshi, D. S.; Singh, K. N.; Singh, V. P.: Synthesis, characterization and catalytic application of some novel binuclear transition metal complexes of bis-(2-acetylthiophene) oxaloyldihydrazone for CN bond formation. J. Mol. Catal. A: Chem. 379 (2013) 21–29.10.1016/j.molcata.2013.07.011Search in Google Scholar

10. Singh, V. P.; Tiwari, K.; Mishra, M.; Srivastava, N.; Saha, S.: 5-[{(2-Hydroxynaphthalen-1-yl) methylene} amino] pyrmidine-2,4(1H, 3H)-dione as Al3+ selective colorimetric and fluorescent chemosensor. Sens. Actuators. B. 182 (2013) 546–554.10.1016/j.snb.2013.03.083Search in Google Scholar

11. Sahana, A.; Banerjee, A.; Das, S.; Lohar, S.; Karak, D.; Sarkar, B.; Mukhopadhyay, S. K.; Mukherjee, A. K.; Das, D.: A naphthalene-based Al3+selective fluorescent sensor for living cell imaging. Org. Bio. Chem. 9 (2011) 5523–5529.10.1039/c1ob05479aSearch in Google Scholar PubMed

12. Fouda, A. S.; Gouda, M. M.; Abd EI-Rahman, S. I.: 2-Hydroxyacetophenone-aroyl hydrazone derivatives as corrosion inhibitors for copper dissolution in nitric acid solution. Bull. Korean. Chem. Soc. 21 (2000) 1085–1089.Search in Google Scholar

13. Wilcox, D. E.: Binuclear metallohydrolases. Chem. Rev. 96 (1996) 2435–2458.10.1021/cr950043bSearch in Google Scholar PubMed

14. Han, Y. Y.; Zhao, Q. R.: N′-(2-chlorobenzylidene)-2-hydroxy-3-methylbenzohydrazide. Acta. Crystallogr. E66 (2010) o1025.10.1107/S1600536810012110Search in Google Scholar PubMed PubMed Central

15. Mishra, M.; Tiwari, K.; Singh, A. K.; Singh, V. P.: Synthesis, structural and corrosion inhibition studies on Mn(II), Cu(II) and Zn(II) complexes with a Schiff base derived from 2-hydroxypropiophenone. Polyhedron 77 (2014) 57–65.10.1016/j.poly.2014.04.003Search in Google Scholar

Received: 2019-10-13
Accepted: 2019-11-11
Published Online: 2019-12-05
Published in Print: 2020-02-25
