Synthesis and crystal structure of (1E,3E)-2-hydroxy-5-methylisophthalaldehyde O,O-di(2-((((E)-(2-hydroxynaphthalen-1-yl)methylene)amino)oxy)ethyl) dioxime, C35H32N4O7

  • Ying-Qi Pan , Meng Yu , Yu Zhang and Wen-Kui Dong ORCID logo EMAIL logo
Published/Copyright: December 5, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 2

Abstract

C35H32N4O7, triclinic, P1̄ (no. 2), a = 9.3625(6) Å, b = 12.7558(7) Å, c = 14.5965(9) Å, α = 68.833(2)°, β = 80.891(2)°, γ = 69.242(2)°, V = 1519.15(16) Å3, Z = 2, Rgt(F) = 0.0447, wRref(F2) = 0.1500, T = 296(2) K.

CCDC no.: 1955989

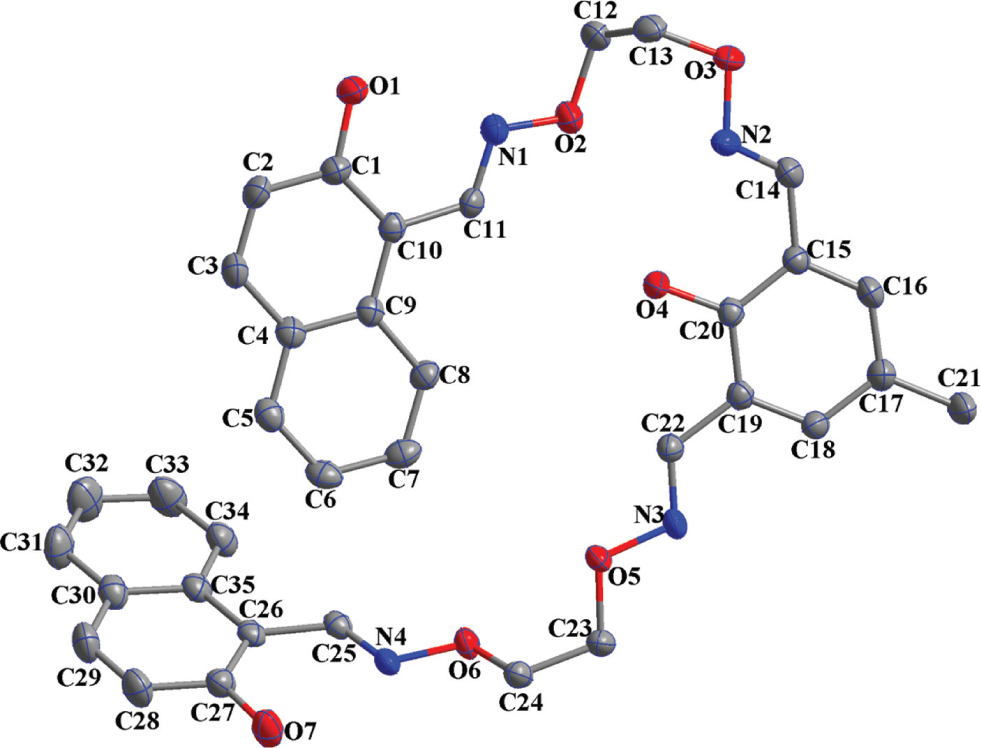

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Pale-yellow block
Size:0.27 × 0.25 × 0.22 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.10 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:25.0°, 99%
N(hkl)measured, N(hkl)unique, Rint:11069, 5310, 0.036
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4002
N(param)refined:419
Programs:Bruker [1], Olex2 [2], SHELX [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.2740(3)0.75453(17)0.50150(16)0.0282(5)
C20.3722(3)0.76707(18)0.55753(17)0.0318(5)
H20.3776970.8418260.5474490.038*
C30.4588(3)0.67054(19)0.62620(16)0.0301(5)
H30.5215610.6802330.6638470.036*
C40.4556(2)0.55499(18)0.64170(15)0.0259(5)
C50.5538(3)0.45324(18)0.70817(16)0.0300(5)
H50.6184380.4624940.7448090.036*
C60.5557(3)0.34167(19)0.71972(16)0.0320(5)
H60.6226170.2755330.7626500.038*
C70.4558(3)0.32782(18)0.66624(16)0.0318(5)
H70.4566500.2519070.6741800.038*
C80.3577(2)0.42352(17)0.60297(16)0.0266(5)
H80.2909010.4118860.5695560.032*
C90.3548(2)0.54112(17)0.58673(15)0.0230(5)
C100.2600(2)0.64453(17)0.51634(15)0.0237(5)
C110.1477(2)0.63527(17)0.46331(15)0.0252(5)
H110.1299920.5631560.4803430.030*
C12−0.1103(3)0.79848(18)0.27607(17)0.0331(5)
H12A−0.1023150.8705090.2799930.040*
H12B−0.2180260.8079230.2777450.040*
C13−0.0393(3)0.78361(18)0.18085(17)0.0328(5)
H13A−0.0694700.8599350.1290120.039*
H13B0.0710200.7567550.1845170.039*
C14−0.0666(3)0.50879(18)0.21698(16)0.0293(5)
H14−0.1474680.5319460.1766310.035*
C15−0.0038(2)0.38449(17)0.27799(15)0.0246(5)
C16−0.0517(3)0.29950(18)0.26418(16)0.0290(5)
H16−0.1213400.3237640.2157810.035*
C170.0010(3)0.17973(18)0.32023(16)0.0291(5)
C180.1039(2)0.14602(17)0.39273(15)0.0253(5)
H180.1404700.0663770.4309140.030*
C190.1543(2)0.22774(17)0.41013(15)0.0230(5)
C200.1003(2)0.34778(17)0.35186(15)0.0232(5)
C21−0.0526(3)0.08991(19)0.30332(19)0.0420(7)
H21A−0.1434490.1302910.2658130.063*
H21B−0.0743790.0365700.3654780.063*
H21C0.0258920.0457130.2679070.063*
C220.2593(3)0.19266(17)0.48840(15)0.0256(5)
H220.2865730.2508440.4986030.031*
C230.4650(3)−0.03924(17)0.67766(16)0.0274(5)
H23A0.520226−0.0944660.6427540.033*
H23B0.379101−0.0628960.7141060.033*
C240.5679(2)−0.03840(17)0.74589(15)0.0264(5)
H24A0.620743−0.1188920.7862000.032*
H24B0.643494−0.0018990.7087890.032*
C250.4894(2)0.12087(17)0.90608(14)0.0242(5)
H250.3838960.1530810.9004570.029*
C260.5647(2)0.15566(17)0.96514(14)0.0242(5)
C270.7219(3)0.10693(18)0.97643(16)0.0275(5)
C280.7970(3)0.1447(2)1.02896(17)0.0356(6)
H280.9016500.1093041.0375970.043*
C290.7173(3)0.2321(2)1.06681(17)0.0374(6)
H290.7693810.2587761.0982130.045*
C300.5563(3)0.28404(19)1.05980(16)0.0318(5)
C310.4738(3)0.3726(2)1.10191(19)0.0448(7)
H310.5260130.3984601.1339710.054*
C320.3187(3)0.4211(2)1.0965(2)0.0497(7)
H320.2656310.4803431.1237730.060*
C330.2404(3)0.3805(2)1.04933(19)0.0455(7)
H330.1344500.4119611.0469100.055*
C340.3174(3)0.2951(2)1.00667(16)0.0338(5)
H340.2628500.2700150.9755580.041*
C350.4782(3)0.24487(18)1.00924(15)0.0265(5)
N10.0733(2)0.72409(15)0.39411(13)0.0277(4)
N2−0.0103(2)0.58537(14)0.21910(13)0.0280(4)
N30.3142(2)0.08539(14)0.54279(12)0.0255(4)
N40.5661(2)0.04671(14)0.86184(12)0.0250(4)
O10.1957(2)0.85582(12)0.43273(12)0.0370(4)
H10.1430770.8405630.4026040.055*
O2−0.04058(18)0.69986(13)0.36053(11)0.0354(4)
O3−0.08315(19)0.70003(12)0.15647(11)0.0347(4)
O40.14830(19)0.42582(12)0.37205(11)0.0319(4)
H40.1115970.4926850.3331340.048*
O50.41295(17)0.07882(12)0.61031(10)0.0285(4)
O60.47299(16)0.02884(12)0.80667(10)0.0267(4)
O70.81160(18)0.02206(14)0.93834(12)0.0381(4)
H7A0.7591480.0070390.9079060.057*

Source of material

The starting materials 1,2-bis(aminooxy)ethane and 2-[O-(1-ethyloxyamide)]oxime-2-naphthol can also be prepared according to similar reports [4]. To an ethanol solution (10 mL) of 2-hydroxy-5-methyl-1,3-benzenedialdehyde (164 mg, 1 mmol) was added an ethanol solution (20 mL) of 2-[O-(1-ethyloxyamide)]oxime-2-naphthol (492 mg, 2 mmol). The mixed solution was heated under refluxing for 4 h, then the solution was concentrated under reduced pressure and recrystallized from trichloromethane/ethanol (v/v, 1:5). Yield: 54.5%. Elemental analysis: Anal. Calcd. for C35H32N4O7(%): C, 67.73; H, 5.20; N, 9.03. Found (%): C, 67.85; H, 5.09; N, 8.92. A small amount of the title compound was dissolved in a methylene chloride/methanol (v/v, 2:5) solution (7 mL), and the filtrate was left undisturbed for about one week to form pale-yellow block crystals.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Discussion

As is generally known, salen compound and its derivatives are a class of very important N2O2 chelating ligands in inorganic chemistry [5], their metal complexes not only show a variety of catalytic and optical properties [6], but also have some advantages in the field of antibiosis, treatment of tumors, biological activities and so on [7]. Salamo compounds form metal complexes with interesting properties. Now, the synthesis of structurally-specific salamo metal complexes with superior properties for applications has become an important chemical field [8], [9].

The current work reports the synthesis of the title compound. All bond lengths are in normal ranges [10]. X-ray crystallographic data reveals that the title compound crystallizes in the triclinic, space group P1̄, and the overall molecule of the title ligand has a C-type structure (see the figure). In addition, there are three intramolecular O1—H1⋯N1, O4—H4⋯N2, and O7—H7A⋯N4 hydrogen bonds and some weak intermolecular C—H⋯O hydrogen bonds.

References

1. Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2012).Search in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis programm. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

3. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

4. Liu, L. Z.; Yu, M.; Li, X. Y.; Kang, Q. P.; Dong, W. K.: Syntheses, structures, hirshfeld analyses and fluorescent properties of two Ni(II) and Zn(II) complexes constructed from a bis(salamo)-like ligand. Chin. J. Inorg. Chem. 35 (2019) 1283–1294.Search in Google Scholar

5. An, X. X.; Zhao, Q.; Mu, H. R.; Dong, W. K.: A new half-salamo-based homo-trinuclear nickel(II) complex: crystal structure, Hirshfeld surface analysis, and fluorescence properties. Crystals 9 (2019) 101.10.3390/cryst9020101Search in Google Scholar

6. Li, X. Y.; Kang, Q. P.; Liu, C.; Zhang, Y.; Dong, W. K.: Structurally characterized homo-trinuclear ZnII and hetero-pentanuclear [ZnII4LnIII] complexes constructed from an octadentate bis(Salamo)-based ligand: Hirshfeld surfaces, fluorescence and catalytic properties. New J. Chem. 43 (2019) 4605–4619.10.1039/C9NJ00014CSearch in Google Scholar

7. Li, X. Y.; Kang, Q. P.; Liu, L. Z.; Ma, J. C.; Dong, W. K.: Trinuclear Co(II) and mononuclear Ni(II) salamo-type bisoxime coordination compounds. Crystals 8 (2018) 43.10.3390/cryst8010043Search in Google Scholar

8. Akine, S.; Nabeshima, T.: Cyclic and acyclic oligo (N2O2) ligands for cooperative multi-metal complexation. Dalton Trans. 47 (2009) 10395–10408.10.1039/b910989gSearch in Google Scholar PubMed

9. Kang, Q. P.; Li, X. Y.; Wang, L.; Zhang, Y.; Dong, W. K.: Containing-PMBP N2O2-donors transition metal(II) complexes: synthesis, crystal structure, Hirshfeld surfaces analyses and fluorescence properties. Appl. Organomet. Chem. 33 (2019) e5013.10.1002/aoc.5013Search in Google Scholar

10. Dong, W.-K.; Duan, J.-G.; Chai, L.-Q.; Liu, G.-L.; Wu, H.-L.: Synthesis and structural characterization of new trinuclear cobalt(II) and nickel(II) complexes possessing five- and six-coordinated geometry. J. Coord. Chem. 61 (2008) 1306–1315.10.1080/00958970701573178Search in Google Scholar
